Siirry sivupalkkiinSiirry alaosaanNew Holland TC5050 – TC5080






The aging TC series, manufactured in Poland, was renewed in the summer of 2007 as the TC5000 series. The threshing technology remained mostly unchanged. The smallest model, the 5050, had 4 threshing bars, while the larger ones had 5 threshing bars. The RS model featured a post-threshing reel. The engines were Iveco NEFs, compliant with the latest emission regulations. In Finland, all models were equipped with hydrostatic drive transmission. There were now only three gears, but the driving speed in the larger models had increased to 30 km/h.

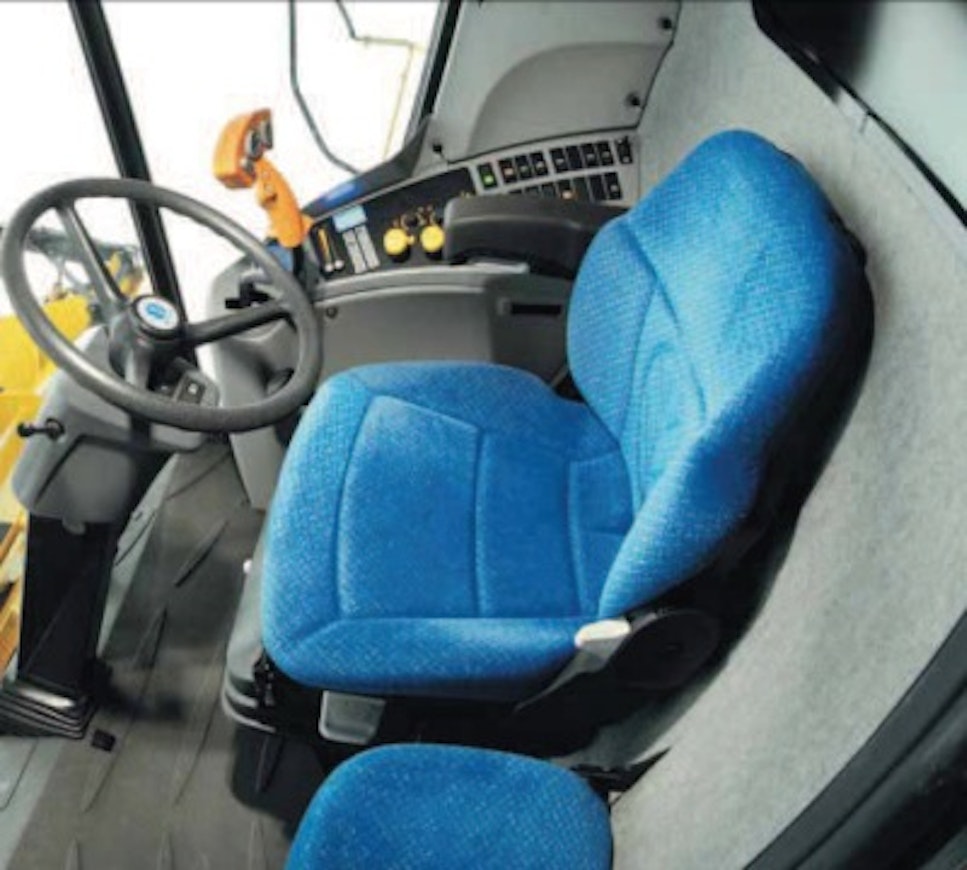

The connections for the threshing mechanism, header, and unloading were operated electro-hydraulically. The chopper coupling was replaced with a disc clutch. The grain tank of the 5-bar models had grown to 60 hectoliters. The basic structure of the cabin also remained unchanged. The noise level dropped to 80.5 dB. The controls were thoroughly updated and centralized on a side panel. The 5080 featured an air-suspended seat. Air conditioning, a passenger seat, a threshing loss monitor, and foldable dividers were standard in all models.
This is an automated translation. Please report any issues in the translation.
| Model | TC5040 | TC5050 | TC5060 | TC5070 | TC5080 RS |
|---|---|---|---|---|---|
| Imported to Finland | No | Yes | No | Yes | Yes |
| Years | 2007-11 | 2007-11 | 2007-11 | 2007-11 | 2007-11 |
| Engine | Iveco | Iveco | Iveco | Iveco | Iveco |
| Engine type | NEF | NEF | NEF | NEF | NEF |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - | - |
| Fuel tank | 300 l | 300 l | 300 l | 400 l | 400 l |
| Transmission | mech. | hydr. | mech. | hydr. | hydr. |
| Gears | 4 | 3 | 4 | 3 | 3 |
| Speed min-max. | 1,6-25 km/h | 0-25 km/h | 1,6-25 km/h | 0-30 km/h | 0-30 km/h |
| Cutting width | 396 cm | 396 cm | 457 cm | 457 cm | 518 cm |
| Cutting width, alternative | 366-457 cm | 366-457 cm | 366-603 cm | 366-603 cm | 366-603 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 104 cm | 104 cm | 130 cm | 130 cm | 130 cm |
| Number of straw walkers | 4 | 4 | 5 | 5 | 5 |
| Area of walkers | 400 dm² | 400 dm² | 500 dm² | 500 dm² | 436 dm² |
| Lenght of walkers | 389 cm | 389 cm | 389 cm | 389 cm | 330 cm |
| Straw shieve | 174 dm² | 174 dm² | 219 dm² | 219 dm² | 219 dm² |
| Bottom shieve | 136 dm² | 136 dm² | 171 dm² | 171 dm² | 171 dm² |
| Total screening area | 329 | 329 | 413 | 413 | 413 |
| Overall lenght | 932 cm | 932 cm | 932 cm | 932 cm | 932 cm |
| Overall width | 429 cm | 429 cm | 490 cm | 490 cm | 551 cm |
| Width without header | 330 cm | 330 cm | 350 cm | 350 cm | 360 cm |
| Height with cabin | 383 cm | 383 cm | 380 cm | 380 cm | 380 cm |
| Weight with cabin | 8700 kg | 8700 kg | 9900 kg | 9900 kg | 9950 kg |
| Weight without header | 7600 kg | 7600 kg | 8520 kg | 8520 kg | 8720 kg |
| Grain tank | 40 hl | 40 hl | 52 hl | 60 hl | 60 hl |
| Unl. height | 392 cm | 392 cm | 392 cm | 392 cm | 399 cm |
| Tyres front (Finland) | 18.4R30 | 750/70LR26 | 620/75R26 | 750/70LR26 | 800/65R32 |
| Tyres front, alternative | 620/75R26 | 620/75R26 | 750/70LR26 | 620/75R30 | 620/75R30 |
| Tyres rear (Finland) | 13/65-18 | 400/70-20 | 13/65-18 | 400/70-20 | 400/70-20 |
| Tyres rear, alternative | 400/70-20 | 13/65-18 | 16/70-20 | 13/65-18 | 13/65-18 |
| Reel forward/backw. adjustment | elec. | elec. | elec. | elec. | elec. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | autom. |
| Air conditioning | - | x | - | x | x |
| Heating | - | x | - | x | x |
| Grain loss indicator | - | x | - | x | x |
| Alternative hp | - | - | - | 223 hp | - |
| Floating cutting platform | - | - | - | opt. | x |
| Slope levelling | - | - | - | opt. | opt. |
| 2. cyl. diameter | - | - | - | - | 60 cm |
| Autom. control of cutting height | - | - | - | - | x |
| Cutting platform lateral tilt | - | - | - | - | opt. |
