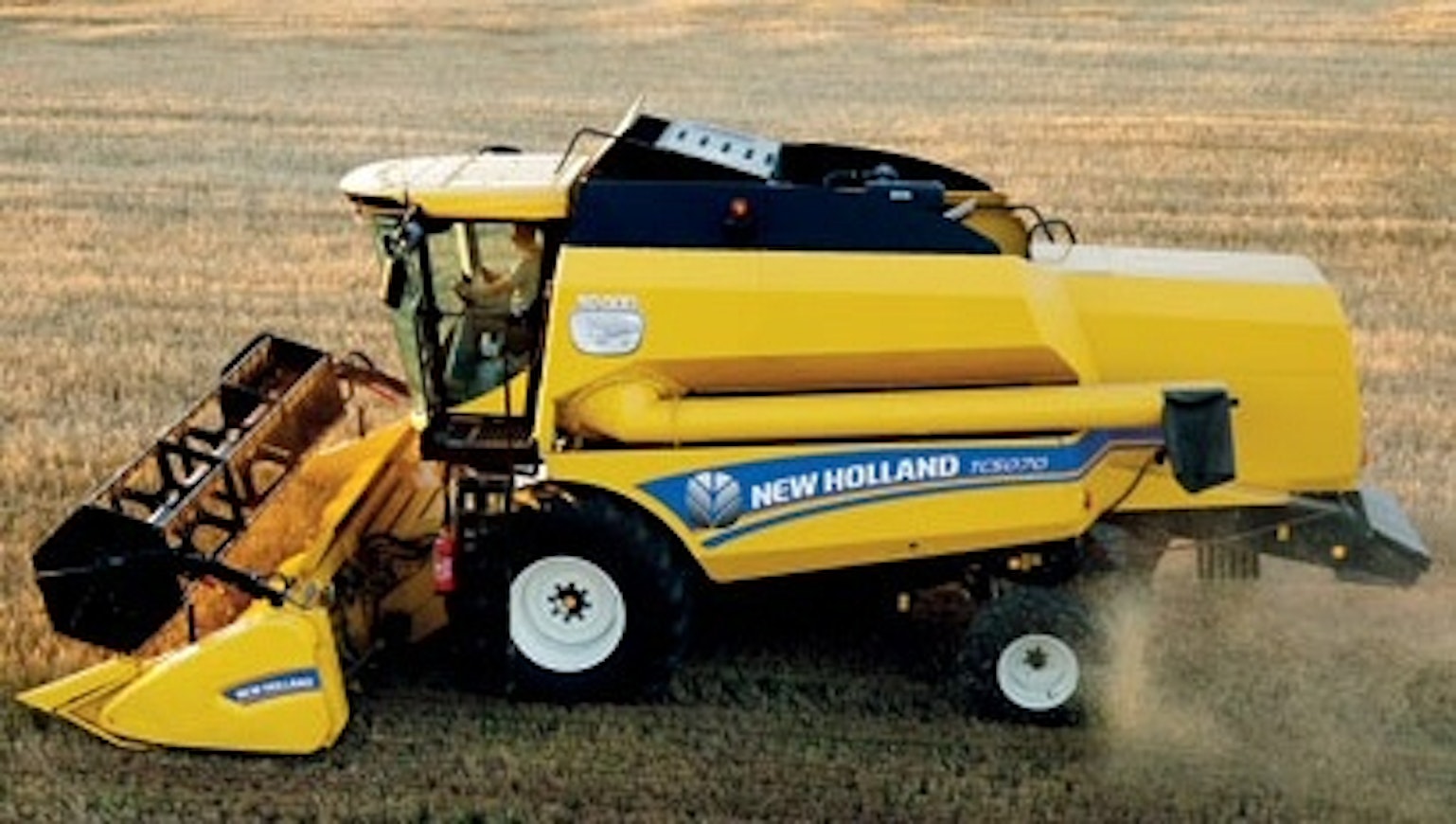

Siirry sivupalkkiinSiirry alaosaanNew Holland TC5060 – TC5080 (2014)

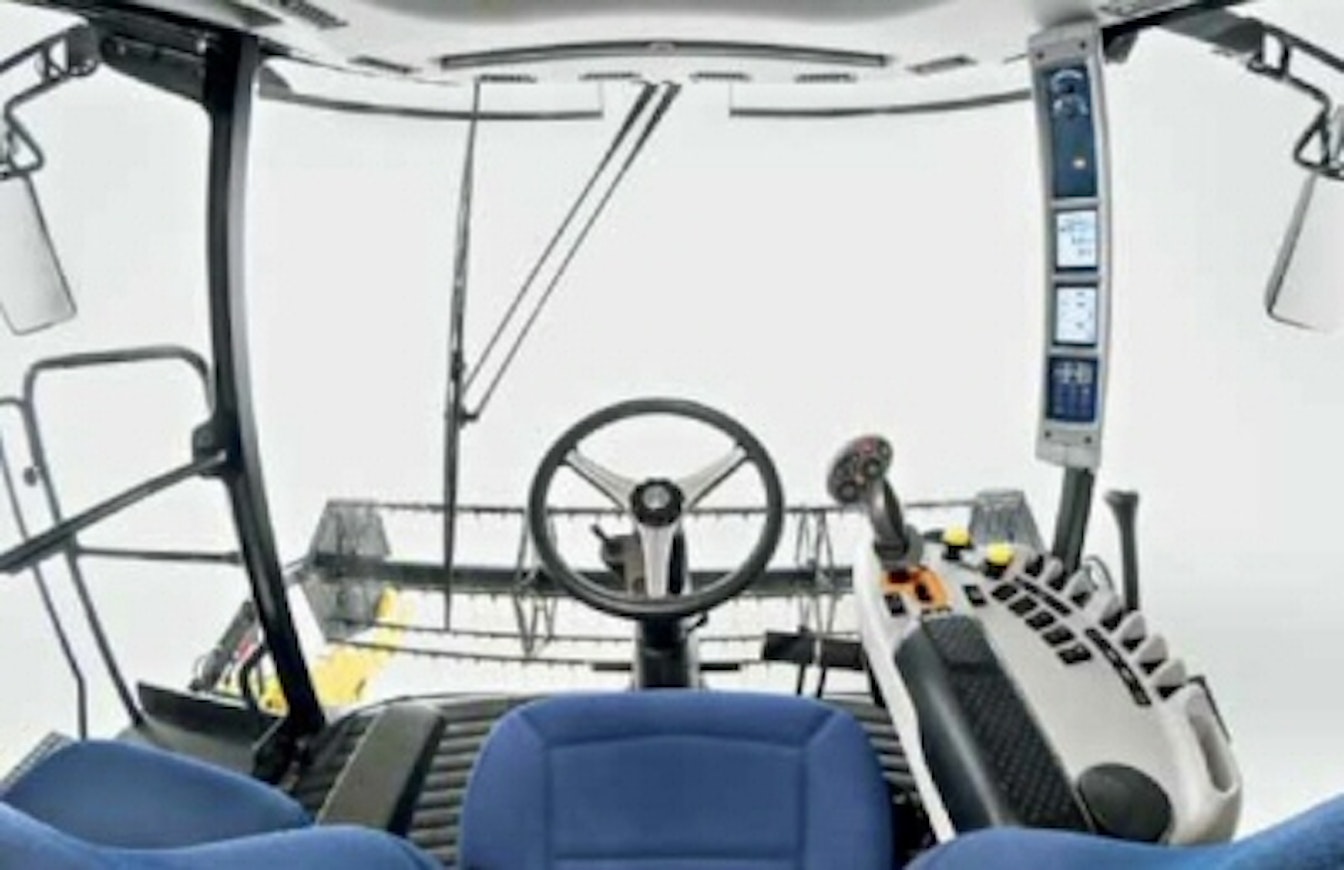

The 2014 TC models received a slightly rounder shape resembling the rest of the lineup, as well as a new cab, which was based on the same frame as the CX. The controls were placed on the armrest, and the cab noise level dropped to 74 decibels. The displays were located on the A-pillar, and there was no separate onboard computer screen like in the CX. The 2014 TC5060 had an engine from the old emission category, while the larger models used SCR technology.
The threshing technology remained unchanged. The RS models had a straw chopper. The grain tank of the 5070 and 5080 was slightly larger than before. The grain tank unloading pipe still started at the level of the lower part of the tank. The return conveyor was powered by an electric motor. An optional accessory was a length-adjustable Varifeed header. Another new optional feature was the electric sieve adjustment.
This is an automated translation. Please report any issues in the translation.
| Model | TC5060 | TC5060 RS | TC5070 | TC5070 RS | TC5080 | TC5080 RS |
|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | No | No |
| Years | 2014-14 | 2014-14 | 2014-14 | 2014-14 | 2014-14 | 2014-14 |
| Engine | Iveco | Iveco | Iveco | Iveco | Iveco | Iveco |
| Engine type | NEF | NEF | NEF | NEF | NEF | NEF |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - | - | - |
| Fuel tank | 300 l | 300 l | 400+AB80 l | 400+AB80 l | 400+AB80 l | 400+AB80 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h |
| Cutting width | 457 cm | 457 cm | 457 cm | 457 cm | 518 cm | 518 cm |
| Cutting width, alternative | 366-518 cm | 366-518 cm | 366-603 cm | 366-603 cm | 366-603 cm | 366-603 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 130 cm | 130 cm | 130 cm | 130 cm | 130 cm | 130 cm |
| Number of straw walkers | 5 | 5 | 5 | 5 | 5 | 5 |
| Area of walkers | 500 dm² | 436 dm² | 500 dm² | 436 dm² | 500 dm² | 436 dm² |
| Lenght of walkers | 389 cm | 330 cm | 389 cm | 330 cm | 389 cm | 330 cm |
| Straw shieve | 219 dm² | 219 dm² | 219 dm² | 219 dm² | 219 dm² | 219 dm² |
| Bottom shieve | 171 dm² | 171 dm² | 171 dm² | 171 dm² | 171 dm² | 171 dm² |
| Total screening area | 413 | 413 | 413 | 413 | 413 | 413 |
| Overall lenght | 932 cm | 932 cm | 932 cm | 932 cm | 932 cm | 932 cm |
| Overall width | 490 cm | 490 cm | 490 cm | 490 cm | 551 cm | 551 cm |
| Width without header | 365 cm | 365 cm | 365 cm | 365 cm | 365 cm | 365 cm |
| Height with cabin | 383 cm | 383 cm | 390 cm | 390 cm | 390 cm | 390 cm |
| Weight without header | 9150 kg | 9150 kg | 10700 kg | 10700 kg | 10750 kg | 10750 kg |
| Grain tank | 52 hl | 52 hl | 64 hl | 64 hl | 64 hl | 64 hl |
| Unl. height | 392 cm | 392 cm | 399 cm | 399 cm | 399 cm | 399 cm |
| Tyres front (Finland) | 750/65LR26 | 750/65LR26 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Tyres front, alternative | 620/75R26 | 620/75R26 | 620/75R30 | 620/75R30 | 620/75R30 | 620/75R30 |
| Tyres rear (Finland) | 400/70R20 | 400/70R20 | 400/70R20 | 400/70R20 | 400/70R20 | 400/70R20 |
| Tyres rear, alternative | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 |
| Reel forward/backw. adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x |
| Slope levelling | opt. | opt. | opt. | opt. | opt. | opt. |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. |
| 2. cyl. diameter | - | 60 cm | - | 60 cm | - | 60 cm |
| Autom. control of cutting height | - | - | - | - | opt. | opt. |
| Cutting platform lateral tilt | - | - | - | - | opt. | opt. |
