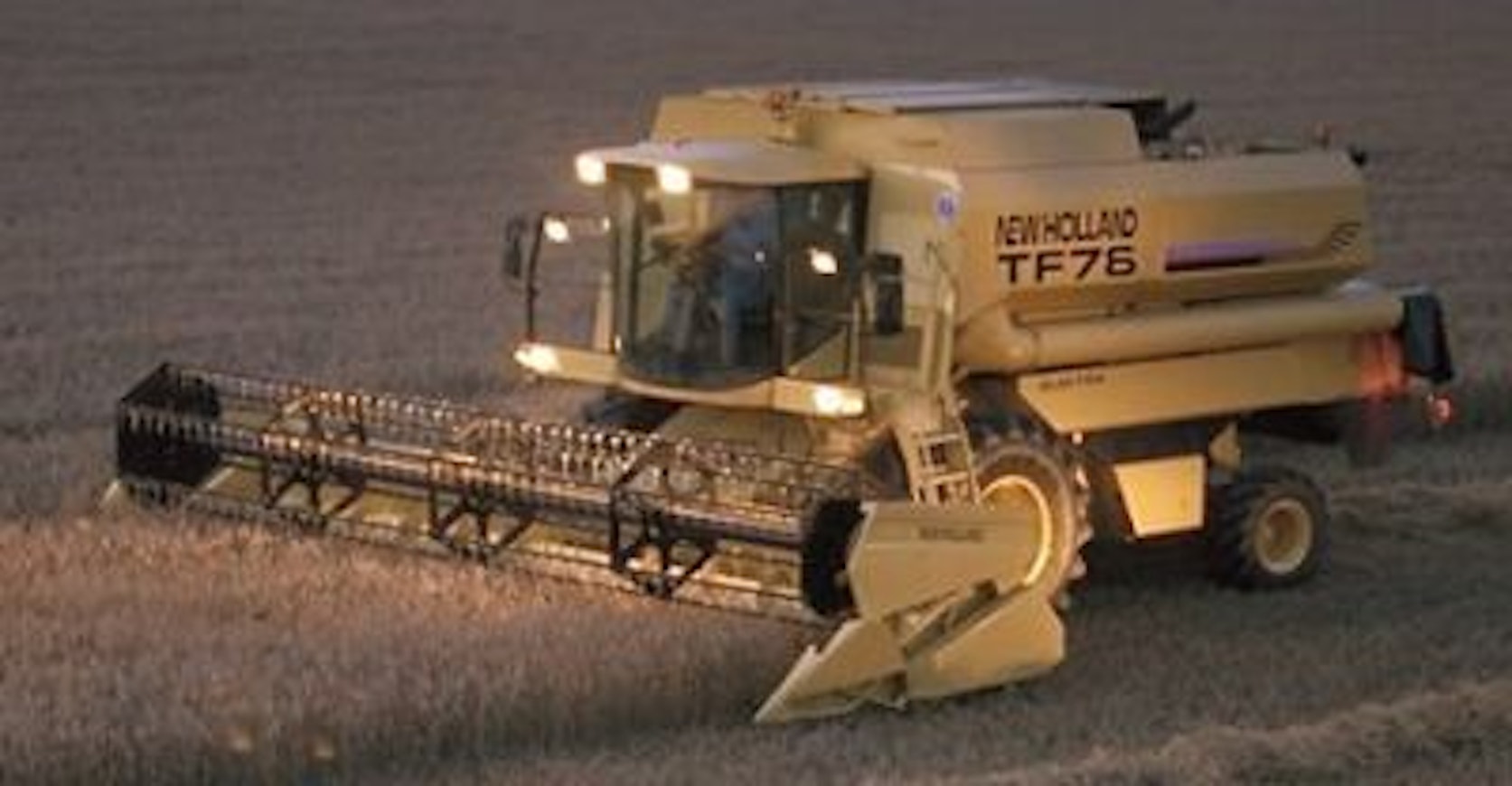

Siirry sivupalkkiinSiirry alaosaanNew Holland TF 76 – TF 78
Manufacturer
Models
New Holland TF76, New Holland TF76 Plus, New Holland TF78, New Holland TF78 Plus
Years
1994-98
Info
Here is the English translation:
In the autumn of 1994, the updated TF combines underwent similar improvements as the TX models had the previous year. The most significant of these was the versatile threshing computer. The engines were more powerful than before and the grain tanks were larger. The noise level in the new cab was only 76 dB. The TF models always had a secondary threshing drum behind the straw drum.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | New Holland TF76 | New Holland TF76 Plus | New Holland TF78 | New Holland TF78 Plus |
|---|---|---|---|---|
| Imported to Finland | No | No | No | No |
| Years | 1997-98 | 1998-2002 | 1994-98 | 1998-2002 |
| Engine | Ford | Ford | Iveco | Iveco |
| Engine type | 675 TA/VN | 675 TA/VY | 8460SRI20 | 8465SRE21 |
| Displacement | 7474 cm³ | 7474 cm³ | 9570 cm³ | 9570 cm³ |
| Cyl/turbo | 6 T | 6 T | 6 T | 6 T |
| Power | 260 hp DIN | 286 hp DIN | 330 hp DIN | 360 hp DIN |
| Fuel tank | 600 l | 600 l | 750 l | 750 l |
| Transmission | hydr. | hydr. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 609 cm | 609 cm | 732 cm | 732 cm |
| Cutting width, alternative | 518-732 cm | 518-732 cm | 609-915 cm | 609-915 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm |
| 2. cyl. diameter | 61 cm | 61 cm | 61 cm | 61 cm |
| Threshing cyl. width | 130 cm | 130 cm | 156 cm | 156 cm |
| Number of straw walkers | 1 drum across | 1 drum across | 1 drum across | 1 drum across |
| Area of walkers | halk. 70 dm² | halk. 70 dm² | halk. 70 dm² | halk. 70 dm² |
| Lenght of walkers | lev. 236 cm | lev. 236 cm | lev. 284 cm | lev. 284 cm |
| Straw shieve | 350 dm² | 350 dm² | 420 dm² | 420 dm² |
| Bottom shieve | 191 dm² | 191 dm² | 228 dm² | 228 dm² |
| Total screening area | 541 | 541 | 648 | 648 |
| Overall lenght | 801+pöytä cm | 801+pöytä cm | 801+pöytä cm | 801+pöytä cm |
| Overall width | 654 cm | 654 cm | 777 cm | 777 cm |
| Width without header | 364 cm | 364 cm | 395 cm | 395 cm |
| Height with cabin | 394 cm | 394 cm | 399 cm | 399 cm |
| Weight without header | 12400 kg | 12400 kg | 14120 kg | 14120 kg |
| Grain tank | 80 hl | 80 hl | 95 hl | 95 hl |
| Unl. height | 425 cm | 425 cm | 425 cm | 425 cm |
| Tyres front (Finland) | 24.5R32 | 650/75R32 | 24.5R32 | 650/75R32 |
| Tyres front, alternative | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Tyres rear (Finland) | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x |
| Air conditioning | x | x | x | x |
| Heating | x | x | x | x |
| Grain loss indicator | x | x | x | x |
| Floating cutting platform | x | x | x | x |
| Autom. control of cutting height | x | x | x | x |
| Cutting platform lateral tilt | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. |
