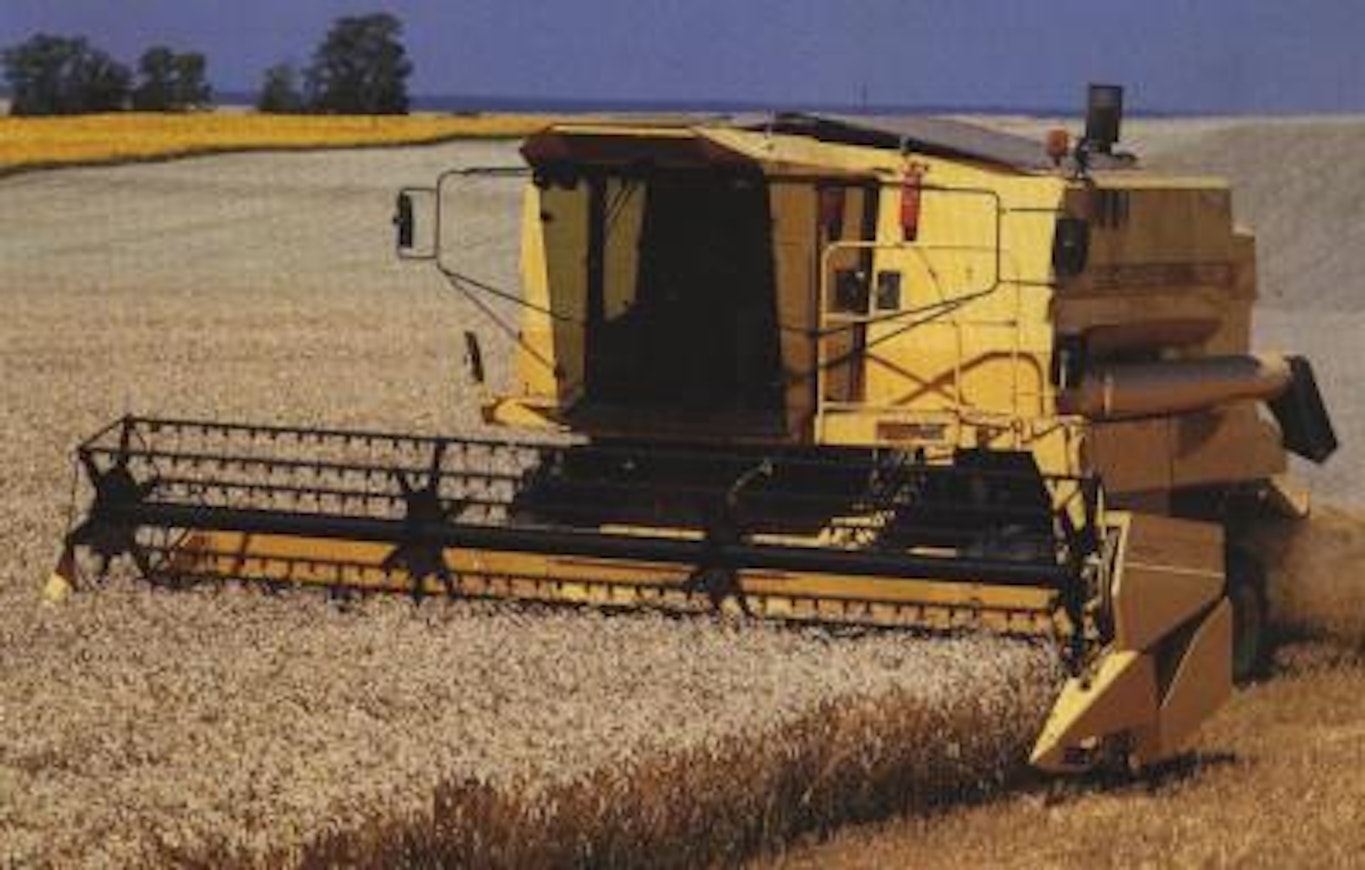

Siirry sivupalkkiinSiirry alaosaanNew Holland TX 30 – TX 36
Manufacturer
Models
TX30, TX30 hydr., TX32, TX32 hydr., TX34, TX34 hydr., TX36
Years
1987-94
Info
The successors of the old 8070 and 8080 models inherited the angular exterior from their predecessors. The hydrostatic drive models now have 4 gears. Larger grain tanks than before and improved equipment. A specialty of the TX was a separate border threshing unit (two in the 6-binder models) and an extra straw reel between the threshing reels. The power of models TX34 and 36 increased in 1989. In Central Europe, the standard tire size was 23.1-30.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | TX30 | TX30 hydr. | TX32 | TX32 hydr. | TX34 | TX34 hydr. | TX36 |
|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1987-94 | 1987-94 | 1988-94 | 1988-94 | 1987-94 | 1987-94 | 1987-93 |
| Engine | Ford | Ford | Ford | Ford | Ford | Ford | Ford |
| Engine type | 666 HT | 666 HT | 666 HT | 666 HT | 678 HT | 678 HT | 678 HTA |
| Displacement | 6600 cm³ | 6600 cm³ | 6600 cm³ | 6600 cm³ | 7800 cm³ | 7800 cm³ | 7800 cm³ |
| Cyl/turbo | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T |
| Power | 140 hp DIN | 140 hp DIN | 155 hp DIN | 155 hp DIN | 175/183 hp DIN | 183 hp DIN | 220/240 hp DIN |
| Fuel tank | 350 l | 350 l | 350 l | 350 l | 350 l | 350 l | 350/450 l |
| Transmission | mech. | hydr. | mech. | hydr. | mech. | hydr. | hydr. |
| Gears | 3 | 4 | 3 | 4 | 3 | 4 | 4 |
| Speed min-max. | 1,6-25 km/h | 0-25 km/h | 1,6-25 km/h | 0-25 km/h | 1,6-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 396 cm | 396 cm | 457 cm | 457 cm | 457 cm | 457 cm | 518 cm |
| Cutting width, alternative | 366-518 cm | 366-518 cm | 366-518 cm | 366-518 cm | 366-518 cm | 518, 610 cm | 610, 732 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| 2. cyl. diameter | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm |
| Threshing cyl. width | 104 cm | 104 cm | 130 cm | 130 cm | 130 cm | 130 cm | 156 cm |
| Number of straw walkers | 4 | 4 | 5 | 5 | 5 | 5 | 6 |
| Area of walkers | 341 dm² | 341 dm² | 436 dm² | 436 dm² | 436 dm² | 436 dm² | 523 dm² |
| Lenght of walkers | 323 cm | 323 cm | 323 cm | 323 cm | 323 cm | 323 cm | 323 cm |
| Straw shieve | 170 dm² | 170 dm² | 212 dm² | 212 dm² | 212 dm² | 212 dm² | 253 dm² |
| Bottom shieve | 154 dm² | 154 dm² | 191 dm² | 191 dm² | 191 dm² | 191 dm² | 228 dm² |
| Total screening area | 324 | 324 | 403 | 403 | 403 | 403 | 481 |
| Overall lenght | 970 cm | 970 cm | 987 cm | 987 cm | 987 cm | 987 cm | 987 cm |
| Overall width | 420 cm | 420 cm | 490 cm | 490 cm | 490 cm | 490 cm | 550 cm |
| Width without header | 322 cm | 322 cm | 341 cm | 341 cm | 341 cm | 341 cm | 367 cm |
| Height with cabin | 374 cm | 374 cm | 380 cm | 380 cm | 380 cm | 380 cm | 380 cm |
| Weight with cabin | 9285 kg | 9285 kg | 9375 kg | 9375 kg | 9810 kg | 9810 kg | 10570 kg |
| Grain tank | 49.3 hl | 49.3 hl | 56 hl | 56 hl | 60 hl | 60 hl | 77 hl |
| Unl. height | 368 cm | 368 cm | - | - | - | - | - |
| Tyres front (Finland) | 24.5R32 | 24.5R32 | 24.5R32 | 24.5R32 | 30.5R32 | 30.5R32 | 30.5R32 |
| Tyres front, alternative | 23.1-30 | 23.1-30 | 28L26 | 28L26 | 28L26 | 28L26 | 28L26 |
| Tyres rear (Finland) | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 |
| Tyres rear, alternative | 13/65-18 | 13/65-18 | 13/65-18 | 13/65-18 | 13/65-18 | 13/65-18 | 13/65-18 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Alternative hp | - | - | - | - | - | 205 hp | - |
| Cutting platform lateral tilt | - | - | - | - | - | - | x |
