Sampo Comia C10-C12

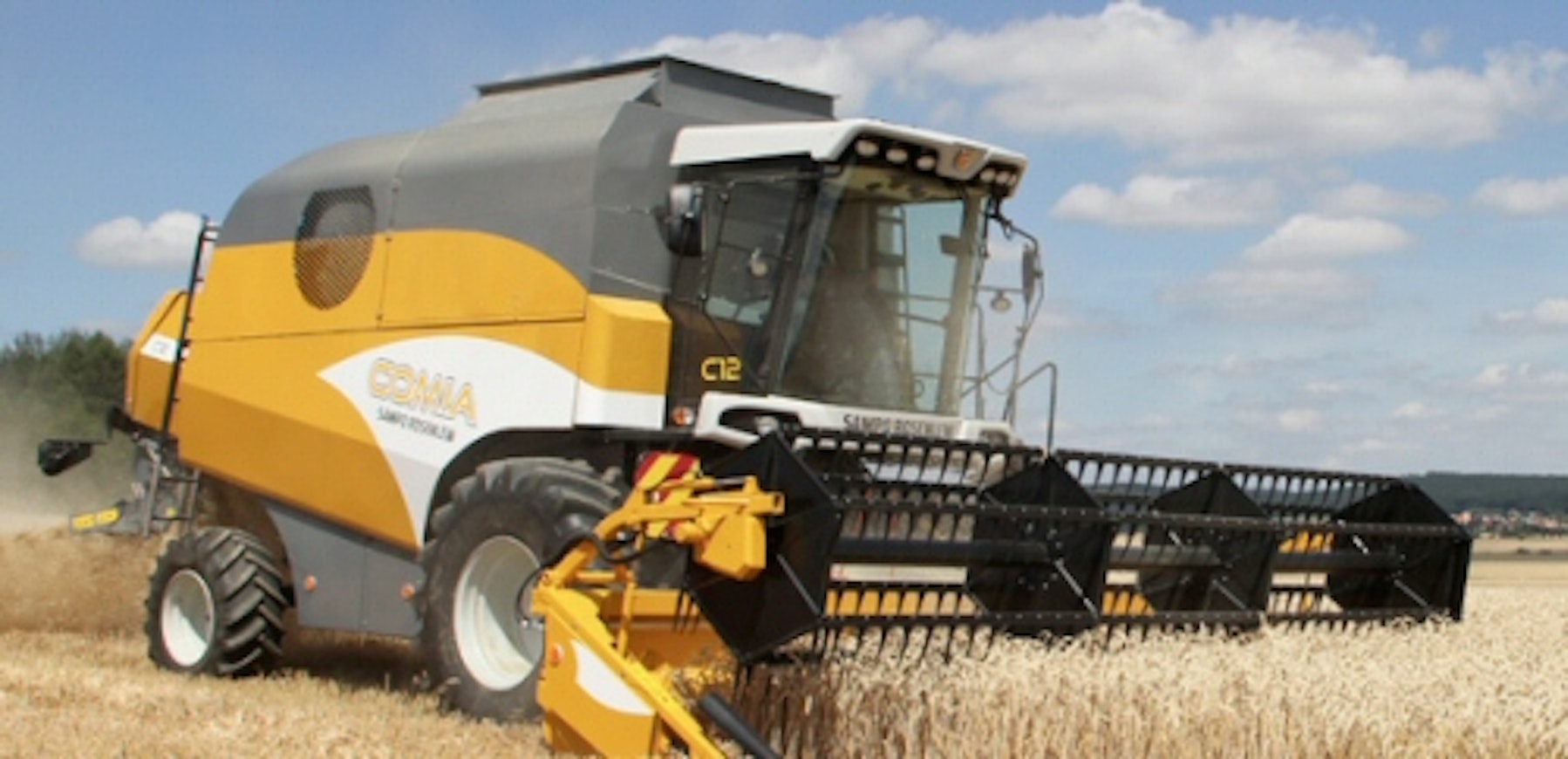

14SampoComiaC12

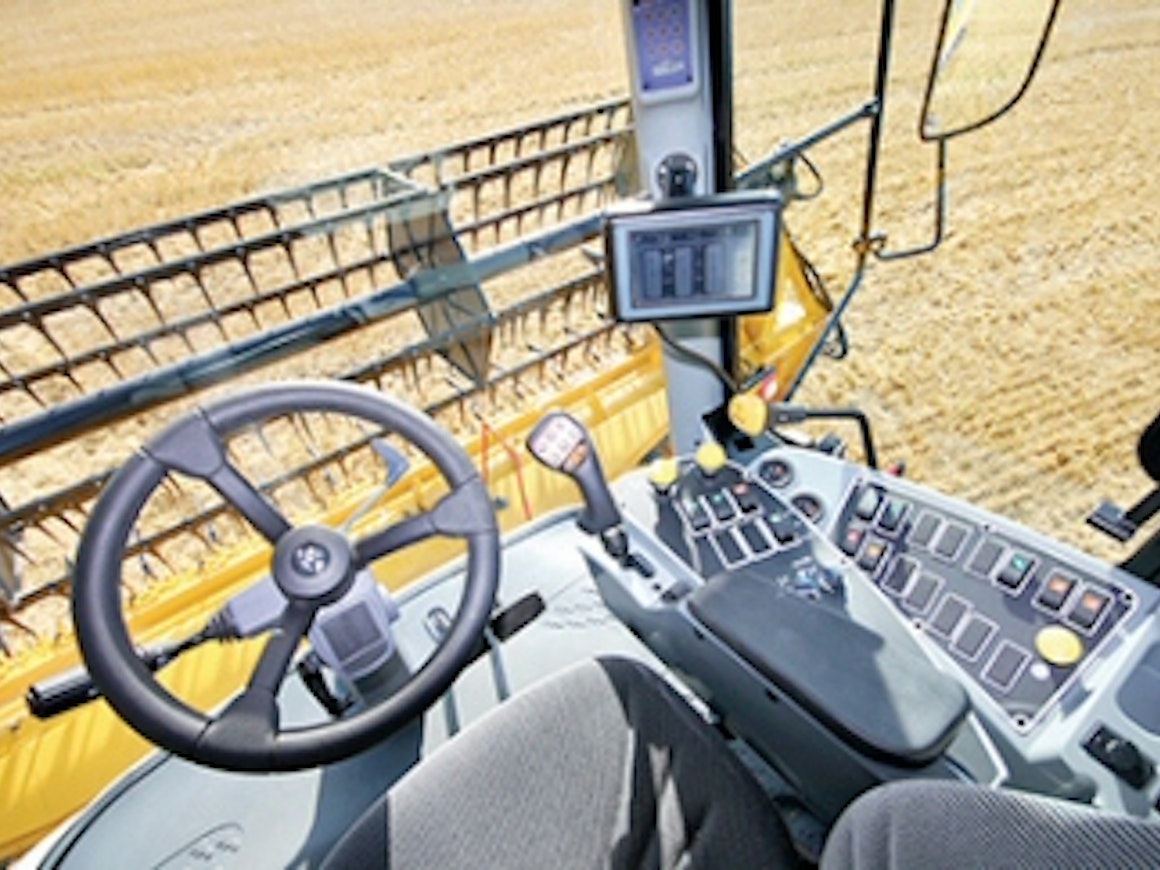

14SampoComiaC12ohjaamo
14SampoComiaC12
14SampoComiaC12ohjaamo
Manufacturer
Models
SR Comia C10, SR Comia C12
Years
2013-
Info

In the autumn of 2013, the Sampo Rosenlew 3000 series was replaced by the Comia C10 and C12 models. Positioned in the five-shaft size category but equipped with six narrow shafts, the models had acquired a rounded appearance similar to the smaller Comia models. The engine in both models was now a 7.4-liter unit equipped with urea injection. The power of the C12 was increased to 300 horsepower. In the C12, the closed unloading screw was, unlike its predecessor, an optional feature. The pre-threshing reel was standard on the C12, and a separating drum with shafts was present on both models. Both the upper and lower sieves were adjustable cam-louver types. The rasping screw was replaced by an elevator and a post-threshing device. The cutting table had side tilt, hydraulic rotation, and reverse rotation. The cabin was renovated to the Premium Plus model. A new Comvision touchscreen was installed on the front pillar, consolidating monitoring and adjustment functions. A high-capacity forage chopper was standard.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSR Comia C10SR Comia C12
Imported to FinlandYesYes
Years2013-2013-
EngineAgcoPowerAgcoPower
Engine type74 AWF74 AWF
Displacement7400 cm³7400 cm³
Cyl/turbo6 TI6 TI
Power--
Fuel tank450+AB l450+AB l
Transmissionhydr.hydr.
Gears33
Speed min-max.0-25 km/h0-25 km/h
Cutting width510 cm570 cm
Cutting width, alternative450-570 cm510-630 cm
Reel diameter105 cm105 cm
Header length51 cm51 cm
Threshing cyl. diameter50 cm50 cm
Threshing cyl. width133 cm133 cm
Number of straw walkers66
Area of walkers630 dm²630 dm²
Lenght of walkers417 cm417 cm
Straw shieve290 dm²290 dm²
Bottom shieve160 dm²160 dm²
Total screening area450450
Overall lenght1013 cm1055 cm
Overall width564 cm564 cm
Width without header373 cm373 cm
Height with cabin395 cm395 cm
Weight with cabin12400 kg13200 kg
Grain tank65 hl81 (76) hl
Unl. height400 cm400 cm
Tyres front (Finland)800/65R32800/65R32
Tyres front, alternative1050/50R321050/50R32
Tyres rear (Finland)480/65R24480/65R24
Tyres rear, alternative540/65R24540/65R24
Reel forward/backw. adjustmenthydr.hydr.
Reel speed adjustmenthydr.hydr.
Threshing cyl. speed adjustmenthydr.hydr.
Bottom sieveadj.adj.
Brakesmech. shoemech. shoe
Type of cutting platform floatinggas dampergas damper
2. cyl. diameter-40 cm
