Sampo Rosenlew Comia C10-C14

Manufacturer
Models
SR Comia C10, SR Comia C12, SR Comia C14
Years
2018-
Info

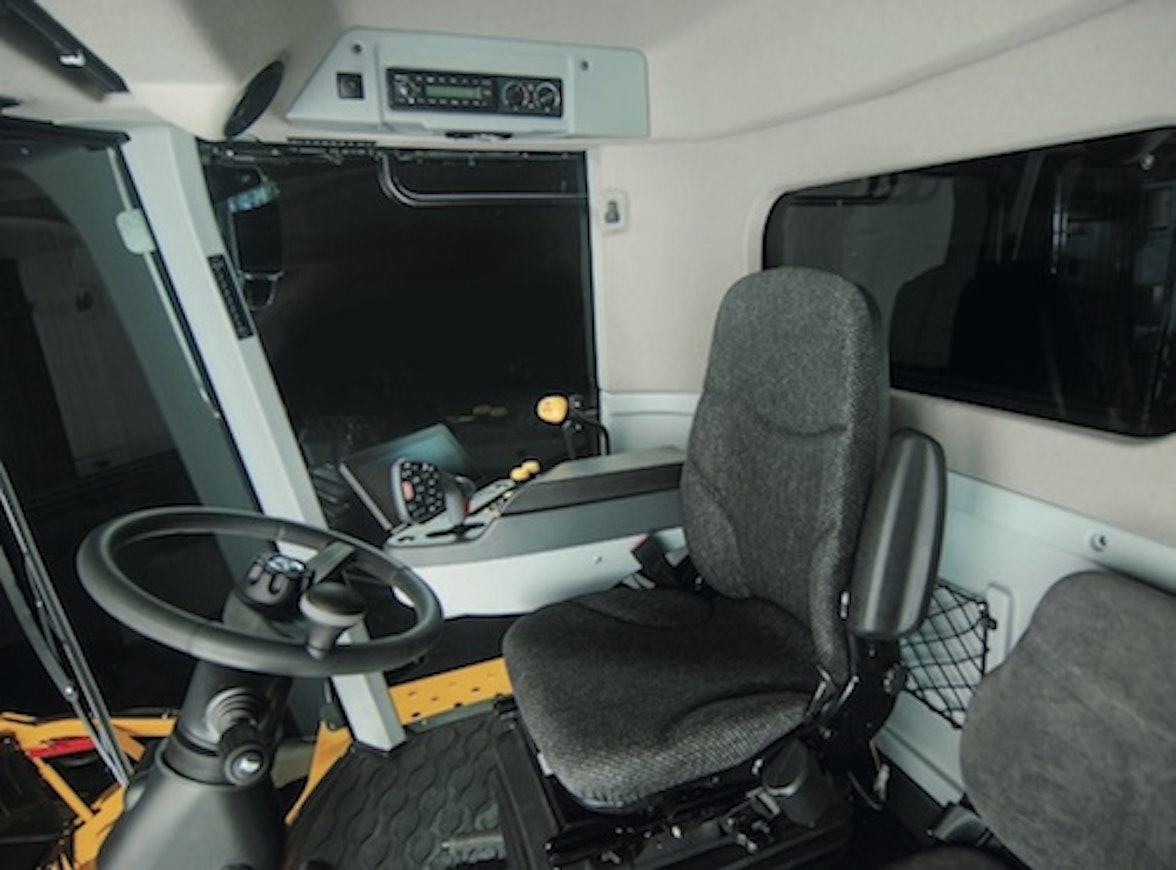

At the end of 2017, the second generation Comiats were introduced, featuring a redesigned exterior and a new Spacious cab (75 dB). The C10 was a single-threshing drum model, and the C12 was a two-threshing drum model. The cab width was increased by 30 cm. Visibility was improved by narrower front pillars than before and a change to the front edge of the floor. All controls were placed on the armrest, the new driving handle, and the monitor. The monitor was a 12.3-inch Comvision II touchscreen with 38 memory slots for settings. The seat was air-suspended. The tank emptying system was now closed as standard. The unloading height was increased to 4.4 meters, and the unloading speed to 100 liters per second. A high-capacity chopper was standard. Electric adjustment of the sieve was an optional extra.

For the 2022 season, structures were unified with the 2ROTO models. For example, the fan was now 6-bladed, the sieve's stroke was more powerful, and the grain elevator’s capacity was increased to 80 tons per hour. The belt of the threshing drum’s variator was equipped with automatic tensioning. Due to the new enclosed frame structure, the weight increased.

For 2024, the C14 was introduced, featuring a larger grain tank. Starting autumn 2024, a 9,000-liter grain tank became an optional extra for the C10.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSR Comia C10SR Comia C12SR Comia C14
Imported to FinlandYesYesYes
Years2018-2018-2023-
EngineAgcoPowerAgcoPowerAgcoPower
Engine type74 AWF/LTFN74 AWF/LTFN74 AWF/LTFN
Displacement7400 cm³7400 cm³7400 cm³
Cyl/turbo6 TI6 TI6 TI
Power---
Fuel tank450+AB l450+AB l450+AB l
Transmissionhydr.hydr.hydr.
Gears333
Speed min-max.0-25 km/h0-25 km/h0-25 km/h
Cutting width510 cm570 cm630 cm
Cutting width, alternative450-570 cm510-630 cm510-570 cm
Reel diameter105 cm105 cm105 cm
Header length51 cm51 cm51 cm
Threshing cyl. diameter50 cm50 cm50 cm
Threshing cyl. width133 cm133 cm133 cm
Number of straw walkers666
Area of walkers630 dm²630 dm²630 dm²
Lenght of walkers415 cm415 cm415 cm
Straw shieve290 dm²290 dm²290 dm²
Bottom shieve160 dm²160 dm²160 dm²
Total screening area450450450
Overall lenght861+pöytä cm903+pöytä cm903+pöytä cm
Overall width564 cm624 cm624 cm
Width without header370 cm370 cm370 cm
Height with cabin397 cm397 cm399 cm
Weight without header11700 kg12600 kg13000 kg
Grain tank60 (90) hl76 hl100 hl
Unl. height440 cm440 cm440 cm
Tyres front (Finland)800/65R32800/65R32800/65R32
Tyres front, alternative1050/50R321050/50R321050/50R32
Tyres rear (Finland)480/65R24480/65R24480/65R24
Tyres rear, alternative540/65R24540/65R24540/65R24
Reel forward/backw. adjustmenthydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.
Threshing cyl. speed adjustmenthydr.hydr.hydr.
Bottom sieveadj.adj.adj.
Brakeswet discwet discwet disc
Reverserxxx
Air conditioningxxx
Heatingxxx
Grain loss indicatorxxx
Autom. control of cutting heightxxx
Cutting platform lateral tiltxxx
Type of cutting platform floatinggas dampergas dampergas damper
2. cyl. diameter-40 cm40 cm
