Siirry sivupalkkiinSiirry alaosaanCase IH 9110-9190








In 1987, Tenneco purchased Steiger, a manufacturer of articulated tractors, which International had been forced to give up a few years earlier. On a tight schedule, the 1000 series, which Steiger had introduced to the market the previous year, was repainted in Case IH colors. The Steiger Puma and Wildcat were replaced by the 9110 and 9130 models, whose Cummins and Caterpillar engines were replaced with Case IH's 8.3-liter engines (200/220 hp). The Steiger Cougar was succeeded by the 9150, which featured a Cummins LTA-10 (280 hp). The new designations for the Steiger Panther and Lion were Case IH 9170 and 9180. These had Cummins NTA-855 engines (335/375 hp). The older model Steiger Tiger 525 was also briefly produced under the name Case IH 9190, equipped with a 525-horsepower Cummins KTA-1150.
The 12+2-speed full powershift transmission was electronically controlled. The hydraulics were load-sensing. A three-point hitch and power take-off were optional extras. The track widths of the 9110 and 9130 could be quickly adjusted for row-crop work.
This is an automated translation. Please report any issues in the translation.
| Model | Case IH 9110 | Case IH 9130 | Case IH 9150 | Case IH 9170 | Case IH 9180 |
|---|---|---|---|---|---|
| Manufacturer name | Case IH | Case IH | Case IH | Case IH | Case IH |
| Imported to Finland | No | No | No | No | No |
| Years | 1987-90 | 1987-90 | 1987-90 | 1987-90 | 1987-90 |
| Engine model | 6CT | 6CTA | LTA-10 | NTA-855 | NTA-855 |
| Cyl/Turbo/Intercooler | 6T | 6TI | 6TI | 6TI | 6TI |
| Displacement | 8277 cm³ | 8277 cm³ | 10014 cm³ | 14016 cm³ | 14016 cm³ |
| Bore x stroke | 114×135,1 mm | 114×135,1 mm | 125×136 mm | 139,7×152,4 mm | 139,7×152,4 mm |
| Rated power | 200/2100 hp DIN/rpm | 220/2100 hp DIN/rpm | 280/2100 hp DIN/rpm | 335/2100 hp DIN/rpm | 375/2100 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 12+2 | 12+2 | 12+2 | 12+2 | 12+2 |
| Synchronized gears | powershift | powershift | powershift | powershift | powershift |
| Powershift gears | powershift | powershift | powershift | powershift | powershift |

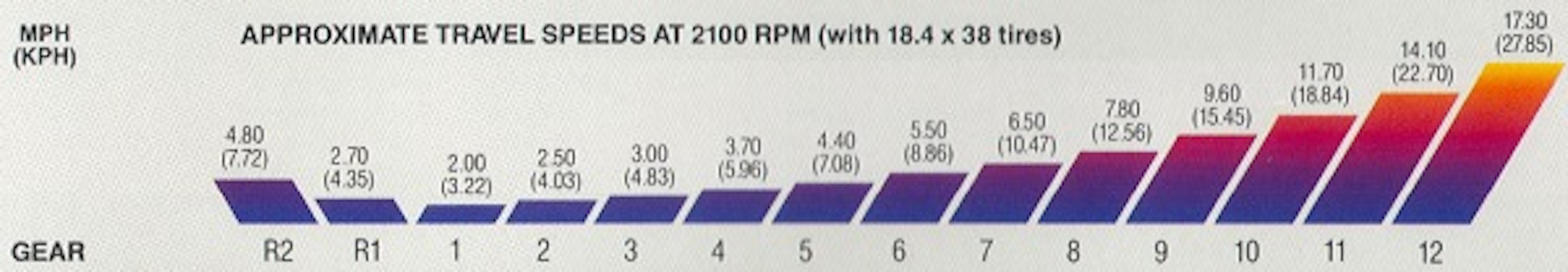

| Speeds in km/h | 3,1-26,7 | 3,2-27,9 | 3,2-27,9 | 3,2-27,9 | 3,2-27,9 |
| Hydr. flow l/min | 102.3 l/min | 102.3 l/min | 102.3 l/min | 151.4 l/min | 151.4 l/min |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| PTO speeds | 1000 | 1000 | 1000 | 1000 | 1000 |
| Brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 7.8 | 7.8 | 8.54 | 10.66 | 10.66 |
| Front tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 24.5R32 | 24.5R32 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 24.5R32 | 24.5R32 |
| Weight 4WD | 9144 kg | 9410 kg | 9410 kg | 9410 kg | 9410 kg |
| Height with cab | 329 cm | 329 cm | 363 cm | 380 cm | 380 cm |
| Length (2WD/4WD) | 614 cm | 614 cm | 693 cm | 710 cm | 710 cm |
| Wheelbase (2WD/4WD) | 306 cm | 315 cm | 330 cm | 359 cm | 359 cm |
| Fuel tank | 436 l | 436 l | 644 l | 948 l | 948 l |
| Cab noise level | 80 dB | 79 dB | 81.5 dB | 79 dB | 81 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | opt. | opt. | opt. | opt. | opt. |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
