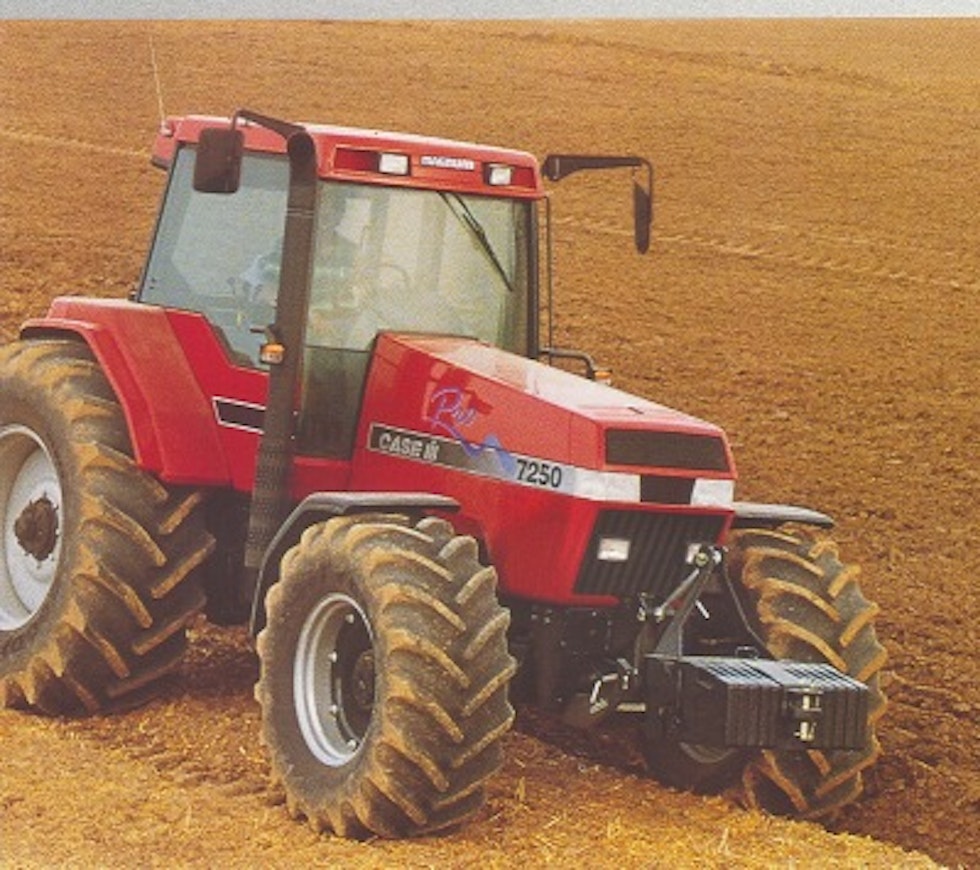

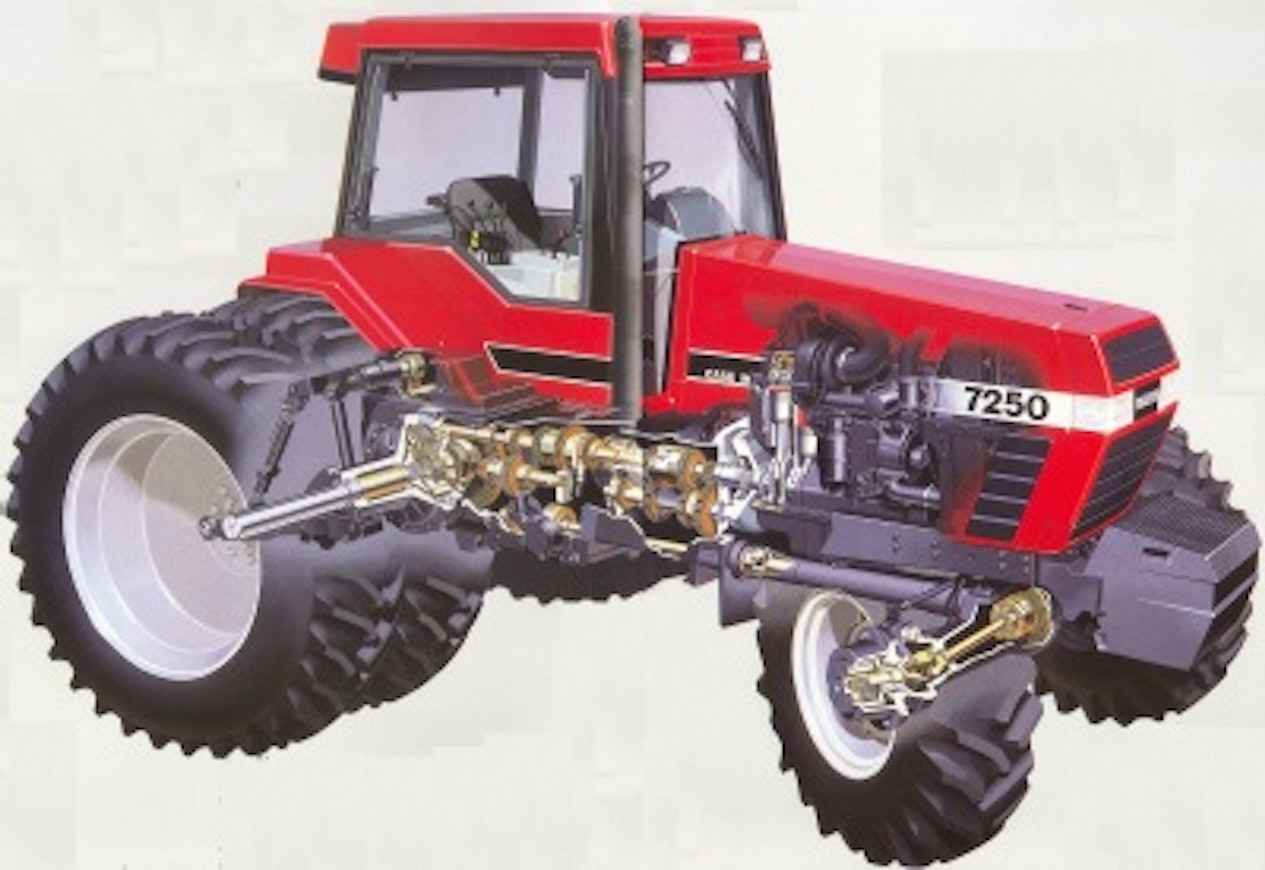

Siirry sivupalkkiinSiirry alaosaanCase IH Magnum Pro 7210-7250








In 1997, the power of the Magnums was increased with new turbos, and at this stage, the model designation was supplemented with "Pro," as was the case with the Maxxums. In Finland, maximum power outputs were announced instead of nominal power (200 hp for the 7220). The fuel tank capacity was now as much as 445 liters in all models. Biodiesel (RME) could be used as fuel. The grille was designed with vertical slats instead of the previous horizontal ones, and 20% more cooling air flowed through the grille. Alongside Case IH, the same tractors (7220-7250) were sold in some countries as Steyr models 9200, 9220, 9250, and 9270. In the USA, the Magnum 8900 series was launched at the same time, with only minor technical differences compared to the Pro models sold in Europe.
In 1999, the updated MX Magnums were introduced in Europe.
This is an automated translation. Please report any issues in the translation.
| Model | Case IH 7210 Pro | Case IH 7220 Pro | Case IH 7230 Pro | Case IH 7240 Pro | Case IH 7250 Pro |
|---|---|---|---|---|---|
| Manufacturer name | Case IH | Case IH | Case IH | Case IH | Case IH |
| Imported to Finland | No | Yes | No | No | Yes |
| Years | 1997-99 | 1997-99 | 1997-99 | 1997-99 | 1997-99 |
| Engine model | C6T-830 | C6T-830 | C6TA-830 | C6TA-830 | C6TA-830 |
| Cyl/Turbo/Intercooler | 6T | 6T | 6TI | 6TI | 6TI |
| Displacement | 8277 cm³ | 8277 cm³ | 8277 cm³ | 8277 cm³ | 8277 cm³ |
| Bore x stroke | 114×135,1 mm | 114×135,1 mm | 114×135,1 mm | 114×135,1 mm | 114×135,1 mm |
| Rated power | 170/2200 hp DIN/rpm | 190/2200 hp DIN/rpm | 214/2200 hp DIN/rpm | 239/2200 hp DIN/rpm | 261/2200 hp DIN/rpm |
| Max power | 174/2000 hp DIN/rpm | 200/2000 hp DIN/rpm | 224/2000 hp DIN/rpm | 254/2000 hp DIN/rpm | 276/2000 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 24+6 | 24+6 | 24+6 | 24+6 | 24+6 |
| Synchronized gears | 24+6 | 24+6 | 24+6 | 24+6 | 24+6 |
| Powershift gears | powershift | powershift | powershift | powershift | powershift |
| Speeds in km/h | 1,1-38,3 | 1,1-38,3 | 1,1-38,5 | 1,1-38,5 | 1,1-38,5 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7200 kg | 8500 kg | 8500 kg | 8500 kg | 8500 kg |
| PTO speeds | 540/1000 | 540/1000 | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.48 | 10.48 | 10.48 | 10.48 | 10.48 |
| Front tyres 4WD | 480/70R30 | 480/70R30 | 480/70R30 | 480/70R30 | 600/65R28 |
| Rear tyres 4WD | 20.8R42 | 20.8R42 | 710/70R38 | 710/70R38 | 710/70R38 |
| Weight 4WD | 7500 kg | 7800 kg | 7950 kg | 8060 kg | 8120 kg |
| Height with cab | 298 cm | 298 cm | 298 cm | 298 cm | 298 cm |
| Length (2WD/4WD) | 530 cm | 530 cm | 530 cm | 530 cm | 530 cm |
| Wheelbase (2WD/4WD) | 300 cm | 300 cm | 300 cm | 300 cm | 300 cm |
| Fuel tank | 445 l | 445 l | 445 l | 445 l | 445 l |
| Cab noise level | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Trip computer | x | x | x | x | x |
| Creeper gear | x | x | x | x | x |
