Case IH Quadtrac 475 AFS -785 AFS

Manufacturer
Models
Case IH Quadtrac 475, Case IH Quadtrac 525, Case IH Quadtrac 555, Case IH Quadtrac 595, Case IH Quadtrac 645, Case IH Quadtrac 715, Case IH Quadtrac 785
Years
2023-
Info

The Case IH Steiger/Quadtrac lineup was renewed for 2024. In Europe, the focus was on Quadtracs equipped with four tracks measuring either 762 or 910 mm. Additionally, at the top of the lineup came the Quadtrac 715, which, besides a more powerful engine, featured a redesigned hood and a new, longer track system equipped with larger drive wheels. The 715's engine was a 16-liter FPT, while the smaller models had 13-liter engines. In the two smallest models (as well as the USA's 425), there was a new electronically controlled variable geometry turbocharger; the larger models had a two-stage turbo. Fuel consumption was promised to decrease by 1 to 2 percent. The 322-liter AdBlue tank indicates a more generous urea injection compared to before.

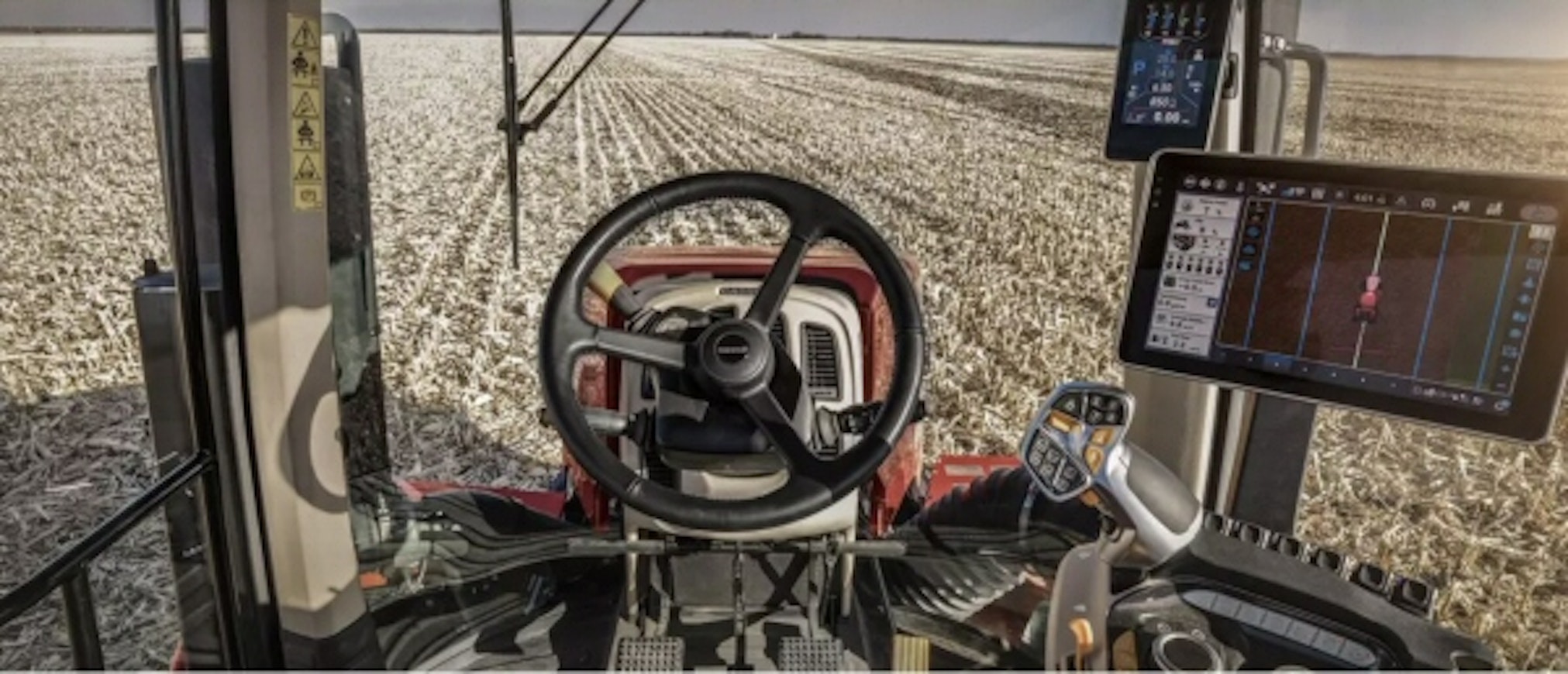

The transmission was a Fuji Univance 16+2-speed full powershift with APM automation, which automatically adjusted gears and engine speed. In the three smallest models, a stepless CVX transmission was available as an option. The lifting capacity had increased to 10.1 tons, and in Europe 216 l/min hydraulics were standard. There were 4 to 8 hydraulic valves. The cab equipment included, among other things, improved coil spring suspension, heated leather seat, subwoofer, and an AFS Pro 1200 terminal with remote connectivity and monitoring features.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelCase IH Quadtrac 475Case IH Quadtrac 525Case IH Quadtrac 555Case IH Quadtrac 595Case IH Quadtrac 645Case IH Quadtrac 715Case IH Quadtrac 785
Manufacturer nameCase IHCase IHCase IHCase IHCase IHCase IHCase IH
Imported to FinlandYesYesYesYesYesYesYes
Years2023-2023-2023-2023-2023-2023-2025-
Engine modelCursor 13Cursor 13Cursor 13Cursor 13Cursor 13Cursor 16Cursor 16
Cyl/Turbo/Intercooler6TI6TI6TI6TI6TI6TI6TI
Displacement12882 cm³12882 cm³12882 cm³12882 cm³12882 cm³15900 cm³15900 cm³
Bore x stroke135×150 mm135×150 mm135×150 mm135×150 mm135×150 mm141×170 mm141×170 mm
Rated power-------
Max power-------
Gears16+216+216+216+216+216+216+2
Synchronized gearspowershift/CVTpowershift/CVTpowershift/CVTpowershiftpowershiftpowershiftpowershift
Powershift gearspowershift/CVTpowershift/CVTpowershift/CVTpowershift.powershift.powershift.powershift.
Reverserpowershift/CVTpowershift/CVTpowershift/CVTpowershiftpowershiftpowershiftpowershift
Speeds in km/h4,0-37/0-404,0-37/0-404,0-37/0-404,0-374,0-374,0-374,0-37
Hydr. flow l/min216 (428) l/min216 (428) l/min216 (428) l/min216 (428) l/min216 (428) l/min216 (428) l/min428 l/min
Hydraulic pressure210 bar210 bar210 bar210 bar210 bar210 bar210 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.
Lift capacity10092 kg10092 kg10092 kg10092 kg10092 kg10092 kg10092 kg
PTO speeds1000100010001000100010001000
Brakeswet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Front tyres 4WD762 mm762 mm762 mm762 mm762 mm762 mm762 mm
Rear tyres 4WD762 mm762 mm762 mm762 mm762 mm762 mm762 mm
Weight 4WD26200/26900 kg26200/26900 kg26400/27100 kg27100 kg27100 kg27100 kg27100 kg
Height with cab387 cm387 cm387 cm387 cm387 cm387 cm387 cm
Length (2WD/4WD)761 cm761 cm761 cm761 cm761 cm761 cm761 cm
Wheelbase (2WD/4WD)391 cm391 cm391 cm391 cm391 cm391 cm391 cm
Fuel tank1779+AB322 l1779+AB322 l1779+AB322 l1779+AB322 l1779+AB322 l1968+AB322 l1968+AB322 l
Cab noise level74.5 dB74.5 dB74.5 dB74.5 dB74.5 dB74.5 dB74.5 dB
Solid cabxxxxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogs
Air suspension seatxxxxxxx
Air conditioningxxxxxxx
Trip computerxxxxxxx
Torque-------
Max. speed ------42,5 km/h
