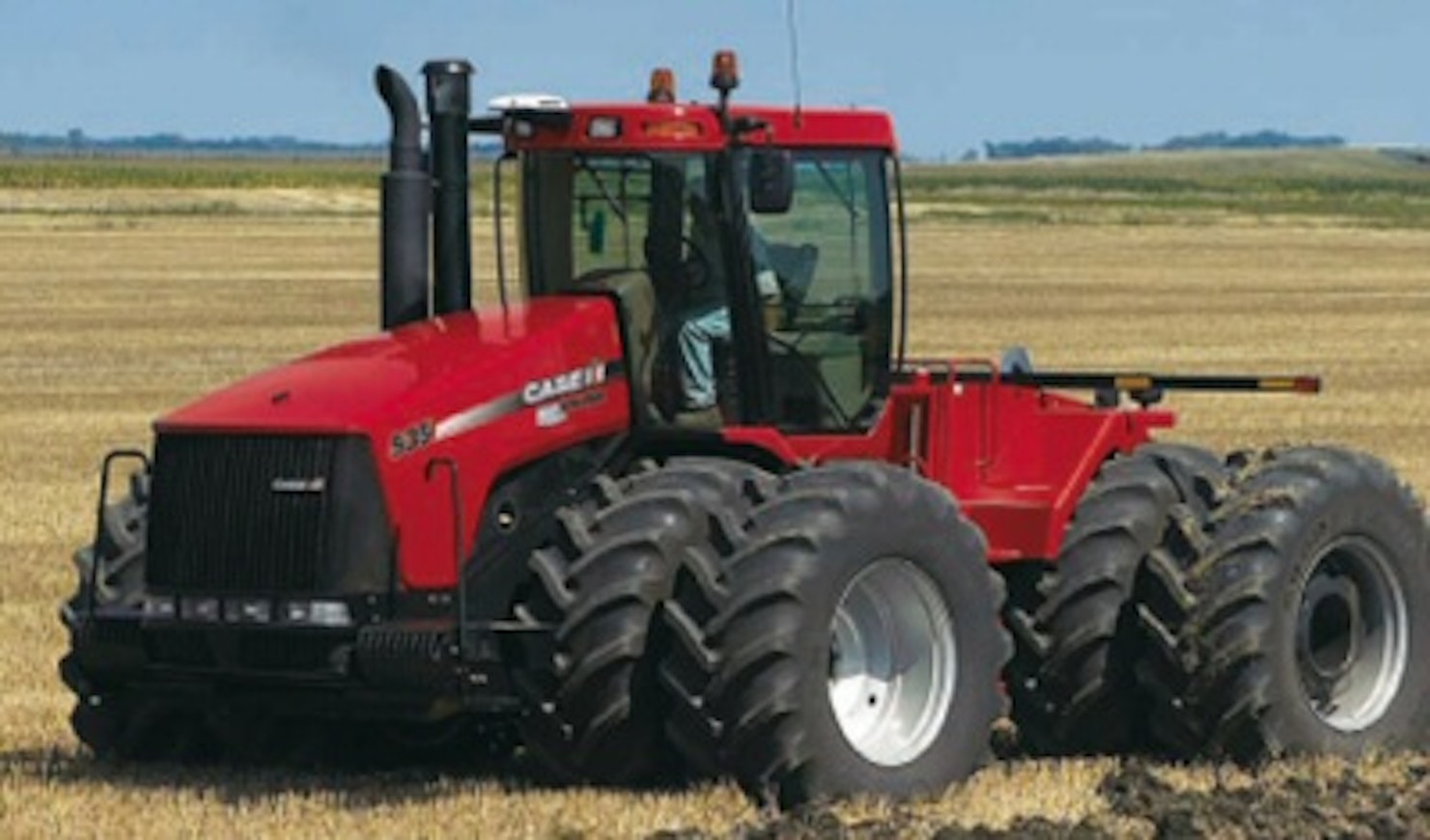

Case IH Steiger/Quadtrac 385-535

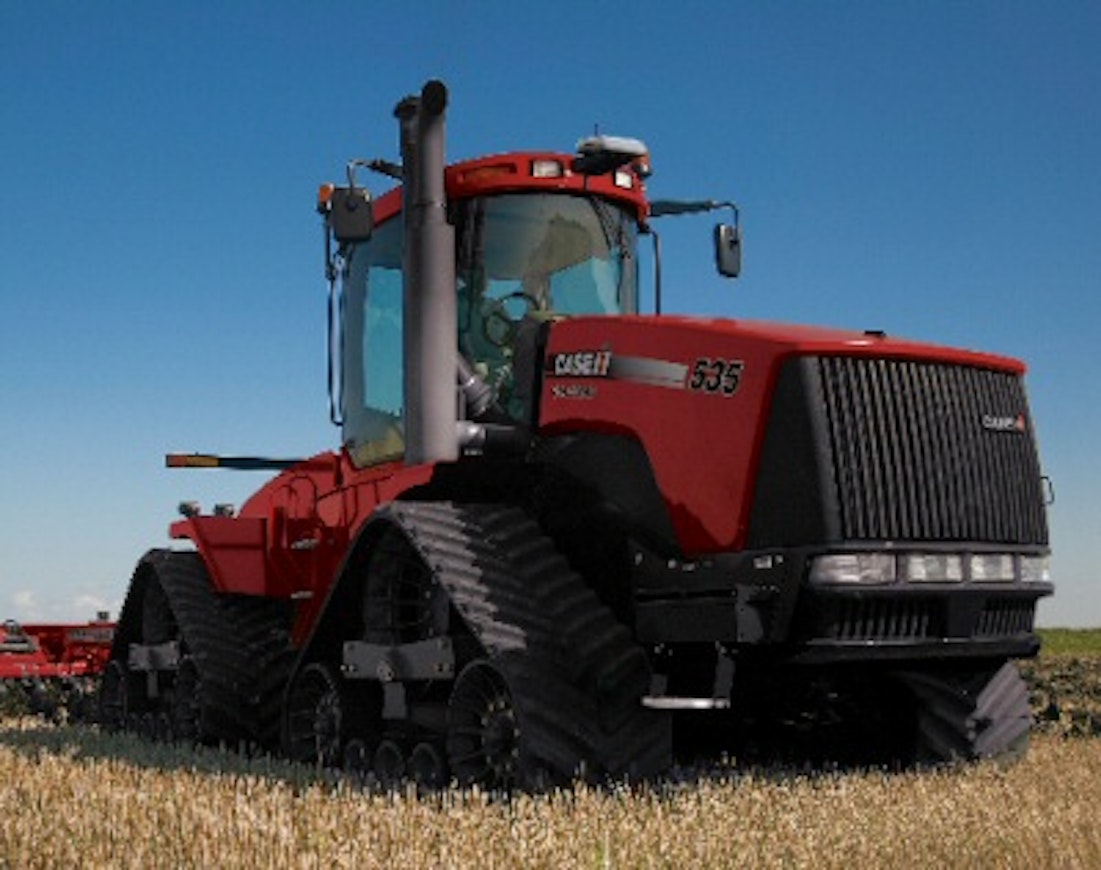

In 2005, the refreshed Case IH Steiger lineup still comprised five power classes, and except for the smallest model, a QuadTrac version with rubber tracks was also available. The engines in the three middle models had been replaced with 12.9-litre Iveco units. All engines featured electronic controls and 24 valves. The 16+2-speed full powershift transmission included a new APM automatic system that automatically adjusted gear selection and engine speed.

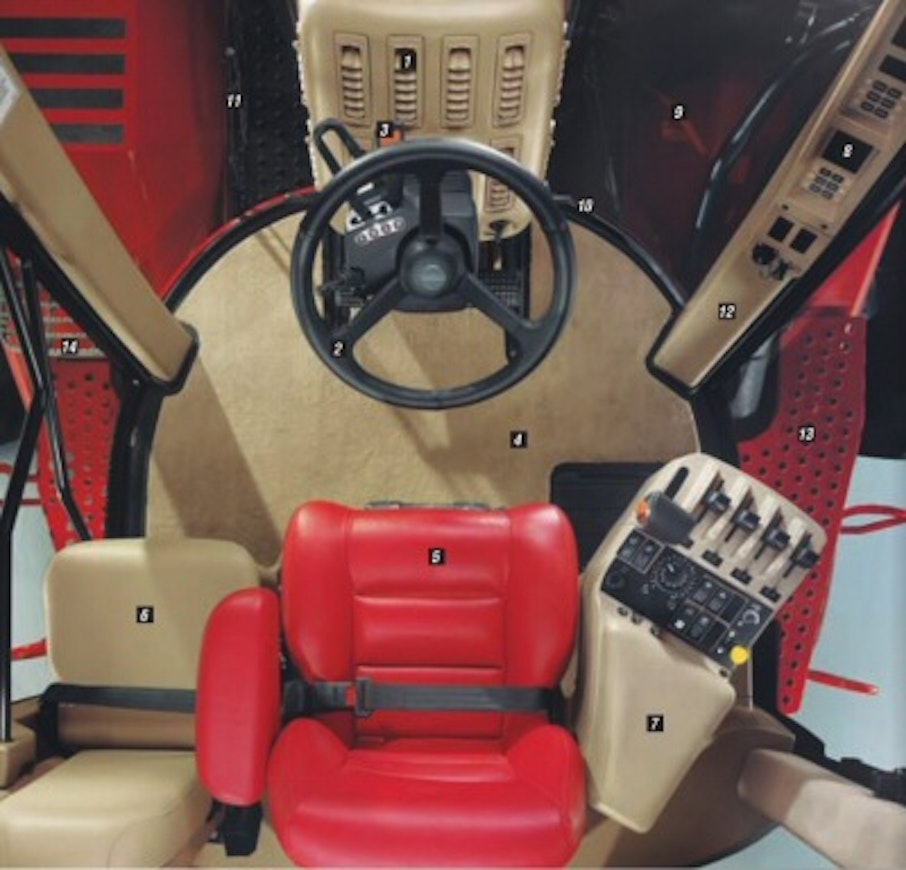

The hydraulic pump could be specified as needed (151, 208, 284, or 341 L/min). The smallest model could be equipped with an AccuSteer articulating front axle. The cab resembled that of the previous model, with all gauges grouped on the right A-pillar. Noise levels were reported at 75 dB in Europe and, depending on the model, 75–79 dB in the USA.
In Europe, models 385–535 and their QuadTrac versions were sold.
This is an automated translation. Please report any issues in the translation.
| Model | Case IH Steiger 335 | Case IH Steiger 385 | Case IH Steiger 435 | Case IH Steiger 485 | Case IH Steiger 535 |
|---|---|---|---|---|---|
| Manufacturer name | Case IH | Case IH | Case IH | Case IH | Case IH |
| Imported to Finland | No | No | No | No | No |
| Years | 2005-10 | 2005-10 | 2005-10 | 2005-10 | 2005-10 |
| Engine model | 6TAA-9004 | Cursor 13 | Cursor 13 | Cursor 13 | QSX15 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 8880 cm³ | 12882 cm³ | 12882 cm³ | 12882 cm³ | 14900 cm³ |
| Bore x stroke | 114×144,5 mm | 135×150 mm | 135×150 mm | 135×150 mm | 137×169 mm |
| Rated power | - | - | - | - | - |
| Max power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | 16+2 | 16+2 | 16+2 | 16+2 | 16+2 |
| Synchronized gears | powershift | powershift | powershift | powershift | powershift |
| Powershift gears | powershift. | powershift. | powershift. | powershift. | powershift. |
| Reverser | powershift | powershift | powershift | powershift | powershift |
| Speeds in km/h | 3,7-35 | 3,7-35 | 3,7-35 | 3,7-35 | 3,7-35 |
| Hydr. flow l/min | 151 (208) l/min | 151 (208) l/min | 151 (208) l/min | 151 (208) l/min | 159 (216) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7107 kg | 8949 kg | 8949 kg | 8949 kg | 8949 kg |
| PTO speeds | 1000 | 1000 | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9,2 (6,92) | 10,2/11,4 | 10,2/11,4 | 10,2/11,4 | 10,2/11,4 |
| Front tyres 4WD | 18.4R38 | 20.8R42 | 20.8R42 | 20.8R42 | 20.8R42 |
| Rear tyres 4WD | 18.4R38 | 20.8R42 | 20.8R42 | 20.8R42 | 20.8R42 |
| Weight 4WD | 17690 kg | 20385/26308 kg | 20385/26308 kg | 20385/26308 kg | 20385/26308 kg |
| Height with cab | 361 cm | 382/384 cm | 382/384 cm | 382/384 cm | 382/384 cm |
| Length (2WD/4WD) | 701 cm | 756 cm | 756 cm | 756 cm | 756 cm |
| Wheelbase (2WD/4WD) | 353 cm | 391 cm | 391 cm | 391 cm | 391 cm |
| Fuel tank | 758 l | 1136 l | 1136 l | 1136 l | 1136 l |
| Cab noise level | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Trip computer | x | x | x | x | x |
