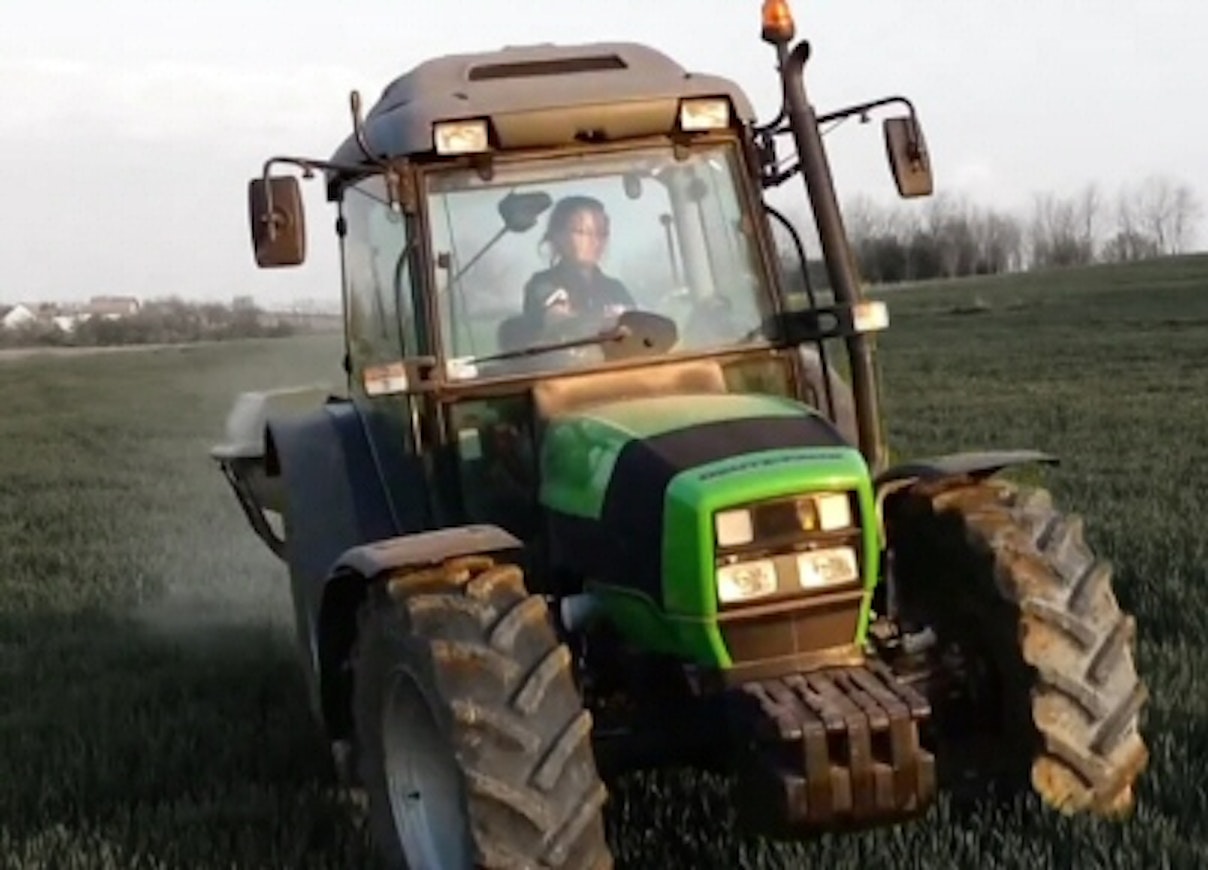

At the end of 2010, cheaper ecoline models were introduced in the Deutz-Fahr Agroplus range. The transmission featured a standard 10+10 gear setup. The lifting capacity of the three-point hitch, equipped with pushrod sensing, was reduced to 2650 kilograms. Engagement of the power take-off and differential locks was mechanical.

This is an automated translation. Please report any issues in the translation.

Deutz-Fahr Agroplus ecoline 310

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Deutz-Fahr Agroplus ecoline 315

Deutz-Fahr Agroplus ecoline 320

Deutz-Fahr Agroplus ecoline 410

Deutz-Fahr Agroplus ecoline 310-410

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Deutz-Fahr Agroplus ecoline 310	Deutz-Fahr Agroplus ecoline 315	Deutz-Fahr Agroplus ecoline 320	Deutz-Fahr Agroplus ecoline 410
Manufacturer name	Deutz-Fahr	Deutz-Fahr	Deutz-Fahr	Deutz-Fahr
Imported to Finland	No	No	No	No
Years	2011-	2011-	2011-	2011-
Engine model	1000.3 WTE3	1000.3 WTI2E3	1000.3 WTI2E3	1000.4 WTI2E3
Cyl/Turbo/Intercooler	3T	3TI	3TI	4TI
Displacement	3000 cm³	3000 cm³	3000 cm³	4000 cm³
Bore x stroke	105×115,5 mm	105×115,5 mm	105×115,5 mm	105×115,5 mm
Rated power	-	-	-	-
Torque	-	-	-	-
Gears	10+10/30+15	10+10/30+15	10+10/30+15	10+10/30+15
Synchronized gears	10+10/30+15	10+10/30+15	10+10/30+15	10+10/30+15
Reverser	mech.	mech.	mech.	mech.
Speeds in km/h	1,6-40/0,2-40	1,6-40/0,2-40	1,6-40/0,2-40	1,6-40/0,2-40
Max. speed	40 km/h	40 km/h	40 km/h	40 km/h
Hydr. flow l/min	54 l/min	54 l/min	54 l/min	54 l/min
Hydraulic pressure	190 bar	190 bar	190 bar	190 bar
Lift controls	mech.	mech.	mech.	mech.
Lift capacity	2650 (3700) kg	2650 (3700) kg	2650 (3700) kg	2650 (3700) kg
PTO speeds	540	540	540	540
Brakes	wet disc	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	7.46	7.46	7.46	7.8
Front tyres 4WD	320/70R20	320/70R20	360/70R20	320/70R24
Rear tyres 4WD	380/85R30	420/70R30	420/70R30	480/70R30
Weight 4WD	3200 kg	3220 kg	3410 kg	3350 kg
Height with cab	244 cm	244 cm	244 cm	246 cm
Length (2WD/4WD)	400 cm	400 cm	400 cm	400 cm
Wheelbase (2WD/4WD)	210 cm	210 cm	223 cm	219/223 cm
Fuel tank	75 l	75 l	75 l	75 l
Solid cab	x	x	x	x
Diff. lock	differential lock with cogs	differential lock with cogs	differential lock with cogs	differential lock with cogs
Creeper gear	-/x	-/x	-/x	-/x
Turning circle m 2WD	-	-	-	6.4
Front tyres 2WD	-	-	-	7.50-18
Rear tyres 2WD	-	-	-	480/70R30
