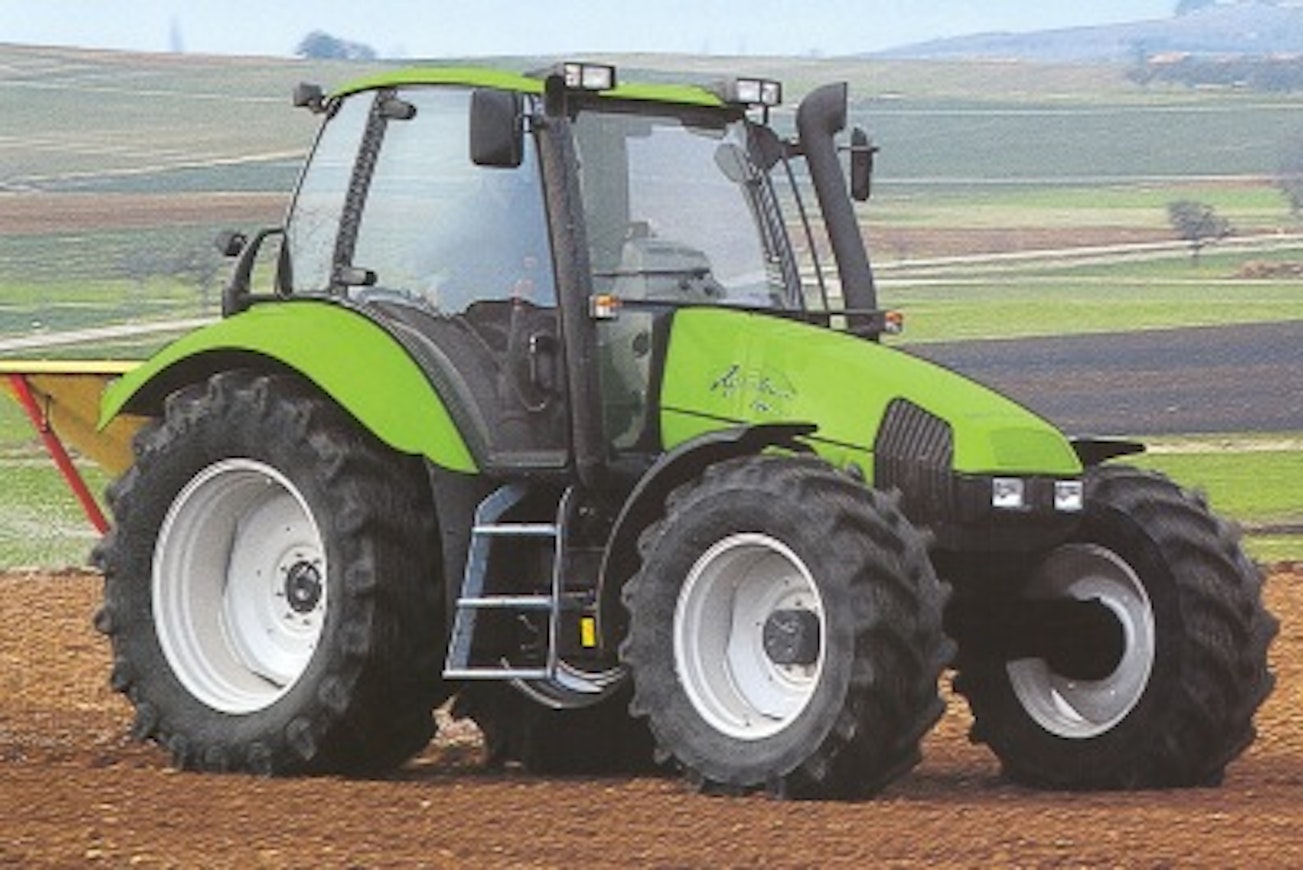

Deutz-Fahr Agrotron 106-165 MK3

02DFAgrotron150
02DFAgrotron150ohjaamo
02DFAgrotron150tehot
02DFAgrotron150nopeudet
02DFAgrotron150
02DFAgrotron150ohjaamo
02DFAgrotron150tehot
02DFAgrotron150nopeudet
Manufacturer
Models
Deutz-Fahr Agrotron 106 MK3, Deutz-Fahr Agrotron 110 MK3, Deutz-Fahr Agrotron 115 MK3, Deutz-Fahr Agrotron 120 MK3, Deutz-Fahr Agrotron 135 MK3, Deutz-Fahr Agrotron 150 MK3, Deutz-Fahr Agrotron 165 MK3
Years
2000-2003
Info

The first MK3-generation Agrotrons were introduced in the autumn of 2000 in four models—120, 135, 150 and, new to the lineup, 165—of which the 165 featured a significantly beefed-up rear end and a viscous fan. The cab was upgraded, and air conditioning plus an air-suspended seat became standard equipment on all models. In the 2001 model year the engines’ performance figures remained almost unchanged; only the 120 saw a substantial increase in torque (now 481 Nm).

A more important step forward came a year later, when both power and torque were raised beyond their model designations through fine-tuning of the fuel-injection system. (A table of the new versions’ specifications was provided.)

In the autumn of 2001 the 106, 110 and 115 models were also upgraded to MK3 specification. Thanks to electronic control of the injection pump, these versions delivered more torque than before and responded more quickly; torque increases ranged from 39 % to 44 %. The 110 also gained an intercooler at that time.

As an option on all models there was now a closed-center hydraulics system offering 120 l/min for external hydraulic implements. Even the standard machines featured individual flow control on each hydraulic valve. The 50 km/h versions came with cab and front-axle suspension as standard. In every case, the gearbox ratios were set up for 50 km/h, and any slower-top-speed versions were achieved simply by electronically limiting the engine’s maximum rpm. A multifunction armrest similar to that found on the larger Agrotron models was also available as an extra.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelDeutz-Fahr Agrotron 106 MK3Deutz-Fahr Agrotron 110 MK3Deutz-Fahr Agrotron 115 MK3Deutz-Fahr Agrotron 120 MK3Deutz-Fahr Agrotron 135 MK3Deutz-Fahr Agrotron 150 MK3Deutz-Fahr Agrotron 165 MK3
Manufacturer nameDeutz-FahrDeutz-FahrDeutz-FahrDeutz-FahrDeutz-FahrDeutz-FahrDeutz-Fahr
Imported to FinlandNoYesYesYesYesYesYes
Years2001-20032001-20032001-20032000-20032000-20032000-20032000-2003
Engine modelBF6L1012EBF6L1012ECBF6L1012ECBF6L1013EBF6L1013EBF6L1013EBF6L1013E
Cyl/Turbo/Intercooler6T6TI6TI6T6T6T6T
Displacement4788 cm³4788 cm³4788 cm³7146 cm³7146 cm³7146 cm³7146 cm³
Bore x stroke94×115 mm94×115 mm94×115 mm108×130 mm108×130 mm108×130 mm108×130 mm
Rated power102/2300 hp DIN/rpm107/2300 hp DIN/rpm117/2300 hp DIN/rpm125/2300 hp DIN/rpm140/2300 hp DIN/rpm150/2350 hp DIN/rpm160/2350 hp DIN/rpm
Max power110/2100 hp DIN/rpm118/2100 hp DIN/rpm125/2100 hp DIN/rpm130/2100 hp DIN/rpm145/2100 hp DIN/rpm154/2100 hp DIN/rpm163/2100 hp DIN/rpm
Torque-------
Gears24+2424+2424+2424+2424+2424+2424+24
Synchronized gears24+2424+2424+2424+2424+2424+2424+24
Powershift gears4-step4-step4-step4-step4-step4-step4-step
Reverserhydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h2,8-39,32,8-39,32,8-39,32,9-41,02,9-41,02,9-41,02,9-41,0
Max. speed 40/50 km/h40/50 km/h40/50 km/h40/50 km/h40/50 km/h40/50 km/h40/50 km/h
Hydr. flow l/min83 (120) l/min83 (120) l/min83 (120) l/min83 (120) l/min83 (120) l/min83 (120) l/min83 (120) l/min
Lift controlselec.elec.elec.elec.elec.elec.elec.
Lift capacity6220 kg6220 kg6220 kg9240 kg9240 kg9240 kg9240 kg
PTO speeds540/750/ 1000/1400540/750/ 1000/1400540/750/ 1000/1400540/750/ 1000/1400540/750/ 1000/1400540/750/ 1000/1400540/750/ 1000/1400
Brakeswet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD9.99.99.910.2610.2610.2610.26
Front tyres 4WD16.9R2416.9R2414.9R28480/70R28480/70R28480/70R28480/70R28
Rear tyres 4WD18.4R3818.4R3818.4R3820.8R3820.8R3820.8R3820.8R38
Weight 4WD5010 kg5010 kg5010 kg5710 kg5710 kg5740 kg5940 kg
Height with cab288 cm288 cm288 cm296 cm296 cm296 cm296 cm
Length (2WD/4WD)458 cm459 cm459 cm476 cm476 cm476 cm476 cm
Wheelbase (2WD/4WD)265 cm265 cm265 cm277 cm277 cm277 cm277 cm
Fuel tank270 l270 l270 l270 l270 l270 l320 l
Cab noise level72 dB72 dB72 dB72 dB72 dB72 dB72 dB
Solid cabxxxxxxx
Diff. lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lock
Autom. differential locksxxxxxxx
Air suspension seatxxxxxxx
Air conditioningxxxxxxx
Creeper gearopt.opt.opt.opt.opt.opt.opt.
