Siirry sivupalkkiinSiirry alaosaanDeutz-Fahr Agrotron 175-200 MK3










In the MK3 lineup renewed in 2001, only two models remained among the second most robust Agrotrons: the 175 and 200. The features that distinguished these Same Rubin sister models from other Agrotrons were the transmission equipped with Same's 9-speed powershift and closed hydraulics.

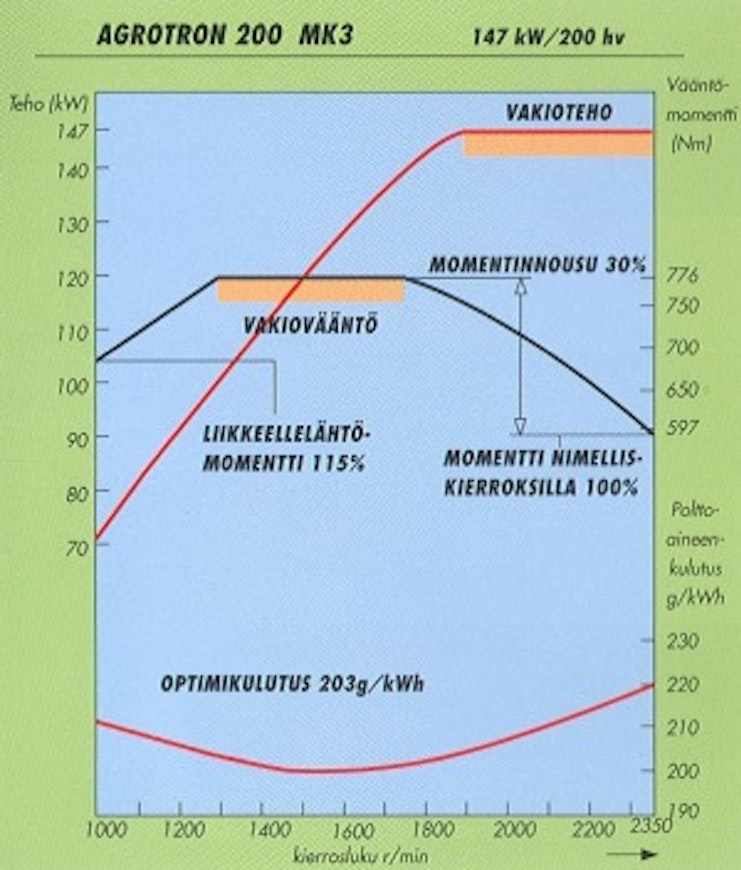

Of the Deutz 7.1-liter engines, the more powerful one was equipped with an intercooler. The maximum torque was available in the range of 1300-1750 rpm, with a torque increase percentage of 30%. Like previous versions, the engines were equipped with electronic control. In Finland, there were 27+24 gears available because crawling gears and a 40 km/h speed were standard. Elsewhere, there were options for 16+15, 18+15, and 25+24. The PTO (power take-off) speeds were 750 and 1000 rpm. The front axle was manufactured by Dana and had a 100% lock.

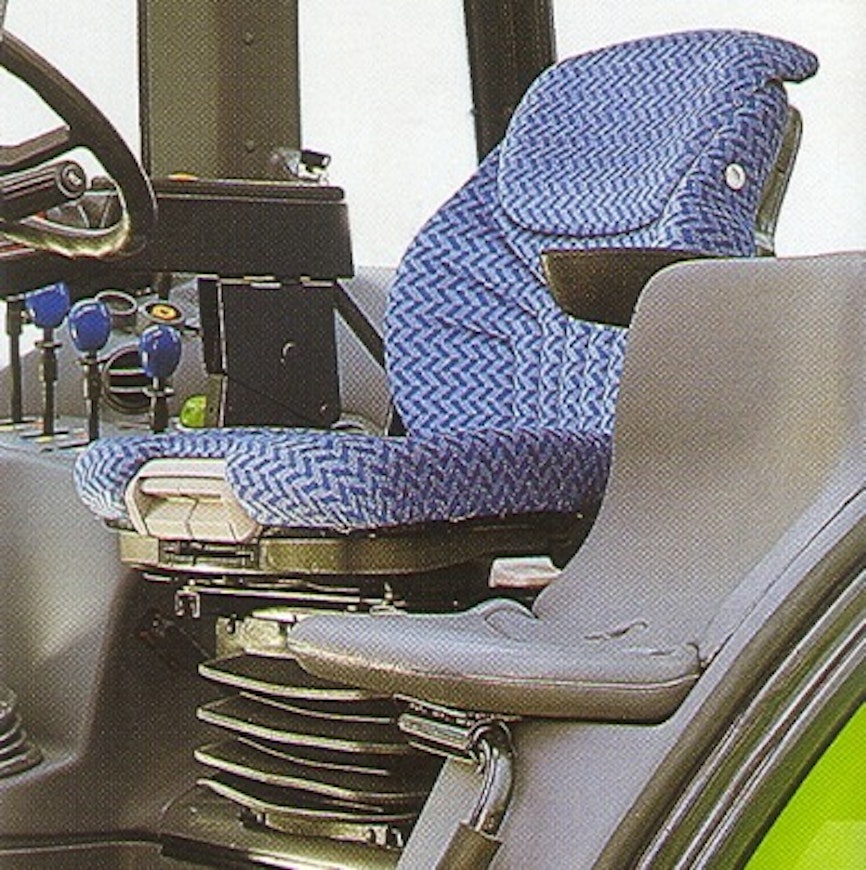

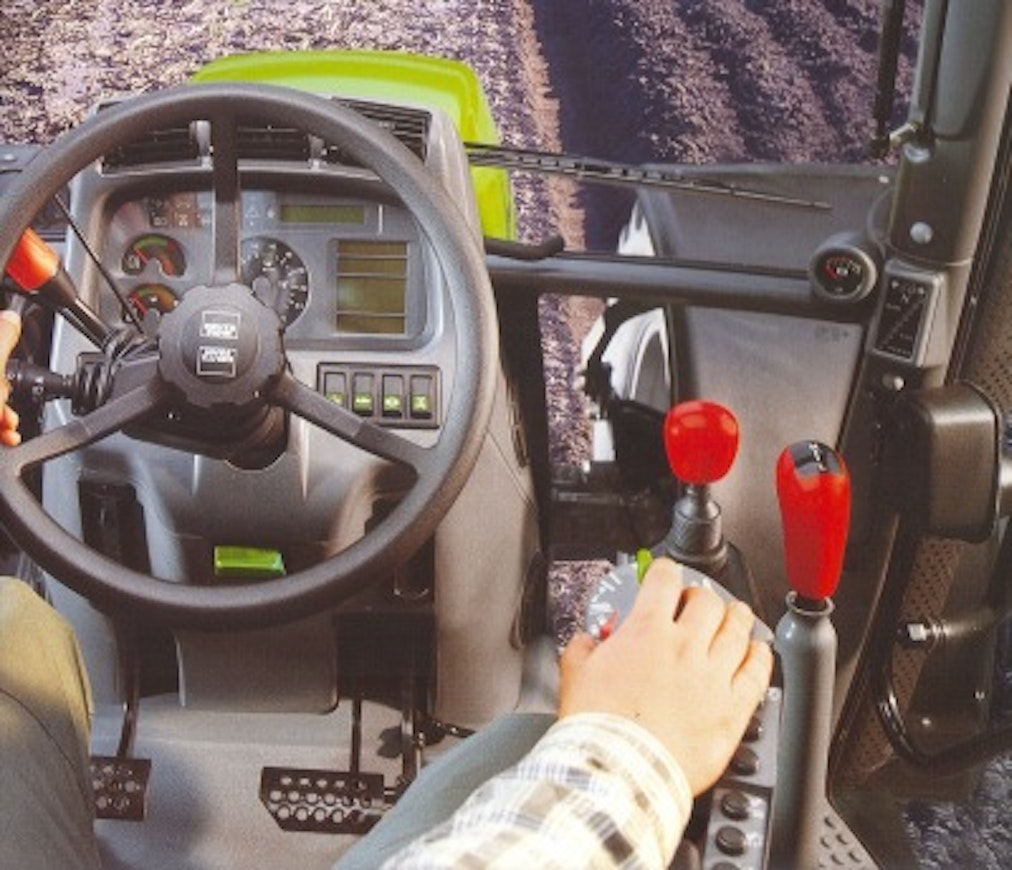

Standard equipment included, among other things, air conditioning, an air-suspended seat, cab suspension, and a trailer brake valve. Front axle suspension was optional, but a 50 km/h speed option was not available for these models. The multifunction armrest controls included: powershift, lift, memory buttons for electronic engine speed control, hand throttle, and transmission programming.
This is an automated translation. Please report any issues in the translation.
| Model | Deutz-Fahr Agrotron 175 MK3 | Deutz-Fahr Agrotron 200 MK3 |
|---|---|---|
| Manufacturer name | Deutz-Fahr | Deutz-Fahr |
| Imported to Finland | Yes | Yes |
| Years | 2001-2004 | 2001-2004 |
| Engine model | BF6L1013E | BF6L1013EC |
| Cyl/Turbo/Intercooler | 6T | 6TI |
| Displacement | 7146 cm³ | 7146 cm³ |
| Bore x stroke | 108×130 mm | 108×130 mm |
| Rated power | 175/2350 hp DIN/rpm | 200/2350 hp DIN/rpm |
| Torque | - | - |
| Gears | 27+24 | 27+24 |
| Synchronized gears | 27+24 | 27+24 |
| Powershift gears | 9-step | 9-step |
| Reverser | hydr. | hydr. |

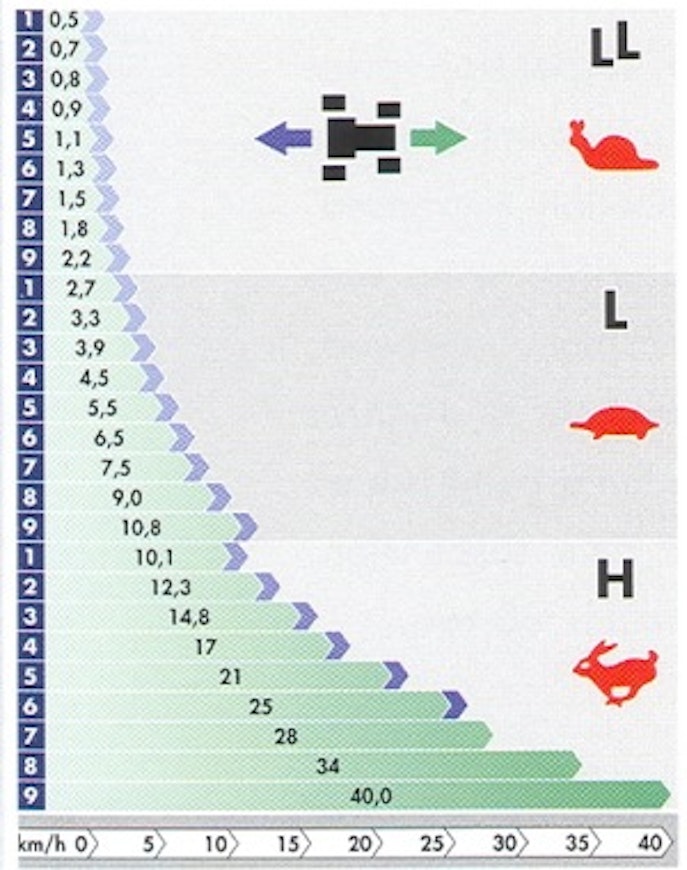

| Speeds in km/h | 0,5-40,0 | 0,5-40,0 |
| Max. speed | 40 km/h | 40 km/h |
| Hydr. flow l/min | 120 l/min | 120 l/min |
| Hydraulic pressure | 200 bar | 200 bar |
| Lift controls | elec. | elec. |
| Lift capacity | 10000 kg | 10000 kg |
| PTO speeds | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc |
| Steering | hydrost. | hydrost. |
| Turning circle m 4WD | 11.6 | 11.6 |
| Front tyres 4WD | 480/70R30 | 480/70R30 |
| Rear tyres 4WD | 20.8R38 | 20.8R38 |
| Weight 4WD | 7500 kg | 7570 kg |
| Height with cab | 306 cm | 306 cm |
| Length (2WD/4WD) | 470 cm | 470 cm |
| Wheelbase (2WD/4WD) | 303 cm | 303 cm |
| Fuel tank | 380 l | 380 l |
| Cab noise level | 72 dB | 72 dB |
| Solid cab | x | x |
| Diff. lock | disc lock | disc lock |
| Autom. differential locks | x | x |
| Air suspension seat | x | x |
| Air conditioning | x | x |
| Creeper gear | x | x |
