Siirry sivupalkkiinSiirry alaosaanDeutz-Fahr Agrotron 80-105








The second generation Agrotrons were introduced already in the autumn of 1997, just 2 years after the series' initial launch.

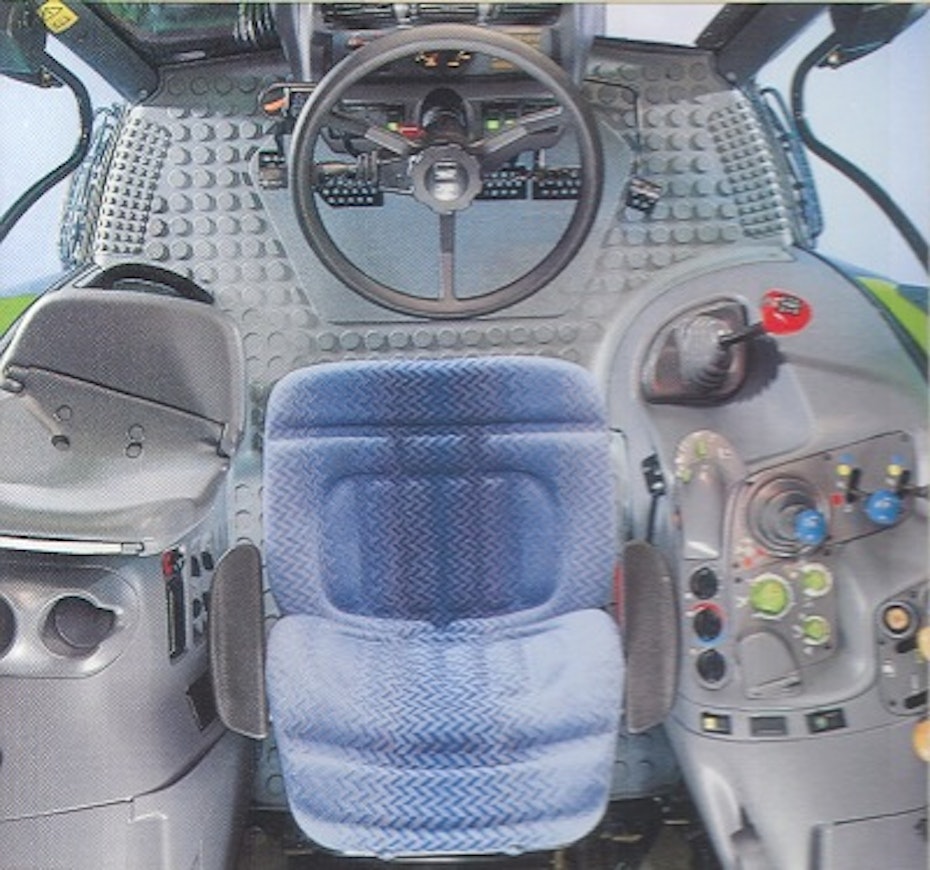

The cab was more spacious than before, access ways were improved, and the noise level was reported to be only 74 dB. The control devices also underwent minor changes. The heater and the optional air conditioning unit were more efficient than before. The engine air intake on the four-cylinder models was now located in the front pillar of the cab.
The smallest model, with 68 horsepower, was discontinued, and correspondingly, a six-cylinder model with 105 horsepower was added to the smaller range as a continuation of the four-cylinder models. This 105 had the same engine as the smallest model in the more powerful series, the 106. Like the other six-cylinder models, the 105 was also available with a suspended front axle.
Damping of the hitch oscillation in the transport position became standard in the year 2000.
This is an automated translation. Please report any issues in the translation.
| Model | Deutz-Fahr Agrotron 80 | Deutz-Fahr Agrotron 85 | Deutz-Fahr Agrotron 90 | Deutz-Fahr Agrotron 100 | Deutz-Fahr Agrotron 105 |
|---|---|---|---|---|---|
| Manufacturer name | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1997-2000 | 1997-2001 | 1997-2001 | 1997-2001 | 1997-2001 |
| Engine model | BF4L1012E | BF4L1012EC | BF4L1012EC | BF4L1012EC | BF6L1012E |
| Cyl/Turbo/Intercooler | 4T | 4TI | 4TI | 4TI | 6T |
| Displacement | 3192 cm³ | 3192 cm³ | 3192 cm³ | 3192 cm³ | 4788 cm³ |
| Bore x stroke | 94×115 mm | 94×115 mm | 94×115 mm | 94×115 mm | 94×115 mm |

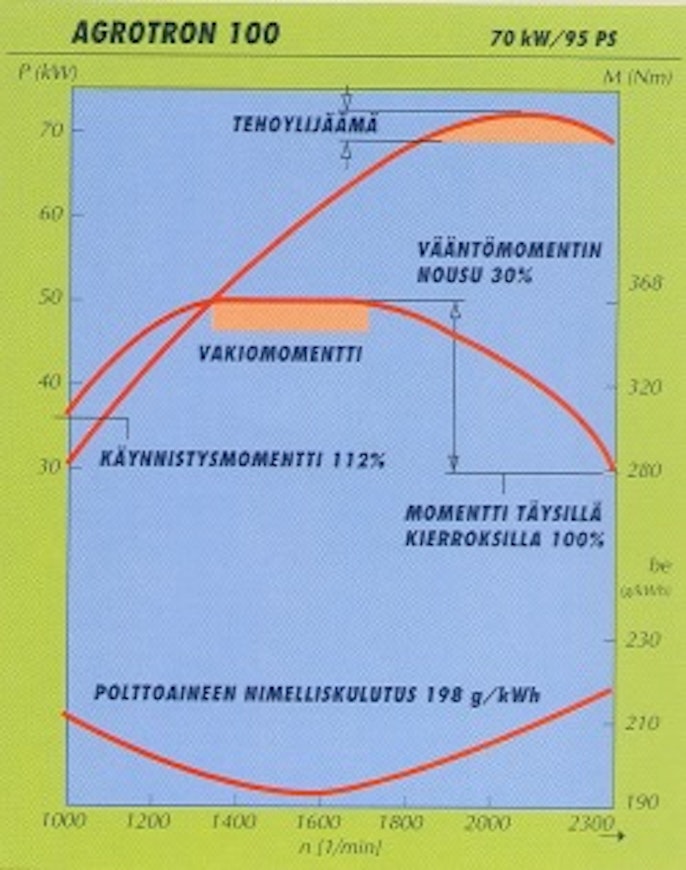

| Rated power | 75/2300 hp DIN/rpm | 82/2300 hp DIN/rpm | 88/2300 hp DIN/rpm | 95/2300 hp DIN/rpm | 100/2300 hp DIN/rpm |
| Max power | 78/2100 hp DIN/rpm | 86/2100 hp DIN/rpm | 92/2100 hp DIN/rpm | 99/2100 hp DIN/rpm | 105/2100 hp DIN/rpm |
| Torque | - | - | - | - | - |

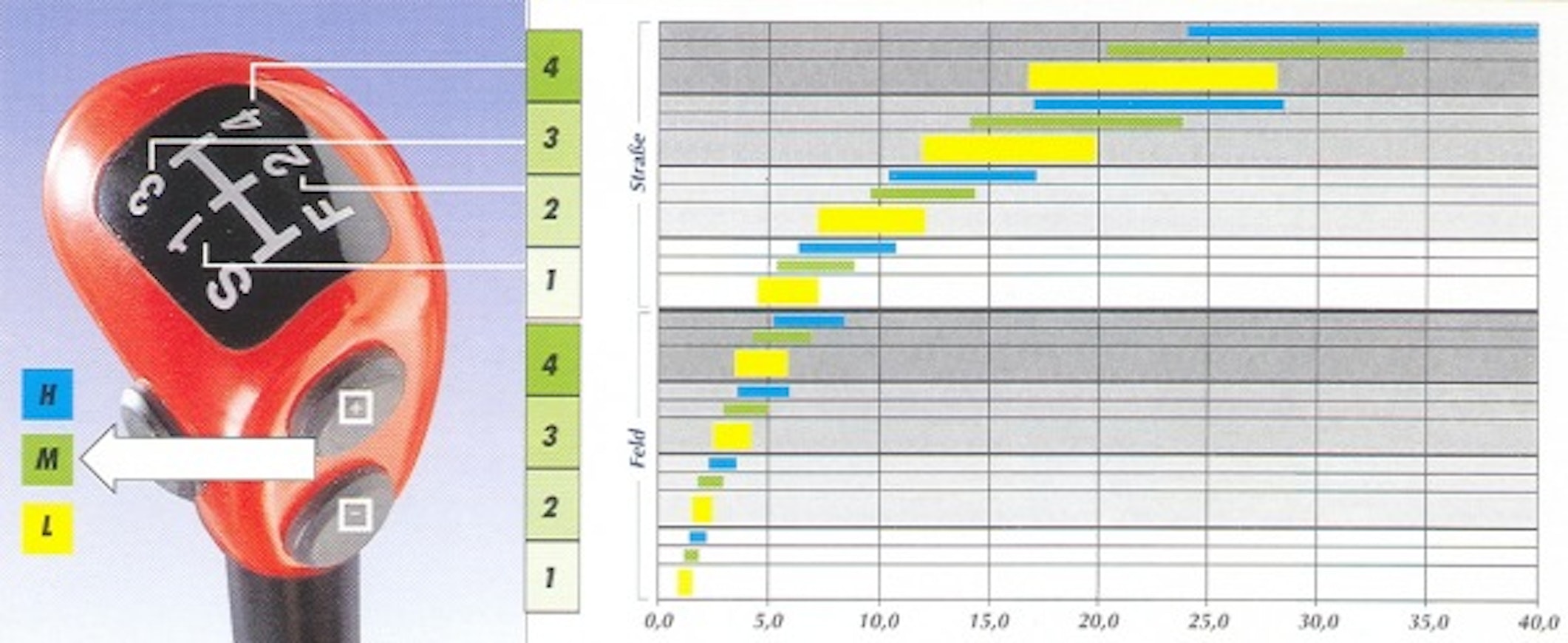

| Gears | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 |
| Synchronized gears | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 |
| Powershift gears | 3-step | 3-step | 3-step | 3-step | 3-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 1,6-40,0 | 1,6-40,0 | 1,6-40,0 | 1,6-40,0 | 1,7-42,8 |
| Hydr. flow l/min | 66 l/min | 66 l/min | 66 l/min | 66 l/min | 66 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.4 | 9.4 | 9.4 | 9.4 | 9.9 |
| Front tyres 4WD | 13.6R24 | 13.6R24 | 14.9R24 | 380/70R28 | 380/70R28 |
| Rear tyres 4WD | 16.9R34 | 16.9R34 | 18.4R34 | 480/70R38 | 480/70R38 |
| Weight 4WD | 3970 kg | 4040 kg | 4160 kg | 4220 kg | 4500 kg |
| Height with cab | 272 cm | 275 cm | 277 cm | 277 cm | 283 cm |
| Length (2WD/4WD) | 401 cm | 401 cm | 401 cm | 401 cm | 437 cm |
| Wheelbase (2WD/4WD) | 242 cm | 242 cm | 242 cm | 242 cm | 265 cm |
| Fuel tank | 190 l | 190 l | 190 l | 190 l | 190 l |
| Cab noise level | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
