Siirry sivupalkkiinSiirry alaosaanDeutz-Fahr Agrotron TTV 7210-7250








The large Agrotron TTV introduced in 2011 had hardly entered production when, at the Agritechnica exhibition in autumn, its redesigned styling and cab improved by Giugiaro were revealed. Initially, only the 7210 model was available, but in the updated lineup, the larger 7230 and 7250 models were introduced. The engines featured a power boost function at speeds over 30 km/h or when using the power take-off (PTO). The maximum torque was achieved in the range of 950-1650 rpm. Unlike the smaller TTV models, the transmission was the S-Matic sold by Steyr to ZF (version 180 in the 7210 and 240 in the others). Where legislation allowed, the top speed was 60 km/h. The transmission had four fully mechanical gear ratios, which improved efficiency at normal working speeds. The hydraulic and lift performance were roughly the same as in the 6-series.

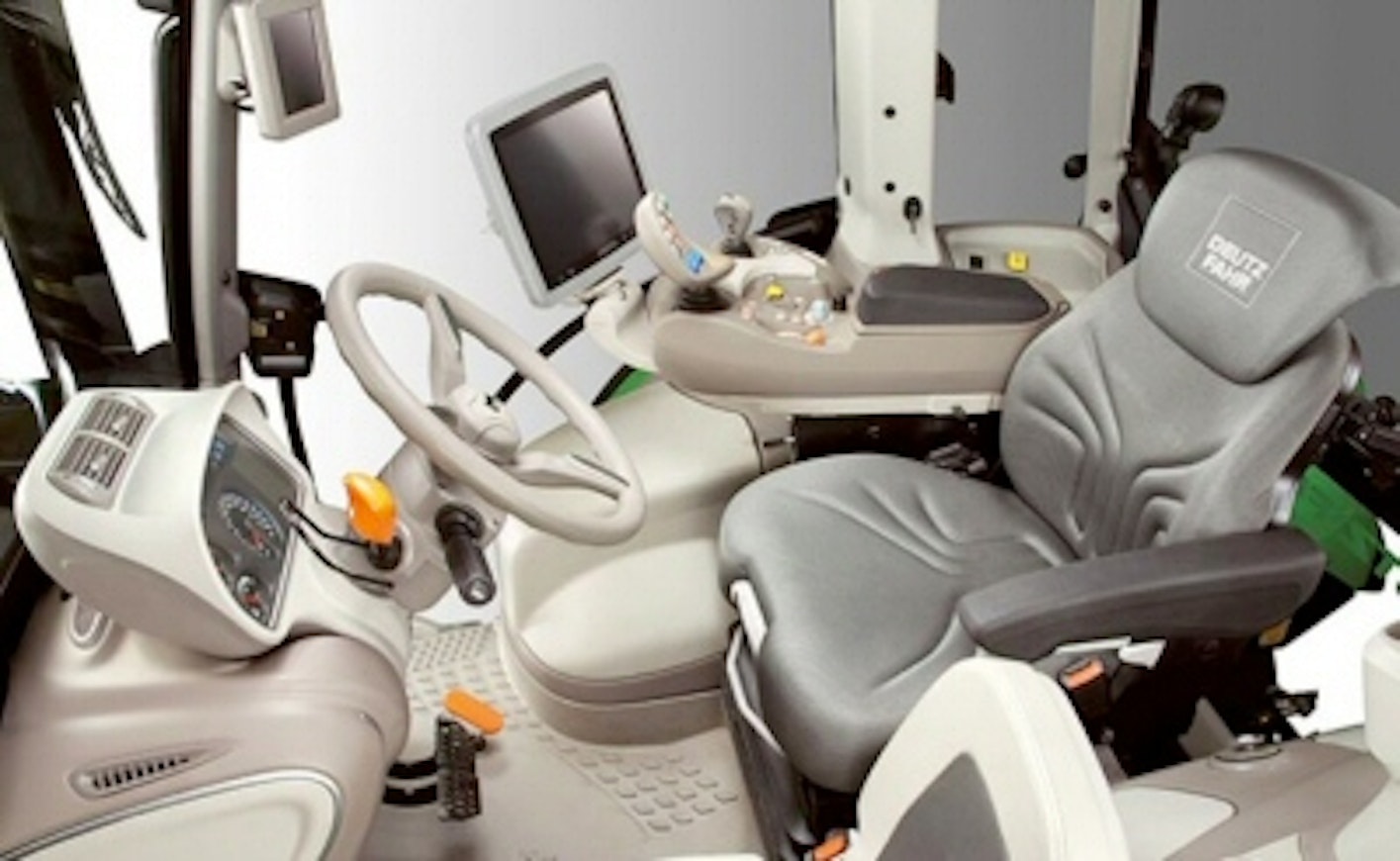

The cab was a stylish Maxivision similar to that of the 6 TTV. A display located in the right front pillar provided information about the drivetrain and hydraulics. A 12″ Isobus monitor, iMonitor 2, was available as an option. The parking brake operated electrically with a push button. The cab suspension was mechanial as standard, with pneumatic suspension available at extra cost. The 7 TTV was named Tractor of the Year in 2013.
This is an automated translation. Please report any issues in the translation.
| Model | Deutz-Fahr Agrotron TTV 7210 | Deutz-Fahr Agrotron TTV 7210 | Deutz-Fahr Agrotron TTV 7230 | Deutz-Fahr Agrotron TTV 7250 |
|---|---|---|---|---|
| Manufacturer name | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2011-12 | 2012- | 2012- | 2012- |
| Engine model | TCD 2012 L06 4V 4i | TCD6.1 L06 4V 4i | TCD6.1 L06 4V 4i | TCD6.1 L06 4V 4i |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power | - | - | - | - |
| Max power | - | - | - | - |
| Torque | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,05-40/50 | 0,05-40/50 | 0,05-40/50 | 0,05-40/50 |
| Max. speed | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h |
| Hydr. flow l/min | 160 l/min | 120 (160) l/min | 120 (160) l/min | 120 (160) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 10000 kg | 9200 kg | 9200 kg | 9200 kg |
| PTO speeds | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 750/ 1000/1250 | 750/1000/1250 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.6 | 11.6 | 11.6 | 11.6 |
| Front tyres 4WD | 540/65R34 | 540/65R34 | 540/65R34 | 540/65R34 |
| Rear tyres 4WD | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 |
| Weight 4WD | 7500 kg | 8000 kg | 8500 kg | 8500 kg |
| Height with cab | 316 cm | 315 cm | 315 cm | 315 cm |
| Length (2WD/4WD) | 481 cm | 493 cm | 493 cm | 493 cm |
| Wheelbase (2WD/4WD) | 282 cm | 282 cm | 282 cm | 282 cm |
| Fuel tank | 300 (435) +50AB l | 300+35AB l | 300+35AB l | 300+35AB l |
| Cab noise level | 72 dB | 69 dB | 69 dB | 69 dB |
| Solid cab | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x |
| Air suspension seat | x | x | x | x |
| Air conditioning | x | x | x | x |
| Creeper gear | x | x | x | x |
