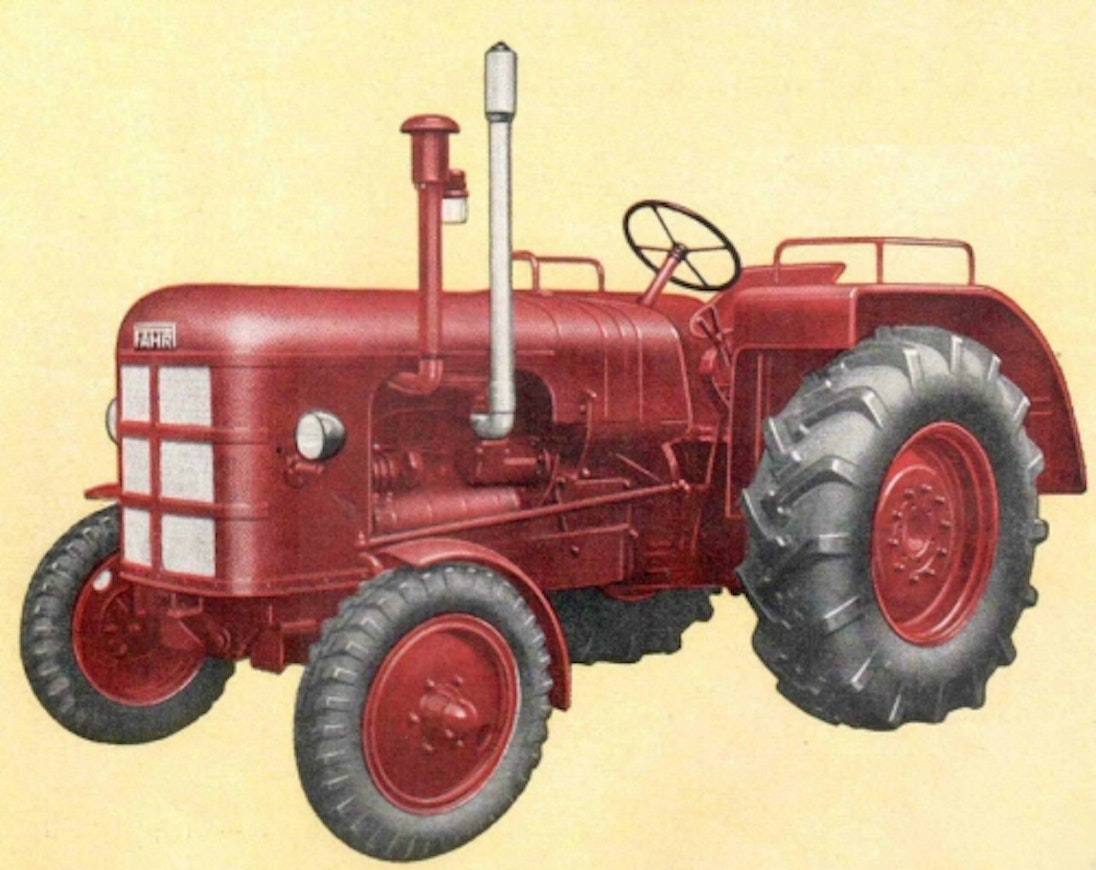

Fahr introduced a larger tractor in 1952 than any of its previous models. The model designation was originally D 55 L, but the actual production versions were released as the D 60 L. Unlike the smaller models, the engine was not a load-bearing part of the frame. It was a four-cylinder, air-cooled Deutz. The gearbox was a 5+1 unit made by ZP. Optional extras included crawler gears, a dual clutch, and road gears, which gave it a top speed of 32 km/h.

To fill the gap in the lineup toward smaller tractors, a three-cylinder D 45 L was introduced. Its gearbox was a ZF A-17, which unfortunately proved to be weak in terms of durability.

This is an automated translation. Please report any issues in the translation.

Fahr D 45 L

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Fahr D 60 L

Fahr D 45 L – D 60 L

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Fahr D 45 L	Fahr D 60 L
Manufacturer name	Fahr	Fahr
Imported to Finland	No	No
Years	1952-54	1952-55
Engine model	Deutz F3L 514	Deutz F4L 514
Cyl/Turbo/Intercooler	3	4
Displacement	3990 cm³	5322 cm³
Bore x stroke	110×140 mm	110×140 mm
Rated power	45/1600 hp DIN/rpm	60/1650 hp DIN/rpm
Torque	-	-
Gears	5+1	5+1
Speeds in km/h	3,9-21,6	4,5-23,9
Hydraulic pressure	260 bar	160 bar
Lift controls	mech.	mech.
Lift capacity	690 kg	815 kg
PTO speeds	587	540
Brakes	drum brakes	drum brakes
Steering	mech.	mech.
Turning circle m 2WD	8.3	9.3
Front tyres 2WD	6.50-20	6.50-20
Rear tyres 2WD	14.9/13-30	14.9/13-30
Weight 2WD	(2420) kg	(3460) kg
Height with cab	233 cm	235 cm
Length (2WD/4WD)	366 cm	389 cm
Wheelbase (2WD/4WD)	210 cm	230 cm
Fuel tank	65 l	90 l
Creeper gear	opt.	opt.
