Fendt 370 GT – 380 GTA

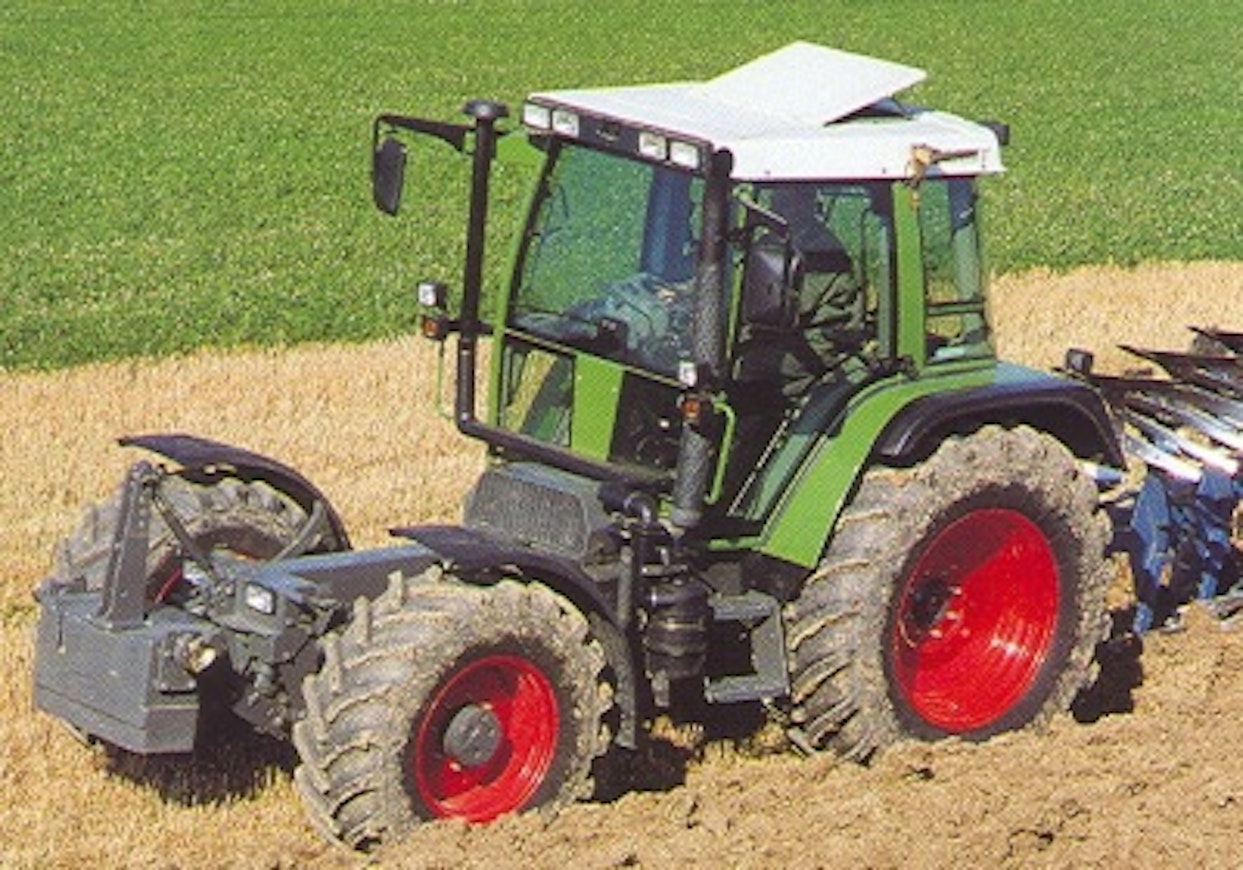

98Fendt380GTA

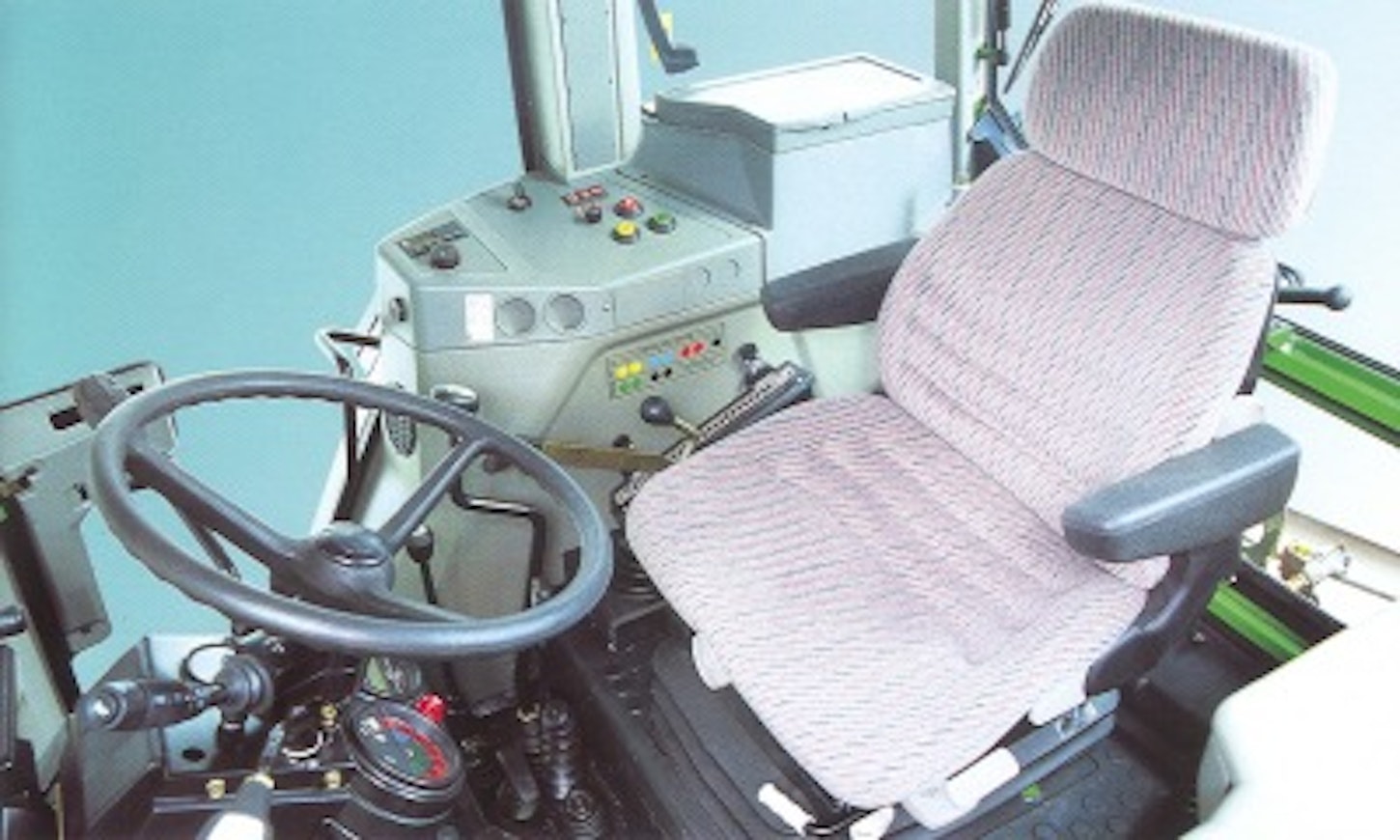

98Fendt380GTAohjaamo

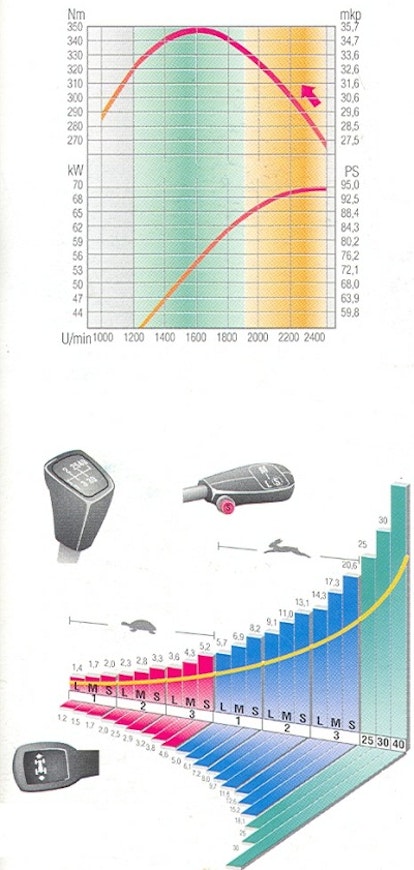

98Fendt380GTAnopeudet
98Fendt380GTA
98Fendt380GTAohjaamo
98Fendt380GTAnopeudet
Manufacturer
Models
Fendt 370 GT/GTA, Fendt 380 GTA Turbo
Years
1998-2004
Info

Here is the translated text:

In the Työkoneenkantaja series, model generations were long-lasting. After 14 years, a new model range was introduced in the spring of 1998. The lineup had been reduced to two power classes: the 370 had 75 hp and the 380 had 95 hp. The engines were still air-cooled Deutz models as before. Injection pressure had been increased, and the 380's engine was now turbocharged. Torque had increased by 25%. The transmission was, as with the Farmer 300 C series, 21+6 as standard and optionally a 21+21 that required clutch use for changing direction.

The cabin was fundamentally the same structure as the newest Farmer and Favorit series. However, the noise level was 80 dB due to the air-cooled engine located under the cabin. For maintenance work, the cabin was tiltable. The technology was largely unchanged: for example, the lift was mechanical and the hydraulic performance was modest compared to other Fendt tractors. The 380 model had two auxiliary cylinders in the lift, providing a lifting capacity of 4380 kg. There were no longer any high-clearance versions in the range; the two-wheel-drive model was always a long wheelbase version.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFendt 370 GT/GTAFendt 380 GTA Turbo
Manufacturer nameFendtFendt
Imported to FinlandYesYes
Years1998-20041998-2004
Engine modelKHD F4L913KHD F4L913
Cyl/Turbo/Intercooler44T
Displacement4086 cm³4086 cm³
Bore x stroke102×125 mm102×125 mm
Rated power75/2400 hp DIN/rpm95/2400 hp DIN/rpm
Torque--
Gears21+621+6
Synchronized gears21+621+6
Powershift gears3-step3-step
Reverseropt.opt.
Speeds in km/h1,3-401,3-40
Max. speed 40 km/h40 km/h
Hydr. flow l/min41 l/min41 l/min
Hydraulic pressure180 bar180 bar
Lift controlsmech.mech.
Lift capacity3270 kg4380 kg
PTO speeds540/750/1000540/750/1000
Brakesdry disc (RWD drum)dry disc
Steeringhydrost.hydrost.
Turning circle m 2WD9.2-
Turning circle m 4WD9.49.4
Front tyres 2WD7.50-18-
Front tyres 4WD420/70R24420/70R24
Rear tyres 2WD13.6R38-
Rear tyres 4WD480/70R38480/70R38
Weight 2WD3590 kg-
Weight 4WD4220 kg4480 kg
Height with cab271/273 cm278 cm
Length (2WD/4WD)463/430 cm430 cm
Wheelbase (2WD/4WD)321/257 cm256 cm
Fuel tank80 l80 l
Cab noise level80 dB80 dB
Solid cabxx
Diff. lockfriction lockfriction lock
Creeper gearopt.opt.
