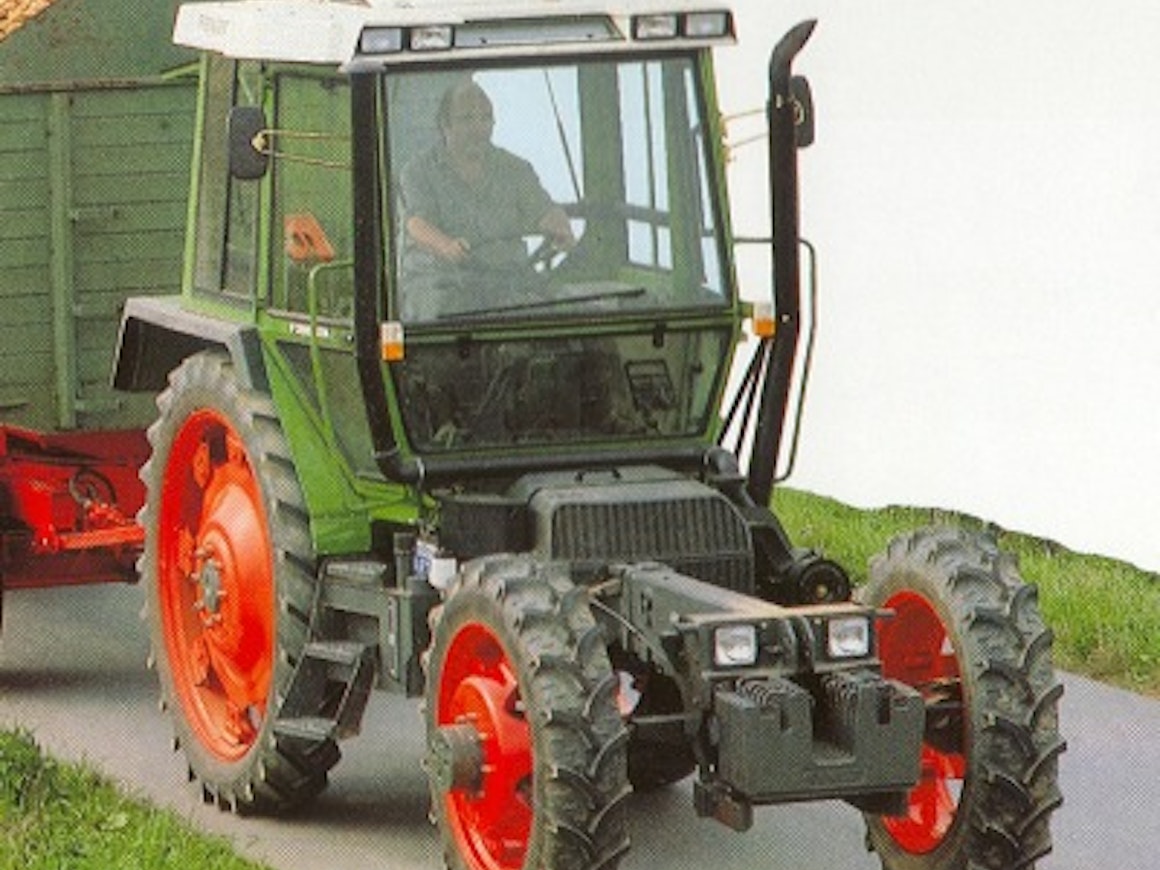

Siirry sivupalkkiinSiirry alaosaanFendt F 390 GTA – F 395 GHA




In 1985, the first 6-cylinder work machine carrier 390 GTA/GHA was introduced, equipped with Deutz's 6.1-liter air-cooled engine (100 hp). In 1989, the top of the model range featured the 115-horsepower 395 GTA/GHA. These large four-wheel-drive work machine carriers were used in Finland as a base for harvesters. The ground clearance for GHA models was 70-72 cm, even with four-wheel drive. The wheelbase of the GHA was also slightly longer than that of the GTA version. Unlike the 9.5-44 front tires on the 380 GHA, the 390 and 395 used 16.9R34 front tires.

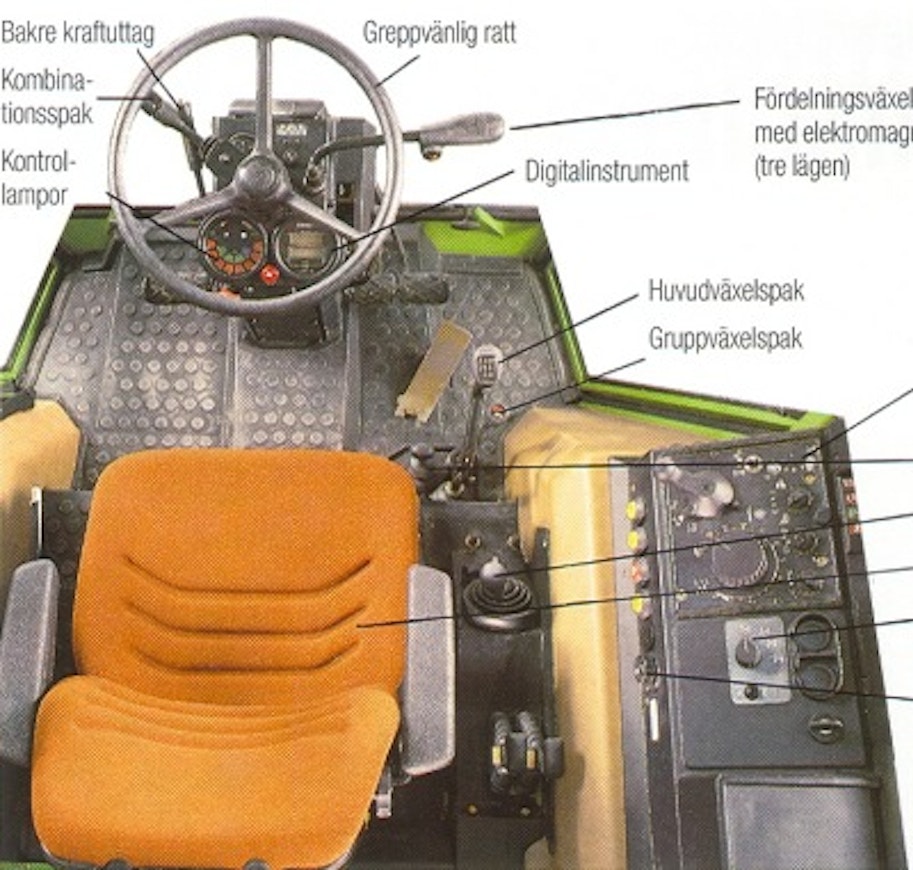

Starting from 1989, both the 395 and the 390 came standard with a power lift, oscillation damping function, digital instrumentation, and automatic locking, which was enabled mainly by a disc lock in addition to the friction brake. The lifting capacity of the front power lift was 2505 kg.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt F 390 GTA | Fendt F 390 GHA | Fendt F 395 GTA | Fendt F 395 GHA |
|---|---|---|---|---|
| Manufacturer name | Fendt | Fendt | Fendt | Fendt |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 1985-95 | 1985-89 | 1989-98 | 1989-98 |
| Engine model | KHD F6L913 | KHD F6L913 | KHD F6L913 | KHD F6L913 |
| Cyl/Turbo/Intercooler | 6 | 6 | 6 | 6 |
| Displacement | 6128 cm³ | 6128 cm³ | 6128 cm³ | 6128 cm³ |
| Bore x stroke | 102×125 mm | 102×125 mm | 102×125 mm | 102×125 mm |
| Rated power | 100/2300 hp DIN/rpm | 100/2300 hp DIN/rpm | 115/2400 hp DIN/rpm | 115/2400 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 21+6 | 21+6 | 21+6 | 21+6 |
| Synchronized gears | 21+6 | 21+6 | 21+6 | 21+6 |
| Powershift gears | 3-step | 3-step | 3-step | 3-step |
| Speeds in km/h | 1,4-40 | 1,4-40 | 1,4-40 | 1,4-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 71 l/min | 71 l/min | 73 l/min | 73 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 5150/5490 kg | 5150 kg | 5490 kg | 5220 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | dry disc | dry disc | dry disc | dry disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11 | 11.6 | 11 | 11.6 |
| Front tyres 4WD | 14.9R28 | 16.9R34 | 14.9R28 | 16.9R34 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 |
| Weight 4WD | 4775 kg | 4885 kg | 5060 kg | 5180 kg |
| Height with cab | 269 cm | 299 cm | 269 cm | 303 cm |
| Length (2WD/4WD) | 472 cm | 482 cm | 472 cm | 482 cm |
| Wheelbase (2WD/4WD) | 277 cm | 293 cm | 277 cm | 293 cm |
| Fuel tank | 160 l | 160 l | 160 l | 160 l |
| Cab noise level | 77.5 dB | 77.5 dB | 77.5 dB | 77.5 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction brake / disc brake | friction brake / disc brake | disc lock | disc lock |
| Autom. differential locks | 89- | 89- | x | x |
| Creeper gear | opt. | opt. | opt. | opt. |
