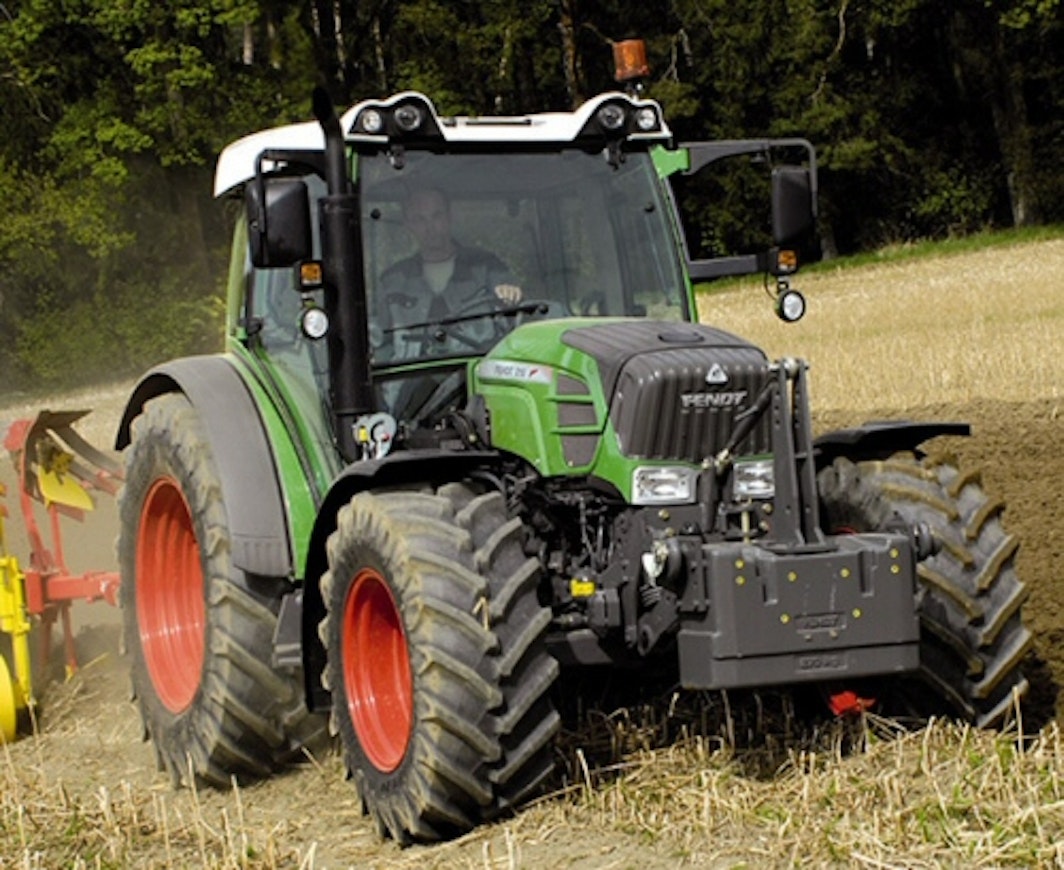

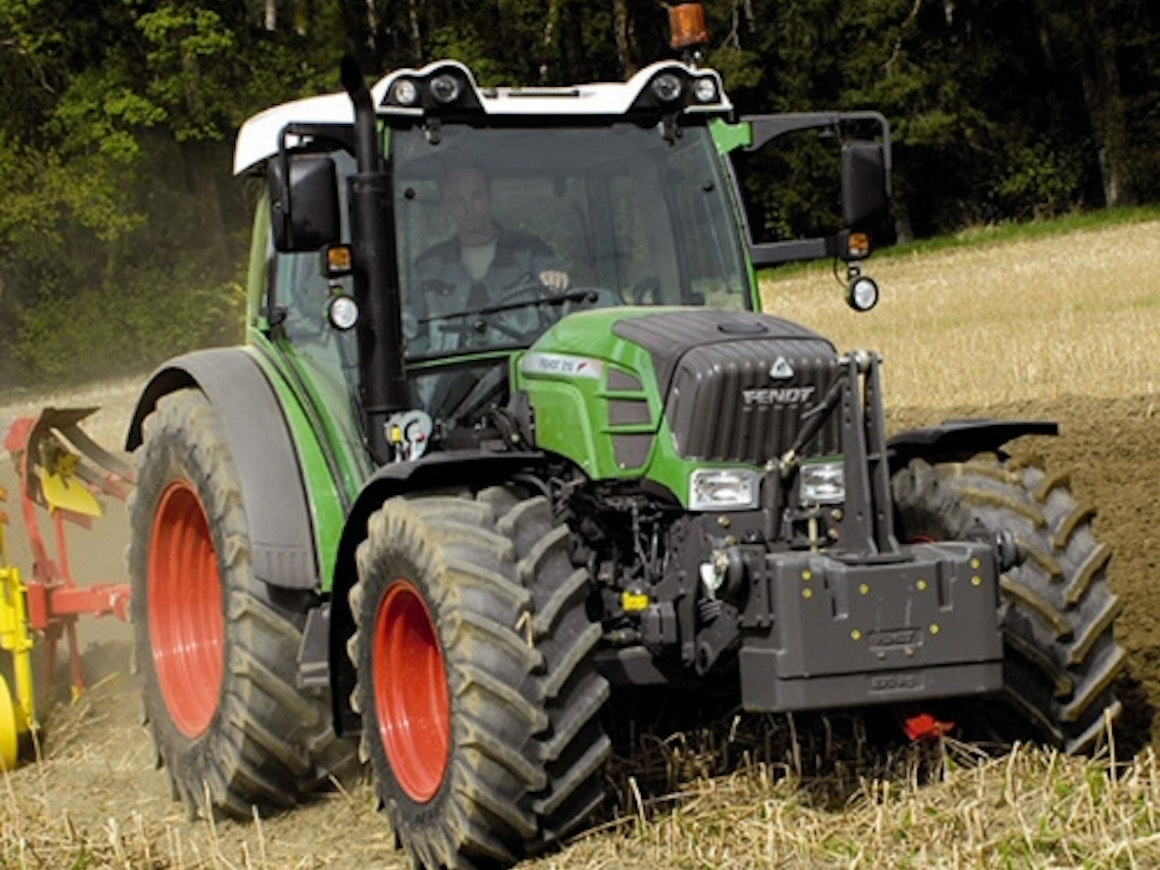

Fendt Farmer 207-211 Vario






At Agritechnica in autumn 2009, a smaller version of the 200-series Fendt Vario was introduced, equipped with the company's own 3.3-liter Agco Power engines. The engines featured common rail injection and exhaust gas recirculation. Later tightening of emission standards was managed similarly to Valtra by tweaking the nominal power ratings model-specifically to 38, 41, 44, 46, and 49 hp. The Vario transmission was the same ML 75 as in the 300 series and did not have separate field and road ranges. A speed of 40 km/h was achieved at 1700 rpm. There were two cruise control memories. The TMS system, which adjusts engine speed according to load, was an optional extra. The lifting device was electrically operated and offered a lifting capacity of 4200 kg. As an option, hydraulics could be equipped with a dual pump producing 76 l/min.

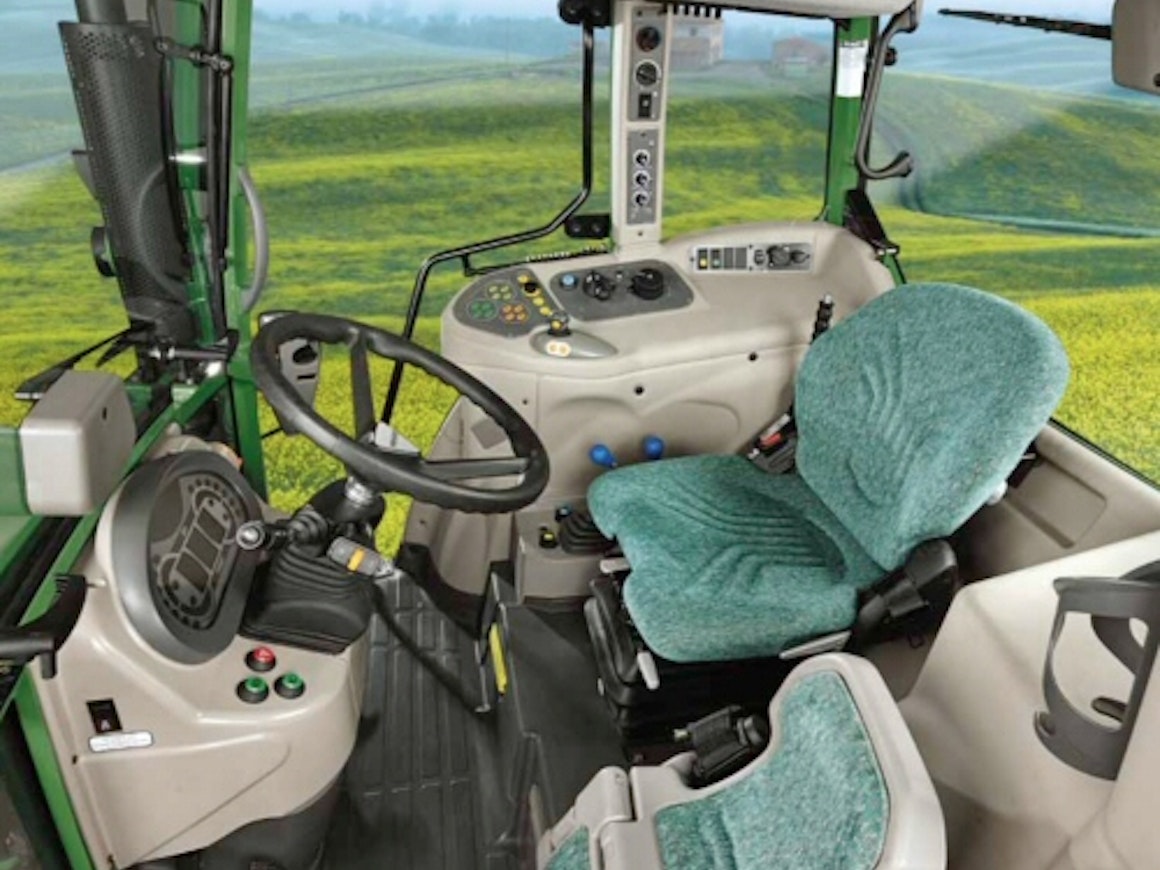

Unlike the larger models, the electrical system was implemented without bus technology. Standard equipment included, among other things, a passenger seat and the disengagement of four-wheel drive and differential locks based on speed, and from the 2015 model year onwards, also an air suspension seat. Optional extras included manual or automatic air conditioning and cab suspension.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt Farmer 207 Vario | Fendt Farmer 208 Vario | Fendt Farmer 209 Vario | Fendt Farmer 210 Vario | Fendt Farmer 211 Vario |
|---|---|---|---|---|---|
| Manufacturer name | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 2010-17 | 2010-17 | 2010-17 | 2010-17 | 2010-17 |
| Engine model | 33 CTA | 33 CTA | 33 CTA | 33 CTA | 33 CTA |
| Cyl/Turbo/Intercooler | 3TI | 3TI | 3TI | 3TI | 3TI |
| Displacement | 3300 cm³ | 3300 cm³ | 3300 cm³ | 3300 cm³ | 3300 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm |
| Rated power | 60/2100 hp DIN/rpm | 70/2100 hp DIN/rpm | 80/2100 hp DIN/rpm | 90/2100 hp DIN/rpm | 100/2100 hp DIN/rpm |
| Max power | 70/1900 hp DIN/rpm | 80/1900 hp DIN/rpm | 90/1900 hp DIN/rpm | 100/1900 hp DIN/rpm | 110/1900 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,02-40 | 0,02-40 | 0,02-40 | 0,02-40 | 0,02-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 48 (76) l/min | 48 (76) l/min | 48 (76) l/min | 48 (76) l/min | 48 (76) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 4204 kg | 4204 kg | 4204 kg | 4204 kg | 4204 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet piston brakes | wet piston brakes | wet piston brakes | wet piston brakes | wet piston brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 7.96 | 7.96 | 7.96 | 7.96 | 7.96 |
| Front tyres 4WD | 320/70R24 | 320/70R24 | 380/70R24 | 380/70R24 | 445/65R24 |
| Rear tyres 4WD | 420/85R30 | 480/70R30 | 420/70R34 | 420/70R34 | 540/65R34 |
| Weight 4WD | 3750 kg | 3790 kg | 3870 kg | 3870 kg | 3930 kg |
| Height with cab | 248 cm | 248 cm | 253 cm | 253 cm | 253 cm |
| Length (2WD/4WD) | 407 cm | 407 cm | 407 cm | 407 cm | 407 cm |
| Wheelbase (2WD/4WD) | 229 cm | 229 cm | 229 cm | 229 cm | 229 cm |
| Fuel tank | 125 l | 125 l | 125 l | 125 l | 125 l |
| Cab noise level | 76 dB | 76 dB | 76 dB | 76 dB | 76 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x |
| Air suspension seat | 2014- | 2014- | 2014- | 2014- | 2014- |
| Creeper gear | x | x | x | x | x |
