Fendt Farmer 303 LS – 309 LS
The Farmer 300 series was expanded with two 3-cylinder models in the autumn of 1982. The 303 had a power output of 52 hp and the 304 had 58 hp. All Farmer engines were manufactured by MWM.
The four-cylinder models received a new 21+6 transmission in the autumn of 1984. The increase in gears was achieved by converting the mechanical quick shift into a 3-speed. The steering angle of the wheels increased to 50 degrees, and the turning radius decreased to 8.8 meters in the 4-cylinder models. Drum brakes were used in the rear-wheel-drive models, unlike the four-wheel-drive versions.
The new model of 1985 was the turbocharged 3-cylinder 307 (70 hp). It corresponded in performance to the smallest 4-cylinder models.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt Farmer 303 LS | Fendt Farmer 304 LS | Fendt Farmer 307 LS | Fendt Farmer 305 LS | Fendt Farmer 306 LS | Fendt Farmer 308 LS | Fendt Farmer 309 LS |
|---|---|---|---|---|---|---|---|
| Manufacturer name | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer |
| Imported to Finland | No | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1982-85 | 1982-87 | 1985-87 | 1984-87 | 1984-87 | 1984-87 | 1984-87 |
| Engine model | MWM D226-3 | MWM D226-3 | MWM TD226-3 | MWM D226-4 | MWM D226-4 | MWM D226-4 | MWM TD226-4 |
| Cyl/Turbo/Intercooler | 3 | 3 | 3T | 4 | 4 | 4 | 4T |
| Displacement | 3116 cm³ | 3116 cm³ | 3116 cm³ | 4154 cm³ | 4154 cm³ | 4154 cm³ | 4154 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm |

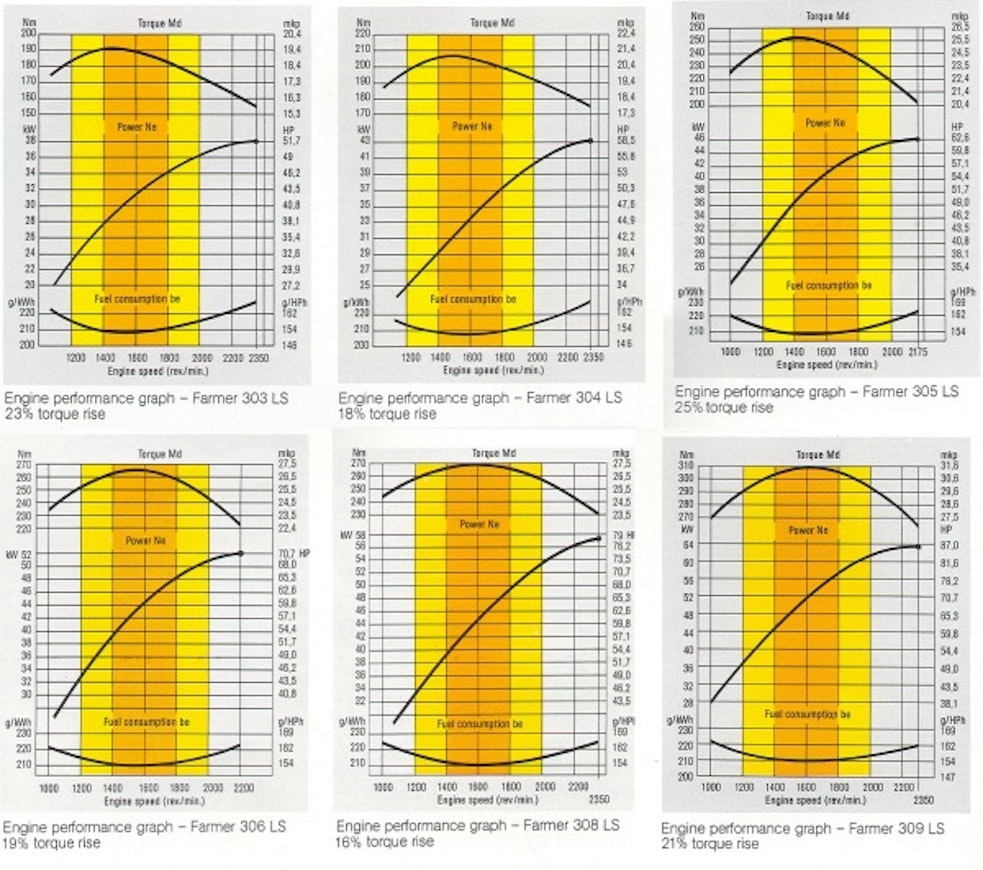

| Rated power | 52/2350 hp DIN/rpm | 58/2350 hp DIN/rpm | 70/2200 hp DIN/rpm | 62/2175 hp DIN/rpm | 70/2200 hp DIN/rpm | 78/2350 hp DIN/rpm | 86/2350 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - |
| Gears | 15+4 | 15+4/21+6 | 21+6 | 21+6 | 21+6 | 21+6 | 21+6 |
| Synchronized gears | 15+4 | 15+4/21+6 | 21+6 | 21+6 | 21+6 | 21+6 | 21+6 |
| Powershift gears | mech. | mech. | mech. 3-step | mech. 3-step | mech. 3-step | mech. 3-step | mech. 3-step |
| Speeds in km/h | 1,4-40 | 1,4-40 | 1,4-40 | 1,4-40 | 1,4-40 | 1,4-40 | 1,4-40 |
| Max. speed | 40 (30) km/h | 40 (30) km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 37 l/min | 40 l/min | 37 l/min | 37 l/min | 38 l/min | 40 l/min | 40 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 2140 kg | 2140 kg | 2865 kg | 2770 kg | 2770 kg | 2770/3700 kg | 2770/3700 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | drum brakes | drum brakes | dry disc | dry disc | dry disc | dry disc | dry disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.8 | 7.8 | 7.8 | 8.6 | 8.6 | 8.6 | 8.8 |
| Turning circle m 4WD | 8 | 8 | 8 | 8.8 | 8.8 | 8.8 | 9.2 |
| Front tyres 2WD | 7,50-18 | 7,50-18 | 10,00-16 | 7,50-20 | 10,00-16 | 10,00-16 | 11,00-16 |
| Front tyres 4WD | 12.4R20 | 12.4R20 | 12.4R24 | 12.4R24 | 12.4R24 | 13.6R24 | 13.6R24 |
| Rear tyres 2WD | 13,6R36 | 13,6R36 | 16,9R34 | 16,9R34 | 16,9R34 | 16,9R34 | 16,9R34 |
| Rear tyres 4WD | 16.9R30 | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 |
| Weight 2WD | 2936 kg | 2936 kg | 3150 kg | 3495 kg | 3535 kg | 3665 kg | 3805 kg |
| Weight 4WD | 3281 kg | 3281 kg | 3420 kg | 3705 kg | 3705 kg | 3870 kg | 4010 kg |
| Height with cab | 255 cm | 255 cm | 262 cm | 259 cm | 259 cm | 259 cm | 259 cm |
| Length (2WD/4WD) | 378 cm | 378 cm | 390 cm | 391/392 cm | 395/397 cm | 395/397 cm | 397 cm |
| Wheelbase (2WD/4WD) | 229/215 cm | 229/215 cm | 229/215 cm | 239/232 cm | 239/232 cm | 239/232 cm | 239/232 cm |
| Fuel tank | 80 l | 80 l | 80 l | 107 l | 107 l | 107 l | 107 l |
| Cab noise level | 83 dB | 83 dB | 83 dB | 83 dB | 83 dB | 83 dB | 82.5 dB |
| Solid cab | x | x | x | x | x | x | x |
| Diff. lock | opt. | opt. | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
