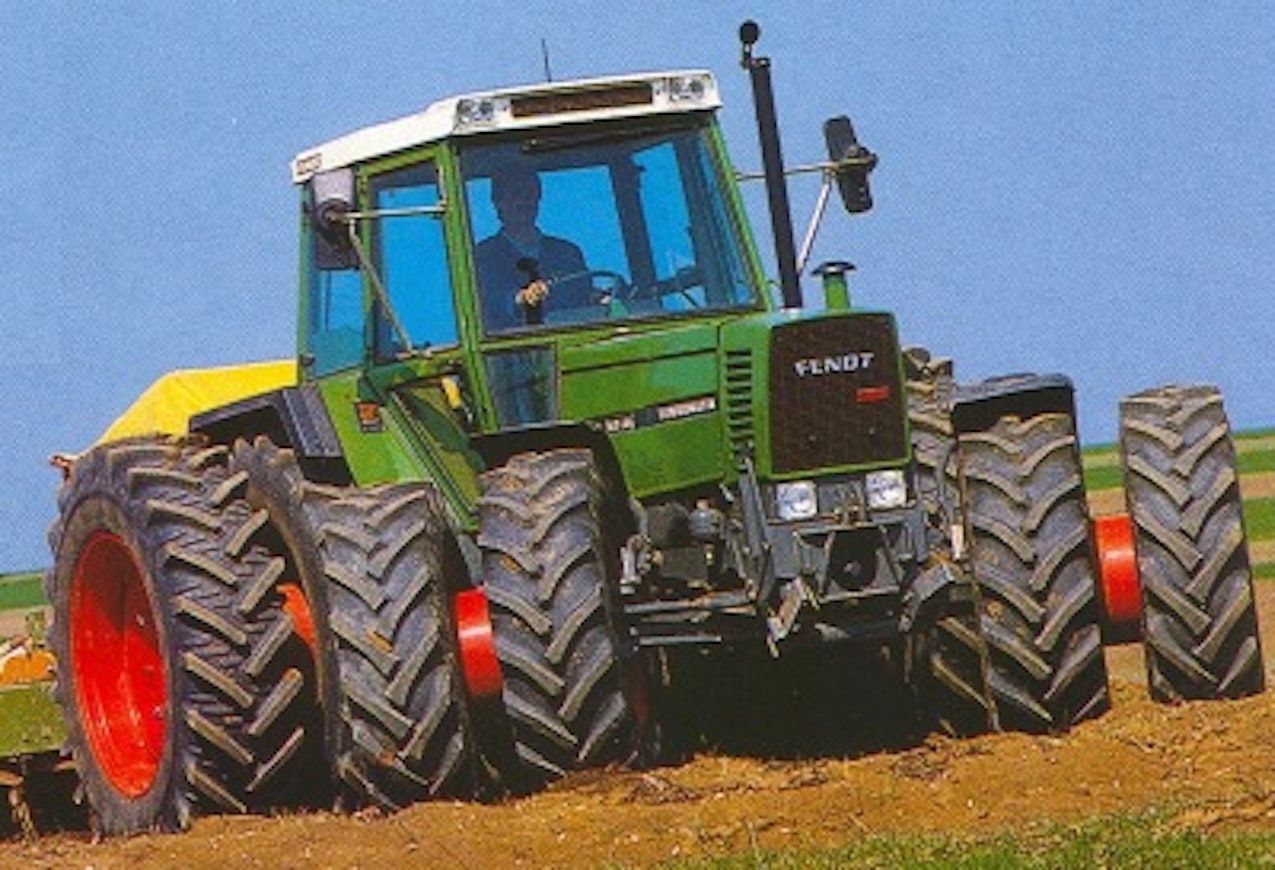

Siirry sivupalkkiinSiirry alaosaanFendt Farmer 310 LS – 312 LS

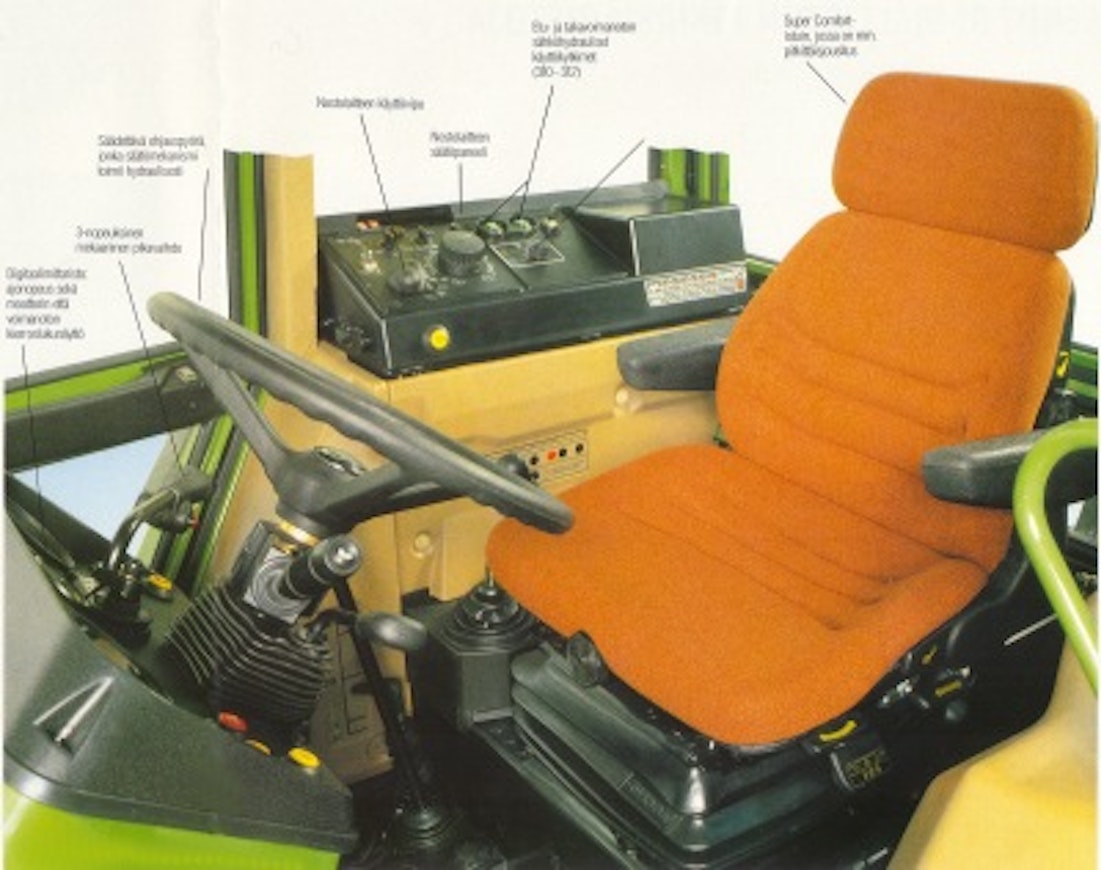

For the 1991 model year, power was increased to 100/110/120 horsepower. The engines on these models were equipped with a viscous fan and a new type of injection system. Engagement of the four-wheel drive, the PTO and the differential lock was electro-hydraulic and monitored by an onboard computer. The features also included automatic differential-lock control and the option to disengage the four-wheel drive when the front wheels were turned more than 25 degrees. The three-point hitch gained a new oscillation-damping function. Hydraulic flow was increased to 75 liters per minute, and the lifting capacity of the 312 model was raised to 5,800 kilograms. The front axle of the 312 now featured a multi-plate differential lock.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt Farmer 310 LS | Fendt Farmer 311 LS | Fendt Farmer 312 LS |
|---|---|---|---|
| Manufacturer name | Fendt Farmer | Fendt Farmer | Fendt Farmer |
| Imported to Finland | Yes | Yes | Yes |
| Years | 1990-96 | 1990-93 | 1990-93 |
| Engine model | MWM TD226-4 | MWM D226-6 | MWM D226-6 |
| Cyl/Turbo/Intercooler | 4T | 6 | 6 |
| Displacement | 4154 cm³ | 6240 cm³ | 6240 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 95/2350 hp DIN/rpm | 100/2300 hp DIN/rpm | 115/2400 hp DIN/rpm |
| Torque | - | - | - |
| Gears | 21+6 | 21+6 | 21+6 |
| Synchronized gears | 21+6 | 21+6 | 21+6 |
| Powershift gears | mech. 3-step | mech. 3-step | mech. 3-step |
| Speeds in km/h | 1,3-40 | 1,3-40 | 1,3-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 75 l/min | 75 l/min | 75 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 5130 kg | 5130 kg | 5800 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | dry disc | dry disc | dry disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.2 | 10.6 | 10.6 |
| Front tyres 4WD | 14.9R24 | 14.9R26 | 14.9R28 |
| Rear tyres 4WD | 16.9R38 | 18.4R38 | 18.4R38 |
| Weight 4WD | 4450 kg | 4690 kg | 5050 kg |
| Height with cab | 272 cm | 275 cm | 275 cm |
| Length (2WD/4WD) | 411 cm | 437 cm | 437 cm |
| Wheelbase (2WD/4WD) | 239/232 cm | 259 cm | 259 cm |
| Fuel tank | 135 l | 160 l | 160 l |
| Cab noise level | 76.5 dB | 77.5 dB | 77 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | disc lock |
| Autom. differential locks | x | x | x |
| Creeper gear | opt. | opt. | opt. |
