Fendt Favorit 600 SL – 615 SL

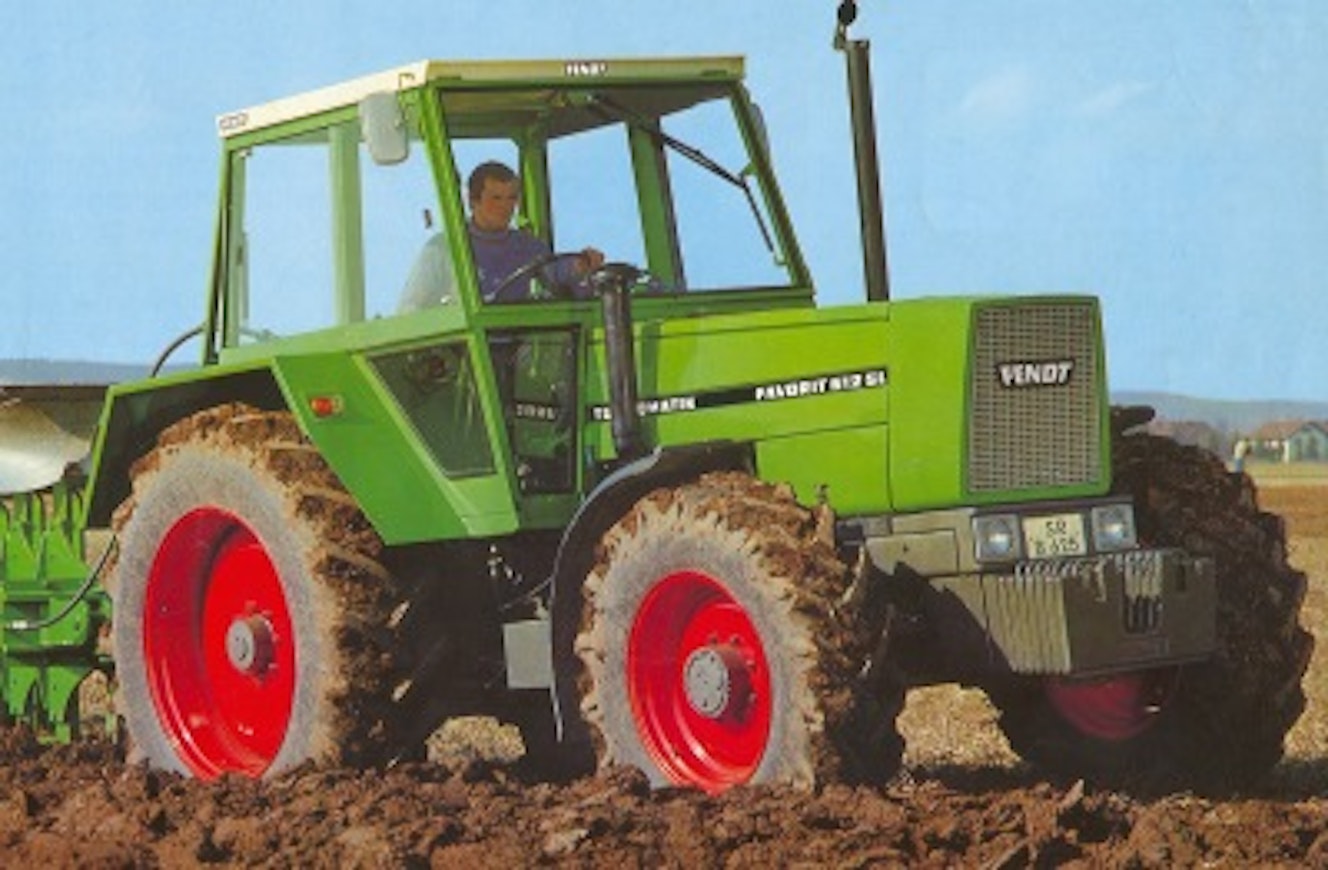

The Favorites were updated for the year 1976 and now carried the model designation SL instead of S. The appearance already largely corresponded to the Favorites of the 1980s. The entire lineup grew to the dimensions of the 614, and the weights increased significantly. Perhaps the most significant change, however, was the modern, quiet cab installed above rubber pads.
The 610 SL received the same 6.2-liter engine as the rest of the lineup, and power increased to 90 hp. The range was first expanded at the top end with the introduction of the 150-horsepower 615 SL. In 1978, the smallest model in the lineup, the 600 SL (85 hp), was introduced, equipped with MWM’s 5.65-liter engine. At this stage, the 610’s engine was also downsized to 5.65 liters.

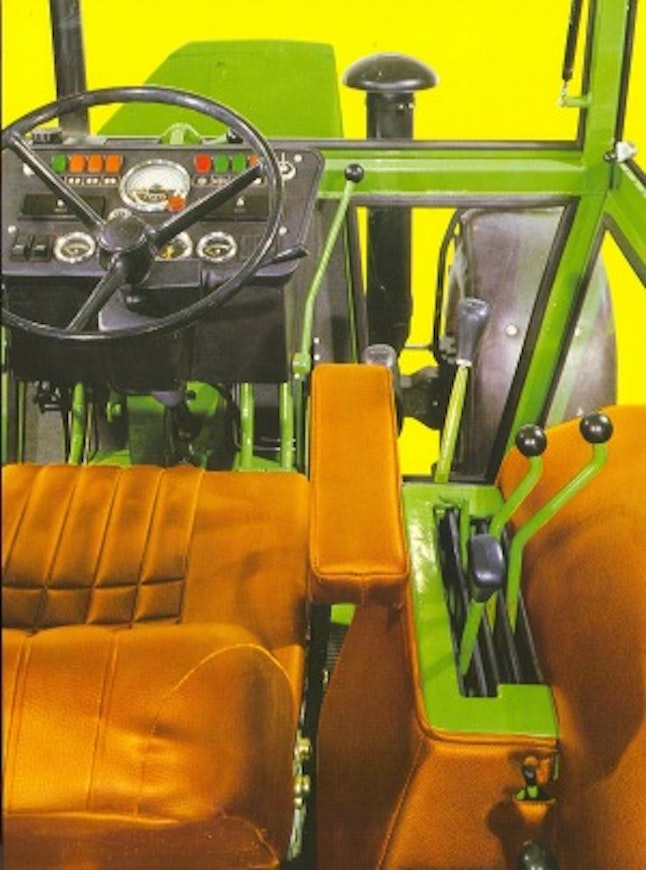

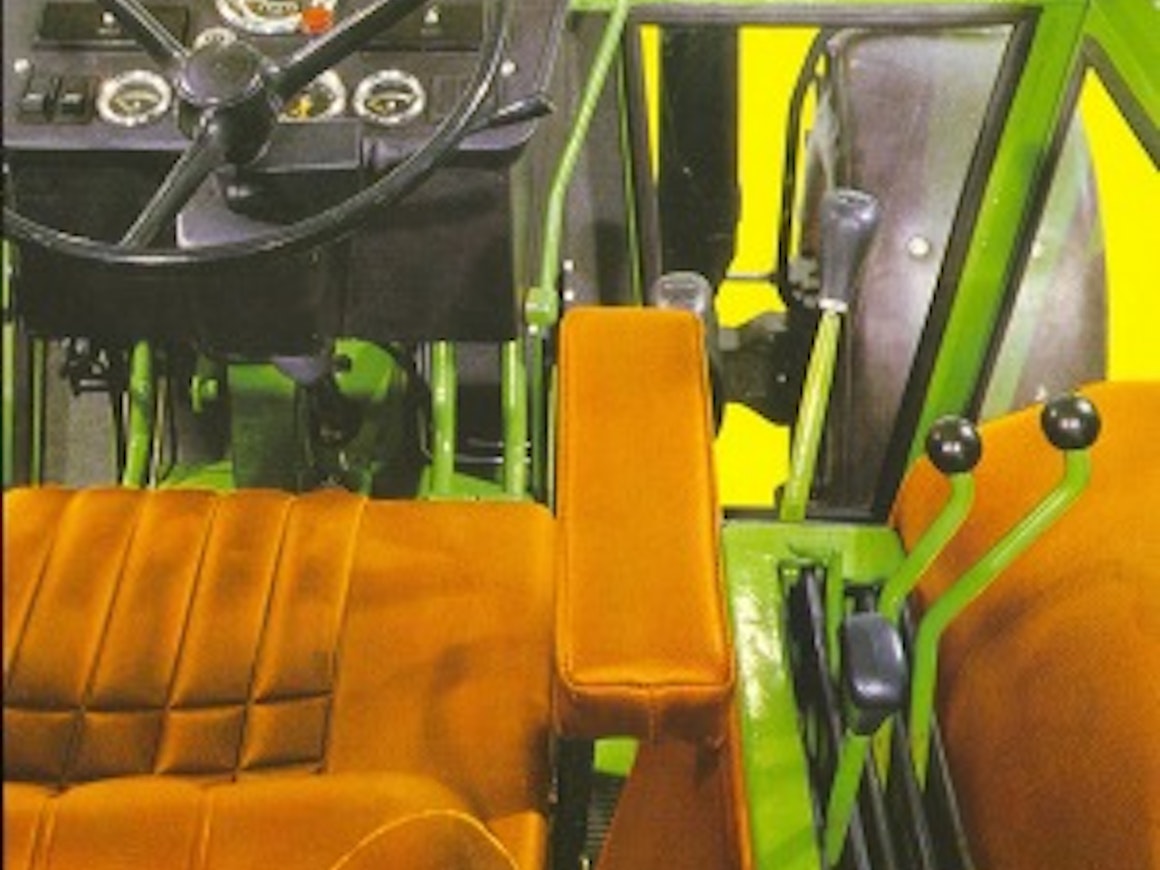

The standard transmission was still a 16+7 gearbox. A new option was a 20+9 gearbox with even slower crawling speeds. The gear levers were moved to the side. An air conditioning system was available as an option. The lifting capacities were greater than before.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt Favorit 600 SL | Fendt Favorit 610 SL | Fendt Favorit 611 SL | Fendt Favorit 612 SL | Fendt Favorit 614 SL | Fendt Favorit 615 SL |
|---|---|---|---|---|---|---|
| Manufacturer name | Fendt Favorit | Fendt Favorit | Fendt Favorit | Fendt Favorit | Fendt Favorit | Fendt Favorit |
| Imported to Finland | No | No | No | No | No | No |
| Years | 1978-79 | 1976-78 | 1976-79 | 1976-79 | 1976-79 | 1976-79 |
| Engine model | MWM D227-6 | MWM D226-6 | MWM D226-6 | MWM D226-6 | MWM TD226-6 | MWM TD226-6 |
| Cyl/Turbo/Intercooler | 6 | 6 | 6 | 6 | 6T | 6T |
| Displacement | 5652 cm³ | 6240 cm³ | 6240 cm³ | 6240 cm³ | 6240 cm³ | 6240 cm³ |
| Bore x stroke | 100×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 85/2300 hp DIN/rpm | 90/2270 hp DIN/rpm | 105/2350 hp DIN/rpm | 120/2400 hp DIN/rpm | 135/2400 hp DIN/rpm | 150/2400 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 12+6 | 12+6 | 16+7 | 16+7 | 16+7 | 16+7 |
| Synchronized gears | 12+6 | 12+6 | 16+7 | 16+7 | 16+7 | 16+7 |
| Powershift gears | mech. | mech. | mech. | mech. | mech. | mech. |
| Speeds in km/h | 2,3-30,0 | 2,3-30,0 | 0,9-30,0 | 0,9-30,0 | 0,9-30,0 | 0,9-30,0 |
| Hydr. flow l/min | 44 l/min | 44 l/min | 45 l/min | 45 l/min | 45 l/min | 45 l/min |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4500 kg | 4500 kg | 5600 kg | 5800 kg | 5800 kg | 5800 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 1000 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.4 | 11.4 | 12 | 12 | 12 | 12.4 |
| Front tyres 2WD | 7,50-20 | 7,50-20 | 7,50-20 | - | - | - |
| Front tyres 4WD | 11.2-28 | 11.2-28 | 12.4-28 | 13.6-28 | 13.6-28 | 14.9-28 |
| Rear tyres 2WD | 18,4-34 | 18,4-34 | 16,9-38 | - | - | - |
| Rear tyres 4WD | 18.4-34 | 18.4-34 | 16.9-38 | 18.4-38 | 18.4-38 | 18.4-38 |
| Weight 2WD | 4850 kg | 4770 kg | 4850 kg | - | - | - |
| Weight 4WD | 5145 kg | 5150 kg | 5340 kg | 5810 kg | 5950 kg | 6100 kg |
| Height with cab | 272 cm | 272 cm | 275 cm | 281 cm | 281 cm | 281 cm |
| Length (2WD/4WD) | 464 cm | 464 cm | 464 cm | 464 cm | 464 cm | 464 cm |
| Wheelbase (2WD/4WD) | 272 cm | 272 cm | 272 cm | 272 cm | 272 cm | 272 cm |
| Fuel tank | 222 l | 222 l | 222 l | 222 l | 222 l | 222 l |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | x | x | x | x |
