JCB Fastrac 8290-8330

Manufacturer
Models
JCB Fastrac 8290, JCB Fastrac 8330, JCB Fastrac iCON 8290, JCB Fastrac iCON 8330, JCB Fastrac iCON 8330
Years
2016-
Info

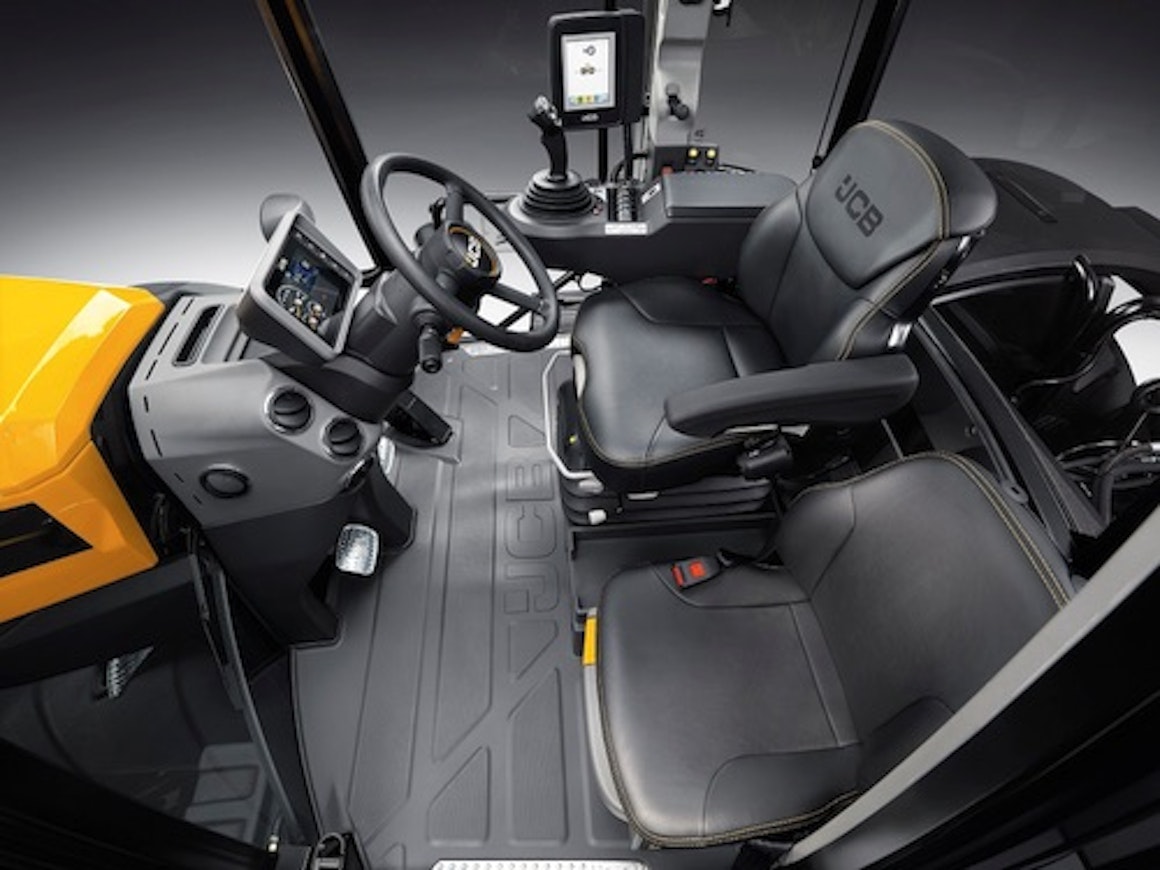

In the 2017 Fastrac 8000 series there was noticeably more power and torque than before. The engines were 8.4-liter Agco Powers. The transmission was Fendt’s stepless ML260, which JCB called V-Tronic. A road speed of 70 km/h was reached at 1,780 rpm. JCB also added the option of using 25 pre-selected gears if desired. The steering was said to be significantly lighter than before, yet also more precise on the road. As a new optional extra there was the Rapid Steer, which halves the number of steering wheel turns. The cab was upgraded to the Command Plus, touted as the most spacious on the market. The seat could now swivel 50 degrees to the right and 20 degrees to the left. The wheels were slightly larger than previously, with the biggest available sizes being 650/65R34 and 900/50R42.

The iCON models introduced in 2022 featured an entirely new and acclaimed user interface, a major achievement for a small manufacturer. A 12-inch ISOBUS monitor was integrated into the armrest. The seat offered heating and ventilation, the mirrors were heated, and there was a fridge in the cab. The Smart Transmission Control function maintained the driver-set speed under varying loads.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJCB Fastrac 8290JCB Fastrac 8330JCB Fastrac iCON 8290JCB Fastrac iCON 8330JCB Fastrac iCON 8330
Manufacturer nameJCBJCBJCBJCBJCB
Imported to FinlandYesYesYesYesYes
Years2016-222016-222022-20252022-20252026-
Engine model84AWF84AWF84 LFVC84 LFVC84 LXTN
Cyl/Turbo/Intercooler6TI6TI6TI6TI6TI
Displacement8419 cm³8419 cm³8419 cm³8419 cm³8419 cm³
Bore x stroke111×145 mm111×145 mm111×145 mm111×145 mm111×145 mm
Rated power-----
Max power-----
Torque-----
Gearssteplesssteplesssteplesssteplessstepless
Synchronized gearssteplesssteplesssteplesssteplessstepless
Powershift gearssteplesssteplesssteplesssteplessstepless
Reverserhydr.hydr.hydr.hydr.hydr.
Speeds in km/h0,4-700,4-700,4-700,4-700,4-70
Max. speed 50/69 km/h50/69 km/h40/69 km/h40/69 km/h40/69 km/h
Hydr. flow l/min137 (178) l/min137 (178) l/min178 l/min178 l/min178 l/min
Hydraulic pressure210 bar210 bar210 bar210 bar210 bar
Lift controlselec.elec.elec.elec.elec.
Lift capacity10300 kg10300 kg10000 kg10000 kg10000 kg
PTO speeds750/1000750/1000750/1000750/1000750/1000
Brakesdry discdry discdry discdry discdry disc
Steeringpowerpowerpowerpowerpower
Turning circle m 4WD14.814.814.814.814.8
Front tyres 4WD540/65R38540/65R38540/65R38540/65R38540/65R38
Rear tyres 4WD650/75R38650/75R38710/60R42710/60R42710/60R42
Weight 4WD11090 kg11090 kg11250 kg11250 kg11250 kg
Height with cab338 cm338 cm345 cm345 cm345 cm
Length (2WD/4WD)565 cm565 cm565 cm565 cm565 cm
Wheelbase (2WD/4WD)312 cm312 cm313 cm313 cm313 cm
Fuel tank600+AB60 l600+AB60 l600+AB70 l600+AB70 l600+AB70 l
Cab noise level69 dB69 dB69 dB69 dB69 dB
Solid cabxxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogs
Autom. differential locksxxxxx
Air suspension seatxxxxx
Air conditioningxxxxx
Creeper gearxxxxx
