Siirry sivupalkkiinSiirry alaosaanKubota M7580-M9580








Kubota’s broader push into the European agricultural market began in 1991 with the introduction of the M80 series, whose power range was between 81 and 104 hp. The engines had a longer stroke than those in the preceding models. The transmission was fully synchronized, with 24 forward and 24 reverse speeds, plus a two-speed power shuttle. Hydraulic output and lifting capacity were significantly higher than in earlier Kubota tractors. Draft control feedback was managed via the draft arms.
The cab’s noise level was rated at 76 dB. Air conditioning was standard in Germany but not in Scandinavia. Four-wheel drive was engaged electrically. Differential locks on both the front and rear axles were engaged mechanically. When the front wheels were turned more than 35 degrees, they rotated faster than the rear wheels to ease steering.
This is an automated translation. Please report any issues in the translation.
| Model | Kubota M7580 | Kubota M8580 | Kubota M9580 |
|---|---|---|---|
| Manufacturer name | Kubota | Kubota | Kubota |
| Imported to Finland | No | No | No |
| Years | 1991-99 | 1991-99 | 1991-99 |
| Engine model | V4302-A | V4702-A | V4702-TA |
| Cyl/Turbo/Intercooler | 4 | 4 | 4T |
| Displacement | 4329 cm³ | 4665 cm³ | 4665 cm³ |
| Bore x stroke | 105×125 mm | 109×125 mm | 109×125 mm |

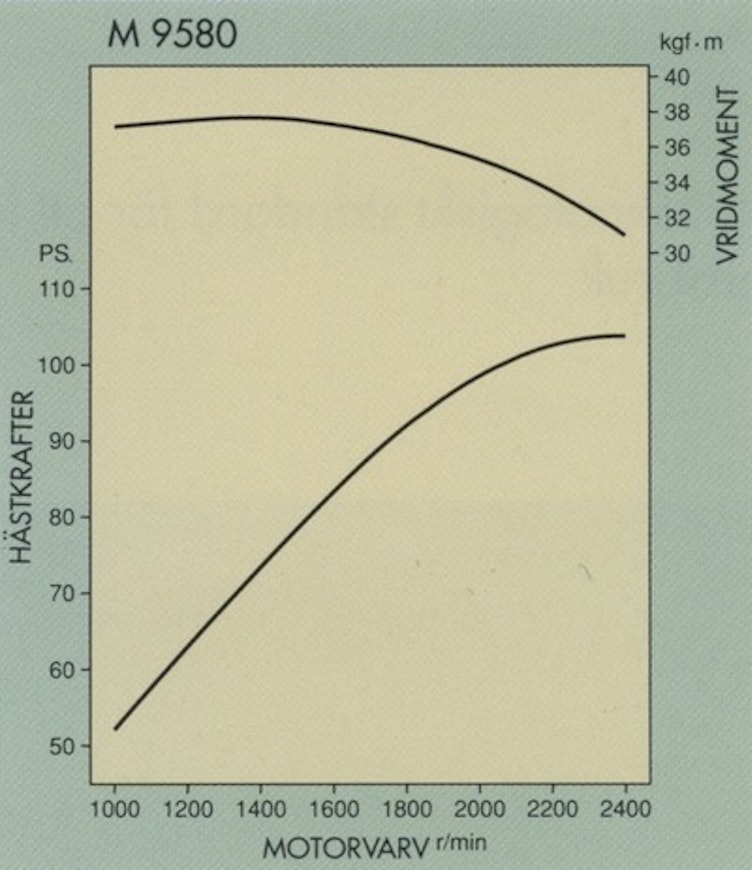

| Rated power | 81/2400 hp DIN/rpm | 90/2400 hp DIN/rpm | 104/2400 hp DIN/rpm |
| Torque | - | - | - |
| Gears | 24+24 | 24+24 | 24+24 |
| Synchronized gears | 24+24 | 24+24 | 24+24 |
| Powershift gears | hydr. | hydr. | hydr. |
| Reverser | mech. | mech. | mech. |
| Speeds in km/h | 1,3-35,0 | 1,3-36,0 | 1,3-34,0 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 60 l/min | 60 l/min | 60 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 4200 kg | 4200 kg | 4200 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 7 | 7 | 7.6 |
| Front tyres 4WD | 12.4R24 | 13.6R24 | 13.6R24 |
| Rear tyres 4WD | 16.9R34 | 18.4R34 | 18.4R34 |
| Weight 4WD | 3850 kg | 3930 kg | 4090 kg |
| Height with cab | 264 cm | 265 cm | 265 cm |
| Length (2WD/4WD) | 391 cm | 391 cm | 411 cm |
| Wheelbase (2WD/4WD) | 230 cm | 230 cm | 244 cm |
| Fuel tank | 105 l | 105 l | 120 l |
| Cab noise level | 76 dB | 76 dB | 78 dB |
| Solid cab | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | opt. | opt. | opt. |
