Oliver 660-995

Manufacturer
Models
Oliver 660, Oliver 660 Diesel, Oliver 770, Oliver 770 Diesel, Oliver 880, Oliver 880 Diesel, Oliver 950 Diesel, Oliver 990 Diesel, Oliver 995 Diesel
Years
1958-67
Info

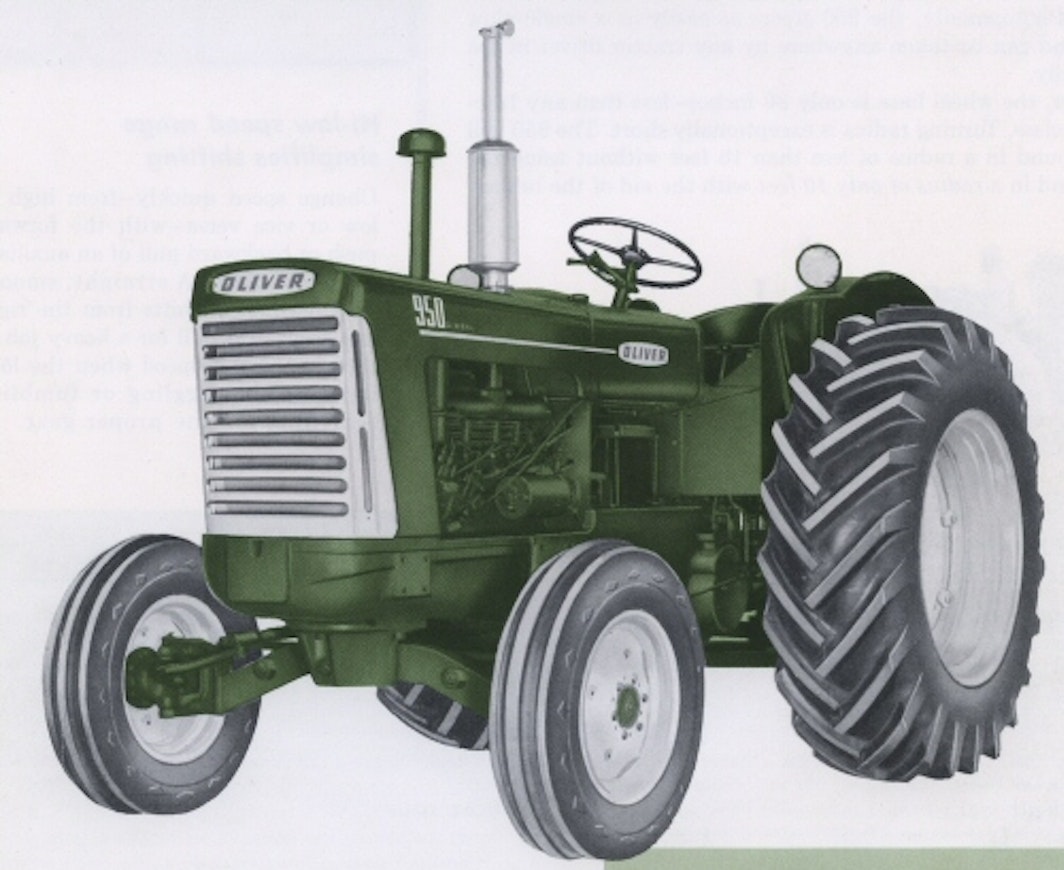

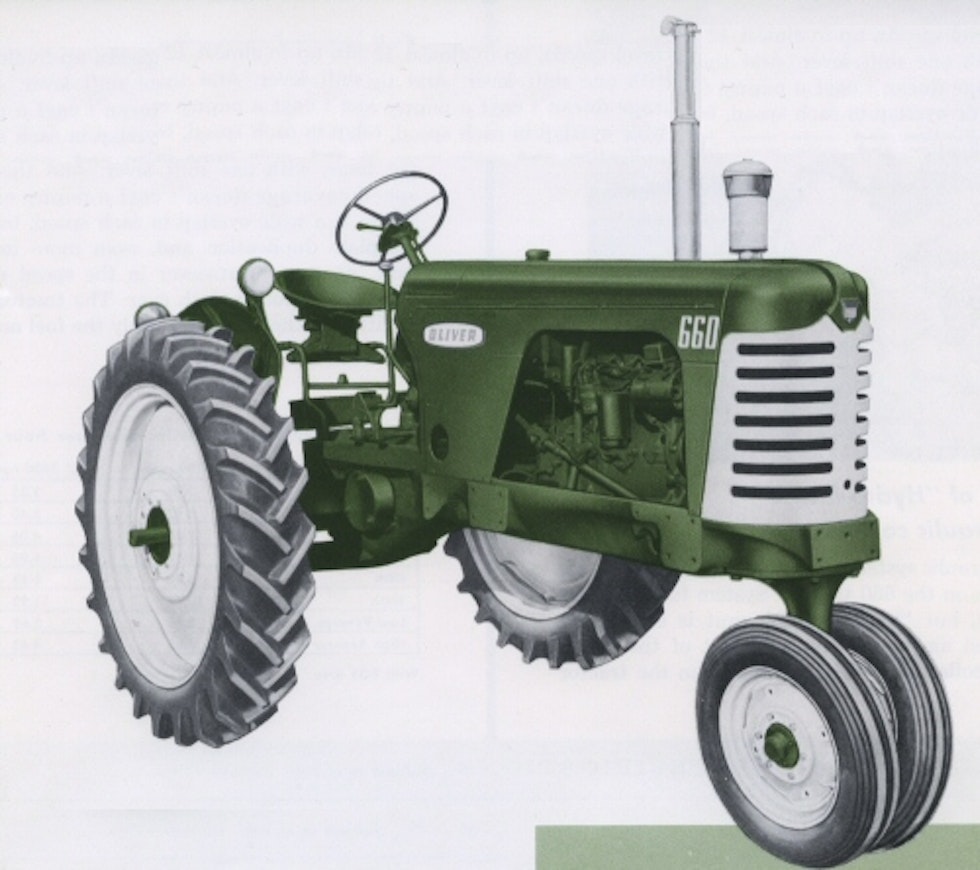

In 1958 the Super series was replaced by three‐digit models. The yellow and red accents were changed to white and the grille was redesigned. The engines received even more power. On the 660 the cylinder bore was increased. On the 770 and 880 the maximum engine speed was raised and some internal components were changed. The 950 replaced the earlier Super 99 in its Waukesha‐engined version, and the 990 was fitted with a GM engine. The 995 was otherwise identical to the 990, but featured an Allison torque converter that allowed shifting without using the clutch, although it introduced a significant power loss. The transmissions were upgraded to helical‐gear designs.

All models shared features such as a 12‐volt electrical system with key start, a separate clutch for the power take-off (PTO) with 540 and 1000 rpm options, dual‐disc brakes, and a weight‐transfer system which, according to the advertising, “outperformed nearly all competitors’ solutions.” There still was no separate hydraulically lifted drawbar, but a quick‐change assembly containing a drawbar could be substituted for the draft arms. Optional equipment included power steering and a mechanical Power Booster high-low range. Alongside the Row Crop models, the lineup now offered Wheatland versions instead of the Standard models.

The Oliver 990 served as the basis for the Massey Ferguson 98.

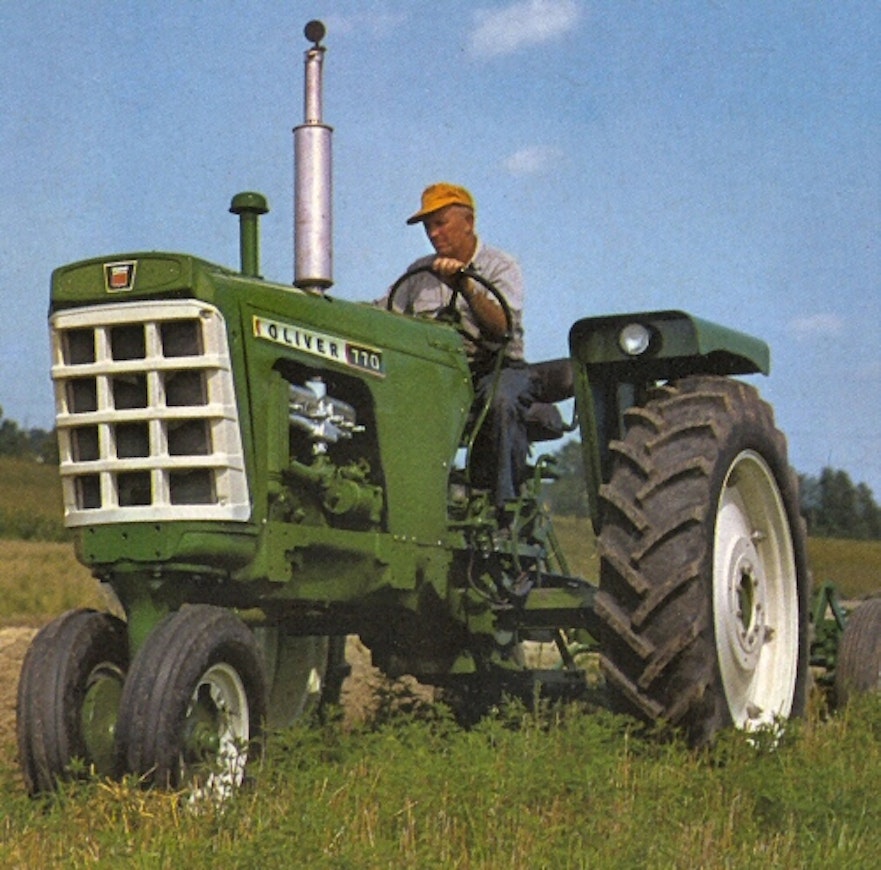

From this series the Oliver 770 continued in production below the newer, larger models until 1967, in its last years equipped with a new‐style cast-iron grille. A total of about 100,000 units of the 770 were built.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelOliver 660Oliver 660 DieselOliver 770Oliver 770 DieselOliver 880Oliver 880 DieselOliver 950 DieselOliver 990 DieselOliver 995 Diesel
Manufacturer nameOliverOliverOliverOliverOliverOliverOliverOliverOliver
Imported to FinlandNoNoNoNoNoNoNoNoNo
Years1959-641959-641958-671958-671958-631958-631958-611958-611958-61
Cyl/Turbo/Intercooler44666663 mech.3 mech.
Displacement2537 cm³2537 cm³3547 cm³3547 cm³4344 cm³4344 cm³4942 cm³3487 cm³3487 cm³
Bore x stroke92,1×95,3 mm92,1×95,3 mm88,9×95,3 mm88,9×95,3 mm95,3×101,6 mm95,3×101,6 mm101,6×101,6 mm108×127 mm108×127 mm
Rated power---------
Gears6+26+26+2/12+46+2/12+46+2/12+46+2/12+46+2/12+46+2/12+46+2
Speeds in km/h3,8-19,23,8-19,23,4-17,43,4-17,43,3-17,2/2,5-21,03,3-17,2/2,5-21,04,1-21,54,1-21,54,2-22,2
Hydr. flow l/min30 l/min30 l/min43 l/min43 l/min43 l/min43 l/min---
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.mech.
PTO speeds533533533533540540543/1021543/1021543/1021
Brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakes
Steeringmech./powermech./powermech./powermech./powermech./powermech./powermech./powermech./powermech./power
Turning circle m 2WD5.335.336,5/5,336,5/5,337,62/5,947,62/5,948.848.848.84
Front tyres 2WD5.00-155.00-157.50-18/6.00-167.50-18/6.00-167.50-18/6.00-167.50-18/6.00-167.50-187.50-187.50-18
Rear tyres 2WD9.5-389.5-3816.9-30/15.5-3816.9-30/15.5-3818.4-30/16.9-3418.4-30/16.9-3416.9-3418.4-3418.4-34
Weight 2WD(1419) kg(1442) kg(2400/2223) kg(2461/2286) kg(2291/2189) kg(2558/2329) kg(3175) kg(3611) kg(3611) kg
Height with cab(154) cm(154) cm(156) cm(156) cm(189/191) cm(189/191) cm(185) cm(185) cm(185) cm
Length (2WD/4WD)341 cm341 cm329/341 cm329/341 cm343/365 cm343/365 cm361 cm361 cm361 cm
Wheelbase (2WD/4WD)220 cm220 cm198/236 cm198/236 cm210/238 cm210/238 cm203 cm203 cm203 cm
Fuel tank49 l49 l76 l69 l76 l69 l114 l114 l114 l
Powershift gears---/mech.-/mech.-/mech.-/mech.-/mech.-/mech.hydr.
Lift capacity--1200 kg1200 kg1200 kg1200 kg---
Creeper gear--opt.opt.opt.opt.---
Engine model-------GM 3-71GM 3-71
