Siirry sivupalkkiinSiirry alaosaanSame Antares II

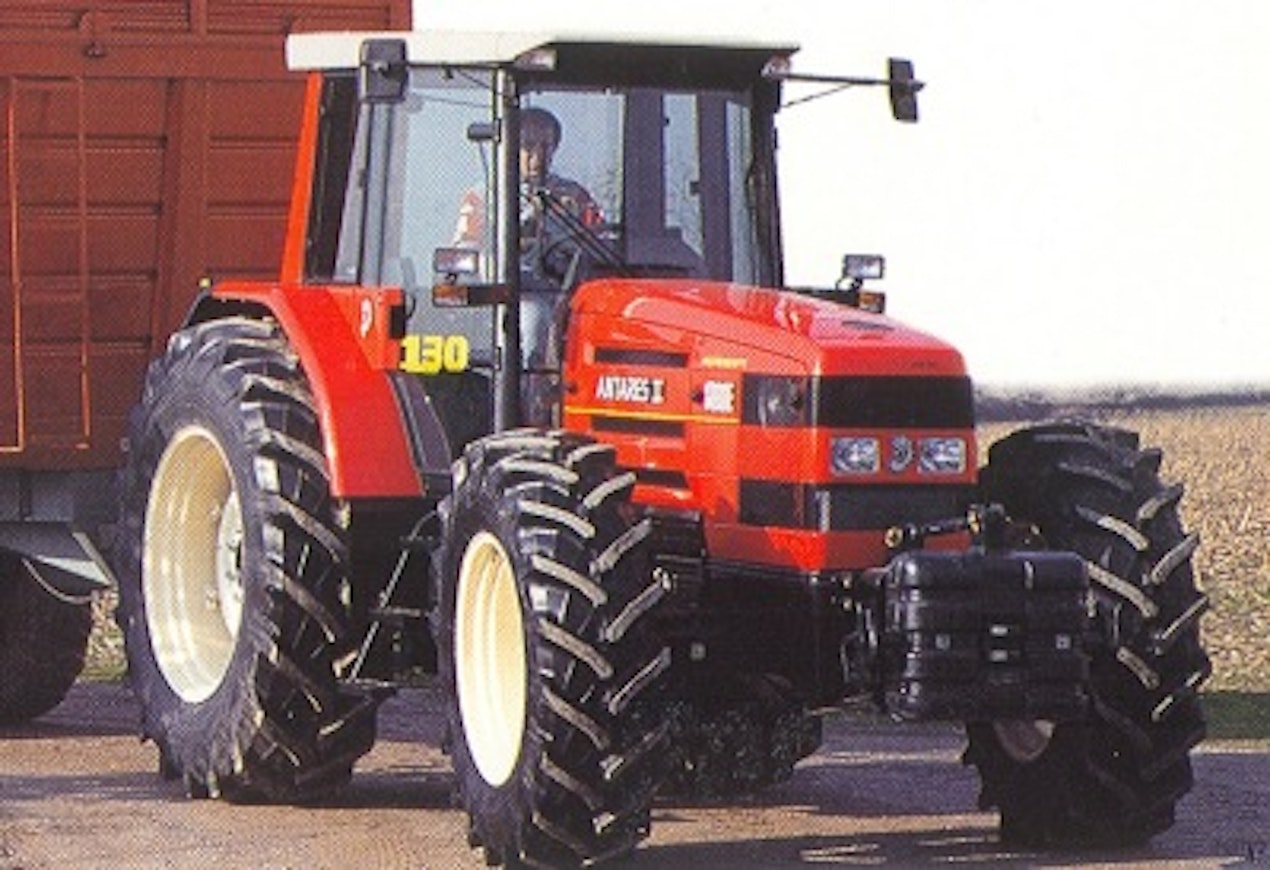

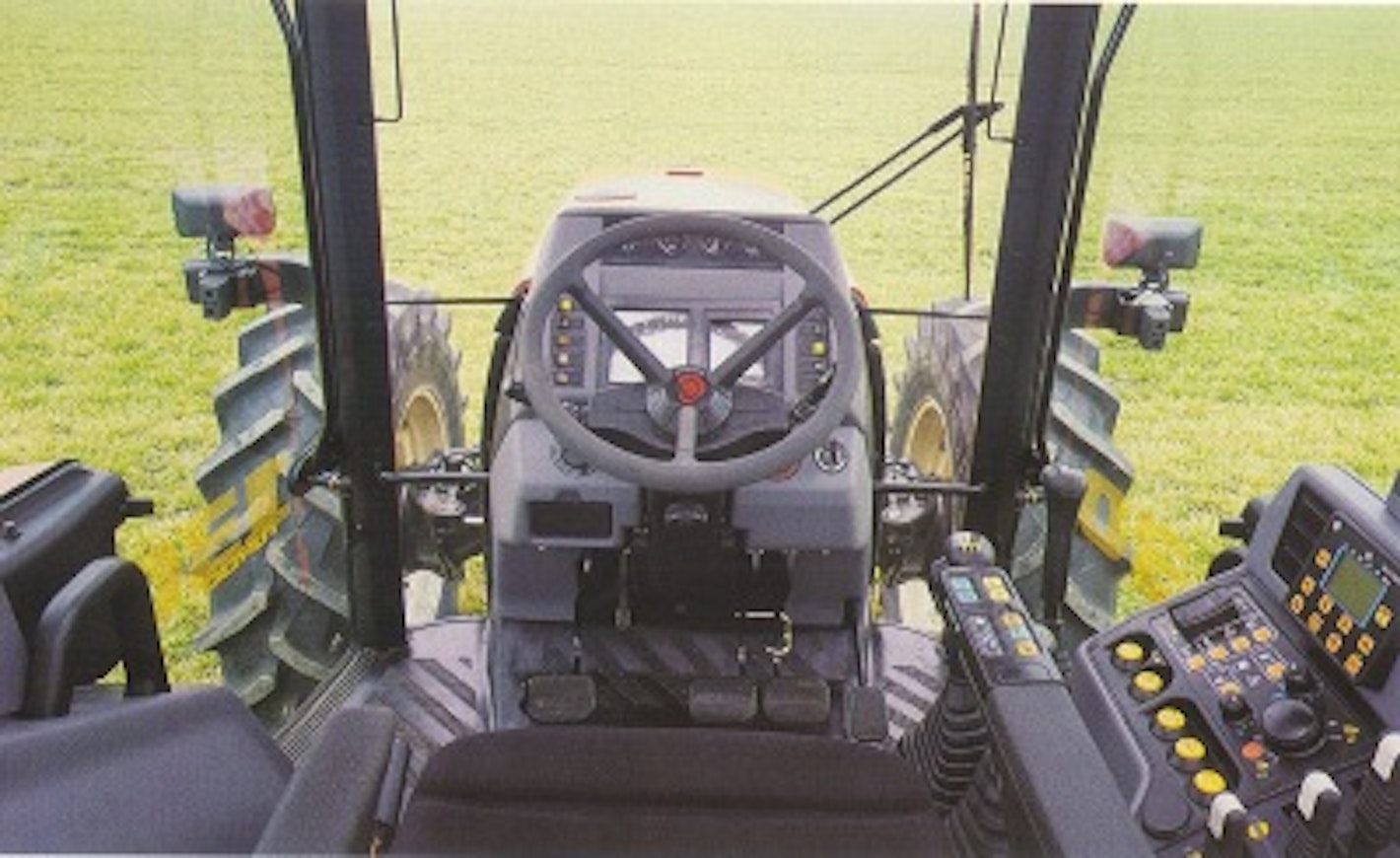

The Same Antares 110 and 130 were updated to the second generation in spring 1996. The controls were renewed, and lift/lower buttons as well as electronic speed adjustment and its memory buttons (optional equipment in Finland) were added to the armrest. The noise level in the cabin was reduced to 75-76 decibels. The exhaust pipe was now mounted on the pillar, and the mirrors were telescopic.
Fine tuning had been done to the engines, among other things to reduce emissions, and an oil cooler had been added to the 130 model.

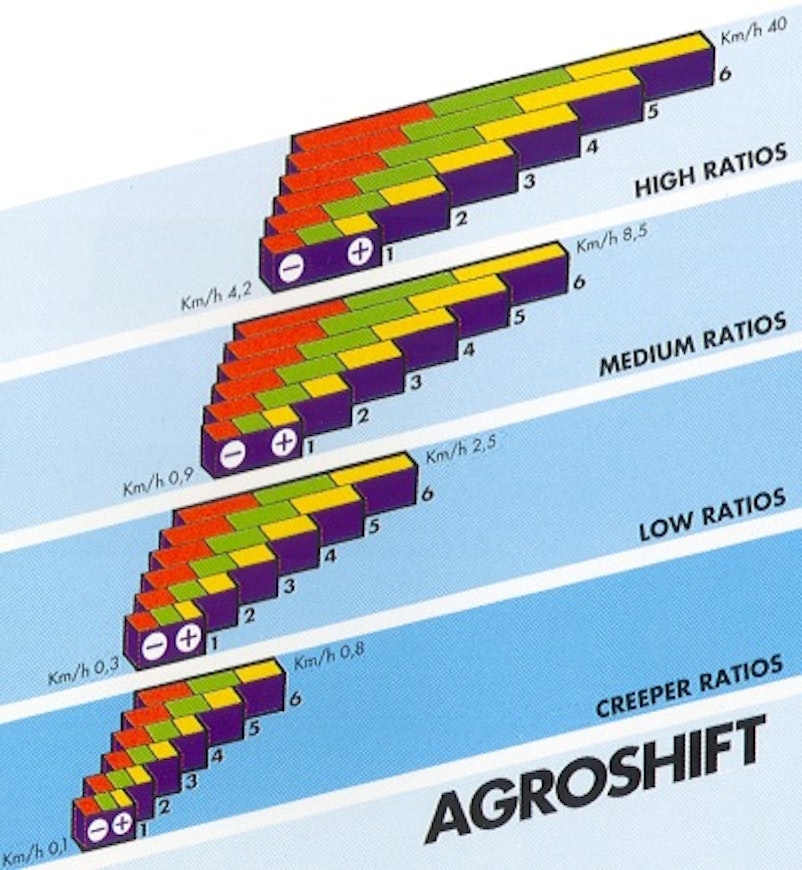

The crawl gears were removed from Antares’ standard equipment, but nevertheless the lowest speed at 2500 rpm was 0.68 km/h. With the 3-speed hydraulic Agroshift quick-shift, the number of gears was 54+54, and with crawl gears equipped, 24+24 or 72+72. In Finland, the standard was 54+54. There were still four PTO speeds, and the PTO engaged more softly.
In some countries, Antares was sold with very light equipment: for example, electric hitch, 40 km/h speed, and 38-inch wheels were optional accessories according to the English brochure, except in Britain.
The Antares II was brought to Finland by Suomen Motokov, which represented Same during 1998–1999.
This is an automated translation. Please report any issues in the translation.
| Model | Same Antares II 110 | Same Antares II 130 |
|---|---|---|
| Manufacturer name | Same | Same |
| Imported to Finland | No | Yes |
| Years | 1996-2000 | 1996-2000 |
| Engine model | 1000.6 A | 1000.6 AT |
| Cyl/Turbo/Intercooler | 6 | 6T |
| Displacement | 6000 cm³ | 6000 cm³ |
| Bore x stroke | 105×115,5 mm | 105×115,5 mm |

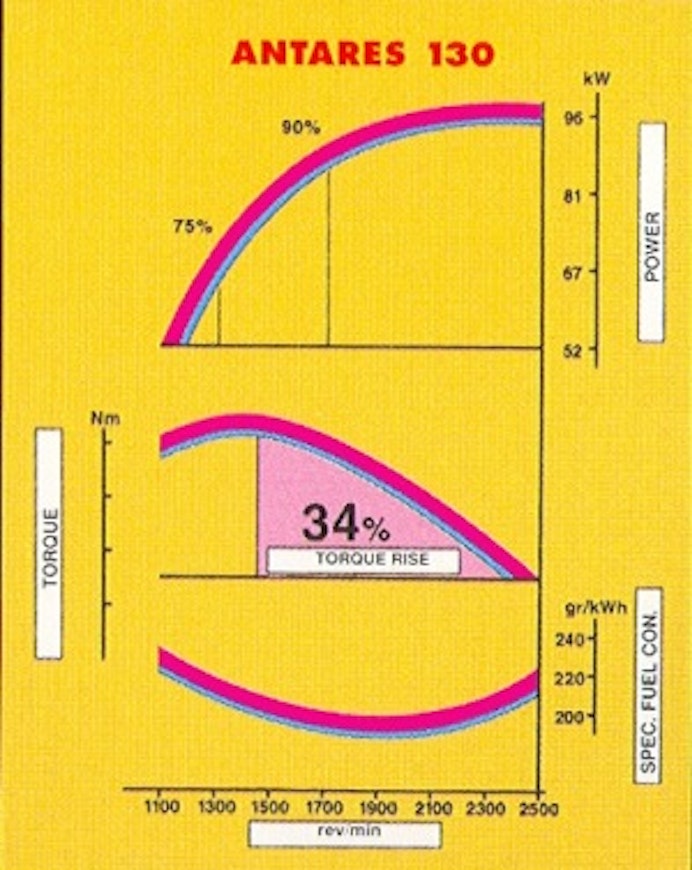

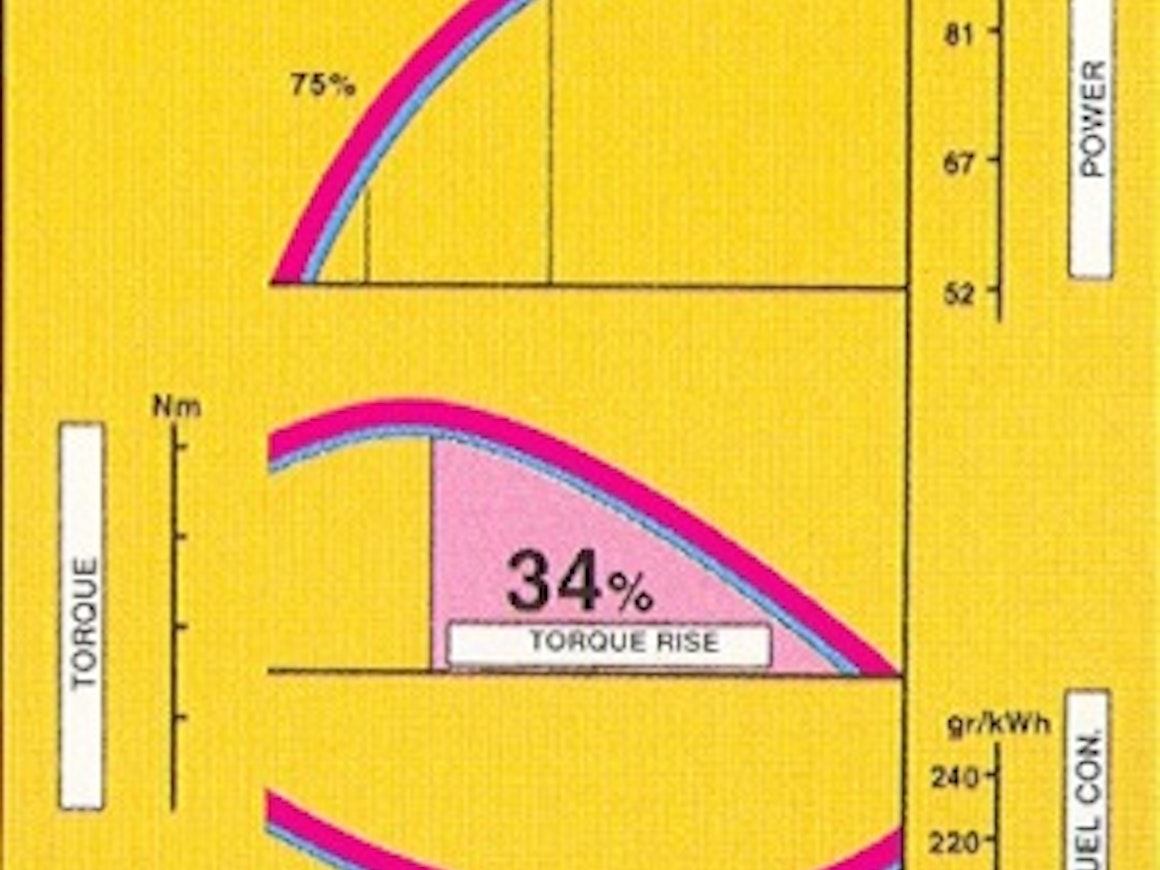

| Rated power | 110/2500 hp DIN/rpm | 127/2500 hp DIN/rpm |
| Torque | - | - |
| Gears | 18+18/54+54 | 18+18/54+54 |
| Synchronized gears | 18+18/54+54 | 18+18/54+54 |
| Powershift gears | -/3-step | -/3-step |
| Reverser | mech. | mech. |
| Speeds in km/h | 0,68-39,4 | 0,68-39,4 |
| Hydr. flow l/min | 57.5 l/min | 57.5 l/min |
| Hydraulic pressure | 180 bar | 180 bar |
| Lift controls | elec. | elec. |
| Lift capacity | 4800/6200 kg | 6200 kg |
| PTO speeds | 540/750/ 1000/1250/ajo | 540/750/ 1000/1250/ajo |
| Brakes | wet disc | wet disc |
| Steering | hydrost. | hydrost. |
| Turning circle m 4WD | 11 | 11 |
| Front tyres 4WD | 14.9R28 | 420/70R30 |
| Rear tyres 4WD | 16.9R38 | 520/70R38 |
| Weight 4WD | 4870 kg | 5100 kg |
| Height with cab | 276 cm | 281 cm |
| Length (2WD/4WD) | 456 cm | 459 cm |
| Wheelbase (2WD/4WD) | 275 cm | 275 cm |
| Fuel tank | 240 l | 240 l |
| Cab noise level | 76 dB | 75 dB |
| Solid cab | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | opt. | opt. |
| Air suspension seat | x | x |
| Creeper gear | opt. | opt. |
