Siirry sivupalkkiinSiirry alaosaanSame Argon / Lamborghini Crono / Hürlimann XE

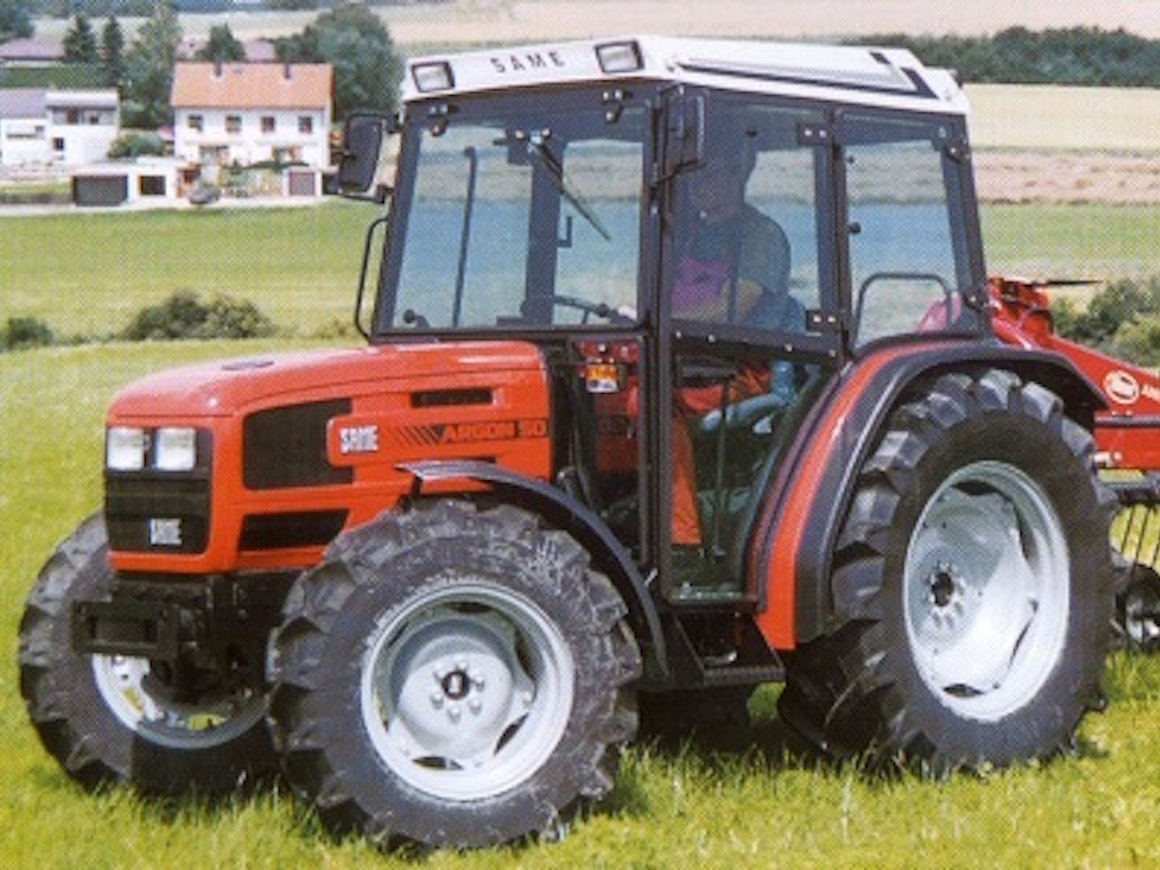

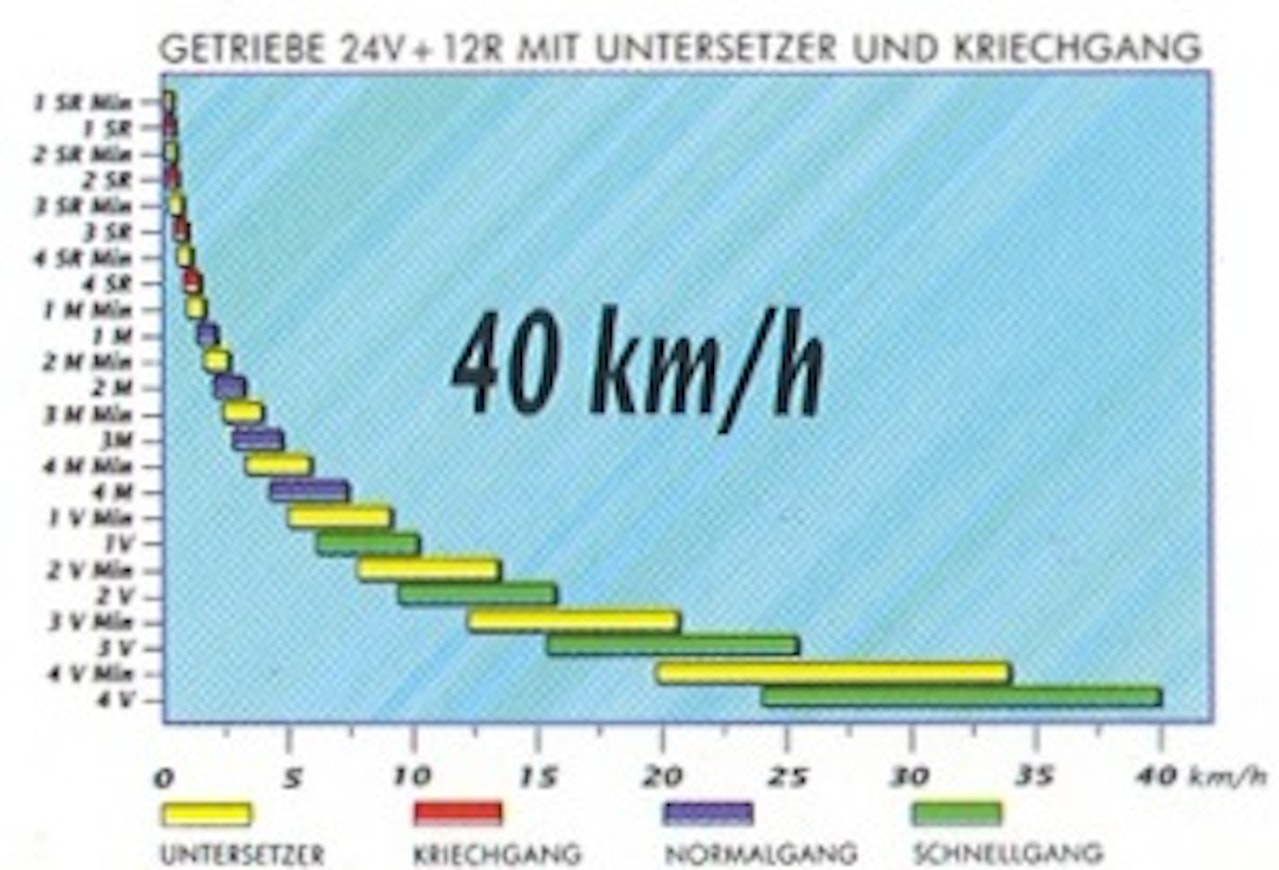

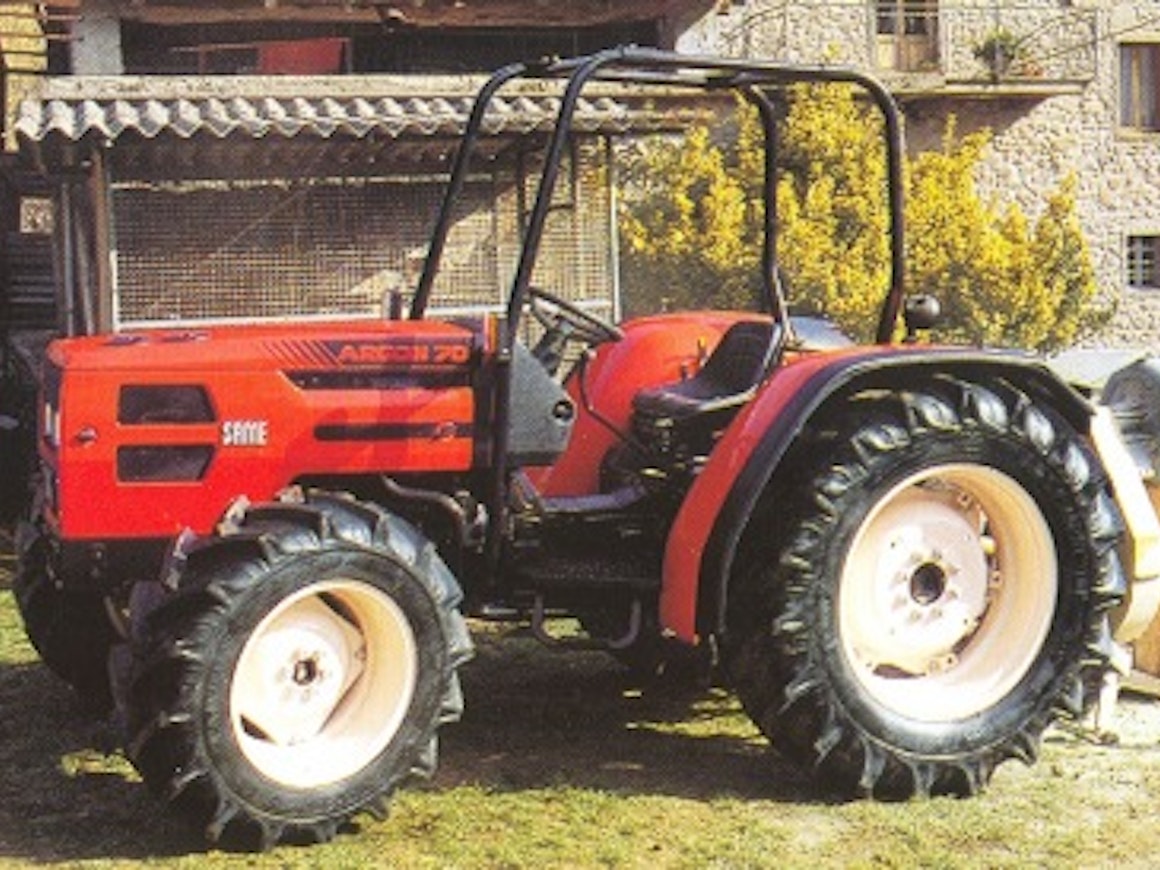

Together, the basic tractor of the 1990s was the Argon, introduced in 1993. The earlier basic series Solar and Aster remained alongside it for a few more years. Compared to them, new features included four-wheel brakes and a new 16+8 gearbox with side levers, which enabled a top speed of 40 km/h in four-wheel-drive models. The engine was the same 3-cylinder air-cooled engine as in the Asters and the smallest Explorer. The Argon was available with either a rollover protection frame or a cab. The turning radius in four-wheel-drive models was only 6.9–7.2 meters.

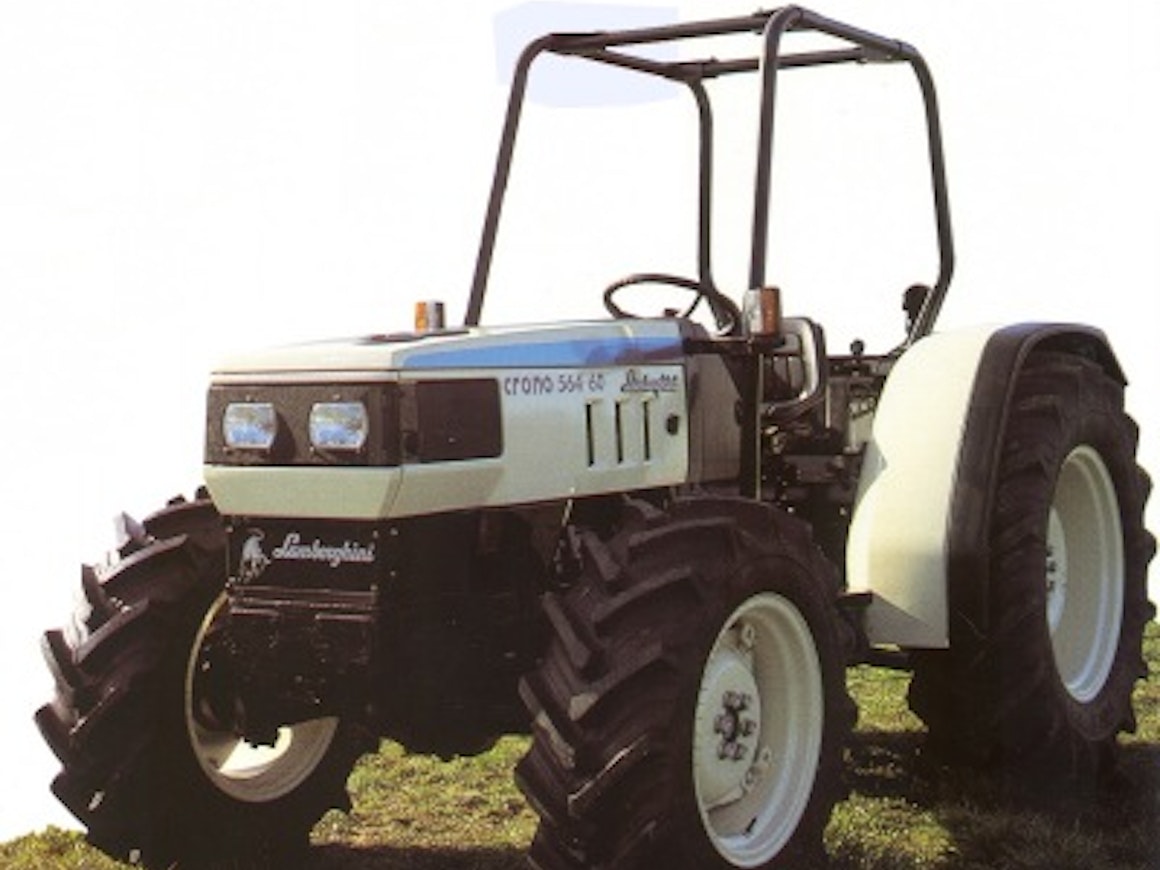

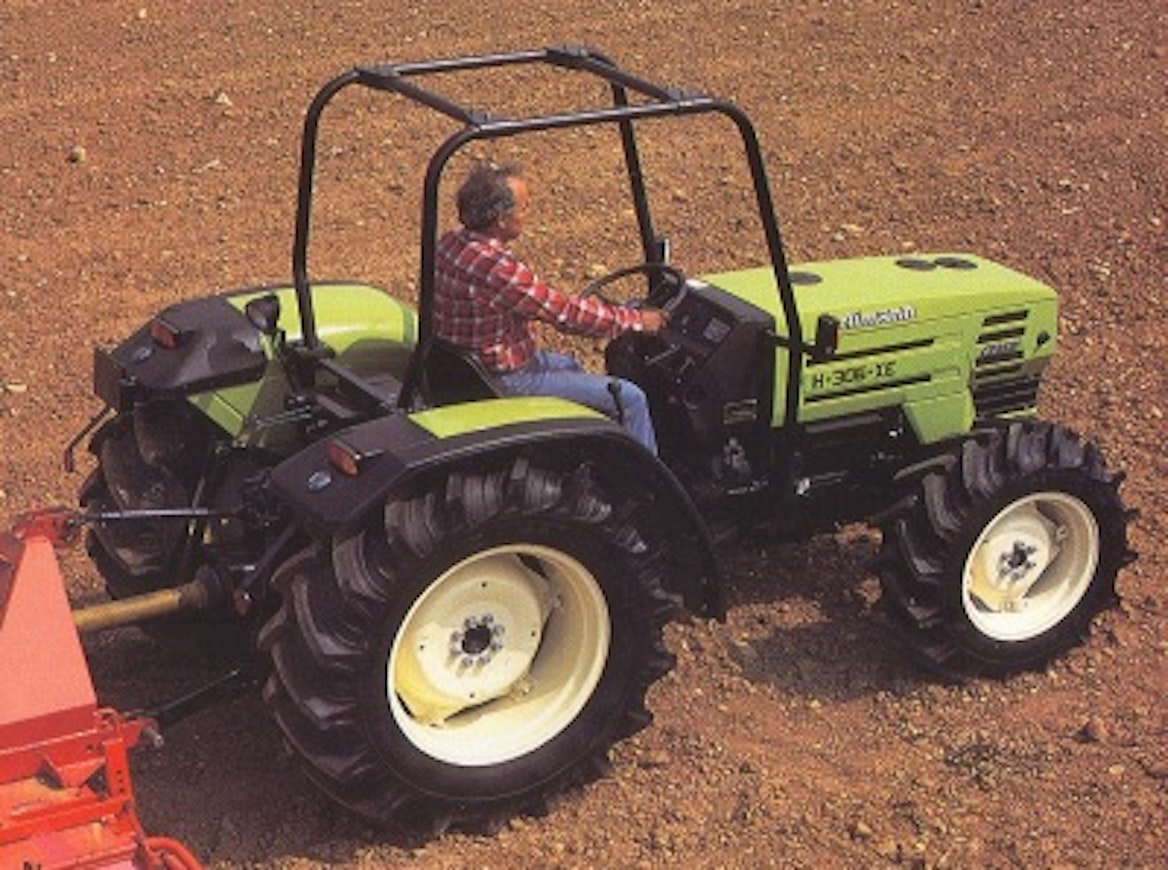

The same tractor was also sold under the names Lamborghini Crono 554-50/564-60/574-70 and Hürlimann H-305/306/307 XE. These tractors also had air-cooled engines. In 2001, updated models with more rounded lines were introduced. The technical specifications remained unchanged.
This is an automated translation. Please report any issues in the translation.
| Model | Same Argon 50 | Lamborghini 554-50 Crono | Same Argon 60 | Lamborghini 564-60 Crono | Same Argon 70 | Lamborghini 574-70 Crono |
|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No |
| Years | 1993-2004 | 1993-2004 | 1993-2004 | 1993-2004 | 1993-2004 | 1993-2004 |
| Engine model | 1000.3A3 | 1000.3A3 | 1000.3A4 | 1000.3A4 | 1000.3AT | 1000.3AT |
| Cyl/Turbo/Intercooler | 3 | 3 | 3 | 3 | 3T | 3T |
| Displacement | 3000 cm³ | 3000 cm³ | 3000 cm³ | 3000 cm³ | 3000 cm³ | 3000 cm³ |
| Bore x stroke | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm |
| Rated power | 50/2350 hp DIN/rpm | 50/2350 hp DIN/rpm | 60/2350 hp DIN/rpm | 60/2350 hp DIN/rpm | 70/2350 hp DIN/rpm | 70/2350 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 |
| Synchronized gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 |
| Powershift gears | mech. | mech. | mech. | mech. | mech. | mech. |
| Reverser | mech. | mech. | mech. | mech. | mech. | mech. |
| Speeds in km/h | 1,5-40 | 1,5-40 | 1,5-40 | 1,5-40 | 1,5-40 | 1,5-40 |
| Hydr. flow l/min | 33 (45) l/min | 33 (45) l/min | 33 (45) l/min | 33 (45) l/min | 33 (45) l/min | 33 (45) l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 2960 kg | 2960 kg | 2960 kg | 2960 kg | 2960 kg | 2960 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.8 | 6.8 | 7.1 | 7.1 | 7.1 | 7.1 |
| Turning circle m 4WD | 6.9 | 6.9 | 7.2 | 7.2 | 7.2 | 7.2 |
| Front tyres 2WD | 7.50-16 | 7.50-16 | 7.50-16 | 7.50-16 | 7.50-18 | 7.50-18 |
| Front tyres 4WD | 11.2R20 | 11.2R20 | 9.5R24 | 9.5R24 | 11.2R24 | 11.2R24 |
| Rear tyres 2WD | 14.9R28 | 14.9R28 | 14.9R30 | 14.9R30 | 16.9R30 | 16.9R30 |
| Rear tyres 4WD | 14.9R28 | 14.9R28 | 14.9R30 | 14.9R30 | 16.9R30 | 16.9R30 |
| Weight 2WD | 2090 kg | 2090 kg | 2260 kg | 2260 kg | 2360 kg | 2360 kg |
| Weight 4WD | 2310 kg | 2310 kg | 2500 kg | 2500 kg | 2600 kg | 2600 kg |
| Height with cab | 224 cm | 224 cm | 234 cm | 234 cm | 238 cm | 238 cm |
| Length (2WD/4WD) | 338/348 cm | 338/348 cm | 359/374 cm | 359/374 cm | 359/374 cm | 359/374 cm |
| Wheelbase (2WD/4WD) | 198/193 cm | 198/193 cm | 211/206 cm | 211/206 cm | 211/206 cm | 211/206 cm |
| Fuel tank | 58 l | 58 l | 58 l | 58 l | 58 l | 58 l |
| Cab noise level | 85 dB | 85 dB | 84 dB | 84 dB | 85 dB | 85 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | opt. | opt. | opt. | opt. | opt. | opt. |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
