Siirry sivupalkkiinSiirry alaosaanSame Audax ST 200-220 / Lamborghini Mach ST 200-220

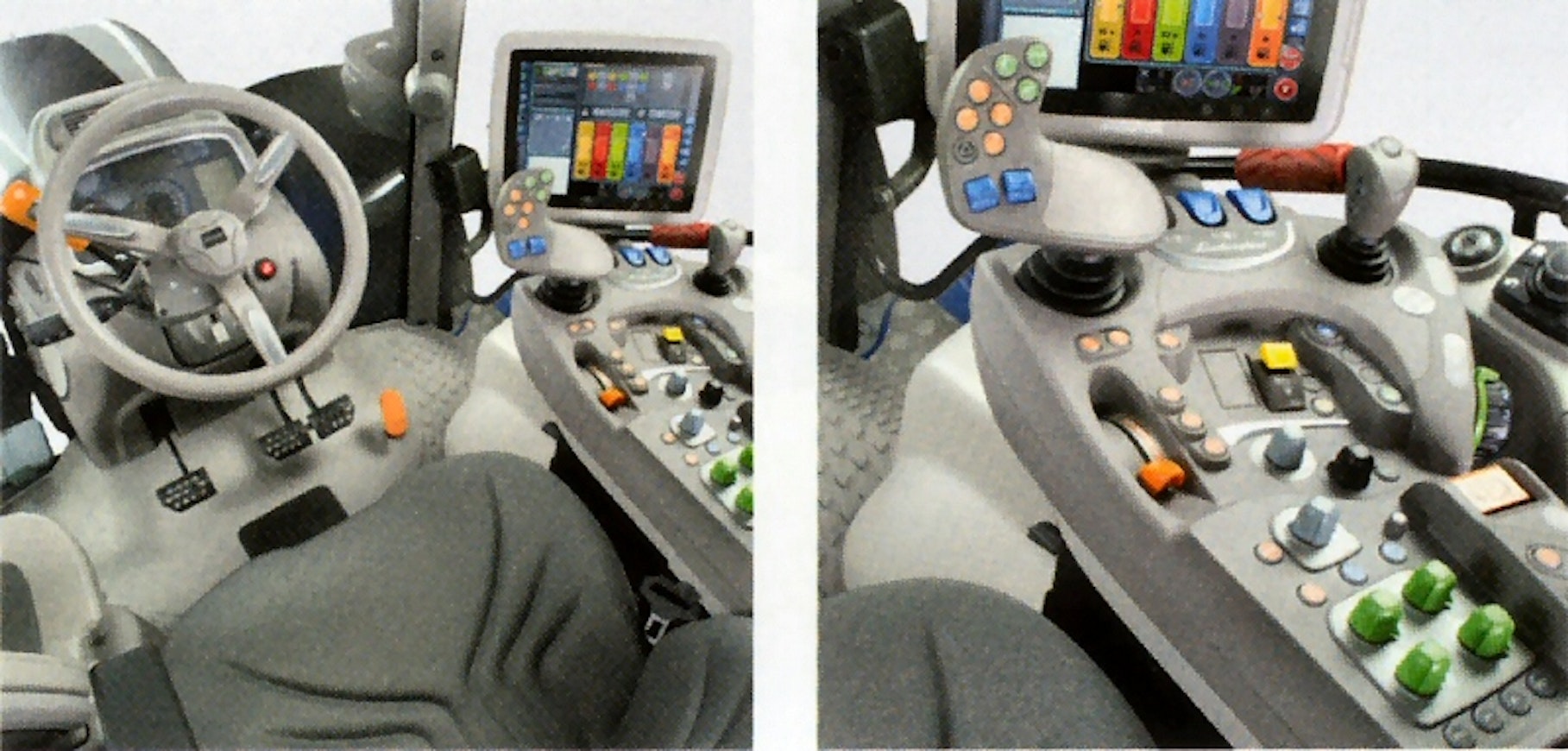

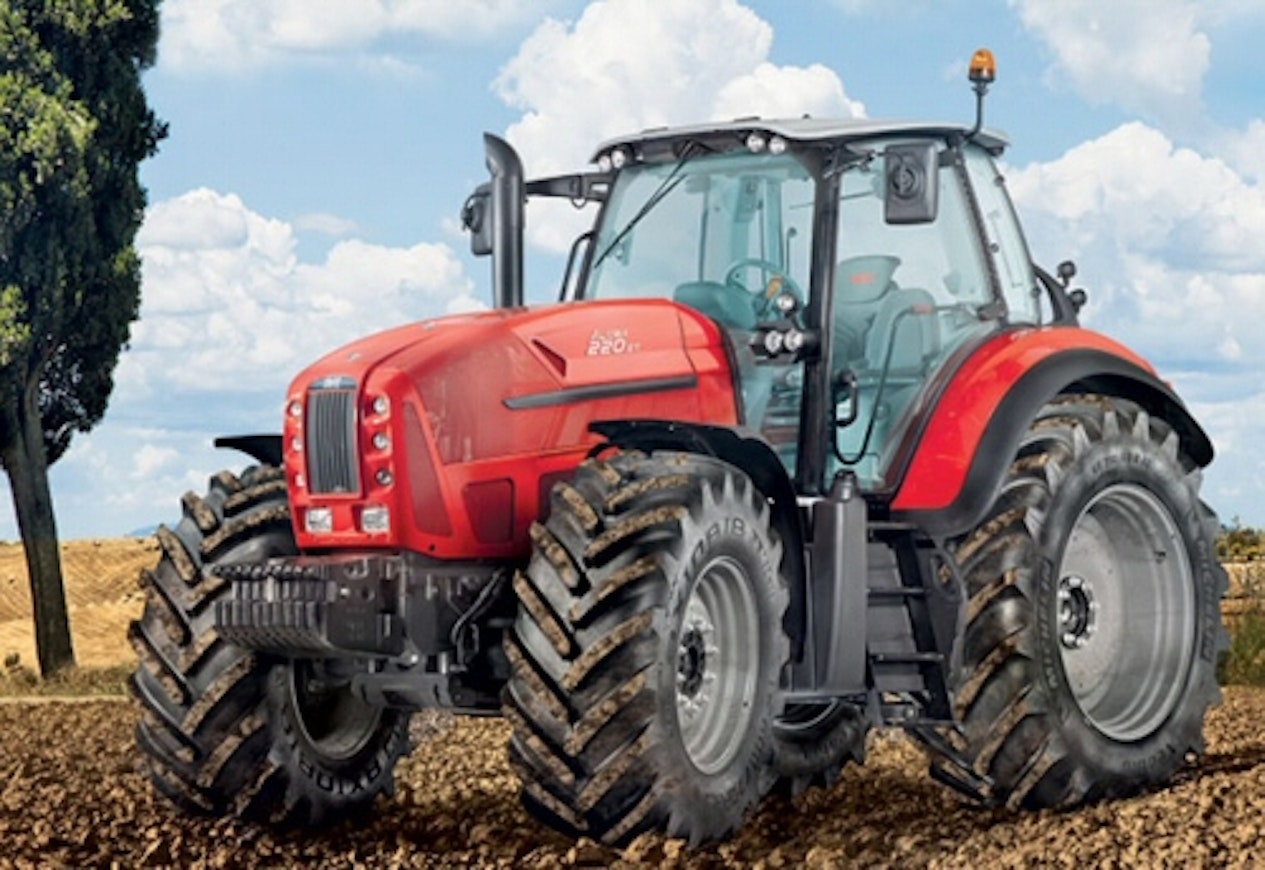

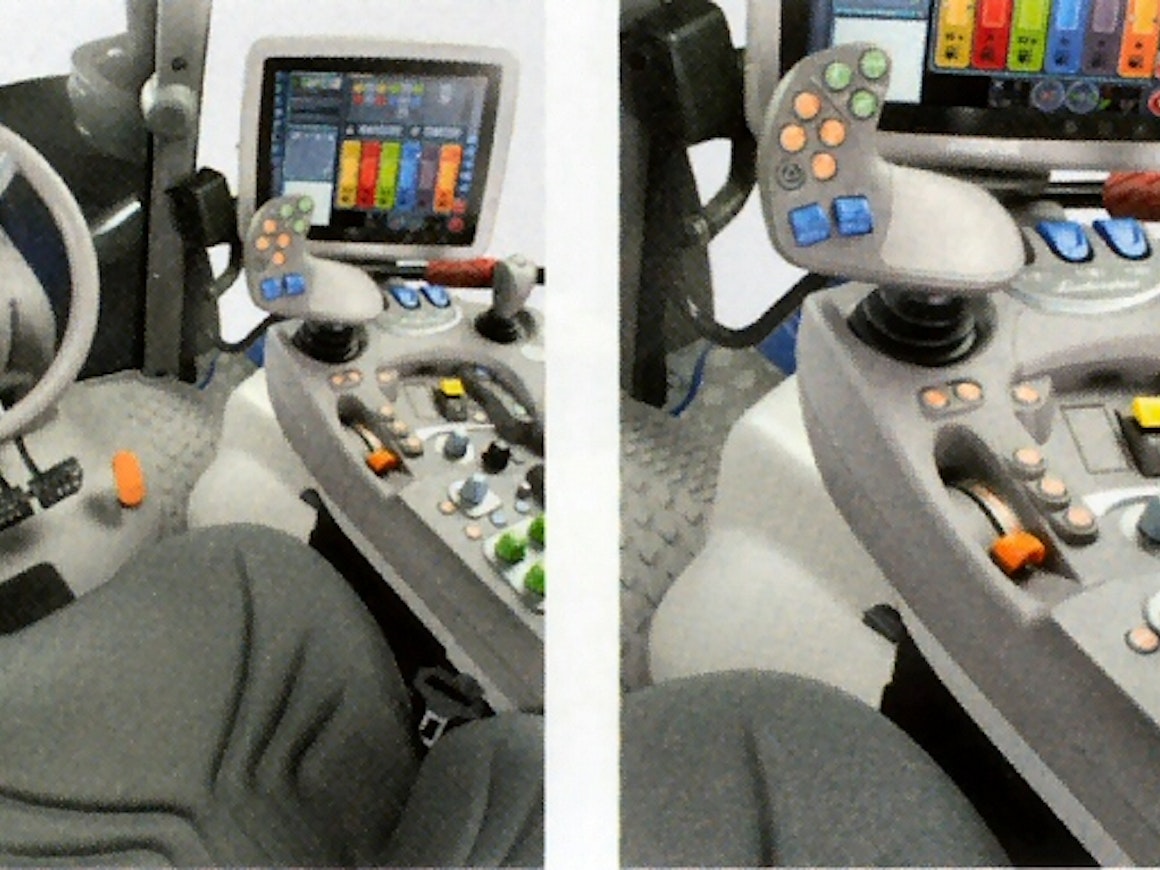

For the year 2014, the Same Iron3 was replaced with the updated Audax ST model. The engine had been changed to a newer 6.1-liter Deutz with urea injection. It had clearly more torque than before. The Powershift transmission was called SMARTtonic, and the number of quick shifts was 12. The field range extended up to 19 km/h, and on roads, it could reach 60 km/h at 1750 RPM, if legislation allowed it. Below these, there was a separate crawling range with 9 gears. The automatic shifting covered all gears. The hydraulics remained the same, with an adjustable displacement pump providing 113 l/min output and a lifting capacity of 10,000 kg. The cab was updated to MaxiVision, the same as in the D-F TTV 7000 and Lamborghini Mach VRT. The cab suspension was pneumatic. An optional accessory was the 12.8″ i-Monitor.

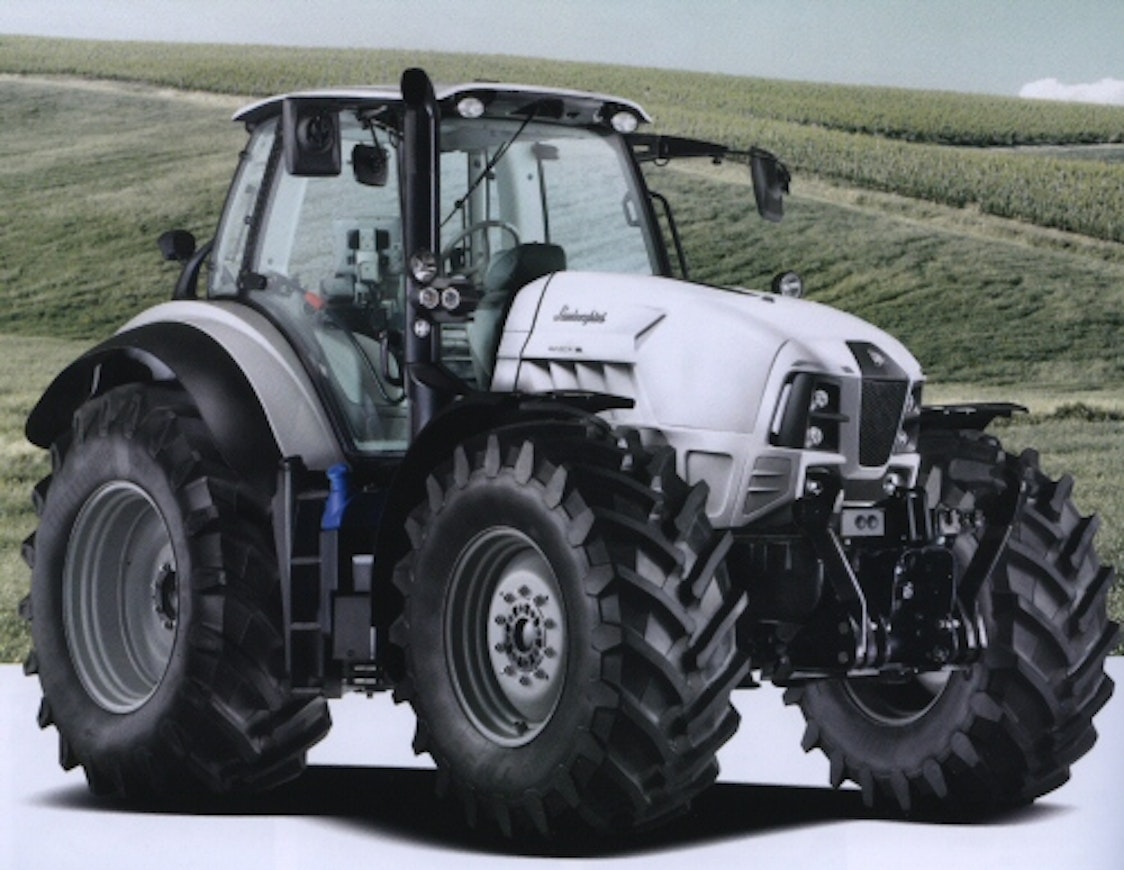

For 2015, the same tractor was also introduced in the Lamborghini lineup under the name Mach ST. Compared to the Mach VRT equipped with a continuously variable transmission, the ST had a significantly longer wheelbase and more modest hydraulics.
The history of these models was short-lived. In 2016, the Same Audax was discontinued, leaving only models equipped with continuously variable transmissions in Lamborghini's range.
This is an automated translation. Please report any issues in the translation.
| Model | Same Audax ST 200 | Lamborghini Mach ST 200 | Same Audax ST 220 | Lamborghini Mach ST 220 |
|---|---|---|---|---|
| Imported to Finland | No | No | No | No |
| Years | 2014- | 2014- | 2014- | 2014- |
| Engine model | TCD2013L06 2V DCR | TCD2013L06 2V DCR | TCD2013L06 2V DCR | TCD2013L06 2V DCR |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power | - | - | - | - |
| Max power | - | - | - | - |
| Torque | - | - | - | - |
| Gears | 33+33 | 33+33 | 33+33 | 33+33 |
| Synchronized gears | 33+33 | 33+33 | 33+33 | 33+33 |
| Powershift gears | 12-step | 12-step | 12-step | 12-step |
| Reverser | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,65-66,5 | 0,65-66,5 | 0,6-66,5 | 0,6-66,5 |
| Max. speed | 40/50/65 km/h | 40/50/65 km/h | 40/50/65 km/h | 40/50/65 km/h |
| Hydr. flow l/min | 113 l/min | 113 l/min | 113 l/min | 113 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 10000 kg | 10000 kg | 10000 kg | 10000 kg |
| PTO speeds | 750/1000 | 750/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.3 | 11.3 | 11.3 | 11.3 |
| Front tyres 4WD | 540/65R34 | 540/65R34 | 540/65R34 | 540/65R34 |
| Rear tyres 4WD | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 |
| Weight 4WD | 8250 kg | 8250 kg | 8250 kg | 8250 kg |
| Height with cab | 315 cm | 315 cm | 315 cm | 315 cm |
| Length (2WD/4WD) | 501 cm | 501 cm | 501 cm | 501 cm |
| Wheelbase (2WD/4WD) | 299 cm | 299 cm | 299 cm | 299 cm |
| Fuel tank | 510+AB50 l | 510+AB50 l | 510+AB50 l | 510+AB50 l |
| Solid cab | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x |
| Air suspension seat | x | x | x | x |
| Air conditioning | x | x | x | x |
| Creeper gear | x | x | x | x |
