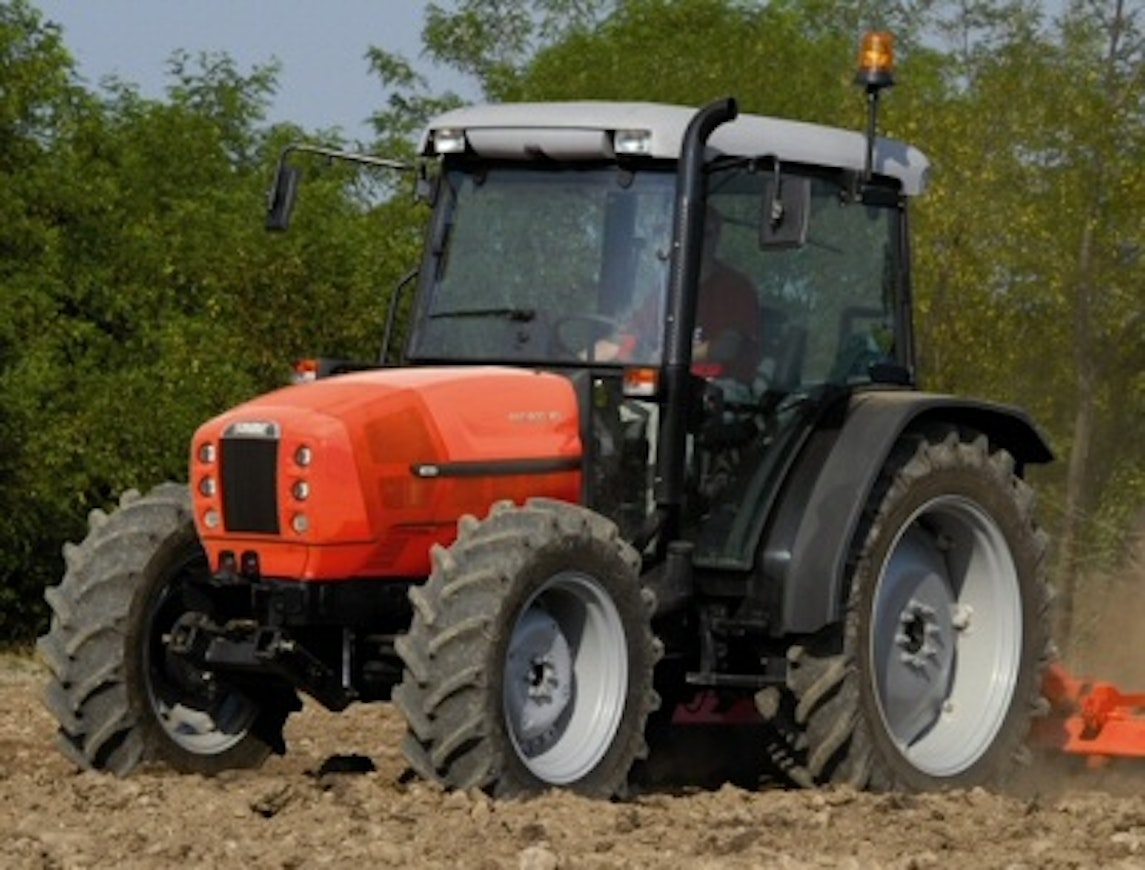

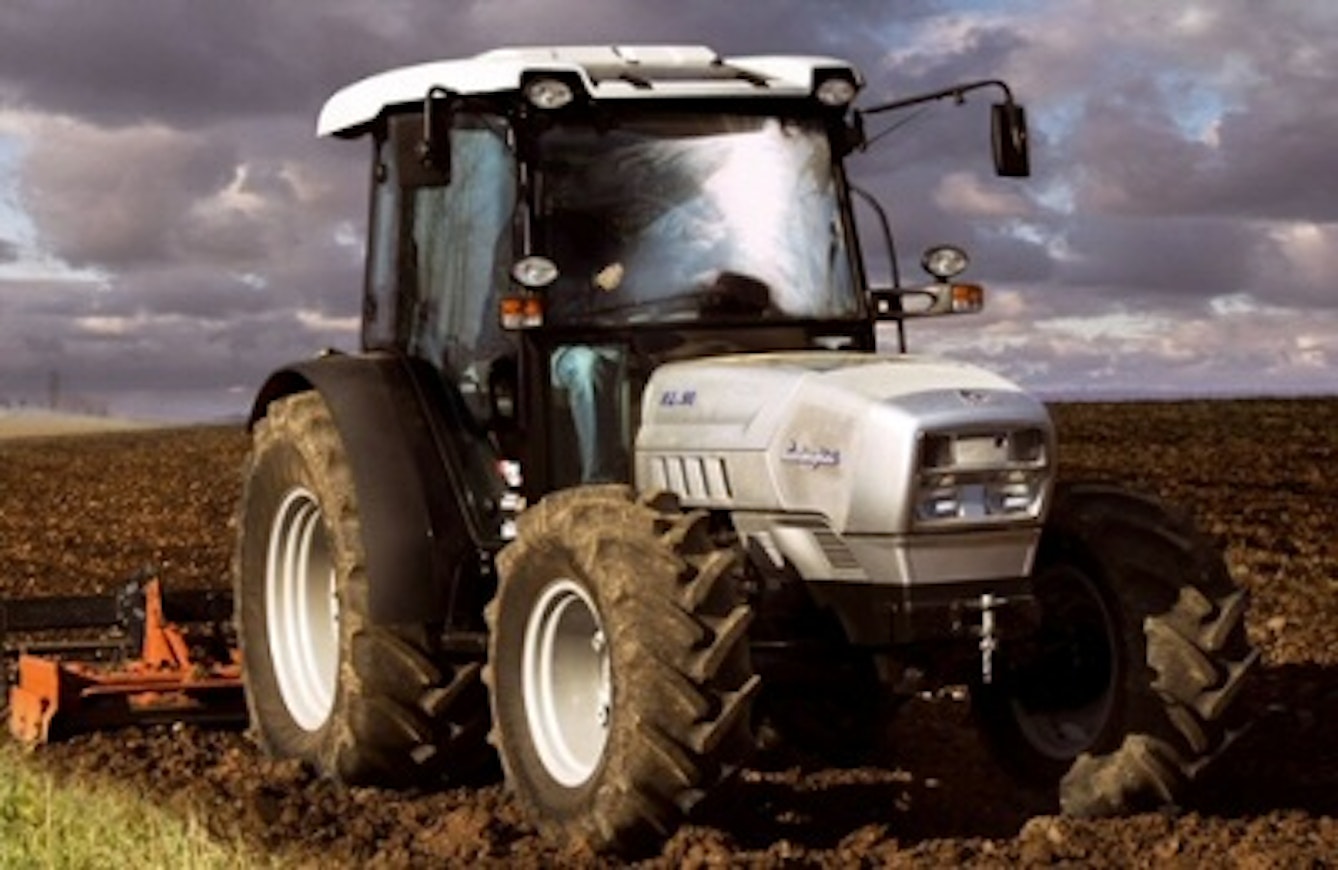

Siirry sivupalkkiinSiirry alaosaanSame Dorado3 60-100 / Lamborghini R2.60-R2.100 / Hürlimann XA 60-100
Manufacturer
Models
Same Dorado3 60, Lamborghini R2.60, Same Dorado3 70, Lamborghini R2.70, Same Dorado3 80, Lamborghini R2.80, Same Dorado3 90, Lamborghini R2.90, Same Dorado3 100, Lamborghini R2.100
Years
2009-14
Info

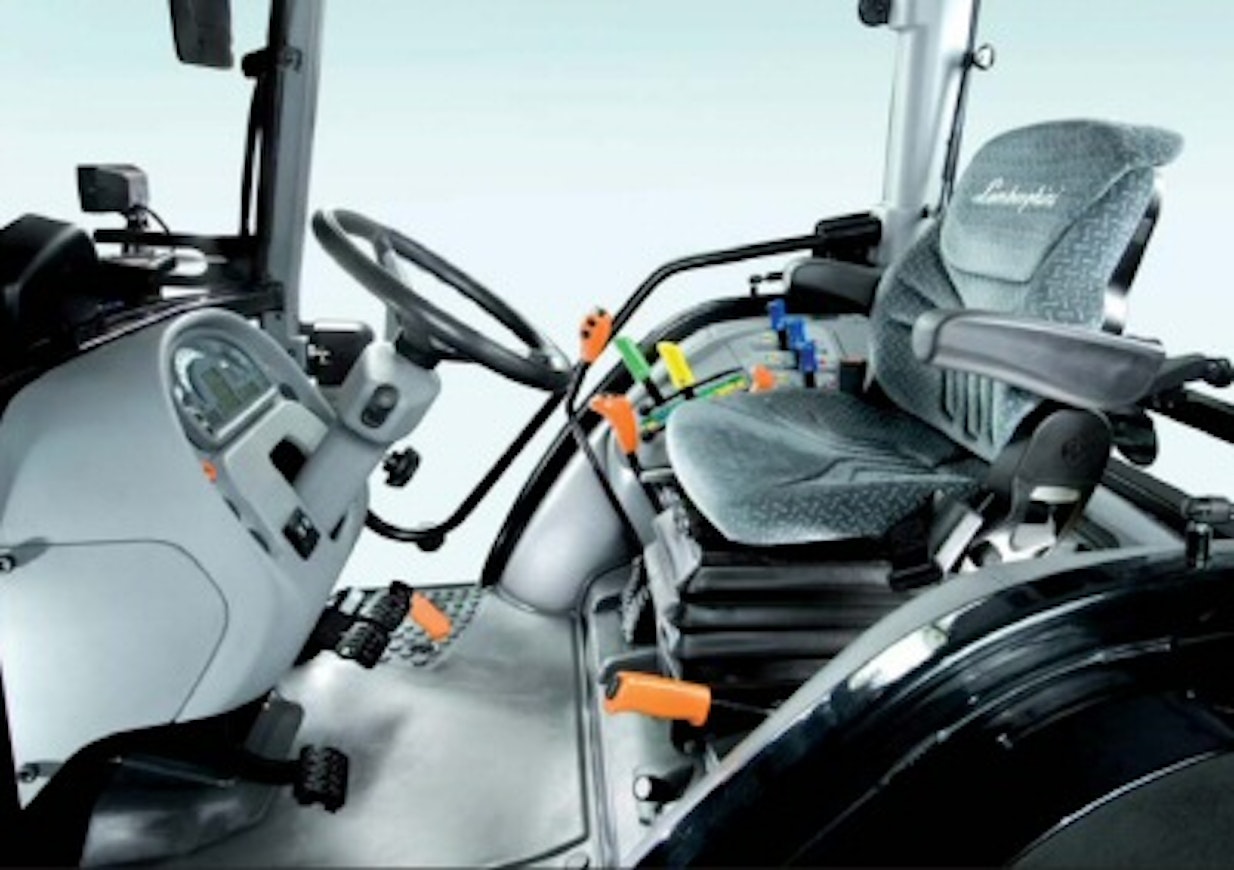

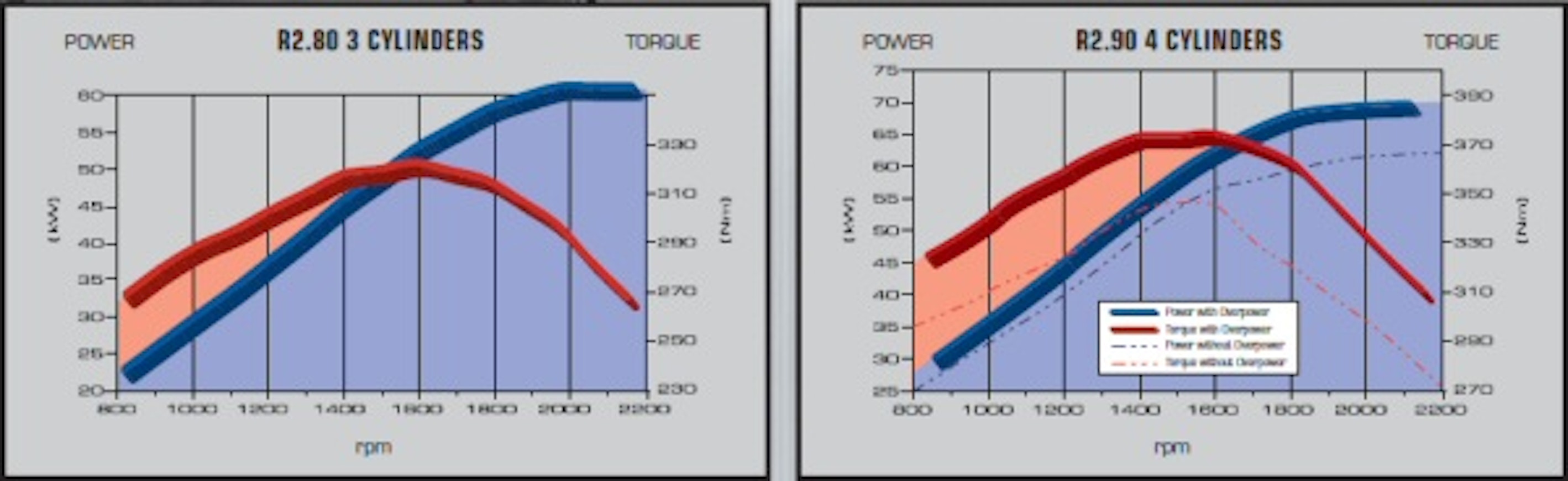

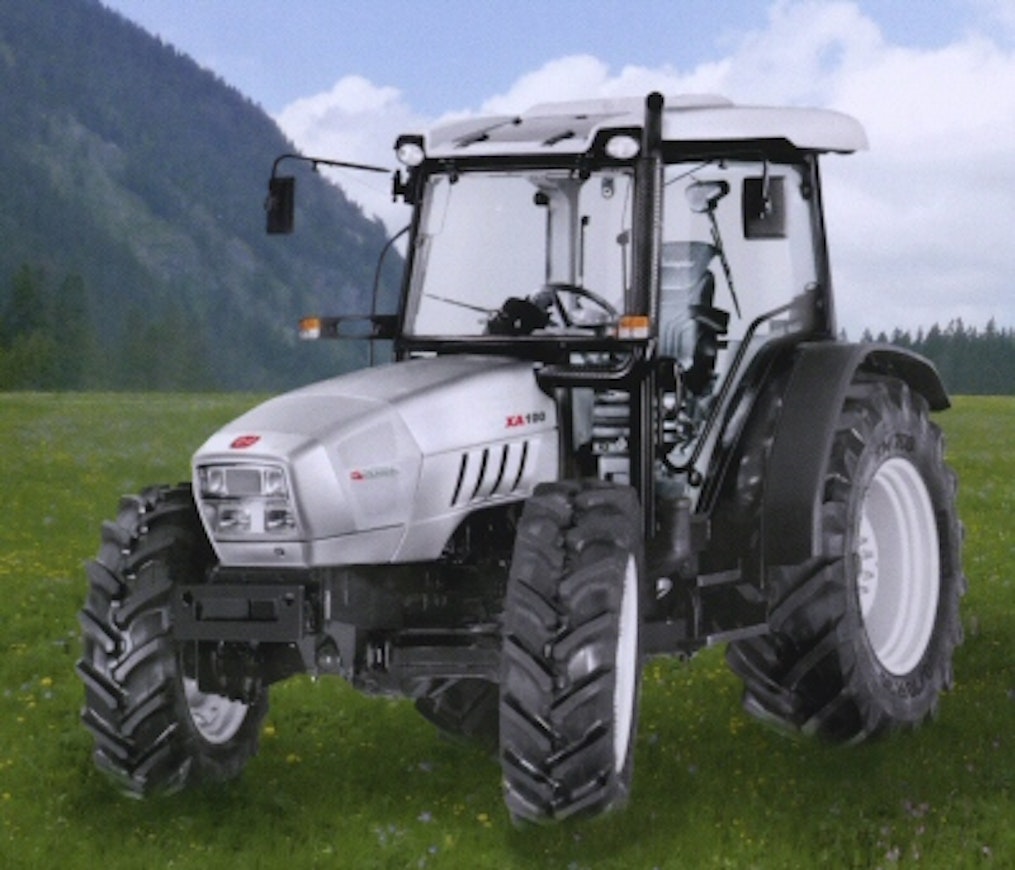

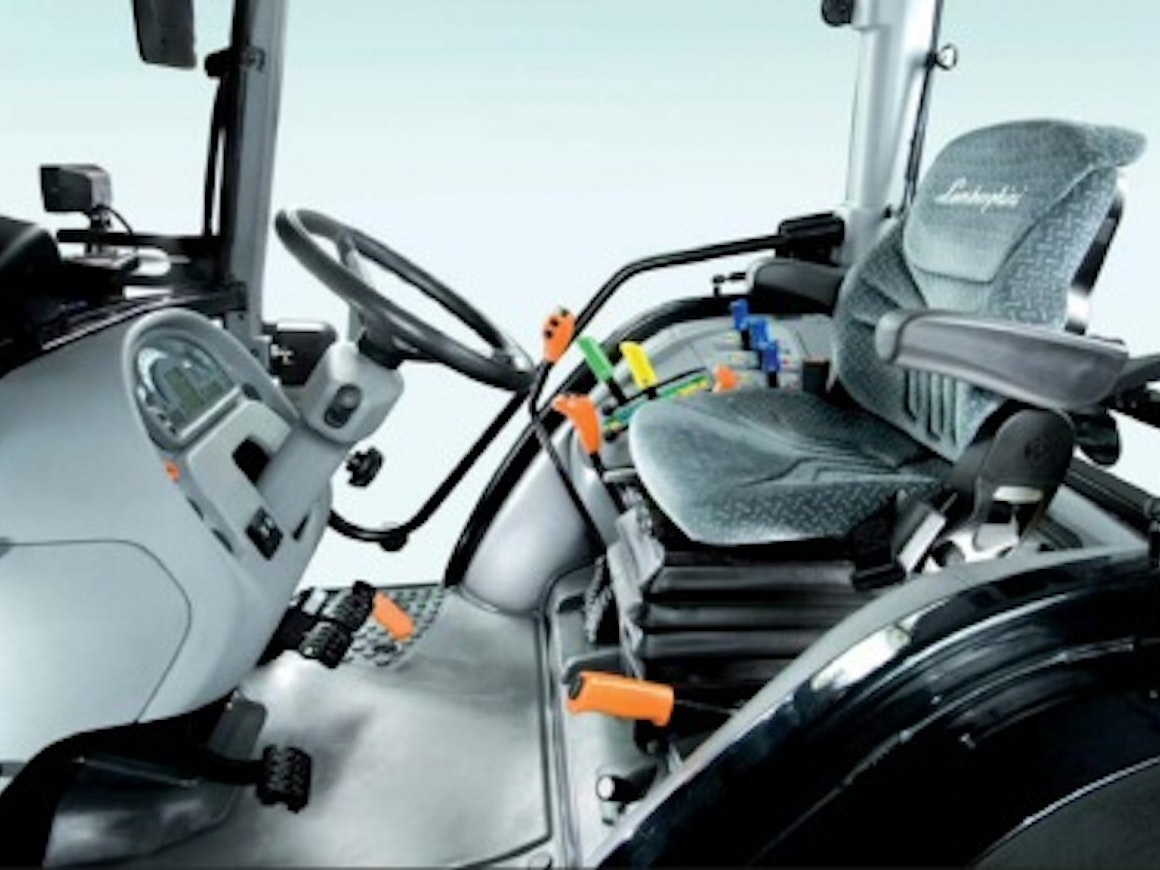

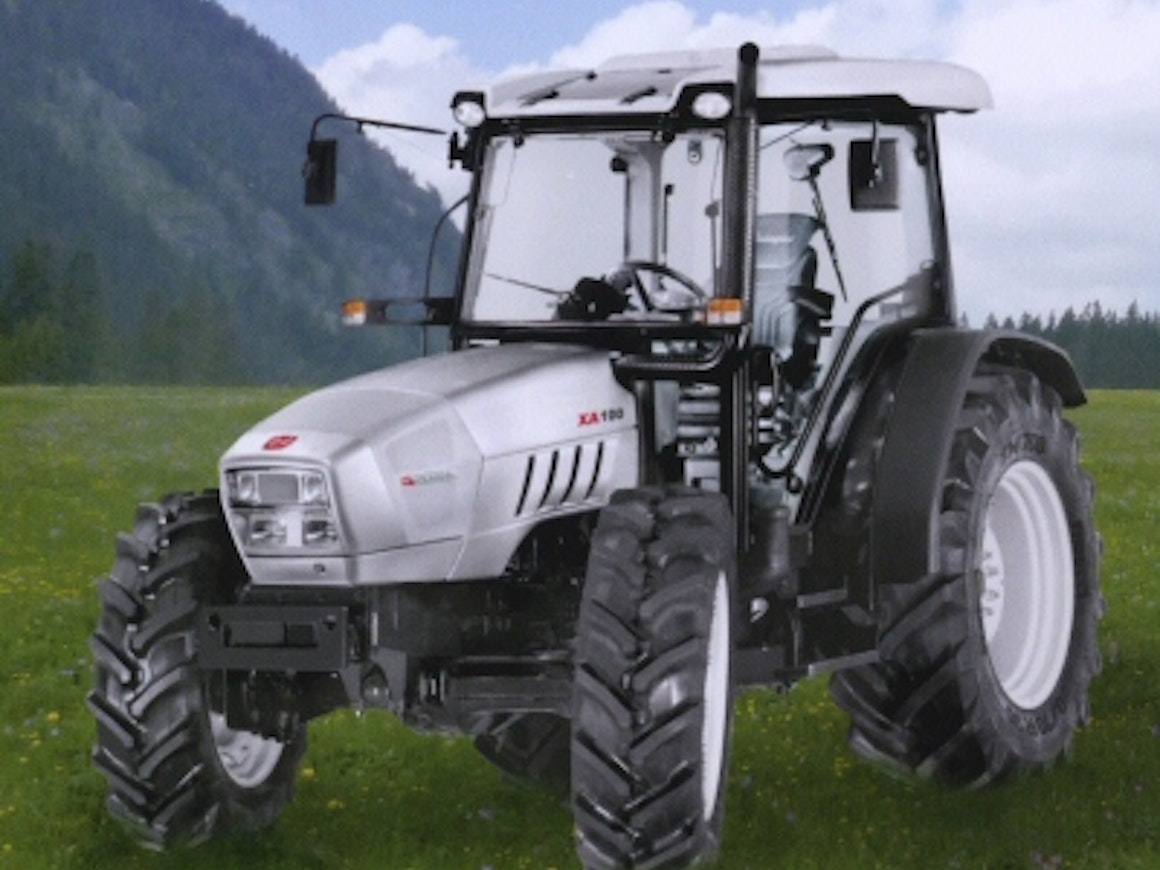

The Dorado 3 and R2 models of the 2010s were fitted with electronically controlled, Tier 3–compliant engines. The Model 90 offered a temporary power-boost feature at speeds above 20 km/h. The tractors received a new design and larger overall dimensions, but apart from the engines the technology remained almost unchanged. Gear ranges with creeper gears were 30 + 15, or in the quick-shift version 45 + 45; a 50 km/h variant was also available. The hydraulic shuttle transmission remained an optional extra. Cabin doors were enlarged to span the full side of the tractor, and the interior color scheme was lightened. Noise level was rated at 75 dB. Hürlimann’s equivalent series was the XA.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Same Dorado3 60 | Lamborghini R2.60 | Same Dorado3 70 | Lamborghini R2.70 | Same Dorado3 80 | Lamborghini R2.80 | Same Dorado3 90 | Lamborghini R2.90 | Same Dorado3 100 | Lamborghini R2.100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No | No | No |
| Years | 2009-10 | 2009-10 | 2010- | 2010- | 2009- | 2009- | 2009-14 | 2009-14 | 2009-14 | 2009-14 |
| Engine model | 1000.3 WT E3 | 1000.3 WT E3 | 1000.3 WT E3 | 1000.3 WT E3 | 1000.3 WTI2 E3 | 1000.3 WTI2 E3 | 1000.4 WTI2 E3 | 1000.4 WTI2 E3 | 1000.4 WTI2 E3 | 1000.4 WTI2 E3 |
| Cyl/Turbo/Intercooler | 3T | 3T | 3T | 3T | 3TI | 3TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 3000 cm³ | 3000 cm³ | 3000 cm³ | 3000 cm³ | 3000 cm³ | 3000 cm³ | 4000 cm³ | 4000 cm³ | 4000 cm³ | 4000 cm³ |
| Bore x stroke | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - |
| Gears | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 |
| Synchronized gears | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 |
| Powershift gears | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step |
| Reverser | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) |

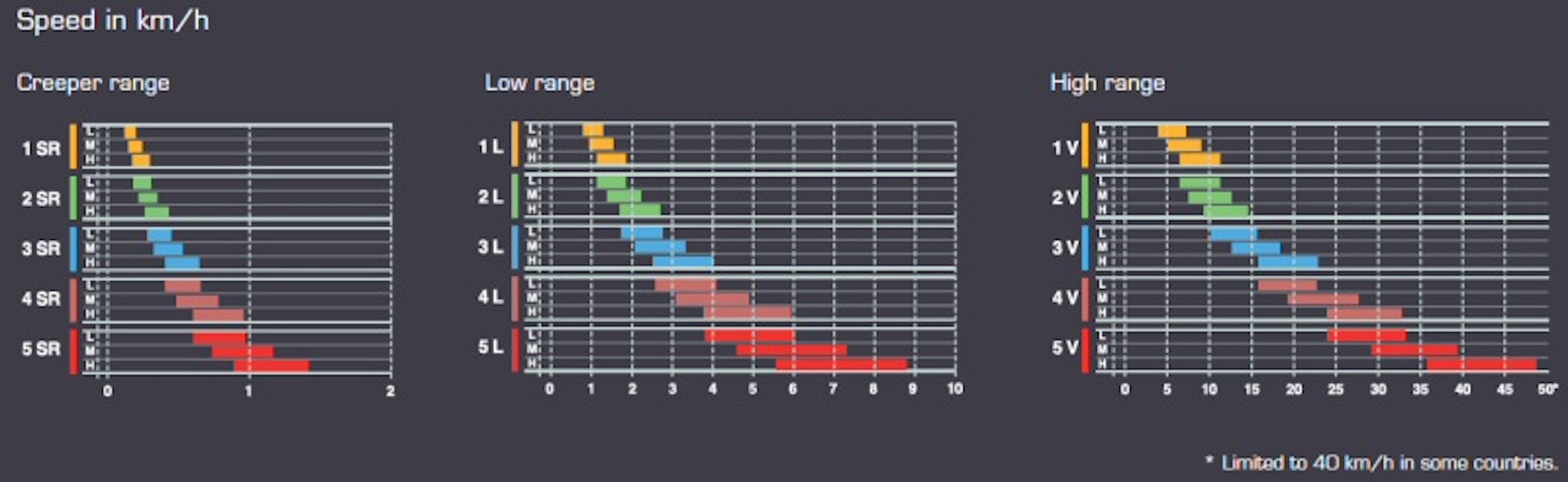

| Speeds in km/h | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 |
| Max. speed | 40 (48,4) km/h | 40 (48,4) km/h | 40 (48,4) km/h | 40 (48,4) km/h | 40 (48,4) km/h | 40 (48,4) km/h | 40 (48,4) km/h | 40 (48,4) km/h | 40 (48,4) km/h | 40 (48,4) km/h |
| Hydr. flow l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 7.46 | 7.46 | 7.46 | 7.46 | 7.46 | 7.46 | 7.8 | 7.8 | 7.8 | 7.8 |
| Front tyres 4WD | 360/70R20 | 360/70R20 | 360/70R20 | 360/70R20 | 360/70R20 | 360/70R20 | 320/70R24 | 320/70R24 | 320/70R24 | 320/70R24 |
| Rear tyres 4WD | 420/70R30 | 420/70R30 | 420/70R30 | 420/70R30 | 420/70R30 | 420/70R30 | 480/70R30 | 480/70R30 | 480/70R30 | 480/70R30 |
| Weight 4WD | 3230 kg | 3230 kg | 3230 kg | 3230 kg | 3230 kg | 3230 kg | 3410 kg | 3410 kg | 3410 kg | 3410 kg |
| Height with cab | 246 cm | 246 cm | 246 cm | 246 cm | 246 cm | 246 cm | 246 cm | 246 cm | 246 cm | 246 cm |
| Length (2WD/4WD) | 400 cm | 400 cm | 400 cm | 400 cm | 400 cm | 400 cm | 413 cm | 413 cm | 413 cm | 413 cm |
| Wheelbase (2WD/4WD) | 210 cm | 210 cm | 210 cm | 210 cm | 210 cm | 210 cm | 219/223 cm | 219/223 cm | 223 cm | 223 cm |
| Fuel tank | 90 l | 90 l | 90 l | 90 l | 90 l | 90 l | 90 l | 90 l | 90 l | 90 l |
| Cab noise level | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | x | x | x | x | x | x | x | x | x | x |
| Max power | - | - | - | - | - | - | - | - | - | - |
| Turning circle m 2WD | - | - | - | - | - | - | 7.14 | 7.14 | - | - |
| Rear tyres 2WD | - | - | - | - | - | - | 480/70R30 | 480/70R30 | - | - |
| Weight 2WD | - | - | - | - | - | - | 3350 kg | 3350 kg | - | - |
