Siirry sivupalkkiinSiirry alaosaanSame Explorer Classic / Lamborghini Grand Prix Target / Hürlimann Prestige Tradition








Here’s the English translation:
In 2004, cheaper Classic versions were introduced of the Explorer model series, which had been revamped in 2003. For Lamborghini, the model designation was Grand Prix Target, and for Hürlimann, it was Prestige Tradition.

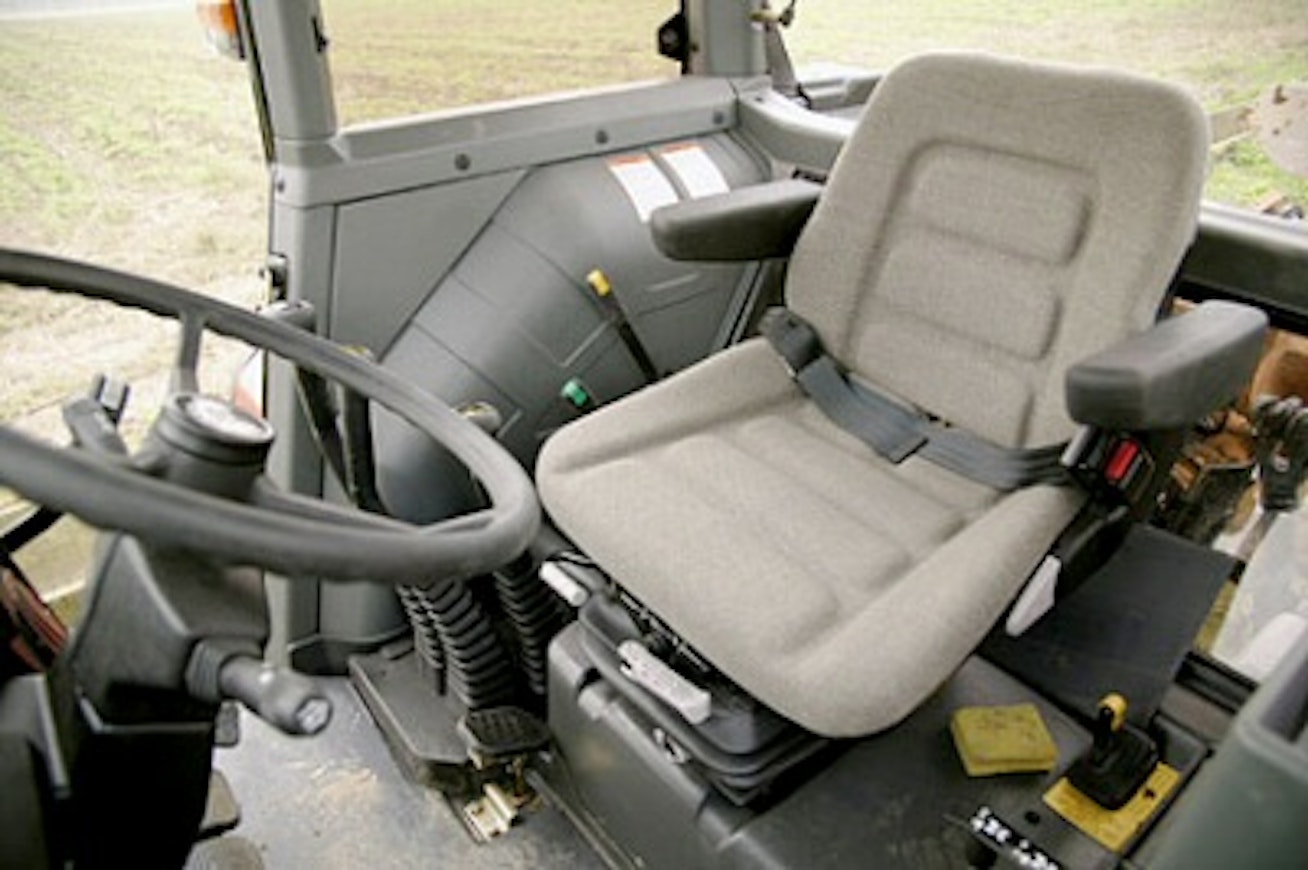

The 75-horsepower model had a naturally aspirated 4.0-liter water-cooled engine, and the 95-horsepower version was turbocharged. The transmission was either 20+20 with a mechanical shuttle or 40+40 equipped with a two-stage hydraulic shuttle. In Finland, unlike in other countries, the transmission was 15+15 without creeper gears. In this case, the driving speeds were 1.2–37.3 km/h. The lifting capacity was 3,450 kg, and four hydraulic outlets were standard. The electrically engaged PTO had four speeds. The cab was similar to that of earlier Explorers.
This is an automated translation. Please report any issues in the translation.
| Model | Same Explorer Classic 75 | Lamborghini Grand Prix Target 75 | Same Explorer Classic 95 | Lamborghini Grand Prix Target 95 |
|---|---|---|---|---|
| Imported to Finland | No | No | Yes | Yes |
| Years | 2004-06 | 2004-06 | 2004-06 | 2004-06 |
| Engine model | 1000.4W | 1000.4W | 1000.4WT10 | 1000.4WT10 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4T | 4T |
| Displacement | 4000 cm³ | 4000 cm³ | 4000 cm³ | 4000 cm³ |
| Bore x stroke | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm |
| Rated power | 71/2300 hp DIN/rpm | 71/2300 hp DIN/rpm | 90/2500 hp DIN/rpm | 90/2500 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 20+20/40+40 | 20+20/40+40 | 20+20/40+40 | 20+20/40+40 |
| Synchronized gears | 20+20/40+40 | 20+20/40+40 | 20+20/40+40 | 20+20/40+40 |
| Powershift gears | -/hydr. | -/hydr. | -/hydr. | -/hydr. |
| Reverser | mech. | mech. | mech. | mech. |
| Speeds in km/h | 0,4-37,3/ 0,34-37,3 | 0,4-37,3/ 0,34-37,3 | 0,4-37,3/ 0,34-37,3 | 0,4-37,3/ 0,34-37,3 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 3450 kg | 3450 kg | 3450 (4800) kg | 3450 (4800) kg |
| PTO speeds | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.5 | 8.5 | 9.9 | 9.9 |
| Front tyres 4WD | 12.4R24 | 12.4R24 | 14.9R24 | 14.9R24 |
| Rear tyres 4WD | 16.9R30 | 16.9R30 | 16.9R34 | 16.9R34 |
| Weight 4WD | 3580 kg | 3580 kg | 3680 kg | 3680 kg |
| Height with cab | 250 cm | 250 cm | 263 cm | 263 cm |
| Length (2WD/4WD) | 399 cm | 399 cm | 404 cm | 404 cm |
| Wheelbase (2WD/4WD) | 228 cm | 228 cm | 232 cm | 232 cm |
| Fuel tank | 90 l | 90 l | 110 l | 110 l |
| Cab noise level | 78 dB | 78 dB | 78 dB | 78 dB |
| Solid cab | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | x | x | x (not 15+15) | x (not 15+15) |
