Siirry sivupalkkiinSiirry alaosaanSame Falcon, Condor, Taurus

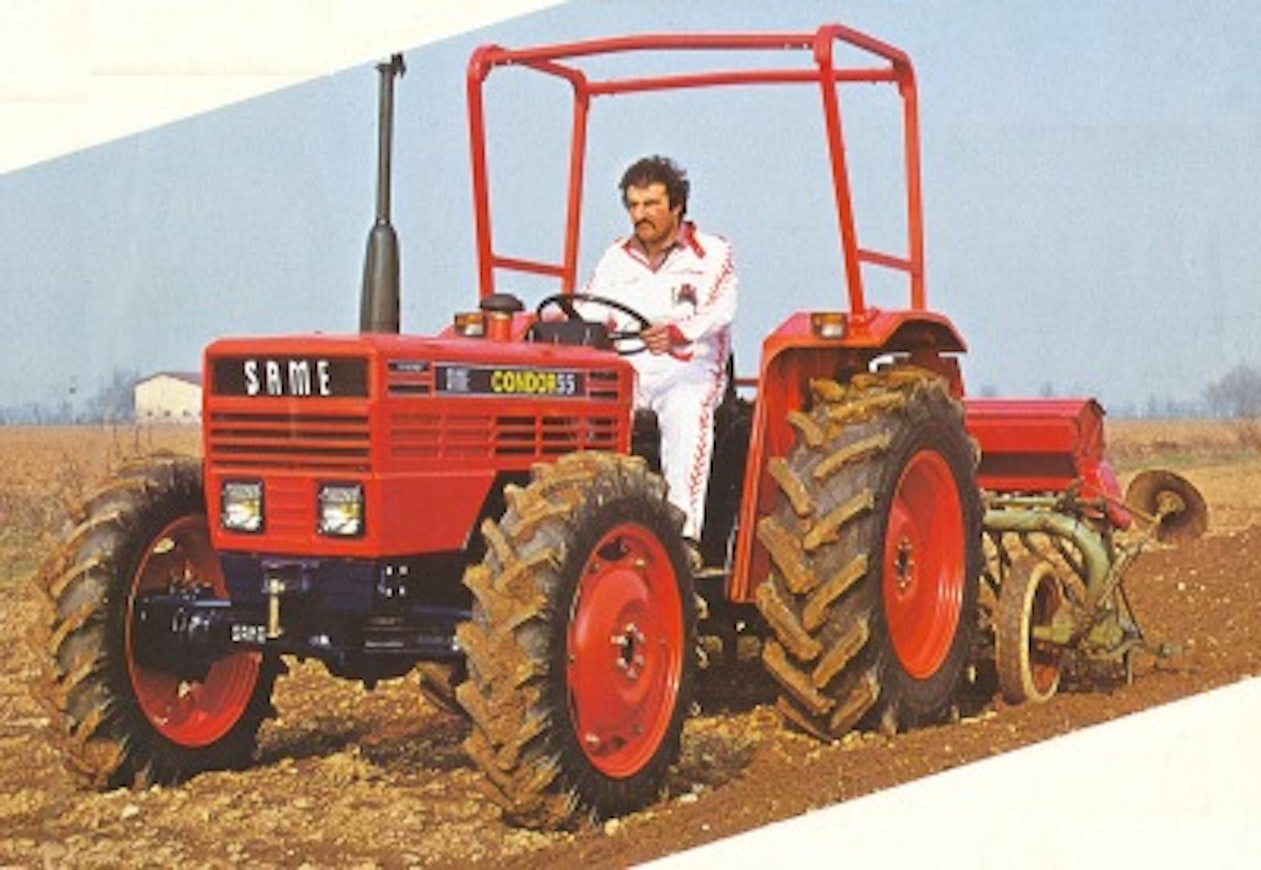

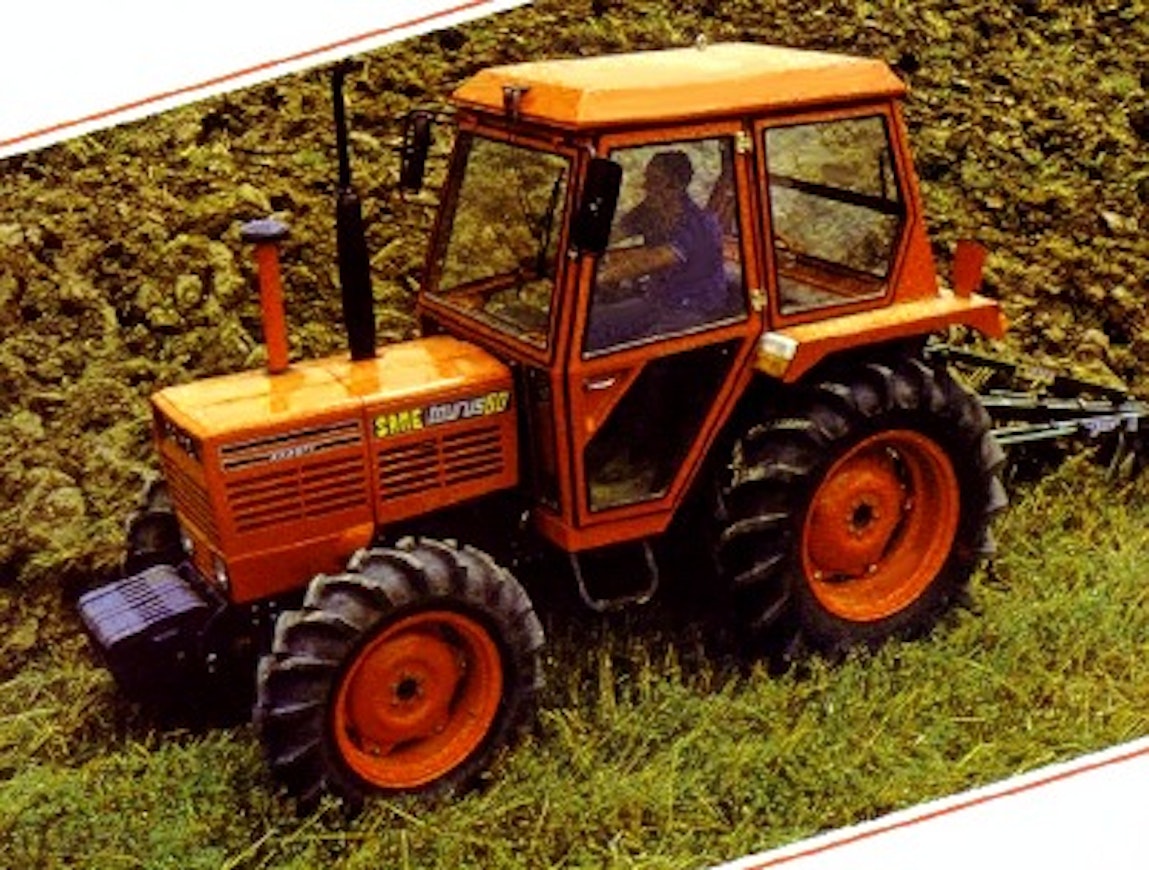

At the end of the 1970s, a new angular series was introduced: the 50-horsepower Same Falcon, the 52-horsepower Condor, and the 60-horsepower Taurus. Among these, the Falcon and Condor were mostly cabless tractors for the domestic market, while the Taurus, which was also imported to Finland, was more intended for export. Additionally, the series of compact tractors equipped with roll-over protection was complemented by the narrower Minitaurus 60, which was slimmer than the Taurus.
Unlike other Same models from the same era, the Condor and Taurus differed in that they did not have an available differential lock for the front axle, and except for the final stages, the Taurus used dry disc brakes. Like the other models, these also featured draft control and air-cooled engines. The transmissions had synchronized basic gears.
Smaller than these models were the 2-cylinder Delfino 35 and the Aurora 45.
This is an automated translation. Please report any issues in the translation.
| Model | Same Falcon 50 | Same Condor 55 | Same Minitaurus 60 | Same Taurus 60 |
|---|---|---|---|---|
| Manufacturer name | Same | Same | Same | Same |
| Imported to Finland | No | No | No | Yes |
| Years | 1976-87 | 1979-83 | 1978-84 | 1978-84 |
| Engine model | 983L | 983P | 1053P | 1053P |
| Cyl/Turbo/Intercooler | 3 | 3 | 3 | 3 |
| Displacement | 2715 cm³ | 2715 cm³ | 3116 cm³ | 3116 cm³ |
| Bore x stroke | 98×120 mm | 98×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 50/2200 hp DIN/rpm | 52/2200 hp DIN/rpm | 60/2200 hp DIN/rpm | 58/2200 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 8+4 | 8+4/14+7 | 14+7 | 14+7 |
| Synchronized gears | 8+4 | 8+4/14+7 | 14+7 | 14+7 |
| Speeds in km/h | 1,8-25 | 1,6-22,4 | 1,8-28,9 | 1,8-28,9 |
| Max. speed | 25 km/h | 25 km/h | 25/30 km/h | 25/30 km/h |
| Hydr. flow l/min | 22 l/min | 24 l/min | 24 l/min | 24 l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 1580 kg | 1250 kg | 1960 kg | 1960 kg |
| PTO speeds | 540/ajo | 540/ajo | 540/ajo | 540/ajo |
| Brakes | wet disc | wet disc | dry disc | dry disc (wet disc) |
| Steering | mech. | mech. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.5 | 8 | 6,2 jarrulla | 6,4 jarrulla |
| Turning circle m 4WD | 7.8 | 8.3 | 6,5 jarrulla | 6,7 jarrulla |
| Front tyres 2WD | 6,00-16 | 6,00-16 | 7,50-16 | 7,50-16 |
| Front tyres 4WD | 8.3-24 | 8.3-24 | 11.2-24 | 11.2-24 |
| Rear tyres 2WD | 12,4-32 | 13,6-28 | 16,9-30 | 16,9-30 |
| Rear tyres 4WD | 12.4-32 | 13.6-28 | 14.9-30 | 14.9-30 |
| Weight 2WD | (2060) kg | (2100) kg | (2190) kg | 2620 kg |
| Weight 4WD | (2280) kg | (2275) kg | (2380) kg | 2880 kg |
| Height with cab | 223 cm | 226 cm | 231 cm | 253 cm |
| Length (2WD/4WD) | 300/309 cm | 335/345 cm | 350/357 cm | 356/358 cm |
| Wheelbase (2WD/4WD) | 186/195 cm | 202/211 cm | 214/211 cm | 215/210 cm |
| Fuel tank | 45 l | 35/60 l | 60 l | 100 l |
| Cab noise level | 96 dB | - | 89.5 dB | 84.5 dB |
| Diff. lock | no | no | no | no |
| Creeper gear | - | opt. | opt. | opt. |
| Solid cab | - | - | - | x |
