Siirry sivupalkkiinSiirry alaosaanSame Iron 130-185 / Lamborghini R6.130-R6.185 / Hürlimann XL 130-185










In the autumn of 2007, at the same time as the Deutz-Fahr Agrotron M-series was introduced, the Iron and R6 models were fitted with 6.1-liter Deutz engines featuring common-rail injection. The two most powerful versions also received four-valve technology. The gearbox remained the 24+24-speed ZF 7200 with a four-speed powershift. Automatic shifting functions were offered only on the Hi-Line version. Standard hydraulic equipment was based on a conventional gear pump, while the Hi-Line models featured a 120 l/min load-sensing system with electrically controlled valves.
Both front and rear axles had engageable, automatically disengaging 100 % differential locks. On the 50 km/h variants, the front axle was fitted with hydropneumatic suspension. The cab could be ordered with either mechanical or pneumatic suspension as an option, and its noise level was rated at 73–74 dB. Models 130 and 140 differed only in engine output and tire size; in the larger versions additional reinforcements were applied to both the front axle and the rear end.

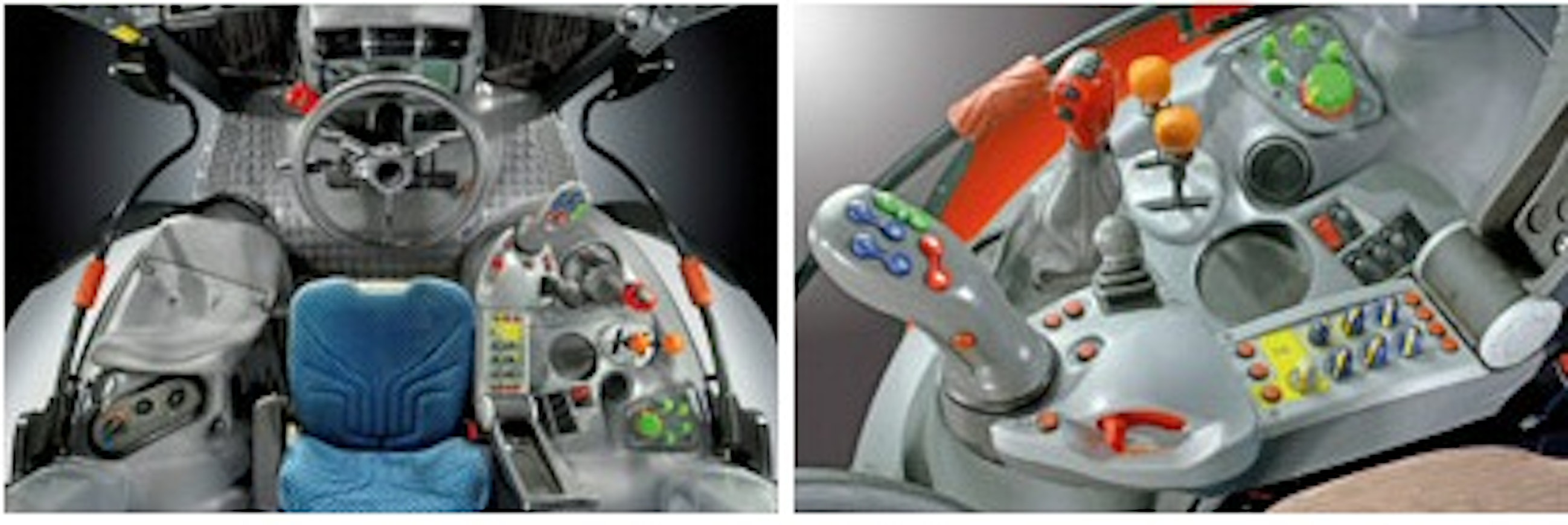

At the end of 2009, the lineup was expanded with new four-valve models—two high-power four-cylinder units and two six-cylinder units. At the same time, the operator’s armrest control console was updated.
This is an automated translation. Please report any issues in the translation.
| Model | Same Iron 130 | Lamborghini R6.130 | Same Iron 140 | Lamborghini R6.140 | Same Iron 160 | Lamborghini R6.160 | Same Iron 175 | Lamborghini R6.175 4V | Same Iron 185 | Lamborghini R6.185 4V | Same Iron 135 4v | Lamborghini R6.135 4V | Same Iron 140 4v | Lamborghini R6.140 4V | Same Iron 155 4v | Lamborghini R6.155 4V | Same Iron 160 4v | Lamborghini R6.160 4V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
| Years | 2007-13 | 2007-13 | 2007-13 | 2007-13 | 2007-13 | 2007-13 | 2007-13 | 2007-13 | 2007-13 | 2007-13 | 2009-13 | 2009-13 | 2009-13 | 2009-13 | 2009-13 | 2009-13 | 2009-13 | 2009-13 |
| Engine model | TCD2012 L06 2V | TCD2012 L06 2V | TCD2012 L06 2V | TCD2012 L06 2V | TCD2012 L06 2V | TCD2012 L06 2V | TCD2012 L06 4V | TCD2012 L06 4V | TCD2012 L06 4V | TCD2012 L06 4V | TCD2012 L04 4V | TCD2012 L04 4V | TCD2012 L06 4V | TCD2012 L06 4V | TCD2012 L04 4V | TCD2012 L04 4V | TCD2012 L06 4V | TCD2012 L06 4V |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 4TI | 4TI | 6TI | 6TI | 4TI | 4TI | 6TI | 6TI |
| Displacement | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 4038 cm³ | 4038 cm³ | 6057 cm³ | 6057 cm³ | 4038 cm³ | 4038 cm³ | 6057 cm³ | 6057 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Gears | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Synchronized gears | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Powershift gears | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |

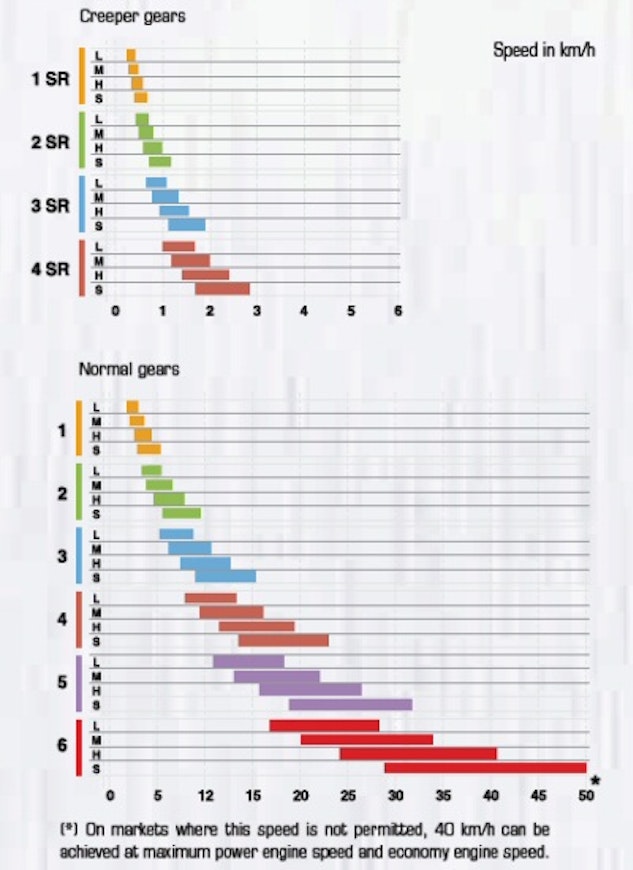

| Speeds in km/h | 3,2-40/50 | 3,2-40/50 | 3,2-40/50 | 3,2-40/50 | 3,4-40/50 | 3,4-40/50 | 3,2-40/50 | 3,2-40/50 | 3,2-40/50 | 3,2-40/50 | 3,2-40/50 | 3,2-40/50 | 3,2-40/50 | 3,2-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 |
| Max. speed | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h |
| Hydr. flow l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 120 l/min | 120 l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min | 83 (120) l/min |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg | 9200 kg |
| PTO speeds | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.9 | 9.9 | 9.9 | 9.9 | 10.26 | 10.26 | 10.26 | 10.26 | 11.6 | 11.6 | 9.3 | 9.3 | 9.9 | 9.9 | 9.3 | 9.3 | 10.26 | 10.26 |
| Front tyres 4WD | 16.9R24 | 16.9R24 | 16.9R24 | 16.9R24 | 480/70R28 | 480/70R28 | 480/70R28 | 480/70R28 | 540/65R34 | 540/65R34 | 16.9R24 | 16.9R24 | 480/70R24 | 480/70R24 | 480/70R28 | 480/70R28 | 480/70R28 | 480/70R28 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 580/70R38 | 580/70R38 | 580/70R38 | 580/70R38 | 650/65R42 | 650/65R42 | 18.4R38 | 18.4R38 | 520/70R38 | 520/70R38 | 580/70R38 | 580/70R38 | 580/70R38 | 580/70R38 |
| Weight 4WD | 5460 kg | 5460 kg | 5460 kg | 5460 kg | 5610 kg | 5610 kg | 5970 kg | 5970 kg | 6750 kg | 6750 kg | 5155 kg | 5155 kg | 5530 kg | 5530 kg | 5435 kg | 5435 kg | 5810 kg | 5810 kg |
| Height with cab | 292 cm | 292 cm | 292 cm | 292 cm | 292 cm | 292 cm | 300 cm | 300 cm | 313 cm | 313 cm | 300 cm | 300 cm | 305 cm | 305 cm | 300 cm | 300 cm | 305 cm | 305 cm |
| Length (2WD/4WD) | 459 cm | 459 cm | 459 cm | 459 cm | 459 cm | 459 cm | 476 cm | 476 cm | 481 cm | 481 cm | 436 cm | 436 cm | 459 cm | 459 cm | 436 cm | 436 cm | 459 cm | 459 cm |
| Wheelbase (2WD/4WD) | 265 cm | 265 cm | 265 cm | 265 cm | 265 cm | 265 cm | 277 cm | 277 cm | 282 cm | 282 cm | 242 cm | 242 cm | 265 cm | 265 cm | 242 cm | 242 cm | 265 cm | 265 cm |
| Fuel tank | 270 l | 270 l | 270 l | 270 l | 270 l | 270 l | 305 l | 305 l | 305 l | 305 l | 270 l | 270 l | 270 l | 270 l | 270 l | 270 l | 270 l | 270 l |
| Cab noise level | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
