Siirry sivupalkkiinSiirry alaosaanSame Iron3 190-220 / Lamborghini R7.190-R7.220
Manufacturer
Models
Same Iron3 210, Lamborghini R7.210, Same Iron3 190, Lamborghini R7.190, Same Iron3 220, Lamborghini R7.220
Years
2009-13
Info
In spring 2009 the Same Iron 210 was upgraded to Iron3, and the same changes were applied to its sister models, the Lamborghini R7 and the Deutz-Fahr Agrotron L. The common-rail engine was brought up to Tier 3 compliance. The package included exhaust-gas recirculation and electronically controlled injection. The 27+27-speed Powershift transmission was said to be far more efficient than before, with shift automation covering all gears. Cab suspension came as standard.

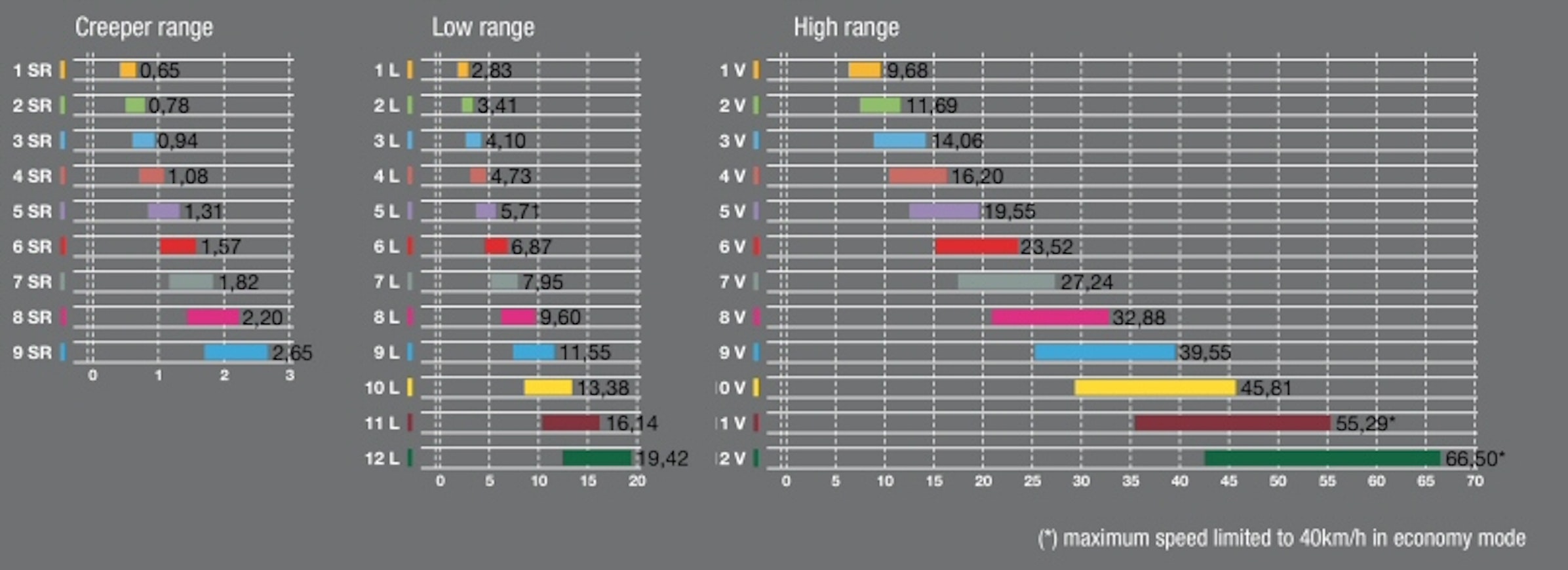

In autumn 2010 the original 210 model was replaced by two new models, the 190 and the 220. The Powershift now offered 12 ranges instead of nine, and the top speed of 50 km/h was achieved at 1,750 rpm.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Same Iron3 210 | Lamborghini R7.210 | Same Iron3 190 | Lamborghini R7.190 | Same Iron3 220 | Lamborghini R7.220 |
|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No |
| Years | 2009-10 | 2009-10 | 2010-13 | 2010-13 | 2010-13 | 2010-13 |
| Engine model | TCD2013L06 2V DCR | TCD2013L06 2V DCR | TCD2013L06 2V DCR | TCD2013L06 2V DCR | TCD2013L06 2V DCR | TCD2013L06 2V DCR |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 7146 cm³ | 7146 cm³ | 7146 cm³ | 7146 cm³ | 7146 cm³ | 7146 cm³ |
| Bore x stroke | 108×130 mm | 108×130 mm | 108×130 mm | 108×130 mm | 108×130 mm | 108×130 mm |
| Rated power | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - |
| Gears | 27+27 | 27+27 | 33+33 | 33+33 | 33+33 | 33+33 |
| Synchronized gears | 27+27 | 27+27 | 33+33 | 33+33 | 33+33 | 33+33 |
| Powershift gears | 9-step | 9-step | 12-step | 12-step | 12-step | 12-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,6-40,0 | 0,6-40,0 | 0,65-66,5 | 0,65-66,5 | 0,6-66,5 | 0,6-66,5 |
| Max. speed | 40 km/h | 40 km/h | 40/50/65 km/h | 40/50/65 km/h | 40/50/65 km/h | 40/50/65 km/h |
| Hydr. flow l/min | 113 l/min | 113 l/min | 113 l/min | 113 l/min | 113 l/min | 113 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg |
| PTO speeds | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
| Front tyres 4WD | 540/65R34 | 540/65R34 | 540/65R34 | 540/65R34 | 540/65R34 | 540/65R34 |
| Rear tyres 4WD | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 |
| Weight 4WD | 7520 kg | 7520 kg | 7236 kg | 7236 kg | 7236 kg | 7236 kg |
| Height with cab | 302 cm | 302 cm | 303 cm | 303 cm | 303 cm | 303 cm |
| Length (2WD/4WD) | 480 cm | 480 cm | 501 cm | 501 cm | 501 cm | 501 cm |
| Wheelbase (2WD/4WD) | 299 cm | 299 cm | 299 cm | 299 cm | 299 cm | 299 cm |
| Fuel tank | 380 l | 380 l | 380 l | 380 l | 380 l | 380 l |
| Cab noise level | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Trip computer | x | x | x | x | x | x |
| Creeper gear | x | x | x | x | x | x |
