Siirry sivupalkkiinSiirry alaosaanSame Panther, Jaguar

The old Same Panter was replaced in the extensive 1978 model range update by the angularly designed 5-cylinder Panther 90. The 4.5-liter engine, inherited from the previous model, was air-cooled in the Same fashion, and the cylinders were also oil-cooled. The transmission was the same fully synchronized 12+3 as in its predecessor.

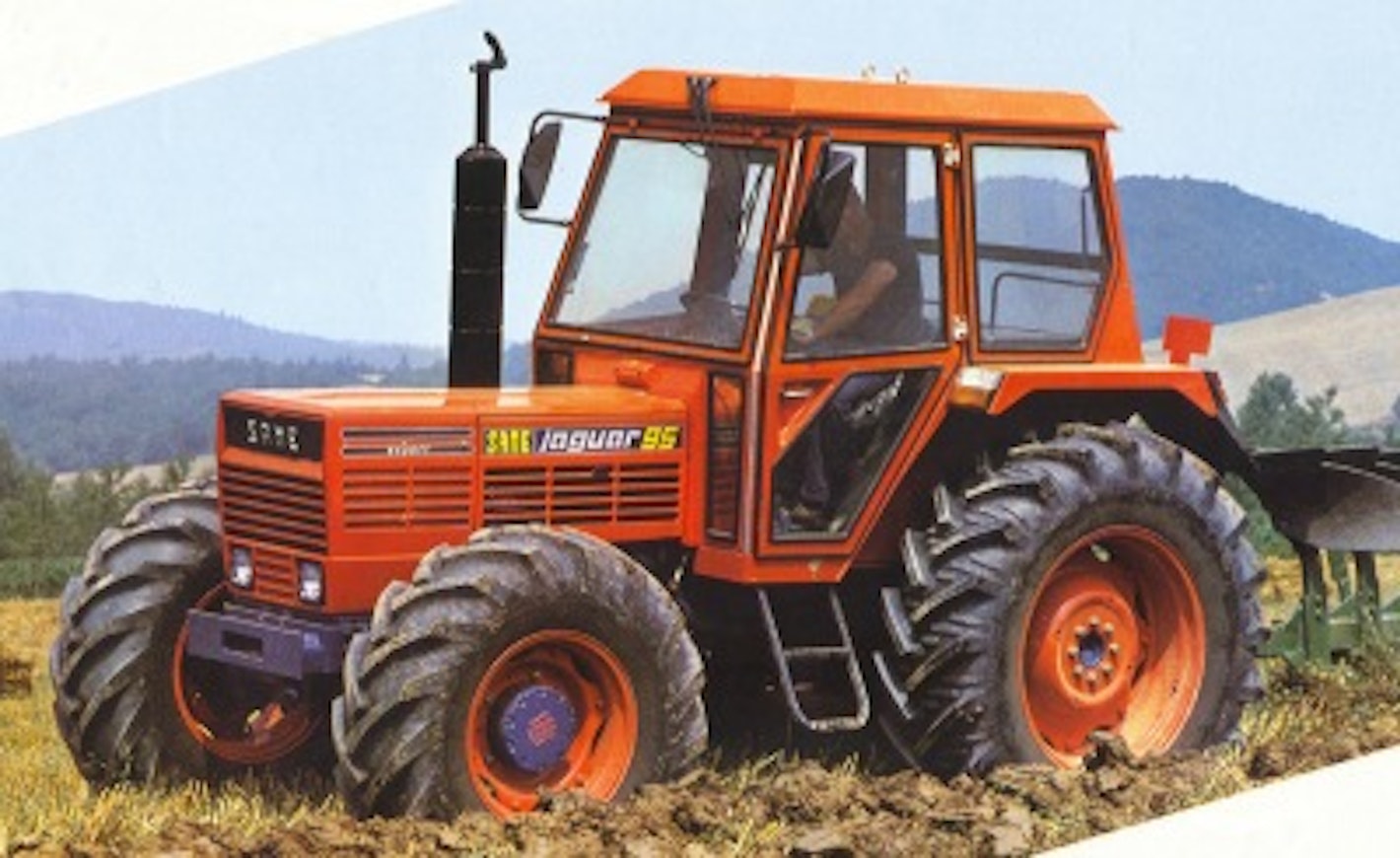

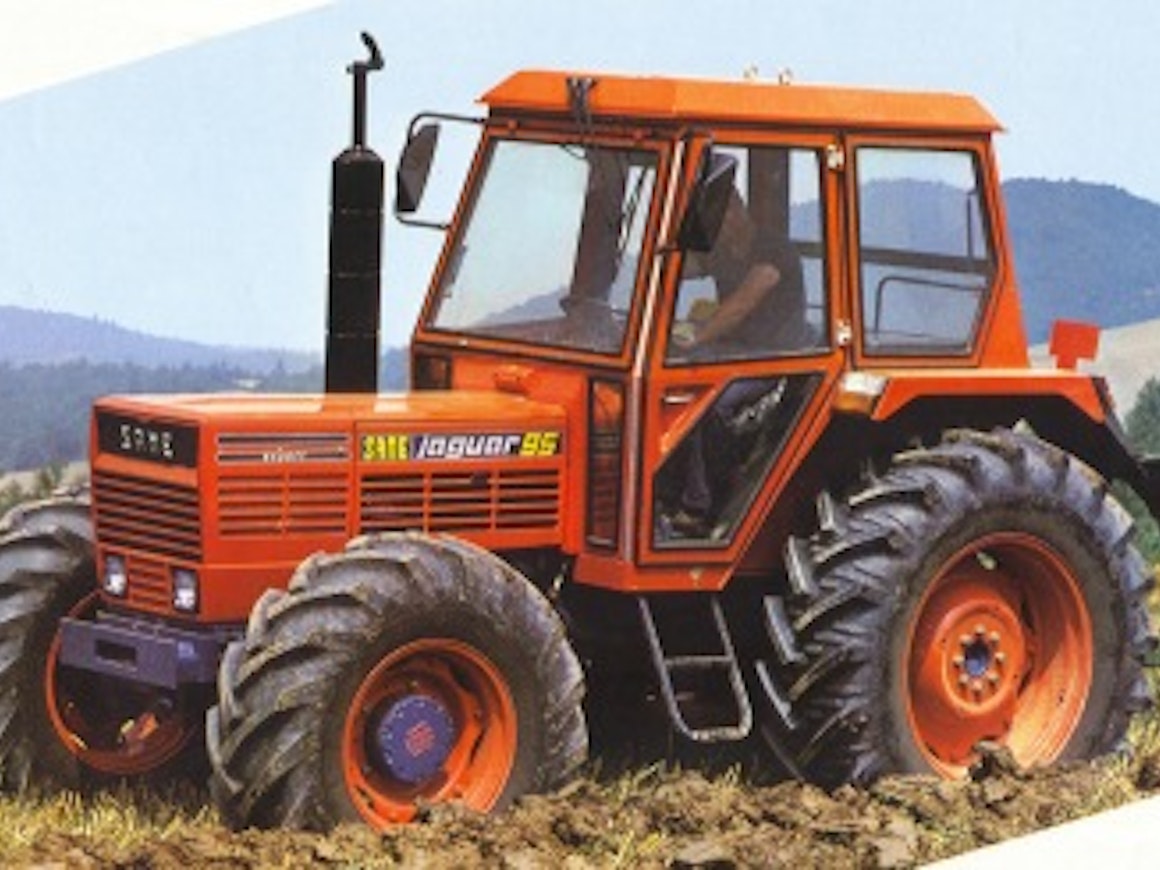

A year later, the Panther 95 and Jaguar 95 equipped with a 5.2-liter five-cylinder engine were introduced alongside. The technical differences between the models were minor. The Jaguar had more lifting power and was always equipped with a cab. The Panther could also be ordered with a roll bar. Both models could be fitted with an optional lowering gear as a new accessory, and the Jaguar also had an automatic front axle lock. These models had wide 16.9-24 front tires.
In the 1982 model range, the Panther was replaced by the lighter Leopard 90 Turbo, and the Jaguar's power was increased to 98 horsepower.
This is an automated translation. Please report any issues in the translation.
| Model | Same Panther 90 | Same Panther 95 | Same Jaguar 95 | Same Jaguar 100 |
|---|---|---|---|---|
| Manufacturer name | Same | Same | Same | Same |
| Imported to Finland | No | No | No | No |
| Years | 1978-80 | 1979-81 | 1979-82 | 1982-84 |
| Engine model | 985P | 1055P | 1055P | 1055P |
| Cyl/Turbo/Intercooler | 5 | 5 | 5 | 5 |
| Displacement | 4524 cm³ | 5193 cm³ | 5193 cm³ | 5193 cm³ |
| Bore x stroke | 98×120 mm | 105×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 90/2190 hp DIN/rpm | 95/2200 hp DIN/rpm | 94/2200 hp DIN/rpm | 98/2200 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 12+3 | 12+3 | 12+3 | 12+3 |
| Synchronized gears | 12+3 | 12+3 | 12+3 | 12+3 |
| Speeds in km/h | 1,4-24,9 | 1,7-29,9 | 1,7-30,3 | 1,7-30,3 |
| Max. speed | 25 km/h | 25/30 km/h | 30 km/h | 30 km/h |
| Hydr. flow l/min | 30 l/min | 35 l/min | 35 (60) l/min | 35 (60) l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 3200 kg | 4240 kg | 3600/4760 kg | 4760 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.6 | 7.54 | 7.6 | 7.6 |
| Turning circle m 4WD | 8,2 jarrulla | 7,8 jarrulla | 7,8 jarrulla | 7,8 jarrulla |
| Front tyres 2WD | 7.50-18 | 7.50-20 | 7.50-20 | 7.50-20 |
| Front tyres 4WD | 13.6-24 | 16.9-24 | 16.9-24 | 14.9-24 |
| Rear tyres 2WD | 18.4-34 | 18.4-34 | 18.4-34 | 16.9-34 |
| Rear tyres 4WD | 18.4-34 | 18.4-34 | 18.4-34 | 16.9-34 |
| Weight 2WD | 3700 kg | 3685 kg | 3610 kg | - |
| Weight 4WD | 3980 kg | 3950 kg | 3940 kg | 4040 kg |
| Height with cab | 280 cm | 280 cm | 279 cm | 283 cm |
| Length (2WD/4WD) | 405/410 cm | 410/427 cm | 410/422 cm | 428 cm |
| Wheelbase (2WD/4WD) | 250/250 cm | 250/250 cm | 250/253 cm | 253 cm |
| Fuel tank | 120 l | 120 l | 140 l | 140 l |
| Cab noise level | 87 dB | - | 86 dB | 83 dB |
| Solid cab | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. |
| Powershift gears | - | opt. | opt. | opt. |
| Diff. lock | - | - | opt. | opt. |
