Same Silver 115-130 / Lamborghini R5.115-R5.130 / Hürlimann XT 115/130

05SameSilver130
03LamborghiniR5
05HurlimannXT130
07HurlimannXT130
05LamborghiniR5
05LamborghiniR5nopeudet
05SameSilver130
03LamborghiniR5
05HurlimannXT130
07HurlimannXT130
05LamborghiniR5
05LamborghiniR5nopeudet
Manufacturer
Models
Same Silver 115, Lamborghini R5.115, Same Silver 130, Lamborghini R5.130
Years
2003-07
Info

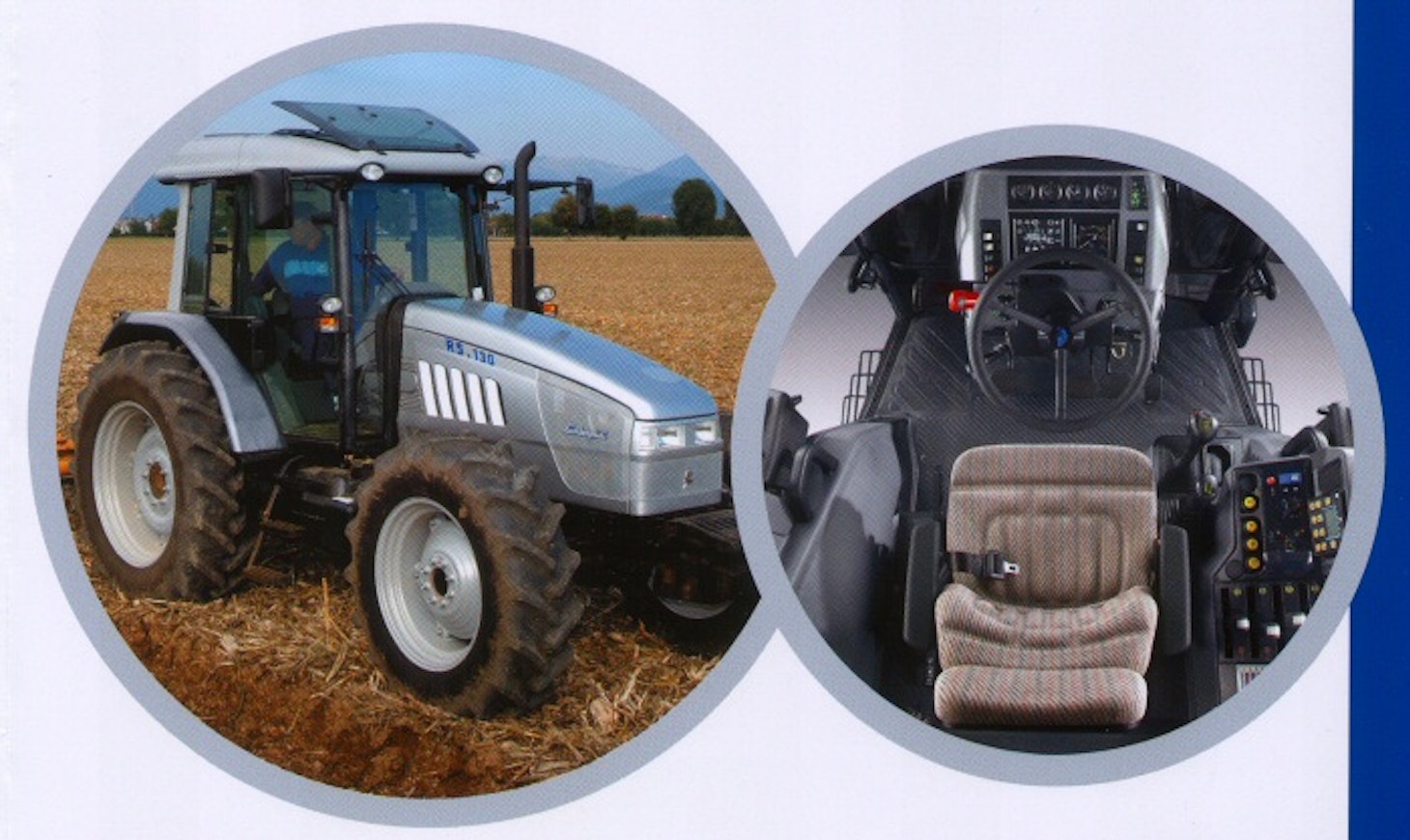

Lamborghini Premium 1100 and 1300 were named the R5 series in autumn 2003. At the same time, Same Silver models received water-cooled engines, so the differences between the brands were mainly limited to design and color. Unusually, the Hürlimann XT design resembled Same rather than Lamborghini, but in 2006 the color of the Hürlimann models changed to silver and the XT design also became more like Lamborghini’s. Until spring 2005, the cabin was old and angular both from the outside and inside. The newer model is easiest to recognize by its rounded roof section.

The engines were Tier II compliant and electronically controlled 6.0-liter units. The smaller model's power increased to 115 horsepower, and the larger one dropped to 130. There were many equipment options. Most commonly, creep gears were standard, resulting in speeds of 24+24 without a quick shift and 72+72 with a 3-speed quick shift. The direction reverser was either mechanical or hydraulic. The lift device was either mechanical or electric. A speed radar was standard on Lamborghinis sold in Germany. The power take-off (PTO) always had four speeds. The turning radius was slightly smaller than before. The cabin noise level dropped by one decibel to 75.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSame Silver 115Lamborghini R5.115Same Silver 130Lamborghini R5.130
Imported to FinlandNoNoNoNo
Years2003-072003-072003-072003-07
Engine model1000.6 WT1000.6 WT1000.6 WT1000.6 WT
Cyl/Turbo/Intercooler6T6T6T6T
Displacement6000 cm³6000 cm³6000 cm³6000 cm³
Bore x stroke105×115,5 mm105×115,5 mm105×115,5 mm105×115,5 mm
Rated power115/2500 hp DIN/rpm115/2500 hp DIN/rpm128/2500 hp DIN/rpm128/2500 hp DIN/rpm
Torque----
Gears24+24/72+7224+24/72+7224+24/72+7224+24/72+72
Synchronized gears24+24/72+7224+24/72+7224+24/72+7224+24/72+72
Powershift gears-/3-step-/3-step-/3-step-/3-step
Reversermech./elec.mech./elec.mech./elec.mech./elec.

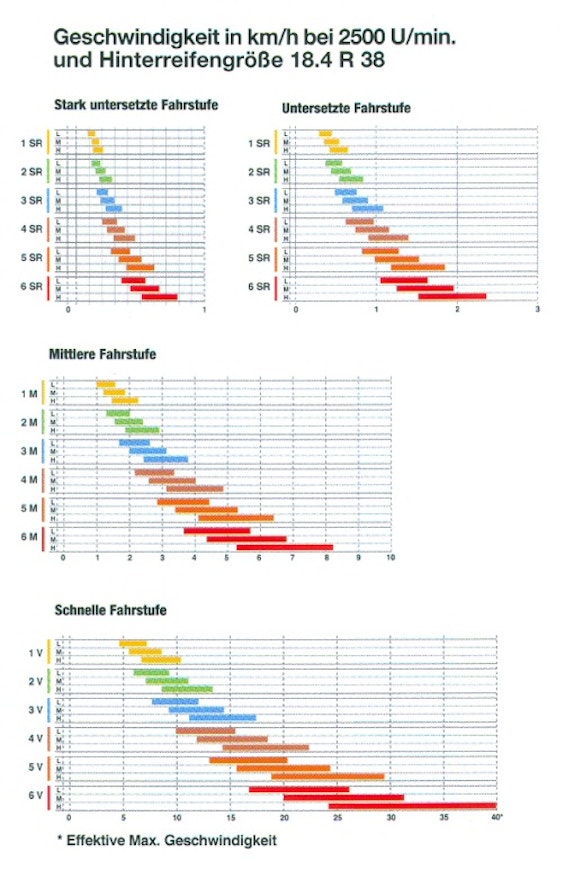

Speeds in km/h0,15-37,80,15-37,80,15-37,80,15-37,8
Max. speed 40 km/h40 km/h40 km/h40 km/h
Hydr. flow l/min58 l/min58 l/min58 l/min58 l/min
Hydraulic pressure180 bar180 bar180 bar180 bar
Lift controlselec.elec.elec.elec.
Lift capacity4800 (6200) kg4800 (6200) kg4800 (6200) kg4800 (6200) kg
PTO speeds540/750/ 1000/1250/ajo540/750/ 1000/1250/ajo540/750/ 1000/1250/ajo540/750/ 1000/1250/ajo
Brakeswet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD10.610.610.610.6
Front tyres 4WD14.9R3014.9R3014.9R3014.9R30
Rear tyres 4WD18.4R3818.4R3818.4R3818.4R38
Weight 4WD5080 kg5080 kg5130 kg5130 kg
Height with cab281 cm281 cm281 cm281 cm
Length (2WD/4WD)459 cm459 cm459 cm459 cm
Wheelbase (2WD/4WD)275 cm275 cm275 cm275 cm
Fuel tank240 l240 l240 l240 l
Cab noise level75 dB75 dB75 dB75 dB
Solid cabxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogs
Autom. differential locksopt.opt.opt.opt.
Air conditioningxxxx
Creeper gearxxxx
