Laverda M 303 – M 306

04LaverdaM304
04LaverdaM304ohjaamo
04LaverdaM304
04LaverdaM304ohjaamo
Manufacturer
Models
Laverda M 303, Laverda M 304, Laverda M 305, Laverda M 306, Laverda M 304, Laverda M 305, Laverda M 306
Years
2003-10
Info

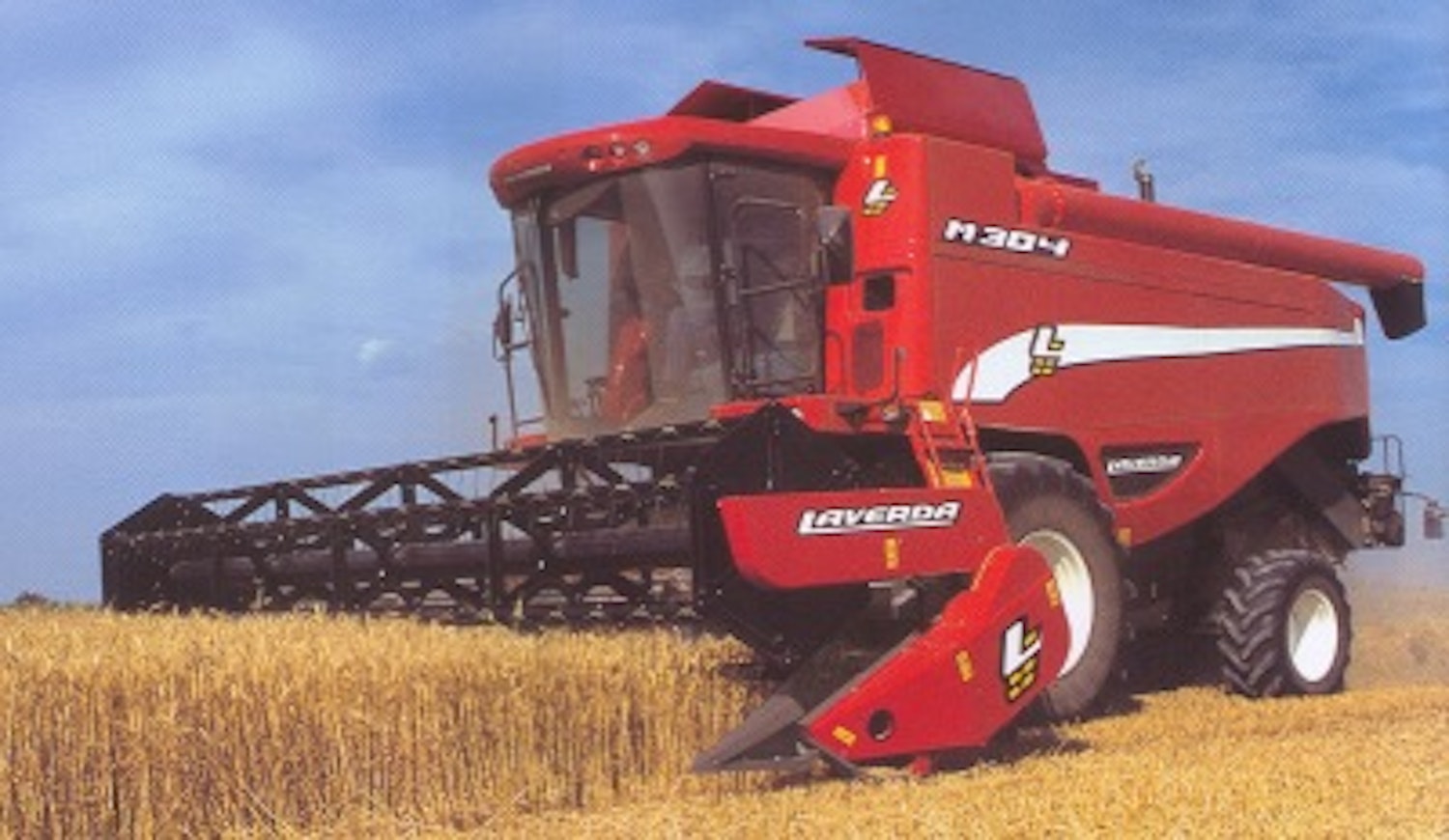

The futuristically styled Laverda M-series was introduced in 2003. Its lineup corresponded to the four largest models of the previous range. The M 303 was equipped with an Iveco Common Rail engine, while the other models used Caterpillar units with pump injectors.

The header featured automatic 8° lateral tilt. Familiar Laverda components were now redesignated: the drum between the feeder auger and the walker became the PFR (Prepare and Feeding Roller), and the straw walker was named MCS (Multi Crop Separator)—both of which were standard on all models. The straw walker’s grate could be deactivated electrically. The grain tanks were substantially larger than before (82–90 hl).

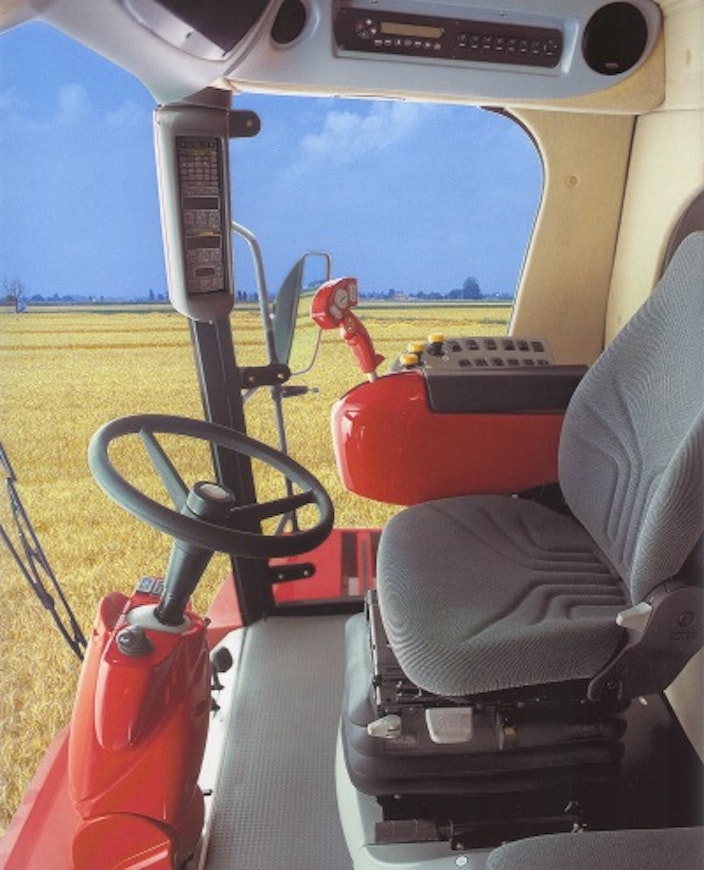

The cab also received a bold designer’s touch; only the multifunction lever remained unchanged from earlier versions. The largest model came standard with a straw spreader. The 304 and 306 were also available in four-wheel-drive LS parallelogram variants, which kept the threshing unit level when the terrain tilted up to 20 % sideways or ±8 % fore and aft. The LS Integrale version added a rear lift that allowed the threshing unit to stay horizontal on a 30 % incline.

This range was also marketed as the MF Beta series and the Fendt C-series after AGCO contracted Laverda’s factory to build its “small” combines.

In the 2007 restyled Special Power range, the Caterpillar engines were replaced by Sisu Diesel units. An electronic GSAX system regulated header height. The straw walker was now badged MCS Plus whenever, in the smaller Laverdas, a REV module—a type of beater drum previously used instead of a straw walker—was installed between the threshing drums.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelLaverda M 303Laverda M 304Laverda M 305Laverda M 306Laverda M 304Laverda M 305Laverda M 306
Imported to FinlandNoNoNoNoNoNoNo
Years2003-082003-062003-062003-062007-102007-102007-10
EngineIvecoCATCATCATSisuDieselSisuDieselSisuDiesel
Engine typeNEF312631263126Citius 74Citius 74Citius 74
Displacement5861 cm³7241 cm³7241 cm³7241 cm³7368 cm³7368 cm³7368 cm³
Cyl/turbo6T6T6T6T6TI6TI6TI
Power255 ISO hp DIN275 ISO hp DIN275 ISO hp DIN305 ISO hp DIN275 ISO hp DIN275 ISO hp DIN335 ISO hp DIN
Alternative hp245 ISO hp------
Fuel tank450 l450 l450 l450 l600 l600 l600 l
Transmissionhydr.hydr.hydr.hydr.hydr.hydr.hydr.
Gears4444444
Speed min-max.0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h
Cutting width480 cm540 cm600 cm600 cm540 cm600 cm600 cm
Cutting width, alternative480-660 cm480-660 cm480-660 cm540-660 cm480-760 cm480-760 cm480-760 cm
Threshing cyl. diameter60 cm60 cm60 cm60 cm60 cm60 cm60 cm
2. cyl. diameter60 cm60 cm60 cm60 cm60 cm60 cm60 cm
Threshing cyl. width134 cm134 cm160 cm160 cm134 cm160 cm160 cm
Number of straw walkers5566566
Area of walkers573 dm²573 dm²681 dm²681 dm²573 dm²681 dm²681 dm²
Lenght of walkers426 cm426 cm426 cm426 cm426 cm426 cm426 cm
Straw shieve263 dm²263 dm²276 dm²276 dm²263 dm²276 dm²276 dm²
Bottom shieve204 dm²204 dm²244 dm²244 dm²204 dm²244 dm²244 dm²
Total screening area467467558558467558558
Width without header331 cm358 cm357 cm384 cm---
Height with cabin400 cm400 cm400 cm400 cm---
Weight without header10900 kg10950 kg12100 kg12850 kg---
Grain tank82 hl90 hl82 hl90 hl90 hl82 hl90 hl
Unl. height450 cm450 cm450 cm450 cm---
Tyres front (Finland)650/75R32800/65R32650/75R32800/65R32800/65R32650/75R32800/65R32
Tyres rear (Finland)460/70R24460/70R24460/70R24460/70R24460/70R24460/70R24460/70R24
Reel forward/backw. adjustmenthydr.hydr.hydr.hydr.hydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.hydr.hydr.hydr.hydr.
Threshing cyl. speed adjustmenthydr.hydr.hydr.hydr.hydr.hydr.hydr.
Bottom sieveadj.adj.adj.adj.adj.adj.adj.
Brakeswet discwet discwet discwet discwet discwet discwet disc
Reverserxxxxxxx
Air conditioningxxxxxxx
Heatingxxxxxxx
Grain loss indicatorxxxxxxx
Floating cutting platformxxxxxxx
Autom. control of cutting heightxxxxxxx
Cutting platform lateral tiltxxxxxxx
Type of cutting platform floatingautom.autom.autom.autom.autom.autom.autom.
Slope levelling-opt.-opt.opt.-opt.
