The shafts were renewed already 2 years after the introduction of models 25, 35, and 40. Hydrostatic steering was now also available in the smaller models. The power transmission in the smaller models had been improved concerning the clutch and the variator. The coulters were longer in all models than before. The difference between the 410 and 460, developed from the 40, was the cutting width. The cutting decks of these models were completely redesigned and longer compared to the 40. In 1978, the 500, developed from the 360, was introduced, the production of the 310 ended, and the 410/460 models were changed to yellow.

This is an automated translation. Please report any issues in the translation.

Sampo 310

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

Sampo 360

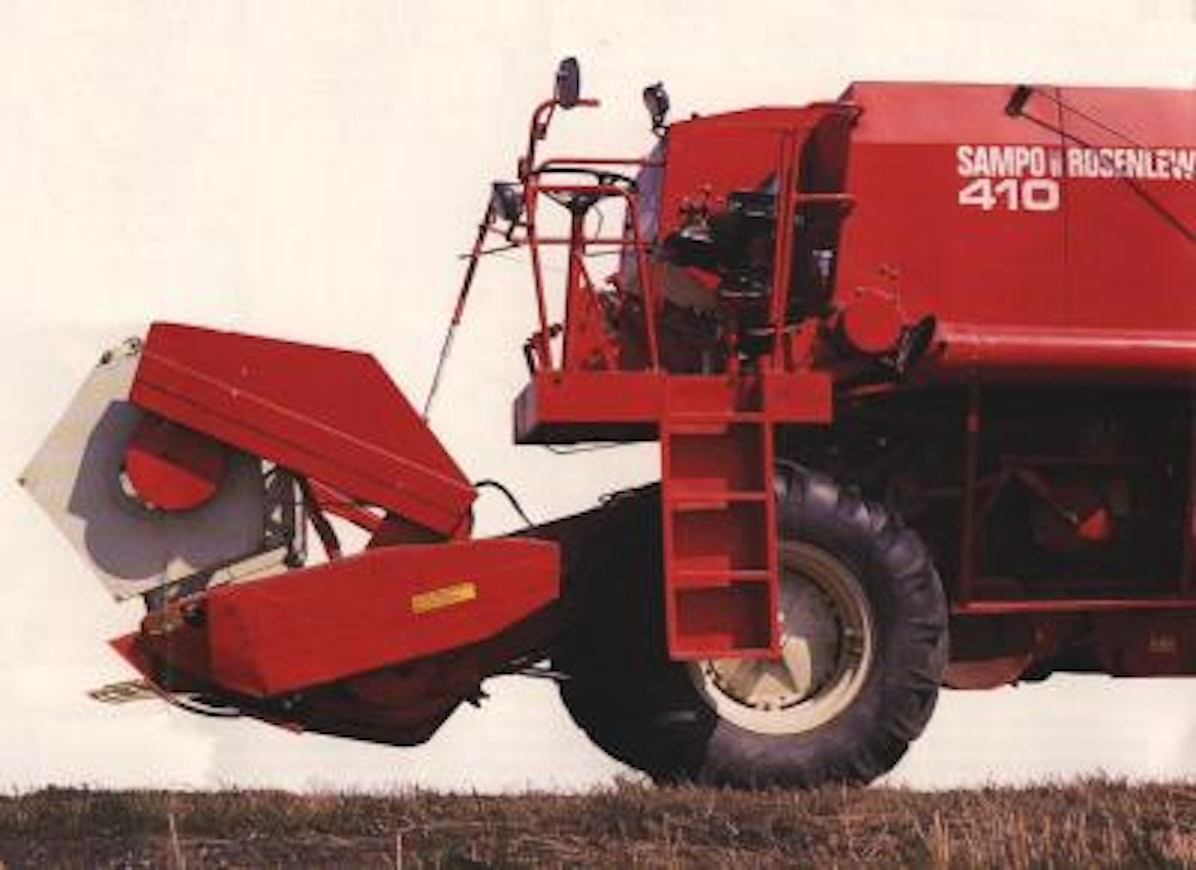

Sampo 410

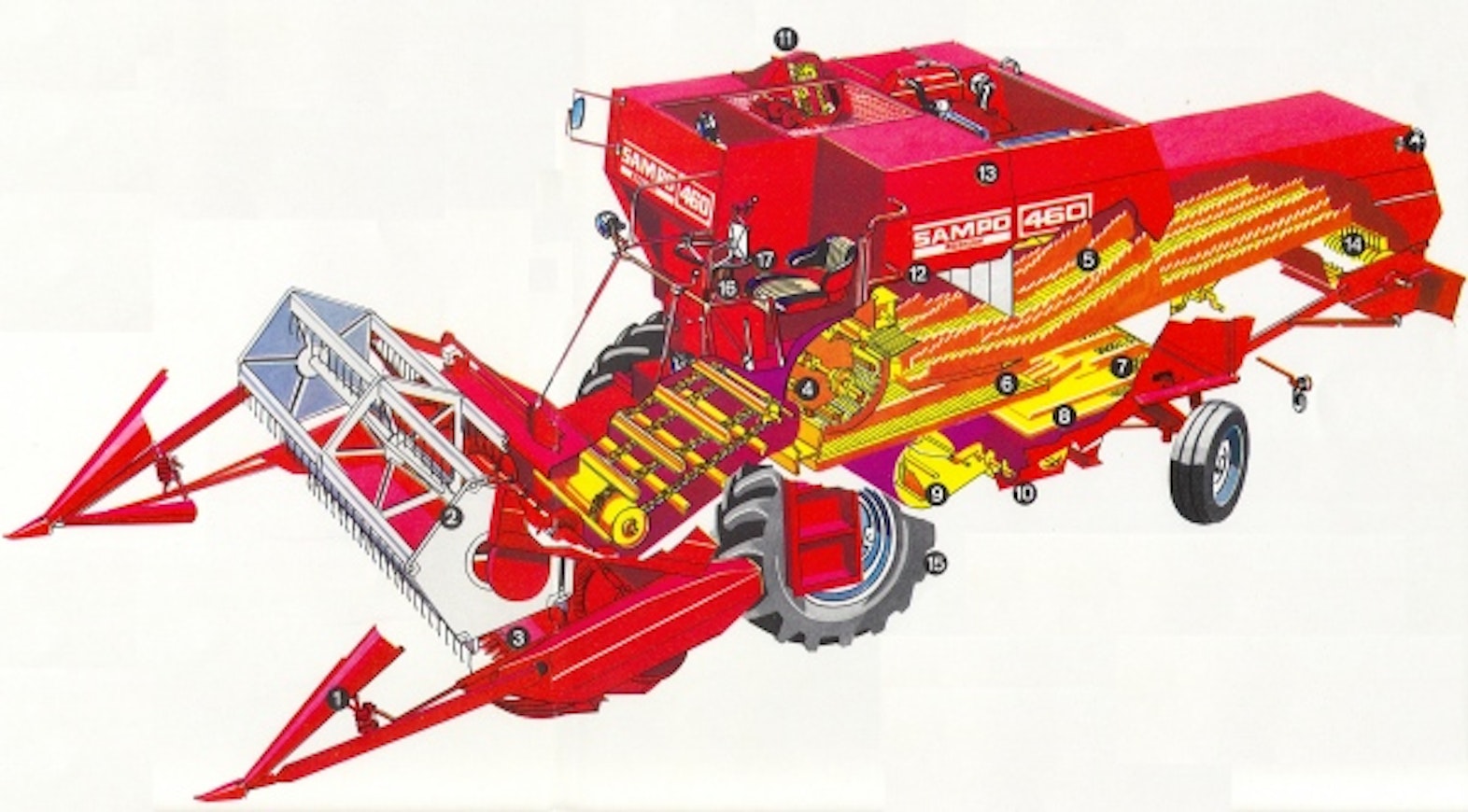

Sampo 460

Sampo 310-460

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Sampo 310	Sampo 360	Sampo 410	Sampo 460
Imported to Finland	Yes	Yes	Yes	Yes
Years	1974-78	1974-79	1974-79	1974-79
Engine	Valmet	Valmet	Valmet	Valmet
Engine type	310 BL	310 BL	411 BL	411 BL
Displacement	2685 cm³	2685 cm³	4180 cm³	4180 cm³
Cyl/turbo	3	3	4	4
Power	49 hp DIN	49 hp DIN	82 hp DIN	82 hp DIN
Fuel tank	100 l	100 l	140 l	140 l
Transmission	mech.	mech.	mech.	mech.
Gears	3	3	3	3
Speed min-max.	1,3-17,8 km/h	1,3-17,8 km/h	1,5-23 km/h	1,5-23 km/h
Cutting width	213 cm	243 cm	290 cm	335 cm
Reel diameter	90 cm	90 cm	90 cm	90 cm
Header length	36 cm	36 cm	45 cm	45 cm
Threshing cyl. diameter	45 cm	45 cm	55 cm	55 cm
Threshing cyl. width	77 cm	77 cm	105 cm	105 cm
Number of straw walkers	3	3	4	4
Area of walkers	222 dm²	222 dm²	352 dm²	352 dm²
Lenght of walkers	284 cm	284 cm	332 cm	332 cm
Straw shieve	56 dm²	56 dm²	101 dm²	101 dm²
Bottom shieve	48 dm²	48 dm²	99 dm²	99 dm²
Total screening area	104	104	200	200
Overall lenght	717 cm	717 cm	740 cm	740 cm
Overall width	250 cm	283 cm	320 cm	370 cm
Height without cabin	280 cm	283 cm	288 cm	288 cm
Weight without cabin	3290 kg	3360 kg	4200 kg	4300 kg
Grain tank	17.5 hl	17.5 hl	22.5 hl	22.5 hl
Tyres front (Finland)	14.9-24	14.9-24	16.9-26	16.9-26
Tyres rear (Finland)	8.50-12	8.50-12	10-12	10-12
Reel forward/backw. adjustment	mech. steering	mech. steering	mech. steering	mech. steering
Reel speed adjustment	mech. steering	mech. steering	mech. steering	mech. steering
Threshing cyl. speed adjustment	belt wheels	belt wheels	adj, in cabin	adj, in cabin
Bottom sieve	convertible	convertible	convertible	convertible
Brakes	mech. shoe	mech. shoe	hydr. drum	hydr. drum
Type of cutting platform floating	spring	spring	spring	spring
