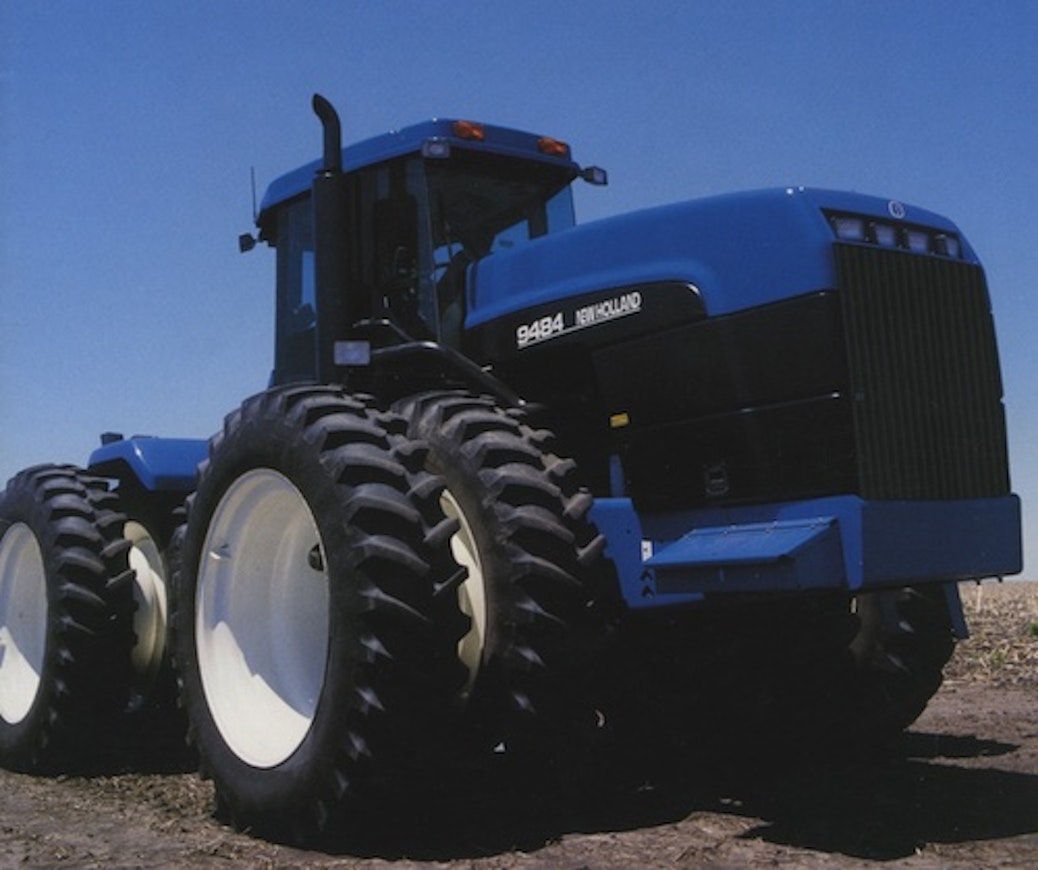

New Holland 9184-9884

Manufacturer
Models
New Holland 9184, New Holland 9384, New Holland 9484, New Holland 9684, New Holland 9884
Years
2000-2001
Info

Introduced at the end of 1999, the New Holland 84 series was very similar to the previous 80 and 82 series. It offered proven basic technology without electronics. The Versatile name had been dropped from both the advertising and the side of the tractor. The grille now featured vertical slats. The 9282 model was replaced by two models. The 9184 had an 8.3-liter 240 hp engine, and the 9384 had a 270-horsepower 10.8-liter engine. All engines were still Cummins. The basic transmission was 12+4, with synchronized range gears as well. A full powershift transmission with 12+2 speeds was also available for the three middle models. Hydraulic output was increased to 170...189 liters per minute. The flow of the hydraulic valves could be adjusted from the cab.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelNew Holland 9184New Holland 9384New Holland 9484New Holland 9684New Holland 9884
Manufacturer nameNew HollandNew HollandNew HollandNew HollandNew Holland
Imported to FinlandNoNoNoNoNo
Years2000-20012000-20012000-20012000-20012000-2001
Engine modelCummins 6CTA 8.3Cummins M11-270Cummins M11-310Cummins N14-360Cummins N14-425
Cyl/Turbo/Intercooler6TA6TA6TA6TA6TA
Displacement8277 cm³10820 cm³10820 cm³14016 cm³14016 cm³
Bore x stroke114×135,1 mm125×147 mm125×147 mm139,7×152,4 mm139,7×152,4 mm
Rated power240/2200 hp DIN/rpm270/2100 hp DIN/rpm310/2100 hp DIN/rpm360/2100 hp DIN/rpm425/2100 hp DIN/rpm
Gears12+412+4/12+212+4/12+212+4/12+212+4
Synchronized gears12+412+4/powershift12+4/powershift12+4/powershift12+4
Speeds in km/h4,8-28,54,8-28,54,8-28,54,8-28,54,8-28,5
Hydr. flow l/min170.3 l/min170.3 l/min170.3 l/min189.3 l/min189.3 l/min
Lift controlsmech.mech.mech.mech.mech.
Lift capacity5913 kg5913 kg5913 kg5913 kg5913 kg
PTO speeds1000100010001000-
Brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakes
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.88.88.88.88.8
Front tyres 4WD20.8R3820.8R3820.8R3820.8R4220.8R42
Rear tyres 4WD20.8R3820.8R3820.8R3820.8R4220.8R42
Weight 4WD11326 kg--13893 kg-
Height with cab348 cm348 cm348 cm348 cm348 cm
Length (2WD/4WD)675 cm675 cm675 cm675 cm675 cm
Wheelbase (2WD/4WD)338 cm338 cm338 cm338 cm338 cm
Fuel tank871 l871 l871 l871 l871 l
Cab noise level78 dB78 dB78 dB78 dB78 dB
Solid cabxxxxx
Diff. lockopt.opt.opt.opt.opt.
Air suspension seatxxxxx
Air conditioningxxxxx
Powershift gears--/powershift-/powershift-/powershift-
