New Holland T4020-T4050

09NHT4000

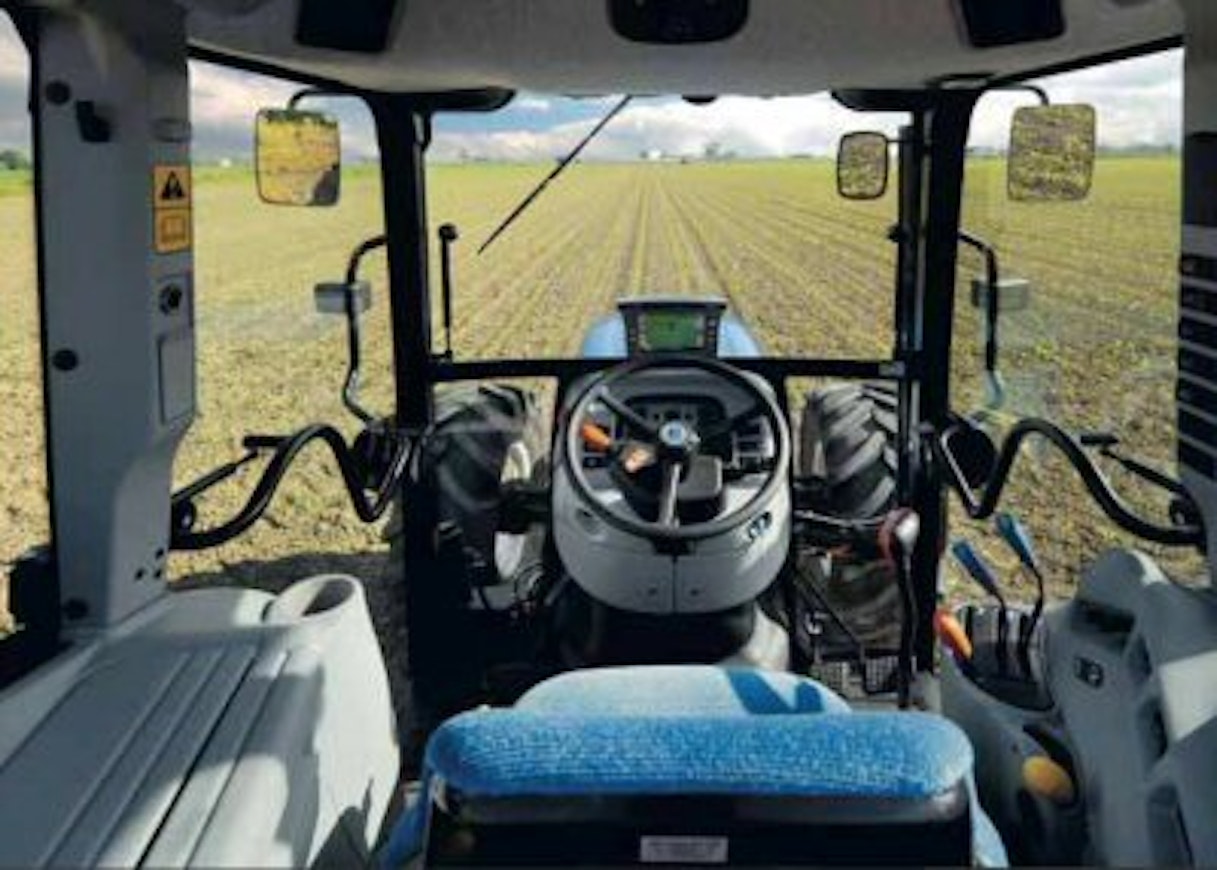

09NHT4000ohjaamo

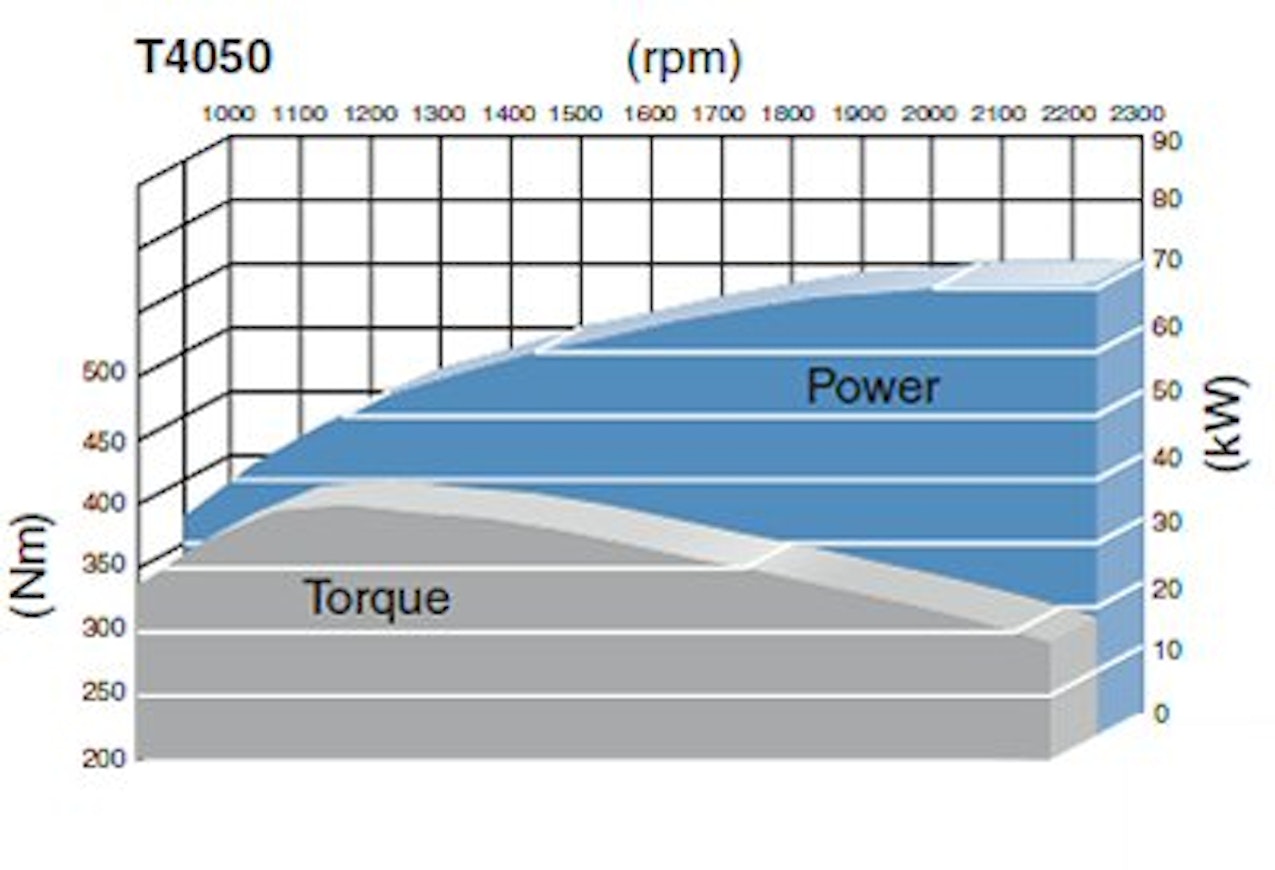

09NHT4000tehot
09NHT4000
09NHT4000ohjaamo
09NHT4000tehot
Manufacturer
Models
New Holland T4020 Deluxe, New Holland T4030 Deluxe, New Holland T4040 Deluxe, New Holland T4050 Deluxe, New Holland T4020 SuperSteer, New Holland T4030 SuperSteer, New Holland T4040 SuperSteer, New Holland T4050 SuperSteer
Years
2008-
Info

In spring 2008, even small tractors had to comply with the Tier 3 emission standard, and New Holland's Italian TN models were replaced by the T4000 series. The lineup still included special models for viticulture and fruit growing, but only the Deluxe and SuperSteer models were imported to Finland. Apart from the engines, the updates were minor. The smaller models featured a completely new 4-cylinder 3.2-liter Iveco engine, which was turbocharged and intercooled, equipped with exhaust gas recirculation and a mechanical injection pump. The torque was clearly higher than that of previous models.

Only the 78-horsepower T4030 was chosen for the Finnish import range. In the basic version, the transmission was a 16+16-speed mechanical type with a mechanical shuttle. Optional extras included a 2-speed powershift, a push-button clutch, and an electro-hydraulic shuttle, which increased the speeds to 32+16. The SuperSteer model in Finland always included creep gears, even though the basic model already had very slow gears. The differential locks and four-wheel drive were engaged electro-hydraulically. The rear linkage was mechanical as standard and equipped with Fiat-style quick control and draft sensing. The instrument panel in the base model featured analog gauges, with mostly digital displays available at an extra cost. As with its predecessors, the SuperSteer model had a pivoting front axle, allowing a steering angle of 76 degrees for the front wheels. The four-wheel drive disengaged at steering angles over 50 degrees.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelNew Holland T4020 DeluxeNew Holland T4030 DeluxeNew Holland T4040 DeluxeNew Holland T4050 DeluxeNew Holland T4020 SuperSteerNew Holland T4030 SuperSteerNew Holland T4040 SuperSteerNew Holland T4050 SuperSteer
Manufacturer nameNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew Holland
Imported to FinlandNoYesNoNoNoYesNoNo
Years2008-2008-2008-2008-2008-2008-2008-2008-
Engine modelF5CF5CNEFNEFF5CF5CNEFNEF
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI4TI4TI4TI
Displacement3200 cm³3200 cm³4485 cm³4485 cm³3200 cm³3200 cm³4485 cm³4485 cm³
Bore x stroke99×104 mm99×104 mm104×132 mm104×132 mm99×104 mm99×104 mm104×132 mm104×132 mm
Rated power--------
Torque--------
Gears16+16 (32+16)16+16 (32+16)16+16 (32+16)16+16 (32+16)44+1644+1644+1644+16
Synchronized gears16+16 (32+16)16+16 (32+16)16+16 (32+16)16+16 (32+16)44+1644+1644+1644+16
Powershift gears-/hydr.-/hydr.-/hydr.-/hydr.hydr.hydr.hydr.hydr.
Reversermech./hydr.mech./hydr.mech./hydr.mech./hydr.hydr.hydr.hydr.hydr.
Speeds in km/h0,8-39,20,8-39,20,8-39,20,8-39,20,3-39,20,3-39,20,3-39,20,3-39,2
Hydr. flow l/min49 (64) l/min64 l/min64 l/min64 l/min49 (64) l/min64 l/min64 l/min64 l/min
Hydraulic pressure190 bar190 bar190 bar190 bar190 bar190 bar190 bar190 bar
Lift controlsmech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)
Lift capacity2900 kg2900 kg2900 kg2900 kg2900 kg2900 kg2900 kg2900 kg
PTO speeds540/750540/750540/750/1000540/750/1000540/750540/750540/750/1000540/750/1000
Brakeswet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD7.347.347.34-----
Turning circle m 4WD7.787.787.787.786.836.836.836.83
Front tyres 4WD380/70R2011.2R24380/70R20380/70R20380/70R2011.2R24380/70R20380/70R20
Rear tyres 4WD480/70R3016.9R30480/70R30480/70R30480/70R3016.9R30480/70R30480/70R30
Weight 2WD2820 kg2820 kg2900 kg-----
Weight 4WD3070 kg3070 kg3150 kg3200 kg3070 kg3070 kg3150 kg3200 kg
Height with cab235 cm235 cm235 cm235 cm235 cm235 cm235 cm235 cm
Length (2WD/4WD)364 cm364 cm372 cm372 cm----
Wheelbase (2WD/4WD)212/204 cm212/204 cm226/219 cm219 cm241 cm241 cm250 cm250 cm
Fuel tank75 l75 l88 l88 l75 l75 l88 l88 l
Cab noise level78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB
Solid cabxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gearopt.opt.opt.opt.xxxx
Air suspension seat----xxxx
Air conditioning----xxxx
