Siirry sivupalkkiinSiirry alaosaanNew Holland T9020-T9060
Manufacturer
Models
New Holland T9020, New Holland T9030, New Holland T9040, New Holland T9050, New Holland T9060
Years
2007-2010
Info
Here is the English translation of the text:

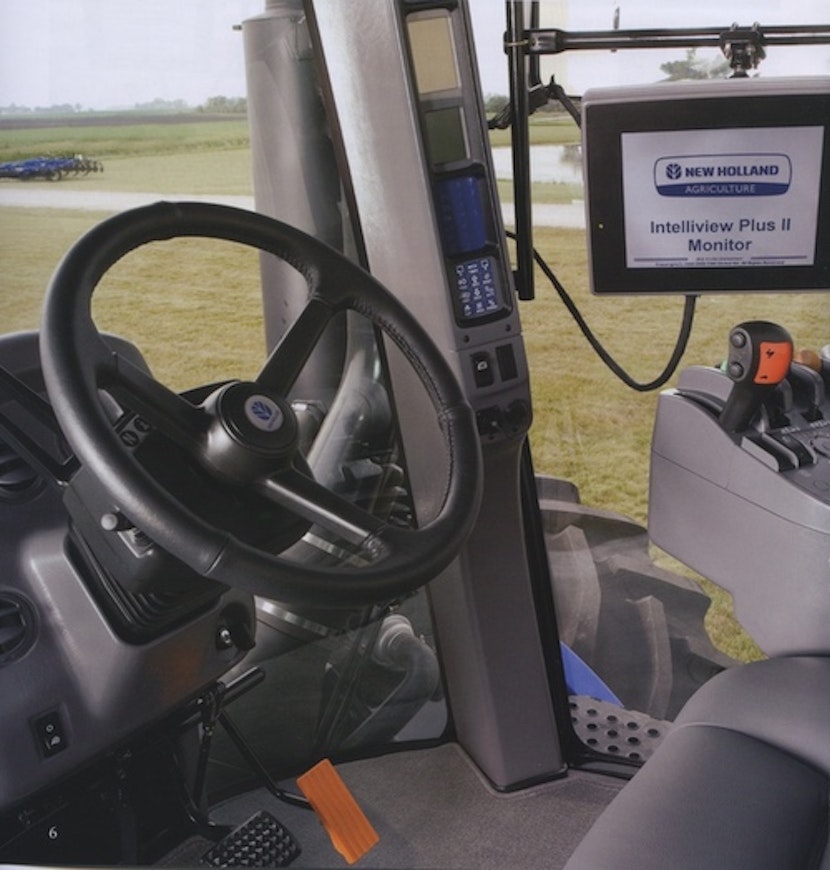

The TJ series was replaced in 2007 by the new T9020-T9060 models. More than being about new models, it was about adapting the model designations to match those of other new series. The smallest model had now been dropped. The engines had 5 hp more power, and the engine of the second largest model was replaced—with a 13-liter Iveco engine as in the corresponding Case IH STX. The plastics in the cab were made lighter in color, and as a new feature, a 10.4-inch IntelliView Plus II display was available.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | New Holland T9020 | New Holland T9030 | New Holland T9040 | New Holland T9050 | New Holland T9060 |
|---|---|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland | New Holland | New Holland |
| Imported to Finland | No | No | No | No | No |
| Years | 2007-2010 | 2007-2010 | 2007-2010 | 2007-2010 | 2007-2010 |
| Engine model | CDC | Cursor 13 | Cursor 13 | Cursor 13 | QSX15 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 8880 cm³ | 12882 cm³ | 12882 cm³ | 12882 cm³ | 14900 cm³ |
| Bore x stroke | 114×144,5 mm | 135×150 mm | 135×150 mm | 135×150 mm | 137×169 mm |
| Rated power | - | - | - | - | - |
| Max power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | 24+6/16+2 | 24+6/16+2 | 16+2 | 16+2 | 16+2 |
| Synchronized gears | 24+6/powershift | 24+6/powershift | powershift | powershift | powershift |
| Powershift gears | hydr./powershift. | hydr./powershift. | powershift. | powershift. | powershift. |
| Reverser | -/powershift | -/powershift | powershift | powershift | powershift |
| Speeds in km/h | 4,4-33,8 | 4,4-33,8 | 4,4-33,8 | 4,4-33,8 | 4,4-33,8 |
| Hydr. flow l/min | 151 (208/340) l/min | 151 (208/340) l/min | 151 (208/340) l/min | 151 (208/340) l/min | 159 (216/356) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7107 kg | 8900 kg | 8900 kg | 8900 kg | 8900 kg |
| PTO speeds | 1000 | 1000 | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.2 | 10,2/11,4 | 10,2/11,4 | 10,2/11,4 | 10,2/11,4 |
| Front tyres 4WD | 18.4R38 | 20.8R42 | 20.8R42 | 20.8R42 | 20.8R42 |
| Rear tyres 4WD | 18.4R38 | 20.8R42 | 20.8R42 | 20.8R42 | 20.8R42 |
| Weight 4WD | 17692 kg | 20684 kg | 23405 kg | 24494 kg | 24494 kg |
| Height with cab | 361 cm | 382 cm | 382 cm | 382 cm | 382 cm |
| Length (2WD/4WD) | 701 cm | 756 cm | 756 cm | 756 cm | 756 cm |
| Wheelbase (2WD/4WD) | 353 cm | 391 cm | 391 cm | 391 cm | 391 cm |
| Fuel tank | 757 l | 1135 l | 1135 l | 1135 l | 1135 l |
| Cab noise level | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Trip computer | x | x | x | x | x |
