Siirry sivupalkkiinSiirry alaosaanSame Laser, Galaxy

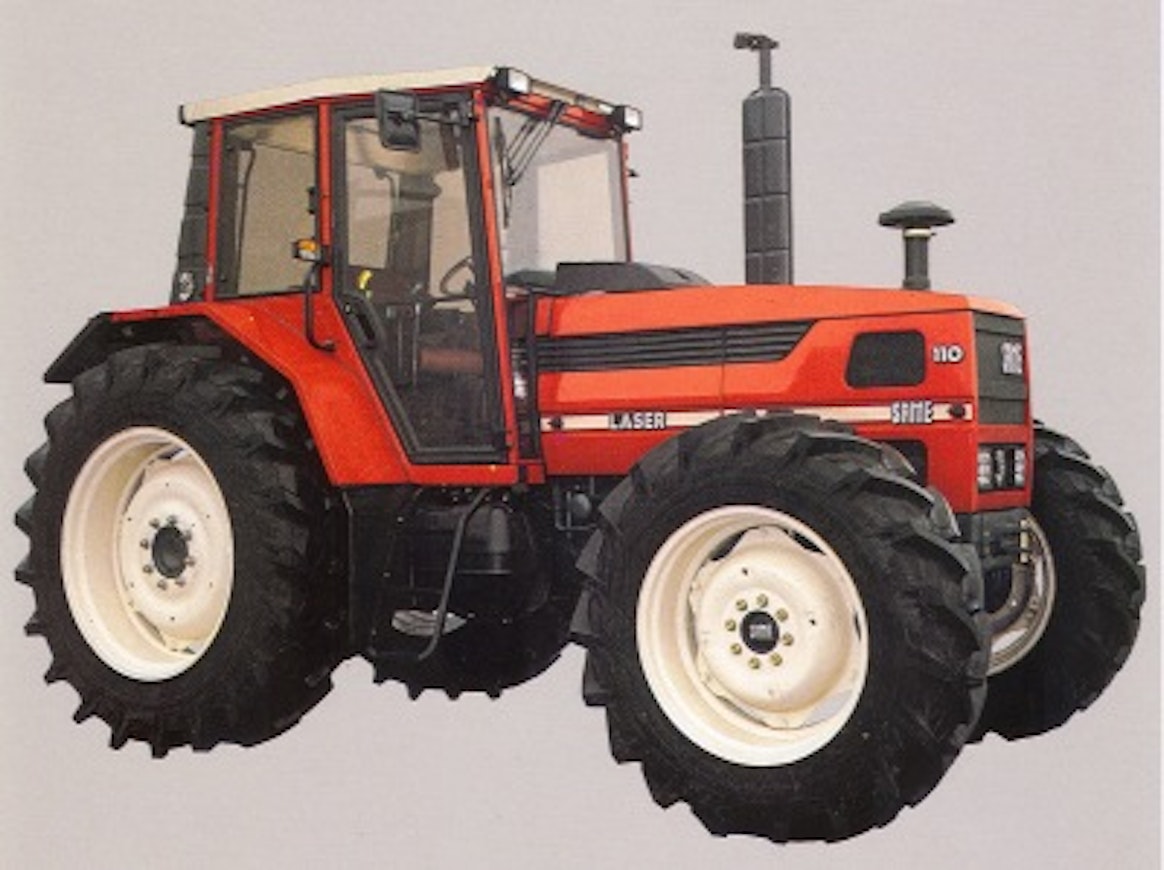

The Laser models introduced in 1983 included 6-cylinder versions 110, 130, and 150. Later, the lineup expanded with the Laser 90 featuring a four-cylinder turbo and the 5-cylinder 100. New technology in the Lasers included a 50-degree steering angle, oil-immersed disc brakes on all wheels, and dock-like steering braking, where the front and rear wheels on the same side were braked simultaneously. For example, the turning radius with steering brakes was reported as only 620 cm for the model 110. The four-wheel drive featured a center axle, a 50-degree steering angle, and an engageable differential lock. The transmission was a 24+12 with a direction changer and a mechanical quick-shift.
To a large extent, the same technology was also used in the robust Galaxy 170, introduced in the summer of 1983. The main difference was a 27+9 transmission with a 3-stage mechanical quick-shift. The Galaxy's hydraulics were load-sensing. Unlike the previous blue color, the frame color of the Laser and Galaxy was dark gray, apparently because the Galaxy was the same tractor as the Lamborghini 1706, except for the air-cooled engine.
The Laser and Galaxy remained in production with minor changes for over 10 years. In 1992, small engine improvements were made, primarily enhancing torque values. In the USA, Lasers were sold under the Agco Allis 7600 series name.
This is an automated translation. Please report any issues in the translation.
| Model | Same Laser 90 Turbo | Same Laser 100 | Same Laser 110 | Same Laser 130 | Same Laser 150 | Same Galaxy 170 |
|---|---|---|---|---|---|---|
| Manufacturer name | Same | Same | Same | Same | Same | Same |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1985-91 | 1986-91 | 1983-96 | 1983-96 | 1983-96 | 1983-94 |
| Engine model | 1054PT | 1055P | 1006P | 1056P | 1056PT | 1056PT |
| Cyl/Turbo/Intercooler | 4T | 5 | 6 | 6 | 6T | 6T |
| Displacement | 4154 cm³ | 5193 cm³ | 5655 cm³ | 6235 cm³ | 6235 cm³ | 6235 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 100×120 mm | 105×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 93/2270 hp DIN/rpm | 98/2200 hp DIN/rpm | 110/2200 hp DIN/rpm | 125/2260 hp DIN/rpm | 144/2200 hp DIN/rpm | 170/2200 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 12+12/24+12 | 24+12 | 24+12 | 24+12 | 24+12 | 27+9 (24+8) |
| Synchronized gears | 12+12/24+12 | 24+12 | 24+12 | 24+12 | 24+12 | 27+9 (24+8) |
| Powershift gears | opt. | mech. | mech. | mech. | mech. | mech. 3-step |
| Reverser | mech. | mech. | mech. | mech. | mech. | - |
| Speeds in km/h | 1,2-29,0 | 1,2-28,1 | 1,1-29,7 | 1,2-28,7 | 1,3-29,9 | 0,9-30,3 (0,8-35) |
| Hydr. flow l/min | 64 l/min | 64 l/min | 64 l/min | 64 l/min | 64 l/min | 64 l/min |
| Hydraulic pressure | 183/180 bar | 183/180 bar | 183/180 bar | 183/180 bar | 183/180 bar | 183/180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4600 (6000) kg | 4600 (6000) kg | 4600/6400 kg | 5400/7000 kg | 7000 kg | 7000/7650 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.6 | - | - | - | - | - |
| Turning circle m 4WD | 8.6 | 10.7 | 11.1 | 11.8 | 12.2 | 12.2 |
| Front tyres 2WD | 7,50-18 | - | - | - | - | - |
| Front tyres 4WD | 14.9-24 | 16.9-24 | 16.9-24 | 14.9-30 | 16.9-30 | 16.9-30 |
| Rear tyres 2WD | 16,9-34 | - | - | - | - | - |
| Rear tyres 4WD | 16.9-34 | 18.4-34 | 18.4-34 | 18.4-38 | 20.8-38 | 20.8-38 |
| Weight 2WD | 3860 kg | - | - | - | - | - |
| Weight 4WD | 4370 kg | 4460 kg | 4880 kg | 5170 kg | 5505 kg | 6075 kg |
| Height with cab | 270 cm | 270 cm | 277 cm | 278 cm | 278 cm | 288 cm |
| Length (2WD/4WD) | 405/423 cm | 428 cm | 457 cm | 462 cm | 476 cm | 474 cm |
| Wheelbase (2WD/4WD) | 247/245 cm | 260 cm | 275 cm | 280 cm | 284 cm | 293 cm |
| Fuel tank | 130 l | 130 l | 230 l | 230 l | 230 l | 240 l |
| Cab noise level | 83 dB | 82 dB | 82.5 dB | 82 dB | 82 dB | 82.5 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | pin lock | pin lock | pin lock | pin lock | pin lock | pin lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
