New Holland T4.55-T4.75 Powerstar

12NHT4Powerstar
12NHT4PowerstarOhjaamo

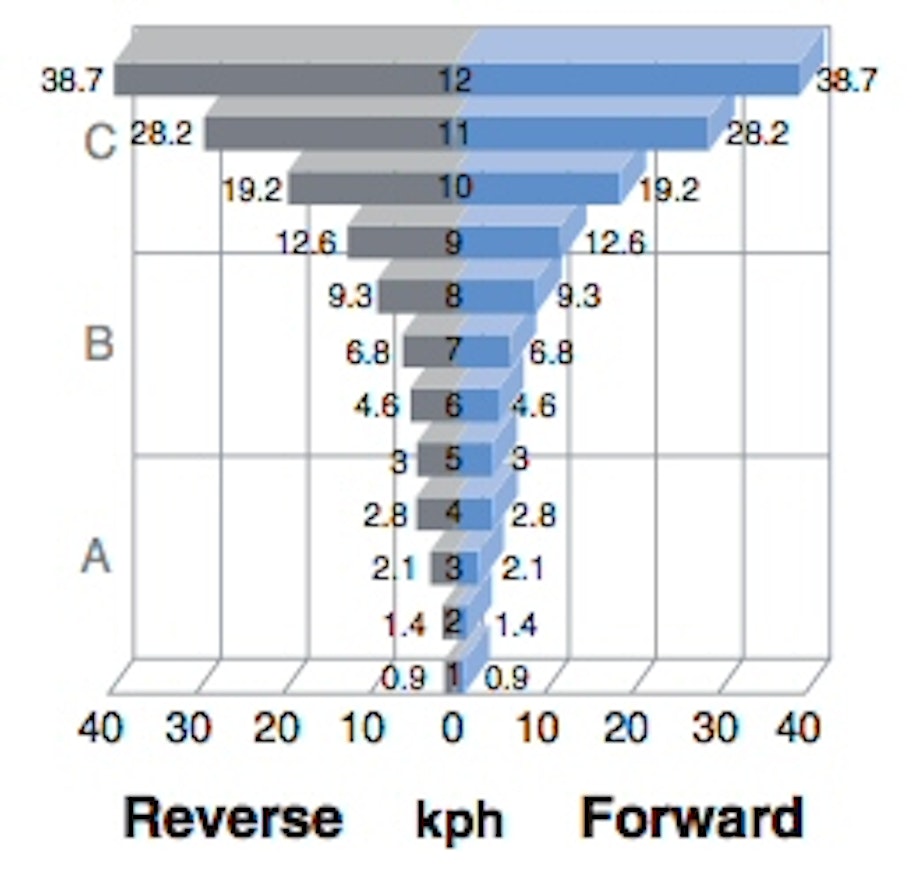

12NHT4PowerstarNopeudet
12NHT4Powerstar
12NHT4PowerstarOhjaamo
12NHT4PowerstarNopeudet
Manufacturer
Models
New Holland T4.55 Powerstar, New Holland T4.65 Powerstar, New Holland T4.75 Powerstar, New Holland T4.55 Powerstar, New Holland T4.65 Powerstar, New Holland T4.75 Powerstar, New Holland T4.55, New Holland T4.65, New Holland T4.75
Years
2012-20
Info

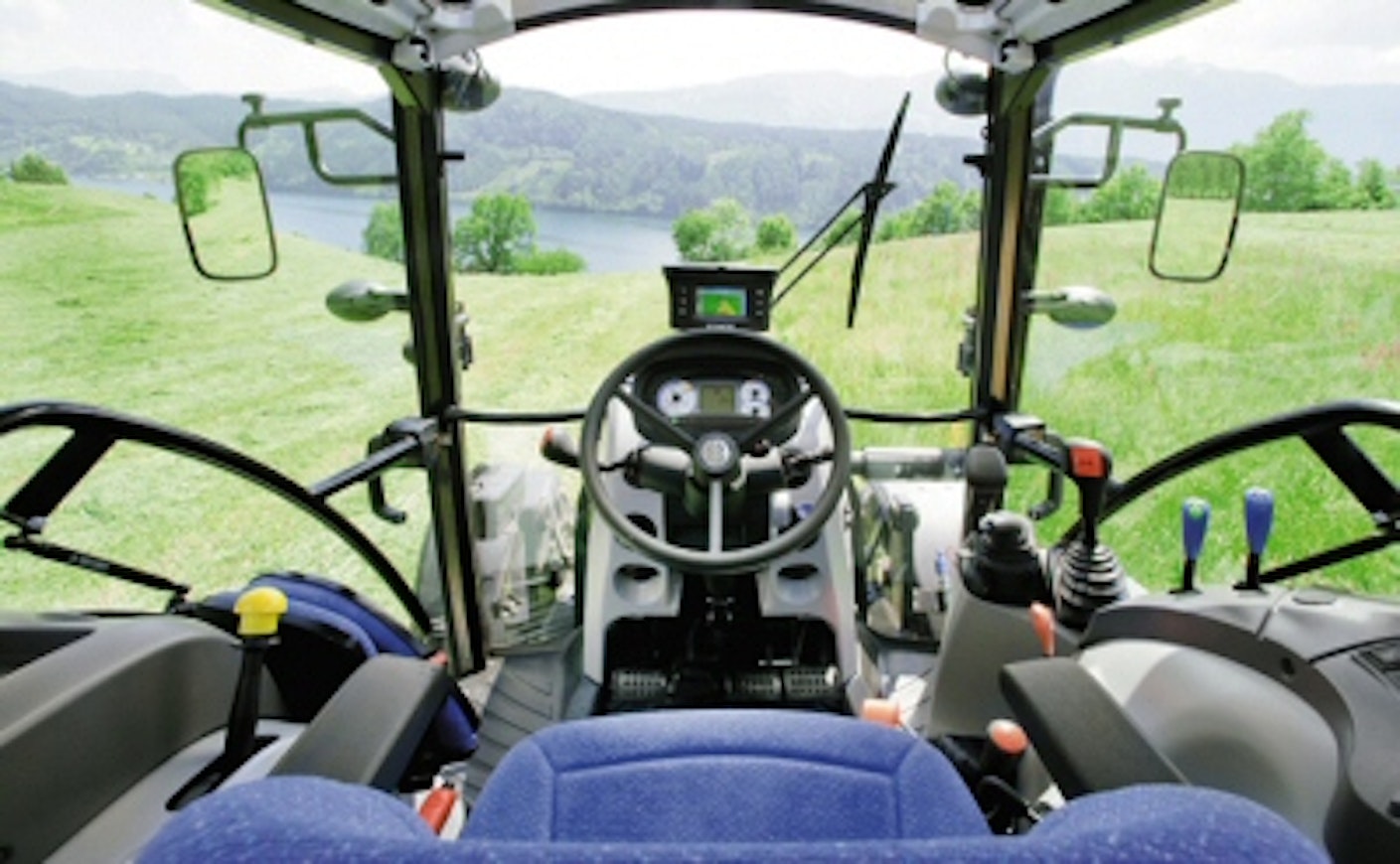

In spring 2012, the T4 Powerstar lineup was introduced to fill out the lower end of the earlier T4000 models. Prices were roughly the same, but certain features had been trimmed. The engines remained the same 3.2-liter FPT F5C units with mechanical injection as before, although torque ratings had been reduced slightly. The transmission was cut back to 12+12 gears. The shuttle shift was offered in either mechanical or hydraulic form. Creeper gears were available as an option. The hydraulic system came only with a lower-capacity 47.5-liter pump. The cab was the same flat-floor Deluxe model as before, with a declared noise level of 78 dB. Optional extras included telescopic mirrors, a seat that swivels 15 degrees, and an adjustable steering wheel. Four-wheel drive was engaged electro-hydraulically. The range was also offered with an open cab.

At the beginning of 2015, the engines were updated to meet Tier 4B standards. For 2021, Tier V versions were introduced, and the Powerstar name was dropped.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelNew Holland T4.55 PowerstarNew Holland T4.65 PowerstarNew Holland T4.75 PowerstarNew Holland T4.55 PowerstarNew Holland T4.65 PowerstarNew Holland T4.75 PowerstarNew Holland T4.55New Holland T4.65New Holland T4.75
Manufacturer nameNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew Holland
Imported to FinlandNoNoNoNoNoNoNoNoNo
Years2012-142012-142012-142015-202015-202015-202021-2021-2021-
Engine modelF5CF5CF5CF5CF5CF5CF5CF5CF5C
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI4TI4TI4TI4TI
Displacement3200 cm³3200 cm³3200 cm³3200 cm³3200 cm³3200 cm³3400 cm³3400 cm³3400 cm³
Bore x stroke99×104 mm99×104 mm99×104 mm99×104 mm99×104 mm99×104 mm99×110 mm99×110 mm99×110 mm
Rated power---------
Torque---------
Gears12+1212+1212+1212+1212+1212+1212+1212+1212+12
Synchronized gears12+1212+1212+1212+1212+1212+1212+1212+1212+12
Reversermech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.
Speeds in km/h0,8-39,20,8-39,20,8-39,20,8-39,20,8-39,20,8-39,20,8-39,20,8-39,20,8-39,2
Hydr. flow l/min47.5 l/min47.5 l/min47.5 l/min47.5 l/min47.5 l/min47.5 l/min47.5 l/min47.5 l/min47.5 l/min
Hydraulic pressure190 bar190 bar190 bar190 bar190 bar190 bar190 bar190 bar190 bar
Lift controlsmech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)
Lift capacity2715 kg2715 kg2715 kg2760 kg2760 kg2760 kg2760 kg2760 kg2760 kg
PTO speeds540/750540/750540/750540/750540/750540/750540540540
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD7.327.327.327.327.327.327.327.327.32
Turning circle m 4WD7.637.637.637.637.637.637.637.637.63
Front tyres 4WD360/70R20360/70R20360/70R20280/85R20360/70R20360/70R20280/85R20360/70R20360/70R20
Rear tyres 4WD420/70R30420/70R30420/70R30340/85R28420/70R30420/70R30340/85R28420/70R30420/70R30
Weight 2WD2520 kg2520 kg2520 kg2550 kg2550 kg2550 kg2550 kg2550 kg2550 kg
Weight 4WD2800 kg2800 kg2800 kg2830 kg2830 kg2830 kg2830 kg2830 kg2830 kg
Height with cab239 cm248 cm248 cm241 cm248 cm248 cm241 cm248 cm248 cm
Length (2WD/4WD)379 cm379 cm379 cm388 cm388 cm388 cm388 cm388 cm388 cm
Wheelbase (2WD/4WD)215/210 cm215/210 cm215/210 cm215/210 cm215/210 cm215/210 cm218/213 cm218/213 cm218/213 cm
Fuel tank90 l90 l90 l90 l90 l90 l90 l90 l90 l
Cab noise level78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB
Solid cabxxxxxxxxx
Diff. lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lock
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.opt.
