Siirry sivupalkkiinSiirry alaosaanNew Holland T6020-T6070 Elite

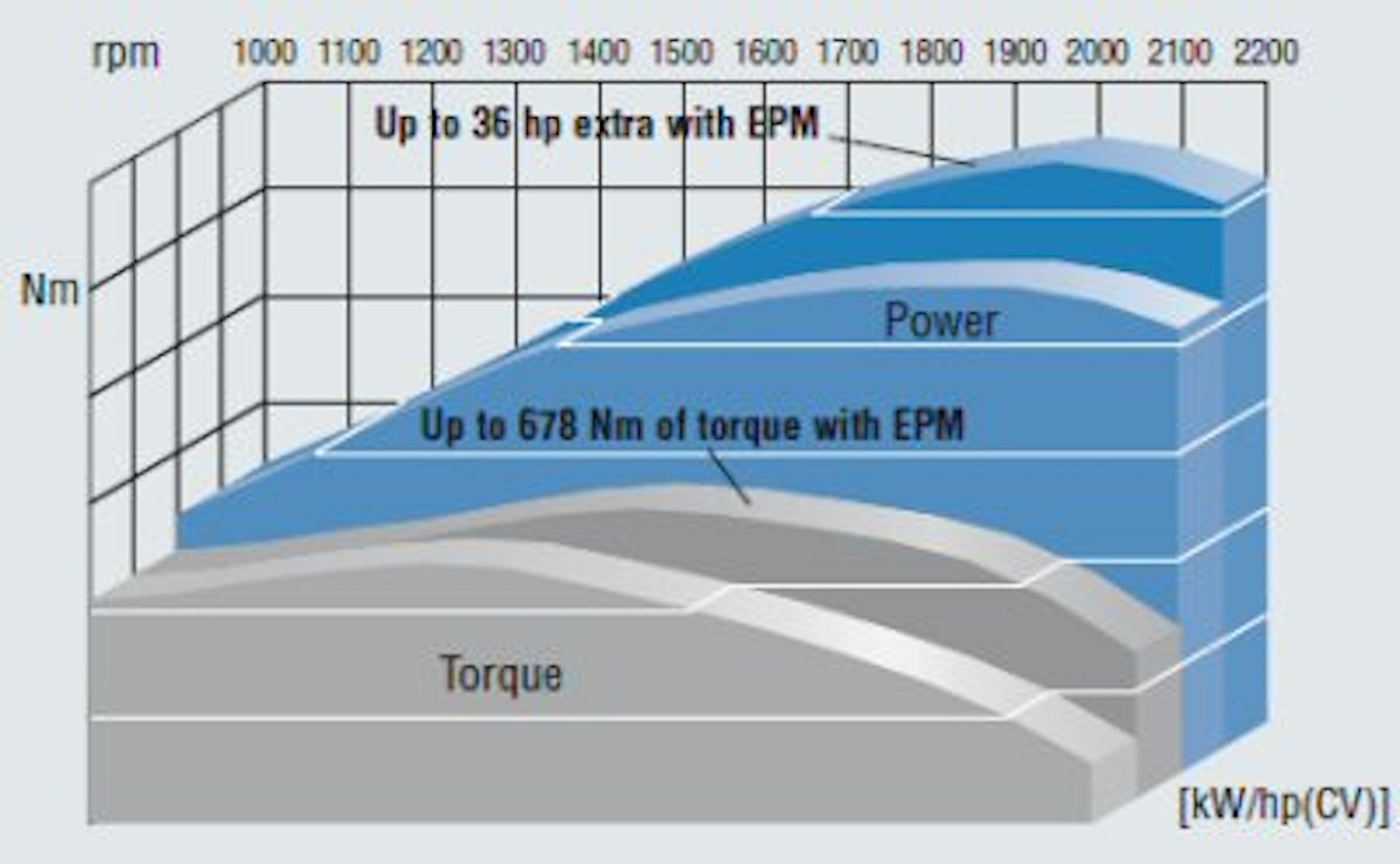

The T6000 series introduced in spring 2007 had very little new compared to the TSA. Models equipped with electronically controlled injection were named Elite. Common Rail engines with four-valve technology provided additional power on the road and in PTO (power take-off) use. The transmission was a 16+16-speed Electro Command with quick-shift automation. Also available were 17+16-speed 40 km/h Economy and 50 km/h versions. The hydraulic system was closed, and four valve blocks with flow control were standard. The front axle had a 100% lock, which was controlled automatically based on the steering angle of the wheels. Additionally, standard features included cab suspension and programmable headland automation. SuperSteer was available as an optional extra.
In 2009, cheaper Elite Special versions were introduced to Finland, from which features like additional power, automated transmission, the fourth hydraulic block, trip computer, PTO engagement from the rear mudguard, four-wheel drive and lock automation, and trailer brake valve had been removed. These were more comparable to the Plus models.
This is an automated translation. Please report any issues in the translation.
| Model | New Holland T6020 Elite | New Holland T6030 Elite | New Holland T6040 Elite | New Holland T6050 Elite | New Holland T6060 Elite | New Holland T6070 Elite |
|---|---|---|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland |
| Imported to Finland | Yes | No | Yes | Yes | Yes | Yes |
| Years | 2007-12 | 2008-12 | 2007-12 | 2008-12 | 2007-12 | 2008-12 |
| Engine model | NEF | NEF | NEF | NEF | NEF | NEF |
| Cyl/Turbo/Intercooler | 4TI | 6TI | 4TI | 6TI | 4TI | 6TI |
| Displacement | 4485 cm³ | 6728 cm³ | 4485 cm³ | 6728 cm³ | 4485 cm³ | 6728 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - |
| Gears | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 |
| Synchronized gears | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 |
| Powershift gears | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,4-39,0 | 2,4-39,0 | 2,4-39,0 | 2,4-39,0 | 2,4-39,0 | 2,4-39,0 |
| Max. speed | 40 (48) km/h | 40 (48) km/h | 40 (48) km/h | 40 (48) km/h | 40 (48) km/h | 40 (48) km/h |
| Hydr. flow l/min | 113 l/min | 113 l/min | 113 l/min | 113 l/min | 113 l/min | 113 l/min |
| Hydraulic pressure | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7864 kg | 7864 kg | 7864 kg | 7864 kg | 7864 kg | 7864 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8,08 (SS 7,55) | 8,71 (SS 8,29) | 8,08 (SS 7,55) | 8,71 (SS 8,29) | 8,08 (SS 7,55) | 8,71 (SS 8,29) |
| Front tyres 4WD | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 |
| Weight 4WD | 5250 (SS 5430) kg | 5330 (SS 5610) kg | 5250 (SS 5430) kg | 5330 (SS 5610) kg | 5250 (SS 5430) kg | 5330 (SS 5610) kg |
| Height with cab | 292 cm | 298 cm | 292 cm | 298 cm | 292 cm | 298 cm |
| Length (2WD/4WD) | 429 cm | 453 cm | 429 cm | 453 cm | 429 cm | 453 cm |
| Wheelbase (2WD/4WD) | 241 (SS 252) cm | 265 (SS 276) cm | 241 (SS 252) cm | 265 (SS 276) cm | 241 (SS 252) cm | 265 (SS 276) cm |
| Fuel tank | 176 (SS 152) l | 250 (SS 230) l | 176 (SS 152) l | 250 (SS 230) l | 176 (SS 152) l | 250 (SS 230) l |
| Cab noise level | 71 dB | 72 dB | 71 dB | 72 dB | 71 dB | 72 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Trip computer | x (without radar) | x (without radar) | x (without radar) | x (without radar) | x (without radar) | x (without radar) |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
