Siirry sivupalkkiinSiirry alaosaanNew Holland T7.175-T7.260 Range Command / Power Command






The T7 series model lineup, revised in the summer of 2015, included four models with a shorter wheelbase and four with a longer wheelbase. However, the most powerful versions of both wheelbase options were only available with a continuously variable transmission. The design of the hood and the cab roof was renewed. The windshield was now made of a single piece of glass. The work lights were LED lights. A sensitivity adjustment was added to the direction indicator.
The engines now complied with Tier 4B standards. Exhaust gas recirculation or a particulate filter was not needed because more urea was supplied than competitors. Engine power without boost had increased, and the amount of boost available was reduced (10–30 horsepower) at highway speeds or when sufficient power was drawn to the PTO or hydraulics.

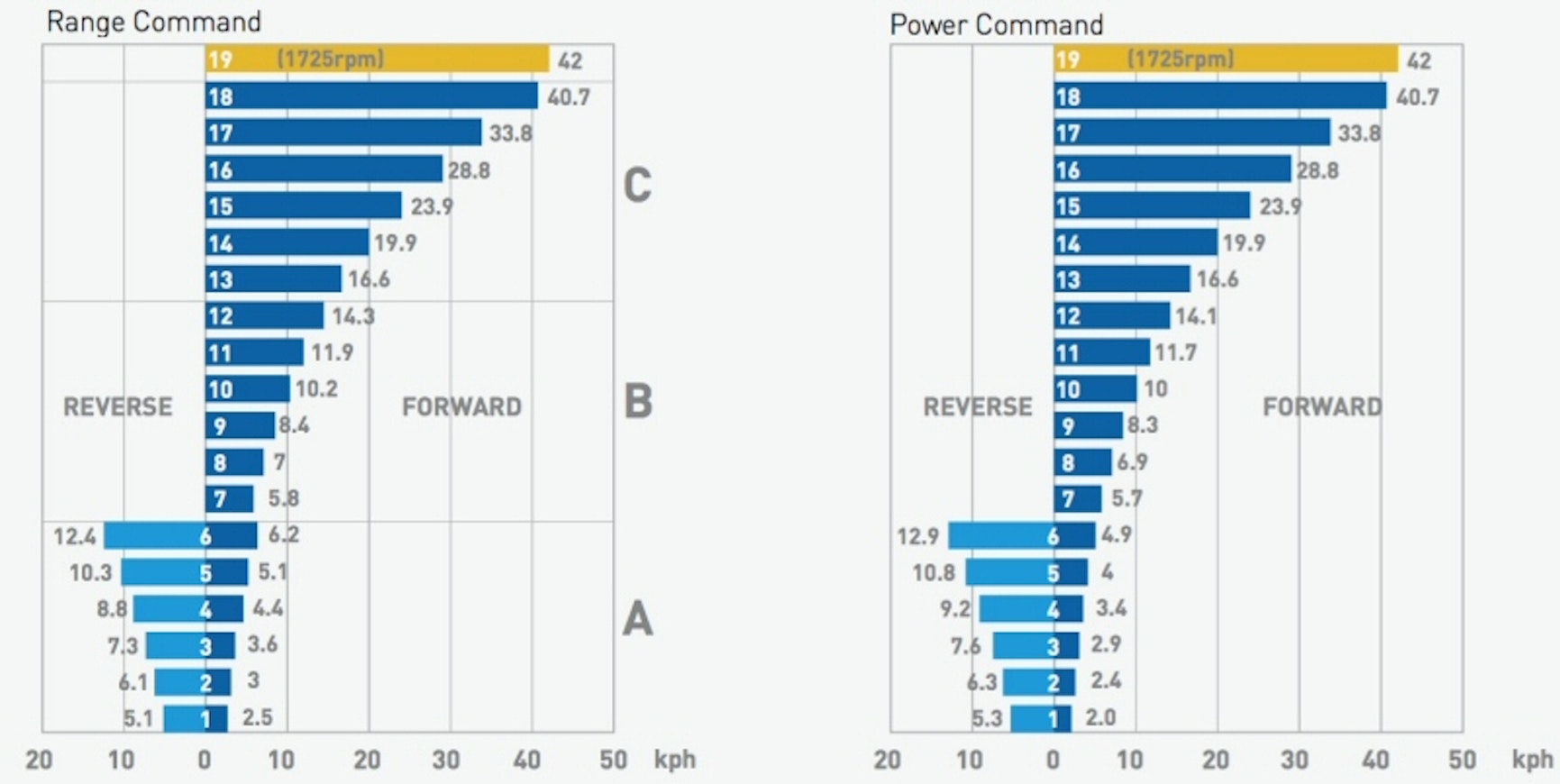

As the basic transmission, the short wheelbase models had a Range Command transmission with a 6-speed powershift. The 40 km/h version offered 18+6 gears. The 50 km/h version had an additional gear that received power bypassing the main transmission. In the Range Command, there was a 6-speed powershift and the range shift was operated with electric buttons. In the Power Command transmission, the range shift was integrated into the automatic shifting system. The starting gear was programmable, and after a direction change, the transmission returned to the last used gear. Hydraulic output varied by model from 113 to 150 liters per minute. Up to 9 hydraulic valves were available if needed (5 at the rear and 4 in the middle). Lift capacity ranged from 8,257 to 10,463 kilograms. In Finland, even the smaller long wheelbase models had a lift capacity of only 8,647 kilograms, unlike most other countries. The T7 featured a 100% disc lock on the front axle, and the equipment included automatic locks and four-wheel drive activation based on wheel turning. In Finland, a more robust Heavy Duty front axle was standard.

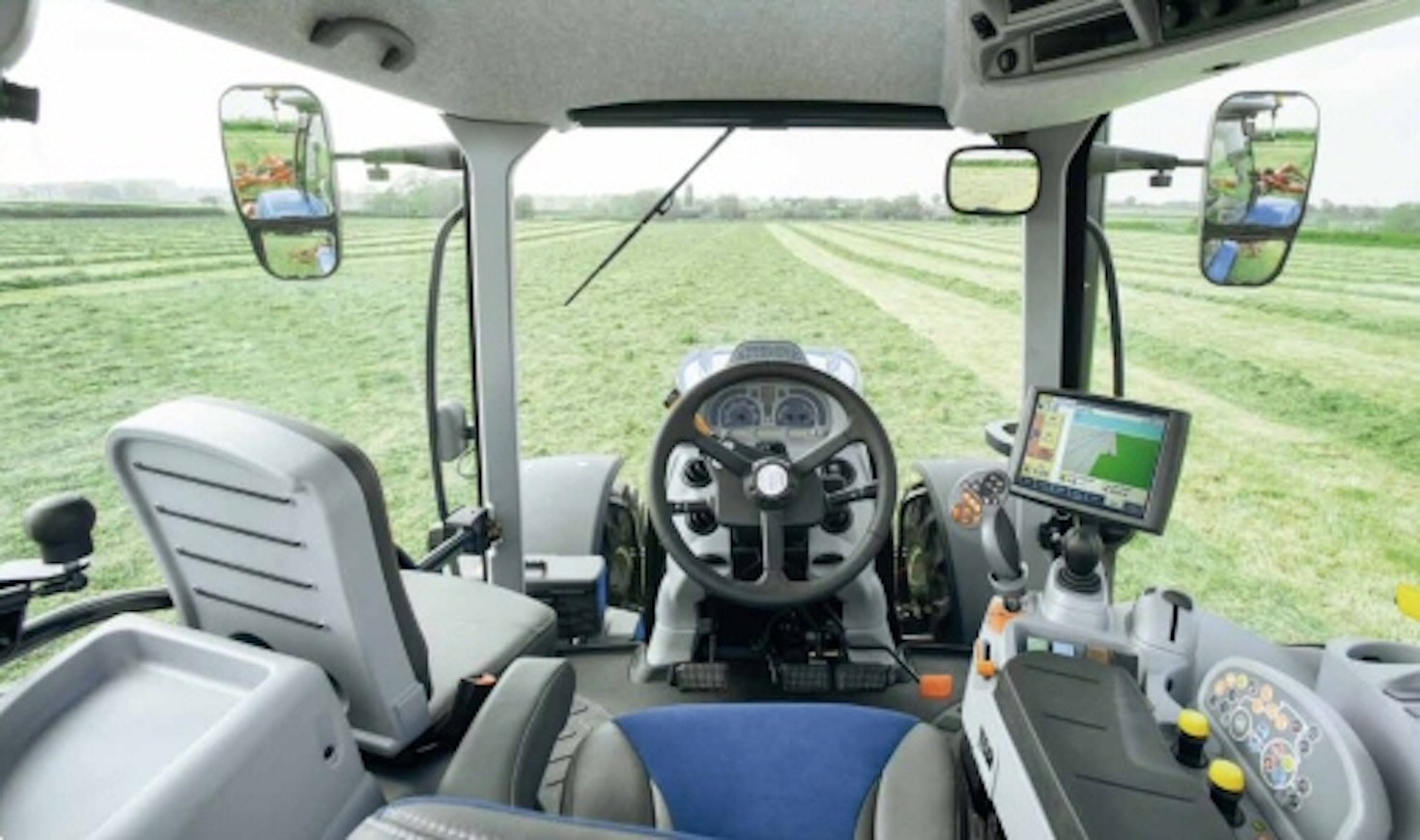

The cab noise level was 70 dB. The cab could be equipped with the SideWinder II armrest. In most countries, trim levels were Classic and SideWinder II. In Finland, the equipment package was called PCE and included, in addition to the armrest, an ISOBUS monitor, electric hydraulic valves (4), cab suspension with coil springs, front weights, and PTO automation based on implement lifting and lowering. Standard on all models were air conditioning, an air seat, a trip computer without radar, a trailer brake valve, and front mudguards.
In 2020, Stage V emission-compliant engines were introduced, initially in the long wheelbase models at the beginning of the year and later in the smaller ones. Power ratings remained unchanged.
This is an automated translation. Please report any issues in the translation.
| Model | New Holland T7.175 RC/PC | New Holland T7.190 RC/PC | New Holland T7.210 RC/PC | New Holland T7.230 PC | New Holland T7.245 PC | New Holland T7.260 PC |
|---|---|---|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2015- | 2015- | 2015- | 2015- | 2015- | 2015- |
| Engine model | NEF | NEF | NEF | NEF | NEF | NEF |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - |
| Gears | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) |
| Synchronized gears | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) |
| Powershift gears | 6-step/powershift | 6-step/powershift | 6-step/powershift | powershift | powershift | powershift |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 1,9-40 | 1,8-40 | 1,8-40 | 2,0-40,7 | 2,0-40,7 | 2,0-40,7 |
| Max. speed | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h |
| Hydr. flow l/min | 113 l/min | 113 l/min | 113 l/min | 120 (150) l/min | 120 (150) l/min | 150 (120) l/min |
| Hydraulic pressure | 210 bar | 210 bar | 210 bar | 215 bar | 215 bar | 215 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 8257 kg | 8257 kg | 8257 kg | 10463 kg | 10463 kg | 10463 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 750/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 12,5 (SS 10,8) | 12,5 (SS 10,8) | 12,5 (SS 10,8) | 12,5 (SS 10,8) | 12,5 (SS 10,8) | 12,5 (SS 10,8) |
| Front tyres 4WD | 16.9R28 | 16.9R28 | 16.9R28 | 540/65R30 | 540/65R30 | 540/65R30 |
| Rear tyres 4WD | 20.8R38 | 20.8R38 | 20.8R38 | 650/65R42 | 650/65R42 | 650/65R42 |
| Weight 4WD | 7000 kg | 7100 kg | 7100 kg | 8200 kg | 8200 kg | 8200 kg |
| Height with cab | 305 cm | 305 cm | 305 cm | 302 cm | 302 cm | 302 cm |
| Length (2WD/4WD) | 535 cm | 535 cm | 535 cm | 577 cm | 577 cm | 577 cm |
| Wheelbase (2WD/4WD) | 273 (SS 288) cm | 273 (SS 288) cm | 273 (SS 288) cm | 288 (SS 298) cm | 288 (SS 298) cm | 288 (SS 298) cm |
| Fuel tank | 270+AB48 (330+AB48) l | 330+AB48 l | 330+AB48 l | 395+AB48 l | 395+AB48 l | 395+AB48 l |
| Cab noise level | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Trip computer | x (without radar) | x (without radar) | x (without radar) | x (without radar) | x (without radar) | x (without radar) |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
