Siirry sivupalkkiinSiirry alaosaanNew Holland TD5010-TD5050

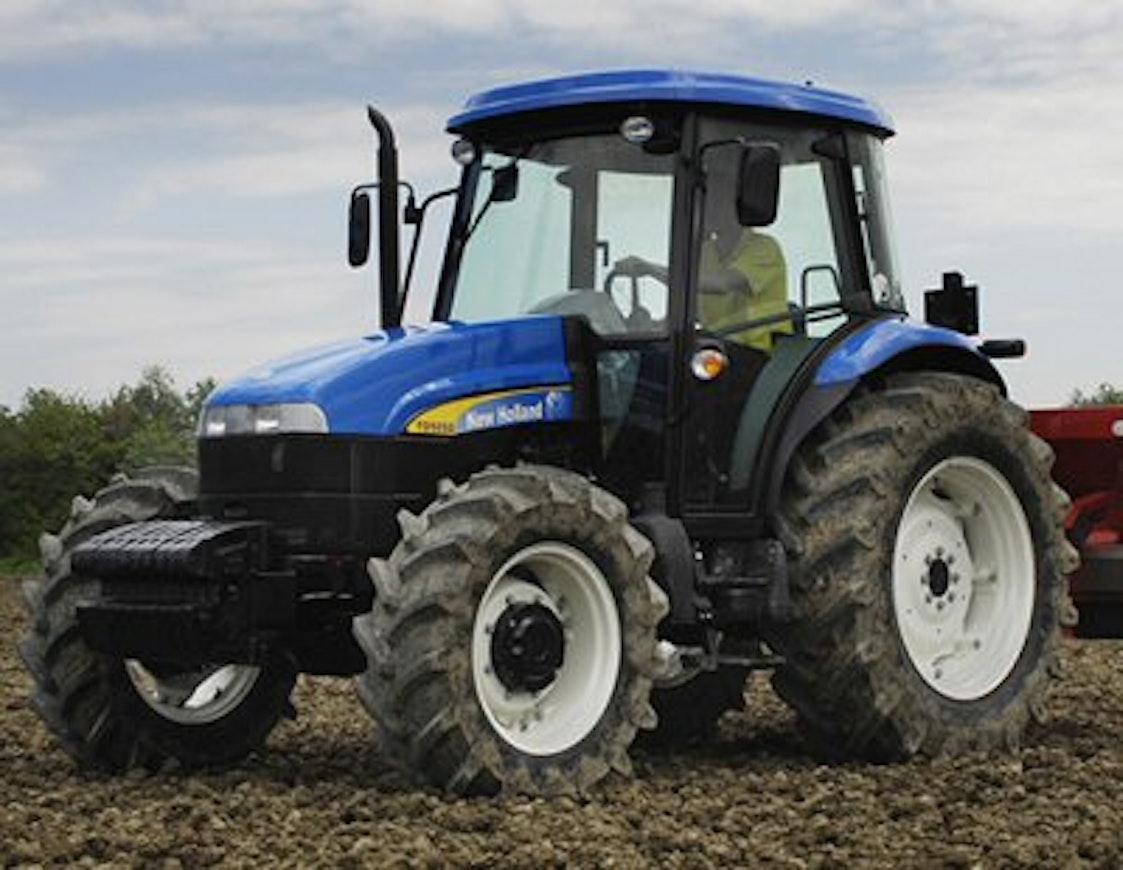

The New Holland TDD series was replaced by the TD5000 series in spring 2008, when the engines were upgraded to comply with Tier 3 standards. The appearance of the lineup was now already a couple of generations behind the rest of NH's product range. The exception in the somewhat outdated technology was the new 3.2- and 4.5-liter engines equipped with intercooling and a viscous fan. The lineup expanded downward with two lower-powered 3.2-liter models, but only the 4.5-liter models were imported to Finland. Also new was the high ground clearance TD5050 High Clearance model, which featured large diameter row-crop wheels at both ends.

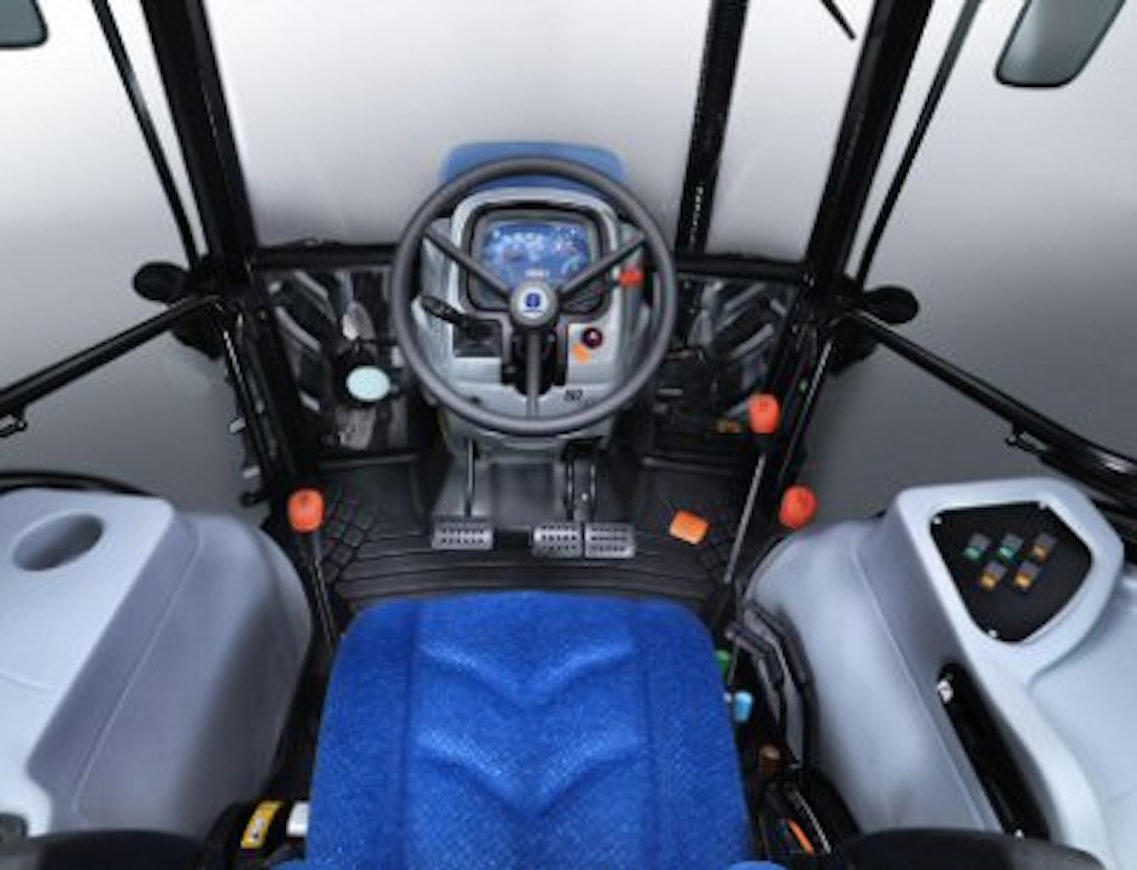

The transmissions of the models imported to Finland were 12+12 with a mechanical reverser, with the lever positioned to the left of the seat. The range shift was unsynchronized. Standard equipment in Finland included a live power take-off and three hydraulic valves. The four-wheel drive and power take-off switches were mechanical. An electric three-point hitch was available as an option. New in the cab were suspended pedals, but overall the cab was still Spartan. The front axle was new, and the turning radius was larger than before.
Alongside the TD5000 series, a simpler version TD60…TD95 was produced, featuring an open platform and Tier 2 compliant 2.9- and 3.9-liter engines.
This is an automated translation. Please report any issues in the translation.
| Model | New Holland TD5010 | New Holland TD5020 | New Holland TD5030 | New Holland TD5040 | New Holland TD5050 |
|---|---|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland | New Holland | New Holland |
| Imported to Finland | No | No | No | Yes | Yes |
| Years | 2009-12 | 2008-12 | 2008-12 | 2008-12 | 2008-12 |
| Engine model | F5C | F5C | F5C | NEF | NEF |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 3200 cm³ | 3200 cm³ | 3200 cm³ | 4485 cm³ | 4485 cm³ |
| Bore x stroke | 99×104 mm | 99×104 mm | 99×104 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | 12+4 | 12+4 | 12+4 | 12+12 | 12+12 |
| Synchronized gears | 12+4 | 12+4 | 12+4 | 12+12 | 12+12 |
| Reverser | opt. | opt. | opt. | mech. | mech. |
| Speeds in km/h | 1,8-30 | 1,8-30 | 1,8-30 | 2,2-36,6 | 2,2-36,6 |
| Max. speed | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h |
| Hydr. flow l/min | 45 (61) l/min | 45 (61) l/min | 45 (61) l/min | (45) 61 l/min | (45) 61 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) |
| Lift capacity | 3000 kg | 3000 kg | 3565 kg | 3565 kg | 3565 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750/ajo | 540/750/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.6 | 7.6 | 7.8 | 7.8 | 7.8 |
| Turning circle m 4WD | 9.8 | 9.8 | 10.2 | 10.2 | 10.2 |
| Front tyres 2WD | 6.50-16 | 7.50-16 | 7.50-16 | 7.50-18 | 7.50-18 |
| Front tyres 4WD | 11.2R20 | 9.5R24 | 11.2R24 | 13.6R24 | 13.6R24 |
| Rear tyres 2WD | 14.9R28 | 14.9R30 | 16.9R30 | 16.9R34 | 16.9R34 |
| Rear tyres 4WD | 14.9R28 | 14.9R30 | 16.9R30 | 16.9R34 | 16.9R34 |
| Weight 2WD | 3000 kg | 3000 kg | 3180 kg | 3300 kg | 3340 kg |
| Weight 4WD | 3440 kg | 3440 kg | 3620 kg | 3730 kg | 3780 kg |
| Height with cab | 253 cm | 253 cm | 258 cm | 260 cm | 260 cm |
| Length (2WD/4WD) | 413 cm | 413 cm | 413 cm | 421 cm | 423 cm |
| Wheelbase (2WD/4WD) | 227/223 cm | 227/223 cm | 228/223 cm | 237/231 cm | 237/233 cm |
| Fuel tank | 90 l | 90 l | 90 (118) l | 90 (118) l | 90 (118) l |
| Cab noise level | 80 dB | 80 dB | 81 dB | 83 dB | 80 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
