New Holland TJ280-530

Manufacturer
Models
New Holland TJ280, New Holland TJ330, New Holland TJ380, New Holland TJ430, New Holland TJ480, New Holland TJ530
Years
2005-2007
Info

In 2005, the TJ Series II models were introduced, which still competed with the Case IH STX Steiger tractors. The largest model now had a maximum power output of 584 hp. The engines in the two middle models had been replaced with 12.9-liter Iveco engines. All engines complied with Tier III standards, were electronically controlled, and had 24 valves. The 16+2-speed full powershift transmission featured a new AutoShift automation that automatically adjusted the gear and engine speed. The four smallest models were still available with a mechanical 24+6-speed gearbox.

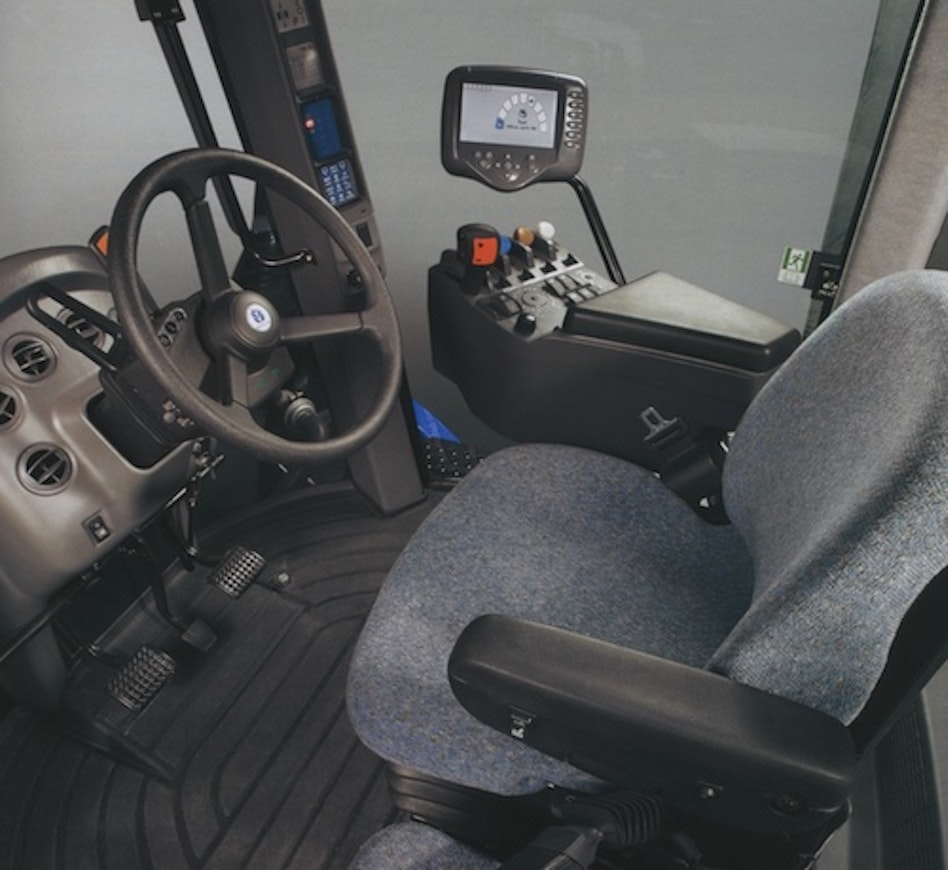

The hydraulic pump could be selected according to needs (151, 208, or 341 l/min). There were up to 9 hydraulic connectors available. The cab was similar to the previous model, and all instruments were centralized on the front pillar. As an optional accessory, various levels of IntelliSteer automatic steering systems could be obtained.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelNew Holland TJ280New Holland TJ330New Holland TJ380New Holland TJ430New Holland TJ480New Holland TJ530
Manufacturer nameNew HollandNew HollandNew HollandNew HollandNew HollandNew Holland
Imported to FinlandNoNoNoNoNoNo
Years2005-072005-072005-072005-072005-072005-07
Engine model6TAA-90046TAA-9004Cursor 13Cursor 13QSX15QSX15
Cyl/Turbo/Intercooler6TI6TI6TI6TI6TI6TI
Displacement8880 cm³8880 cm³12882 cm³12882 cm³14900 cm³14900 cm³
Bore x stroke114×144,5 mm114×144,5 mm135×150 mm135×150 mm137×169 mm137×169 mm
Rated power------
Max power------
Torque------
Gears24+6/16+224+6/16+224+6/16+224+6/16+216+216+2
Synchronized gears24+6/powershift24+6/powershift24+6/powershift24+6/powershiftpowershiftpowershift
Powershift gearshydr./powershift.hydr./powershift.hydr./powershift.hydr./powershift.powershift.powershift.
Reverser-/powershift-/powershift-/powershift-/powershiftpowershiftpowershift
Speeds in km/h3,7-353,7-353,7-353,7-353,7-353,7-35
Hydr. flow l/min151 (208/284) l/min151 (208/340) l/min151 (208/340) l/min151 (208/340) l/min151 (208/340) l/min159 (216/356) l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar200 bar
Lift controlselec.elec.elec.elec.elec.elec.
Lift capacity7107 kg7107 kg8900 kg8900 kg8900 kg8900 kg
PTO speeds100010001000100010001000
Brakeswet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD9.29.210,2/11,410,2/11,410,2/11,410,2/11,4
Front tyres 4WD18.4R3818.4R3820.8R4220.8R4220.8R4220.8R42
Rear tyres 4WD18.4R3818.4R3820.8R4220.8R4220.8R4220.8R42
Weight 4WD17692 kg17692 kg20684 kg23405 kg24494 kg24494 kg
Height with cab361 cm361 cm382 cm382 cm382 cm382 cm
Length (2WD/4WD)701 cm701 cm756 cm756 cm756 cm756 cm
Wheelbase (2WD/4WD)353 cm353 cm391 cm391 cm391 cm391 cm
Fuel tank758 l758 l1136 l1136 l1136 l1136 l
Cab noise level75 dB75 dB75 dB75 dB75 dB75 dB
Solid cabxxxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogs
Air suspension seatxxxxxx
Air conditioningxxxxxx
Trip computerxxxxxx
