New Holland TN60DA – TN95SA

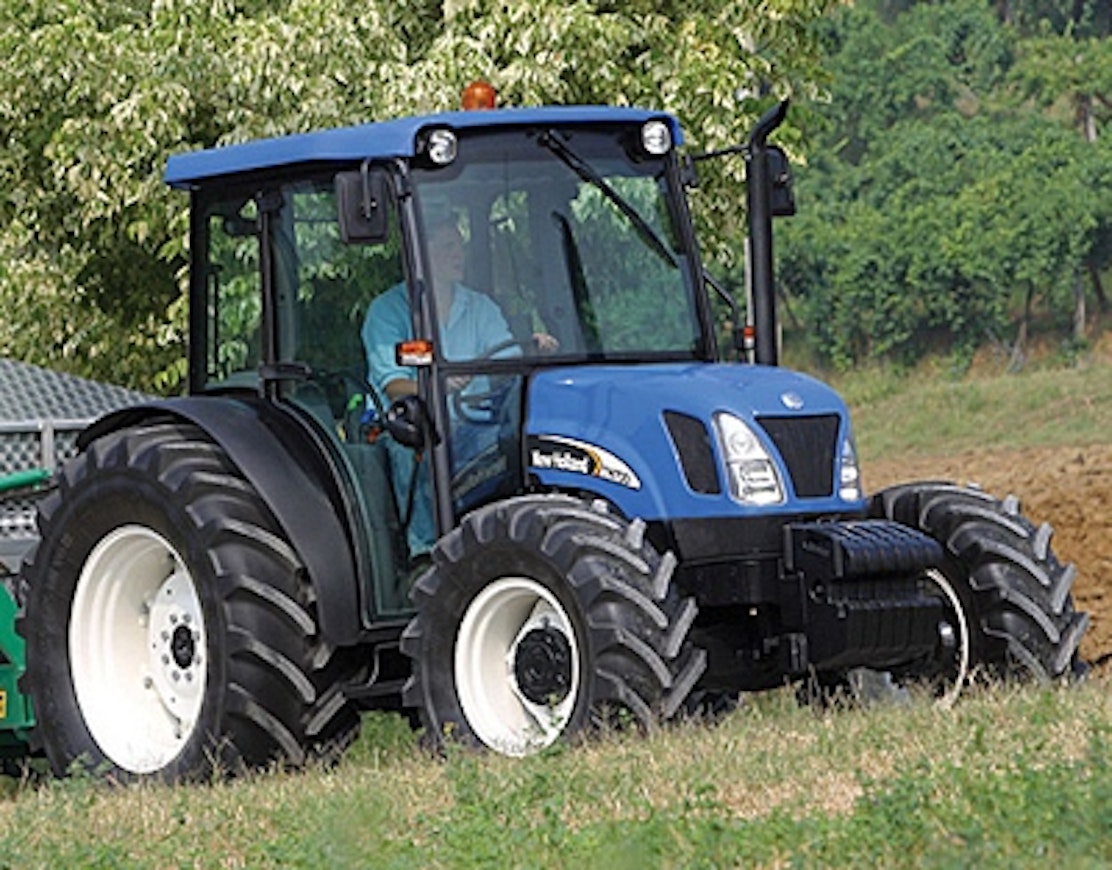

04NHTNDA

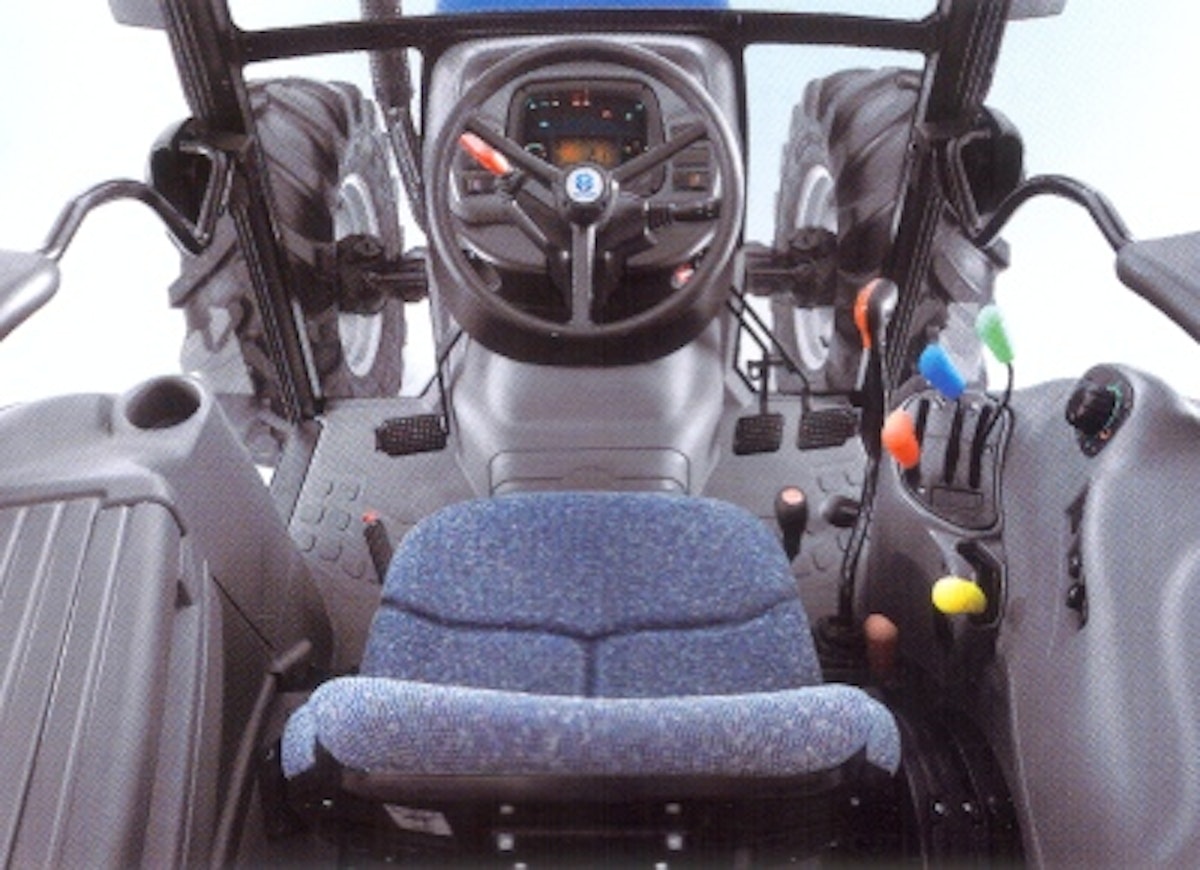

04NHTNDAohjaamo
04NHTNDA
04NHTNDAohjaamo
Manufacturer
Models
New Holland TN60DA, New Holland TN70DA, New Holland TN75DA, New Holland TN85DA, New Holland TN95DA, New Holland TN60SA, New Holland TN70SA, New Holland TN75SA, New Holland TN85SA
Years
2003-08
Info

Here’s the English translation of your text:


For the year 2004, the New Holland TN series received a facelift. The technical aspects remained almost entirely unchanged. The engines, adapted to new emission regulations, were 3-cylinder Ivecos, and the basic transmission had 16+16 gears. As an option, a mechanical or hydraulic power shuttle was available, increasing the number of gears to 32+16. The Dual Command version also featured an electro-hydraulic power reverser. The PTO clutch was changed to a servo-assisted type. There are considerable differences in standard equipment between different years and countries. For example, the 64 l/min hydraulic pump, ground speed PTO, and 1000 rpm PTO were either standard or optional equipment. Only TN75 models were imported to Finland. The TNSA model had a swiveling Super Steer front axle and automatically engaging four-wheel drive based on more than 5% wheel slip.

In 2005, 4-cylinder models TN85 and TN95 were introduced, of which the more powerful version was not available with the Super Steer front axle. These models were powered by a new 4.5-liter EEA NEF engine. Unlike the rest of the range, the TN95DA featured a 12+12 transmission (24+12 with the power shuttle).


This is an automated translation. Please report any issues in the translation.

Technical data
ModelNew Holland TN60DANew Holland TN70DANew Holland TN75DANew Holland TN85DANew Holland TN95DANew Holland TN60SANew Holland TN70SANew Holland TN75SANew Holland TN85SA
Manufacturer nameNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew Holland
Imported to FinlandNoNoYesNoNoNoNoYesNo
Years2003-082003-082003-082005-082005-082003-082003-082003-082005-08
Engine model8035.058035.458035.25NEFNEF8035.058035.458035.25NEF
Cyl/Turbo/Intercooler33T3T44T33T3T4
Displacement2930 cm³2930 cm³2930 cm³4485 cm³4485 cm³2930 cm³2930 cm³2930 cm³4485 cm³
Bore x stroke104×115 mm104×115 mm104×115 mm104×132 mm104×132 mm104×115 mm104×115 mm104×115 mm104×132 mm
Rated power55/2300 hp DIN/rpm68/2300 hp DIN/rpm72/2300 hp DIN/rpm--55/2300 hp DIN/rpm68/2300 hp DIN/rpm72/2300 hp DIN/rpm-
Torque---------
Gears16+1616+1616+1616+1612+1216+1616+1632+1632+16
Synchronized gears16+1616+1616+1616+1612+1216+1616+1632+1632+16
Powershift gearsopt.opt.opt.opt.opt.opt.opt.hydr.hydr.
Reversermech. (hydr.)mech. (hydr.)mech. (hydr.)mech. (hydr.)mech. (hydr.)mech. (hydr.)mech. (hydr.)hydr.hydr.
Speeds in km/h0,8-39,20,8-39,20,8-39,20,8-39,20,8-39,20,8-39,20,8-39,20,6-39,20,6-39,2
Hydr. flow l/min47 (64) l/min47 (64) l/min64 l/min64 l/min64 l/min47 (64) l/min64 l/min64 l/min64 l/min
Hydraulic pressure190 bar190 bar190 bar190 bar190 bar190 bar190 bar190 bar190 bar
Lift controlsmech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)
Lift capacity2670 kg2670 kg2670 kg2670 kg2670 kg2670 kg2670 kg2670 kg2670 kg
PTO speeds540/750540/750540/750/ 1000540/750/ 1000540/750/ 1000540/750540/750540/750/ 1000/ajo540/750/ 1000/ajo
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD7.267.267.26------
Turning circle m 4WD7.67.67.67.97.96.36.36.36.4
Front tyres 4WD335/80R18405/70R2011.2R24405/70R20405/70R20380/70R20380/70R2011.2R24380/70R20
Rear tyres 4WD480/70R28540/65R3016.9R30540/65R30540/65R30480/70R30480/70R3016.9R30480/70R30
Weight 2WD2535 kg2585 kg2585 kg------
Weight 4WD2845 kg2855 kg2855 kg3050 kg3050 kg2890 kg2890 kg2890 kg3250 kg
Height with cab234 cm234 cm234 cm234 cm234 cm234 cm234 cm237 cm237 cm
Length (2WD/4WD)366 cm366 cm366 cm378 cm378 cm430 cm430 cm430 cm442 cm
Wheelbase (2WD/4WD)213/207 cm213/207 cm213/207 cm226/219 cm219 cm238 cm238 cm238 cm250 cm
Fuel tank75 l75 l75 l90 l90 l75 l75 l75 l90 l
Cab noise level78 dB78 dB79 dB78 dB78 dB78 dB78 dB79 dB78 dB
Solid cabxxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.opt.
